Using form with label and text box controls from XML data

Question

Now that I have known to populate a Data Grid View control using XML data, how would I use a form

with label and text box controls from XML data? For example, a child node represents a label and a sub-child node represents a text box with data.

An example would be like this XML code snippet.

The EmployeeLastName and EmployeeFirstName would represent the labels, while its data would represent

within the text boxes.

<Employees>
	</Employee>
    	<EmployeeLastName>Doe</EmployeeLastName>
		<EmployeeFirstName>Jane</EmployeeFirstName>
	</Employee>
</Employees>

Answer 1

Hi @John , Welcome to Microsoft Q&A,

In fact, if you use this kind of XML, you don't need to use XMLSerializer.

Because XMLSerializer is typically used to serialize and deserialize objects, rather than populating XML data directly into controls.

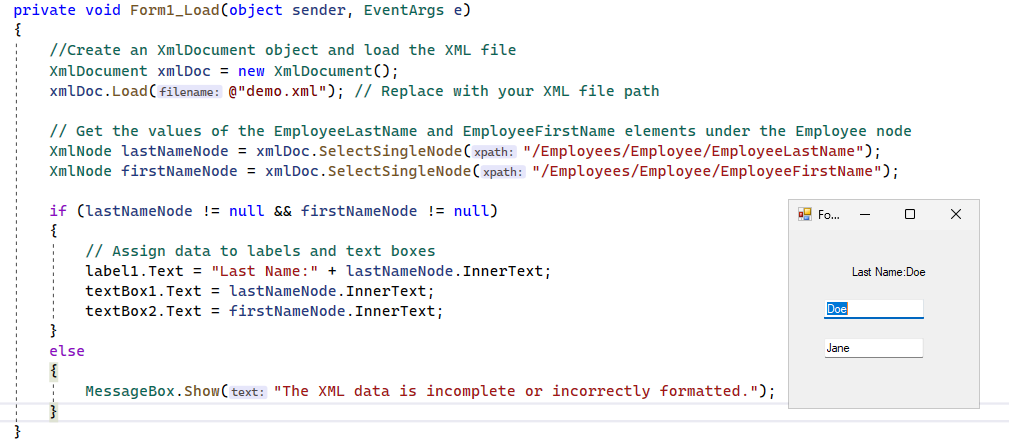

You can use XmlDocument to parse the XML and populate the data into the control.

Such as：

private void Form1_Load(object sender, EventArgs e)
{
    //Create an XmlDocument object and load the XML file
    XmlDocument xmlDoc = new XmlDocument();
    xmlDoc.Load(@"demo.xml"); // Replace with your XML file path

    // Get the values of the EmployeeLastName and EmployeeFirstName elements under the Employee node
    XmlNode lastNameNode = xmlDoc.SelectSingleNode("/Employees/Employee/EmployeeLastName");
    XmlNode firstNameNode = xmlDoc.SelectSingleNode("/Employees/Employee/EmployeeFirstName");

    if (lastNameNode != null && firstNameNode != null)
    {
        // Assign data to labels and text boxes
        label1.Text = "Last Name:" + lastNameNode.InnerText;
        textBox1.Text = lastNameNode.InnerText;
        textBox2.Text = firstNameNode.InnerText;
    }
    else
    {
        MessageBox.Show("The XML data is incomplete or incorrectly formatted.");
    }
}

Using XmlDocument is more flexible and can also control xml well (directly manipulate XML documents, such as adding, deleting or modifying nodes). And it doesn't require defining a model. But it does not support automatic serialization and deserialization and requires manual parsing.

If you are dealing with XML data that closely matches the C# model and only require simple serialization and deserialization operations, then XmlSerializer may be more suitable.

Best Regards,

Jiale

---
