Three material Design TextBoxes inside one MaterialDesignFloatingHintTexbox in WPF

Mesh Ka 345

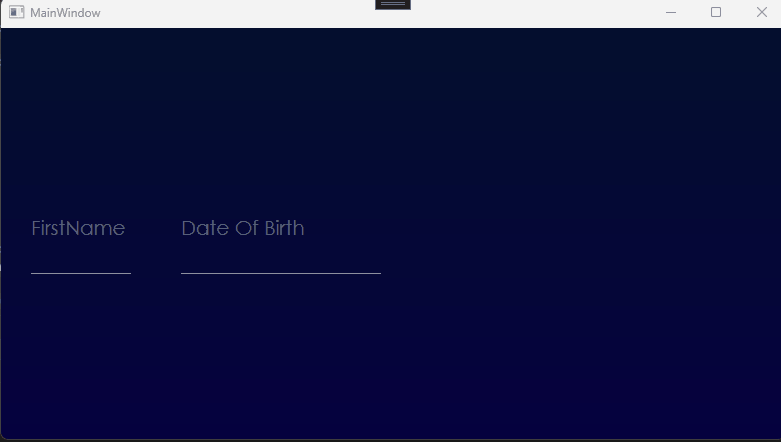

I have a MaterialDesignFloatingHintTextBox which displays a "Date of Birth" hint to my users when it is empty.

Screenshot 2023-10-01 001000

Here is what I want to implement: the TextBox to display three TextBoxes to the user when clicked in like this, so that my users enter the date part they know:

Screenshot 2023-10-01 000941

This is because my Users sometimes only know some parts of the date such as Year and Month Only, That was why i didn't use the DatePicker. The other thing that became hard to implement was the TextBox to display to the Use the date as following When it has a value:

WHEN THE USER PROVIDES A FULL DATE:

Screenshot 2023-10-01 002421

WHEN USER KNOWS MONTH AND YEAR ONLY:

Screenshot 2023-10-01 002429

WHEN THE USER PROVIDES ONLY THE YEAR:

Screenshot 2023-10-01 002436

Here is what I tried.

XAML:

<Window x:Class="DateTextBoxApp.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:DateTextBoxApp"
        xmlns:materialdesign="http://materialdesigninxaml.net/winfx/xaml/themes"
        mc:Ignorable="d"
        Title="MainWindow" Height="450" Width="800">
    <Window.Resources>
        <ResourceDictionary>
            <ResourceDictionary.MergedDictionaries>
                <ResourceDictionary Source="pack://application:,,,/MaterialDesignThemes.Wpf;component/Themes/MaterialDesignTheme.Dark.xaml"/>
                <ResourceDictionary Source="pack://application:,,,/MaterialDesignThemes.Wpf;component/Themes/MaterialDesignTheme.Defaults.xaml"/>
                <ResourceDictionary Source="pack://application:,,,/MaterialDesignColors;component/Themes/Recommended/Primary/MaterialDesignColor.Green.xaml"/>
                <ResourceDictionary Source="pack://application:,,,/MaterialDesignColors;component/Themes/Recommended/Accent/MaterialDesignColor.Lime.xaml"/>
            </ResourceDictionary.MergedDictionaries>
            <Style x:Key="NameTextBox" TargetType="TextBox" BasedOn="{StaticResource MaterialDesignFloatingHintTextBox}">
                <Setter Property="materialdesign:HintAssist.HintOpacity" Value="0.35"/>
                <Setter Property="materialdesign:ColorZoneAssist.Mode" Value="Dark"/>
                <Setter Property="materialdesign:HintAssist.HintOpacity" Value="0.35"/>
                <Setter Property="materialdesign:HintAssist.FontFamily" Value="Century Gothic"/>
                <Setter Property="Foreground" Value="AliceBlue"/>
                <Setter Property="FontSize" Value="20"/>
            </Style>
            <Style x:Key="DateTextBox" TargetType="TextBox" BasedOn="{StaticResource MaterialDesignFloatingHintTextBox}">
                <Setter Property="materialdesign:HintAssist.HintOpacity" Value="0.35"/>
                <Setter Property="materialdesign:ColorZoneAssist.Mode" Value="Dark"/>
                <Setter Property="materialdesign:HintAssist.HintOpacity" Value="0.35"/>
                <Setter Property="materialdesign:HintAssist.FontFamily" Value="Century Gothic"/>
                <Setter Property="Foreground" Value="AliceBlue"/>
                <Setter Property="FontSize" Value="20"/>
                <Style.Triggers>
                    <Trigger Property="IsKeyboardFocused" Value="True">
                        <Setter Property="Template">
                            <Setter.Value>
                                <ControlTemplate TargetType="TextBox">
                                    <Grid>
                                        <Grid.ColumnDefinitions>
                                           <ColumnDefinition Width="*"/>
                                            <ColumnDefinition Width="*"/>
                                            <ColumnDefinition Width="*"/>
                                        </Grid.ColumnDefinitions>
                                        <TextBox x:Name="DayTextBox" Grid.Column="0" Text="{Binding Date, StringFormat='dd'}" TextAlignment="Center" Width="80"
                                                 materialdesign:HintAssist.Hint="Day" Style="{StaticResource MaterialDesignFloatingHintTextBox}"/>
                                        <TextBox x:Name="MonthTextBox"  Grid.Column="1" Text="{Binding Date, StringFormat='MM'}" TextAlignment="Center" Width="80"
                                                 materialdesign:HintAssist.Hint="Month" Style="{StaticResource MaterialDesignFloatingHintTextBox}"/>
                                        <TextBox x:Name="YearTextBox"  Grid.Column="2" Text="{Binding Date, StringFormat='yyyy'}" TextAlignment="Center"  Width="160"
                                                 materialdesign:HintAssist.Hint="Year" Style="{StaticResource MaterialDesignFloatingHintTextBox}"/>
                                    </Grid>
                                        <!-- Set the keyboard focus to the DayTextBox -->
                                        <ControlTemplate.Triggers>
                                            <Trigger Property="IsKeyboardFocused" Value="True">
                                                <Setter Property="FocusManager.FocusedElement" Value="{Binding ElementName=DayTextBox}" />
                                            </Trigger>
                                        </ControlTemplate.Triggers>
                                    </ControlTemplate>
                                </Setter.Value>
                            </Setter>
                        </Trigger>
                    </Style.Triggers>
                </Style>
        </ResourceDictionary>
    </Window.Resources>

    <Grid>
        <Grid.Background>
            <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
                <GradientStop Color="#FF06013F" Offset="1"/>
                <GradientStop Color="#FF040F2E"/>
            </LinearGradientBrush>
        </Grid.Background>
        <StackPanel Margin="30" Orientation="Horizontal" Height="80">
            <TextBox Style="{StaticResource NameTextBox}" Width="100" materialdesign:HintAssist.Hint="FirstName" Margin="0 0 50 0"/>
            <TextBox Style="{StaticResource DateTextBox}" Text="{Binding DOB}" Width="200" materialdesign:HintAssist.Hint="Date Of Birth"/>
        </StackPanel>
    </Grid>
</Window>

But the problem is that the Textboxes don't accept Inputs, Why? and How can I achieve this?

Animation

Hui Liu-MSFT 41,146 Reputation points Microsoft Vendor

2023-10-02T09:23:59.7433333+00:00

Hi,@Mesh Ka. Welcome Microsoft Q&A. The code seems to have not been added successfully. Could you re-edit the question and add code that reproduces the problem so I can analyze it?
Mesh Ka 345 Reputation points

2023-10-02T10:24:19.59+00:00

Hi , Thanks for the Correction. I have updated the XAML Codes

Accepted answer

gekka 6,931 MVP

<Window x:Class="WpfApp1.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp1"
        xmlns:materialdesign="http://materialdesigninxaml.net/winfx/xaml/themes"
        mc:Ignorable="d"
        Title="MainWindow" Height="450" Width="800">
    <Window.Resources>
        <ResourceDictionary>
            <ResourceDictionary.MergedDictionaries>
                <ResourceDictionary Source="pack://application:,,,/MaterialDesignThemes.Wpf;component/Themes/MaterialDesignTheme.Dark.xaml"/>
                <ResourceDictionary Source="pack://application:,,,/MaterialDesignThemes.Wpf;component/Themes/MaterialDesignTheme.Defaults.xaml"/>
                <ResourceDictionary Source="pack://application:,,,/MaterialDesignColors;component/Themes/Recommended/Primary/MaterialDesignColor.Green.xaml"/>
                <ResourceDictionary Source="pack://application:,,,/MaterialDesignColors;component/Themes/Recommended/Accent/MaterialDesignColor.Lime.xaml"/>
            </ResourceDictionary.MergedDictionaries>

            <Style x:Key="NameTextBox" TargetType="TextBox" BasedOn="{StaticResource MaterialDesignFloatingHintTextBox}">
                <Setter Property="materialdesign:HintAssist.HintOpacity" Value="0.35"/>
                <Setter Property="materialdesign:ColorZoneAssist.Mode" Value="Dark"/>
                <Setter Property="materialdesign:HintAssist.HintOpacity" Value="0.35"/>
                <Setter Property="materialdesign:HintAssist.FontFamily" Value="Century Gothic"/>
                <Setter Property="Foreground" Value="AliceBlue"/>
                <Setter Property="FontSize" Value="20"/>
            </Style>



            <ControlTemplate x:Key="DateTextBoxTemplate" TargetType="ContentControl">
                <Grid DataContext="{TemplateBinding Content}" >
                    <Grid.ColumnDefinitions>
                        <ColumnDefinition Width="80"/>
                        <ColumnDefinition Width="80"/>
                        <ColumnDefinition Width="80"/>
                    </Grid.ColumnDefinitions>

                    <TextBox x:Name="dummyTextBox" Grid.Column="0"   TextAlignment="Center" HorizontalAlignment="Stretch" Grid.ColumnSpan="3"
                             materialdesign:HintAssist.Hint="{Binding Path=(materialdesign:HintAssist.Hint),RelativeSource={RelativeSource Mode=TemplatedParent}}"
                             materialdesign:HintAssist.FloatingHintHorizontalAlignment="Right"
                             materialdesign:HintAssist.FloatingOffset="0,-30"
                             Style="{DynamicResource MaterialDesignFloatingHintTextBox}"
                             IsTabStop="False" IsHitTestVisible="False"
                             IsReadOnly="True" >
                    </TextBox>

                    <TextBox x:Name="DayTextBox" Grid.Column="0" Text="{Binding Day}" TextAlignment="Center" HorizontalAlignment="Stretch"
                                         materialdesign:HintAssist.Hint="Day" Style="{DynamicResource MaterialDesignFloatingHintTextBox}"
                                         TabIndex="0" Grid.ColumnSpan="3"
                                         Opacity="0.001"/>

                    <TextBox x:Name="MonthTextBox"  Grid.Column="1" Text="{Binding Month}" TextAlignment="Center" HorizontalAlignment="Stretch"
                                         materialdesign:HintAssist.Hint="Month" Style="{DynamicResource  MaterialDesignFloatingHintTextBox}"
                                         TabIndex="1" Visibility="Collapsed"/>

                    <TextBox x:Name="YearTextBox"  Grid.Column="2" Grid.Row="1" Text="{Binding Year}" TextAlignment="Center"  HorizontalAlignment="Stretch"
                                         materialdesign:HintAssist.Hint="Year" Style="{DynamicResource  MaterialDesignFloatingHintTextBox}"
                                         TabIndex="2" Visibility="Collapsed"/>
                </Grid>

                <ControlTemplate.Triggers>

                    <Trigger Property="IsKeyboardFocusWithin" Value="True">
                        <Setter TargetName="DayTextBox" Property="Opacity" Value="1"/>
                        <Setter TargetName="DayTextBox" Property="Grid.ColumnSpan" Value="1"/>


                        <Setter TargetName="MonthTextBox" Property="Visibility" Value="Visible"/>

                        <Setter TargetName="YearTextBox" Property="Visibility" Value="Visible"/>

                        <Setter TargetName="dummyTextBox" Property="Text" Value=" "/>
                    </Trigger>
                    <Trigger Property="IsKeyboardFocusWithin" Value="false">
                        <Setter TargetName="dummyTextBox" Property="Text" Value="{Binding Path=FormatText}"/>
                    </Trigger>

                </ControlTemplate.Triggers>
            </ControlTemplate>

            <Style x:Key="DateTextBox" TargetType="ContentControl" >
                <Setter Property="materialdesign:HintAssist.HintOpacity" Value="0.35"/>
                <Setter Property="materialdesign:ColorZoneAssist.Mode" Value="Dark"/>
                <Setter Property="materialdesign:HintAssist.HintOpacity" Value="0.35"/>
                <Setter Property="materialdesign:HintAssist.FontFamily" Value="Century Gothic"/>
                <Setter Property="Foreground" Value="AliceBlue"/>
                <Setter Property="FontSize" Value="20"/>

                <Setter Property="IsTabStop" Value="False" />

                <Setter Property="Template" Value="{StaticResource DateTextBoxTemplate}"/>

            </Style>
        </ResourceDictionary>
    </Window.Resources>

    <Grid>
        <Grid.Background>
            <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
                <GradientStop Color="#FF06013F" Offset="1"/>
                <GradientStop Color="#FF040F2E"/>
            </LinearGradientBrush>
        </Grid.Background>
        <StackPanel Margin="30" Orientation="Horizontal" Height="80">
            <TextBox Style="{StaticResource NameTextBox}" Width="100" materialdesign:HintAssist.Hint="FirstName" Margin="0 0 50 0"
                     VerticalAlignment="Bottom"/>
            <ContentControl Style="{StaticResource DateTextBox}" materialdesign:HintAssist.Hint="Date Of Birth"
                            VerticalAlignment="Bottom"
                            Content="{Binding Path=DOB}" />
        </StackPanel>
    </Grid>
</Window>

namespace WpfApp1
{
    using System;
    using System.ComponentModel;
    using System.Globalization;
    using System.Windows;

    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
            this.DataContext = new TestModel();
        }
    }

    class TestModel : ModelBase
    {
        public DateVM DOB { get; } = new DateVM();
    }

    class DateVM : ModelBase
    {
        private string _Year;
        private string _Month;
        private string _Day;

        public string Year
        {
            get => _Year;
            set
            {
                _Year = value;
                OnChange();
                OnPropertyChanged();

            }
        }

        public string Month
        {
            get => _Month;
            set
            {
                _Month = value;
                OnChange();
                OnPropertyChanged();
            }
        }

        public string Day
        {
            get => _Day;
            set
            {
                _Day = value;
                OnChange();
                OnPropertyChanged();
            }
        }

        private void OnChange()
        {
            bool has_y = !string.IsNullOrWhiteSpace(Year);
            bool has_m = !string.IsNullOrWhiteSpace(Month);
            bool has_d = !string.IsNullOrWhiteSpace(Day);
            if (has_y && has_m && has_d)
            {
                FormatText = $"{ Day} / {Month} / {Year}";
            }
            else if (has_y && has_m && !has_d)
            {
                FormatText = $"{Month} / {Year}";
            }
            else if (has_y && !has_m && !has_d)
            {
                FormatText = $"{Year}";
            }
            else
            {
                FormatText = null;
            }
        }

        public string FormatText
        {
            get => _FormatText;
            set
            {
                _FormatText = value;
                OnPropertyChanged();
            }
        }
        private string _FormatText;
    }



    class ModelBase : System.ComponentModel.INotifyPropertyChanged
    {
        public event PropertyChangedEventHandler PropertyChanged;

        protected void OnPropertyChanged([System.Runtime.CompilerServices.CallerMemberName] string name = "")
        {
            PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(name));
        }
    }

}

Mesh Ka 345 Reputation points

2023-10-03T03:29:30.38+00:00

Hi @gekka , Thanks for the Answer. But how can i put the alignment of the three textboxes down like when it doesn't have Inputfocus as shown in the animation below?

NB: I added "materialdesign:HintAssist.IsFloating="False"/>" at the end of the three textboxes.
gekka 6,931 Reputation points MVP

2023-10-03T10:05:39.6766667+00:00
@Mesh Ka,

<TextBox materialdesign:HintAssist.IsFloating="False" VerticalAlignment="Bottom"
Mesh Ka 345 Reputation points

2023-10-04T03:14:48.99+00:00
Hi @gekka , Thanks alot for the response. Everything works nice but how Can i store a NvarChar from SQL Server into this Textbox. I created it like this but it keeps throwing InvalidCastException (error Converting String to DateVM Type). I think i am missing some Converter. I am Using Dapper to Load Data into the Model and Here is how i did it in the Model Class:

class TestModel : ModelBase { private DateVM _DOB { get; set; } = new DateVM(); public DateVM DOB { get { return _DOB; } set { if(value != _DOB) { DOB = value; OnPropertyChanged(); } } } } ```
Mesh Ka 345 Reputation points

2023-10-05T04:01:52.3533333+00:00

Hi @gekka , Waiting for your Comment
gekka 6,931 Reputation points MVP

2023-10-06T10:34:47.9266667+00:00

@Mesh Ka,

Guidelines for posting a quality question on Microsoft Q&A
Mesh Ka 345 Reputation points

2023-10-06T11:11:03.93+00:00

@gekka , OK, Thanks for the Correction, I am New to Mirosoft Q&A. I will Post the that in a New Thread Check it Out.
