How to authenticate users with Entra ID OAuth2.0 flow in a React Native App

Question

Hello,

I am trying to authenticate users using OAuth2.0 in a cross-platform React Native (expo) app by using Entra ID's app registration feature. In the future I hope to have the app access data in an Azure SQL database, but I need to authenticate users first. I am very new to backend development and Azure services.

I have configured the app registration as a 'Mobile and Desktop App' using the URI [http://localhost:8081/auth]

So far I can get an authorization code, but I can not exchange it for an access token.

Here is the relevant code in my app:

const [discovery, $discovery]: any = useState({});
  const [authRequest, $authRequest]: any = useState({});
  const [authorizeResult, $authorizeResult]: any = useState({});
  const scopes = ["openid", "profile", "email", "offline_access"];
  const domain = `https://login.microsoftonline.com/${ADConfig.directoryTenantID}/v2.0`;
  const redirectUrl = AuthSession.makeRedirectUri({ path: "auth" });

  const getSession = async () => {
    const d = await AuthSession.fetchDiscoveryAsync(domain);

    const authRequestOptions: AuthSession.AuthRequestConfig = {
      prompt: AuthSession.Prompt.Login,
      responseType: AuthSession.ResponseType.Code,
      scopes: scopes,
      usePKCE: true,
      clientId: ADConfig.applicationClientID,
      //clientSecret: ADConfig.secretValue,
      redirectUri: __DEV__ ? redirectUrl : redirectUrl + "example",
      state: ADConfig.state,
    };
    const authRequest = new AuthSession.AuthRequest(authRequestOptions);
    $authRequest(authRequest);
    $discovery(d);
  };

  const getCodeExchange = async () => {
    const tokenResult = await AuthSession.exchangeCodeAsync(
      {
        code: authorizeResult.params.code,
        clientId: ADConfig.applicationClientID,
        redirectUri: __DEV__ ? redirectUrl : redirectUrl + "example",

        extraParams: {
          code_verifier: authRequest.codeVerifier || "",
          grant_type: "authorization_code",
          //client_secret: ADConfig.secretValue,
        },
      },
      discovery
    );
    const { accessToken, refreshToken, issuedAt, expiresIn } = tokenResult;

    console.log(accessToken, refreshToken, issuedAt, expiresIn);
  };

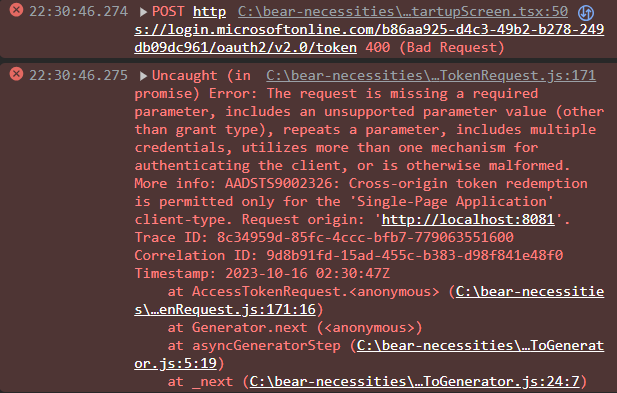

The following error is thrown when trying to get an access token

I'm not trying to make a SPA, but I guess this flow is for SPAs? I can't find what I should change to authenticate for a public client like a mobile/cross-platform app.

Any guidance would be appreciated! I get the feeling I may be on the wrong path entirely

I found the Entra ID React Native example to be unhelpful because react-native-app-auth is not expo compatible. I am using expo-auth-session like this example

Answer 1

Hi @Young, Charles , thanks for reaching us.

I Understand you are trying to authenticate users using OAuth2.0 in a cross-platform React Native (expo) app by using Entra ID's app registration feature. You have configured the app registration as a 'Mobile and Desktop App' using the URI [http://localhost:8081/auth]. you can get an authorization code, but you cannot exchange it for an access token.

Authorization code flow is a protocol that enables a client application to obtain authorized access to protected resources like web APIs. The auth code flow requires a user-agent that supports redirection from the authorization server back to your application, PKCE adds an additional layer of security to the authorization code flow by requiring the client to generate a code challenge and a code verifier which aims to prevent interception attacks on public clients as they do not have a secret which means they do not have a real way of authenticating themselves.

You have configured the app registration as a 'Mobile and Desktop App' platform for this PKCE is not required it is recommended. Other hand PKCE is required for Single-Page-Application (SPA)

Yes, you are using SPA flow code, but you didn't mention PKCE parameters in your code: code_verifier & code_challengemethod. These two parameters are required when you set usePKCE as true.

For your reference: https://learn.microsoft.com/en-us/azure/active-directory/develop/v2-oauth2-auth-code-flow

As you mention you are not trying to make SPA, could you confirm why you are not making SPA?

If you want to authenticate for a public client like a mobile/cross-platform app PKCE is recommended as they have less security.
