How to assign an ASGs in different regions with the same name using AZ CLI

Question

We are using terraform modules to synchronize ASGs, using the same ASG name, across multiple regions. I am trying to use the AZ CLI command to add the ASG to a host in the eastus region. There are currently two asgs with the same name xxx-asg in eastus and centralus.

When running the command:

az network nic ip-config update --name ipconfig --nic-name AVDNAME --resource-group AVDRG --application-security-groups XXX-ASG

I receive the following error:

(InvalidResourceReference) Resource /subscriptions/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx/resourceGroups/AVDRG/providers/Microsoft.Network/applicationSecurityGroups/XXX-ASG referenced by resource /subscriptions/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx/resourceGroups/AVDRG/providers/Microsoft.Network/networkInterfaces/AVDNAME-nic was not found. Please make sure that the referenced resource exists, and that both resources are in the same region.

Code: InvalidResourceReference

My question is: Is there a way to reference the ASG's ResourceGroup, or Region when assigning the ASG to the NIC so we can continue to use the same ASG names in different regions?

Thank you

Sean

Answer 1

Hello @Harris, Sean ,

I understand that you would like to know if there is a way to reference the ASG's Resource Group or Region when assigning the ASG to the NIC so that you can continue to use the same ASG names in different regions.

Yes, you can achieve this via Azure CLI, but you need to keep a few things in mind as below:

You can add NICs only to application security groups in the same virtual network and location as the NIC.

All network interfaces assigned to an application security group have to exist in the same virtual network that the first network interface assigned to the application security group is in.

https://learn.microsoft.com/en-us/azure/virtual-network/virtual-network-network-interface?tabs=azure-cli#add-or-remove-from-application-security-groups

https://learn.microsoft.com/en-us/azure/virtual-network/application-security-groups#allow-database-businesslogic

So, make sure that the ASG and the NIC to which you are assigning the ASG are both in the same region. They can be in different resource groups, but they should be in same region.

To add an ASG to a NIC via Azure CLI where both ASG and NIC are in same region but different resource groups, you can use the below commands:

#Put the ASG into a variable as below using the ASG resource ID which you would like to associate to the NIC:

asg=/subscriptions/xxxxxxxxxxxxxxx/resourceGroups/eastusrg1/providers/Microsoft.Network/applicationSecurityGroups/myasg

#Use the above ASG variable in the NIC update command to associate it:

az network nic ip-config update --name ipconfig1 --nic-name myvm909 --resource-group eastusrg --application-security-groups $asg

I confirmed this in my lab as below:

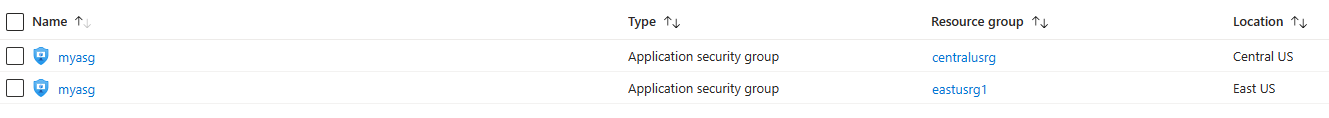

I have 2 ASGs in 2 different regions with the same name:

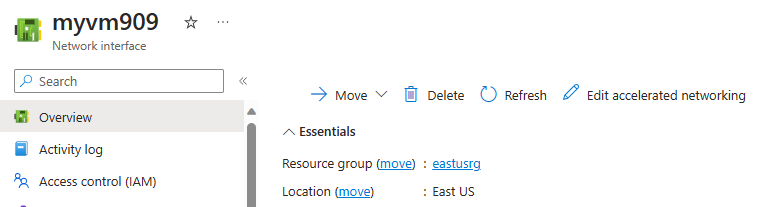

My NIC is in EastUS region but in a different resource group from the ASGs as below:

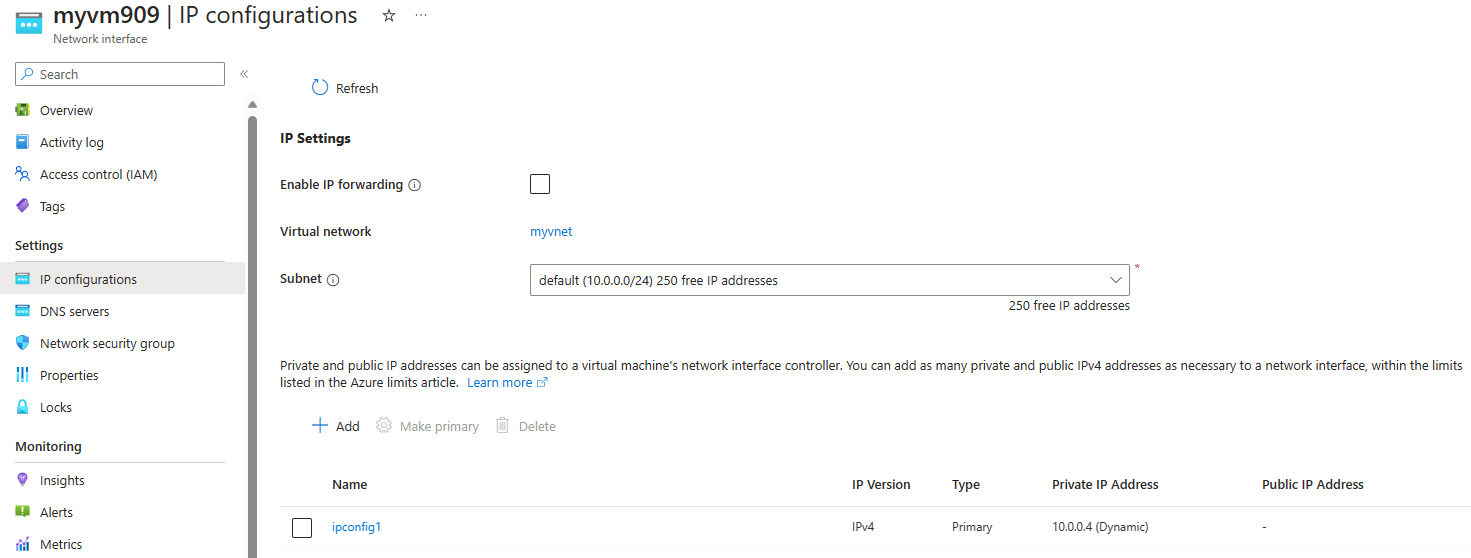

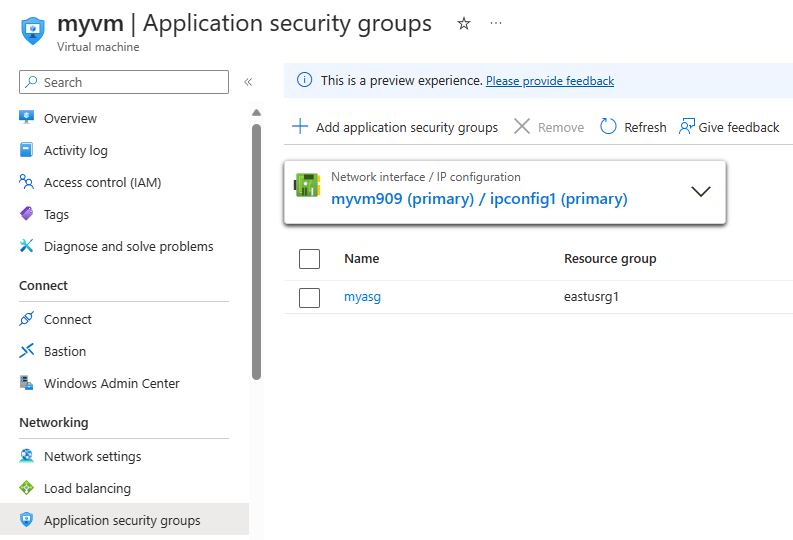

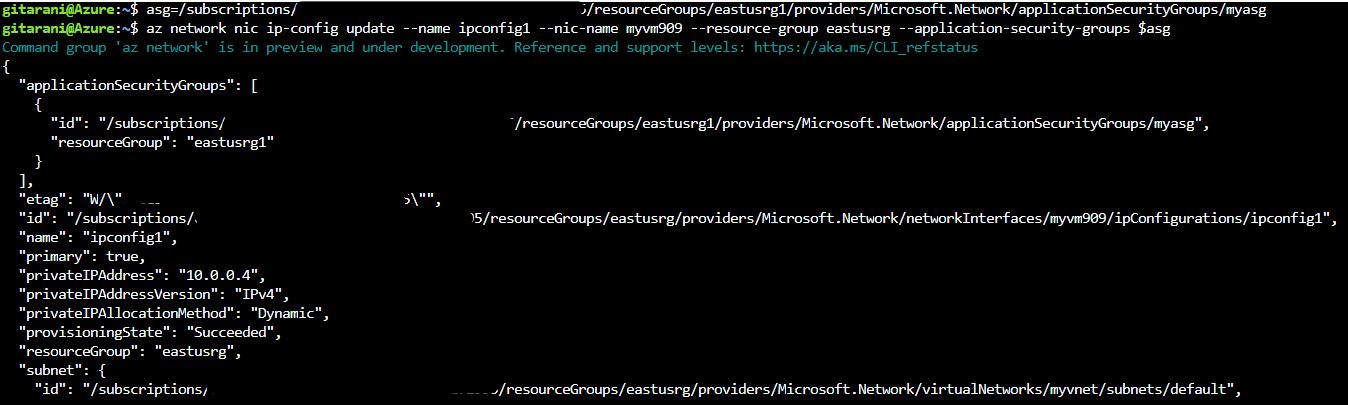

I used the above Azure CLI commands to add the EastUS ASG (eastusrg1 Resource Group) to a NIC in EastUS region (eastusrg Resource Group) and it worked successfully:

Kindly let us know if the above helps or you need further assistance on this issue.

---
