After upgrading to 23H2, the frame rate is still only 30 fps after remotely setting the registry 15.

Michael Xie 25 Reputation points
2023-10-25T10:23:57.6+00:00

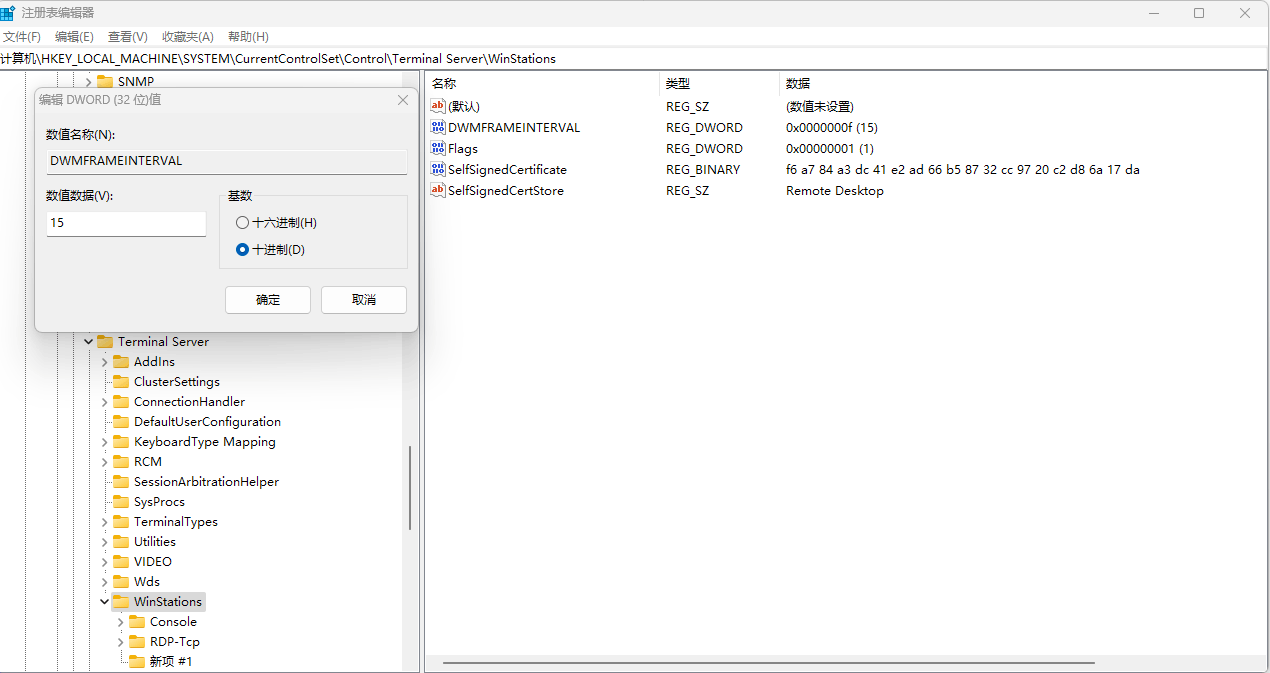

According to the official recommendation, I added a REG_DWORD 32-bit entry named DWMFRAMEINTERVAL with a value of 15 in the Winstations location of the registry.

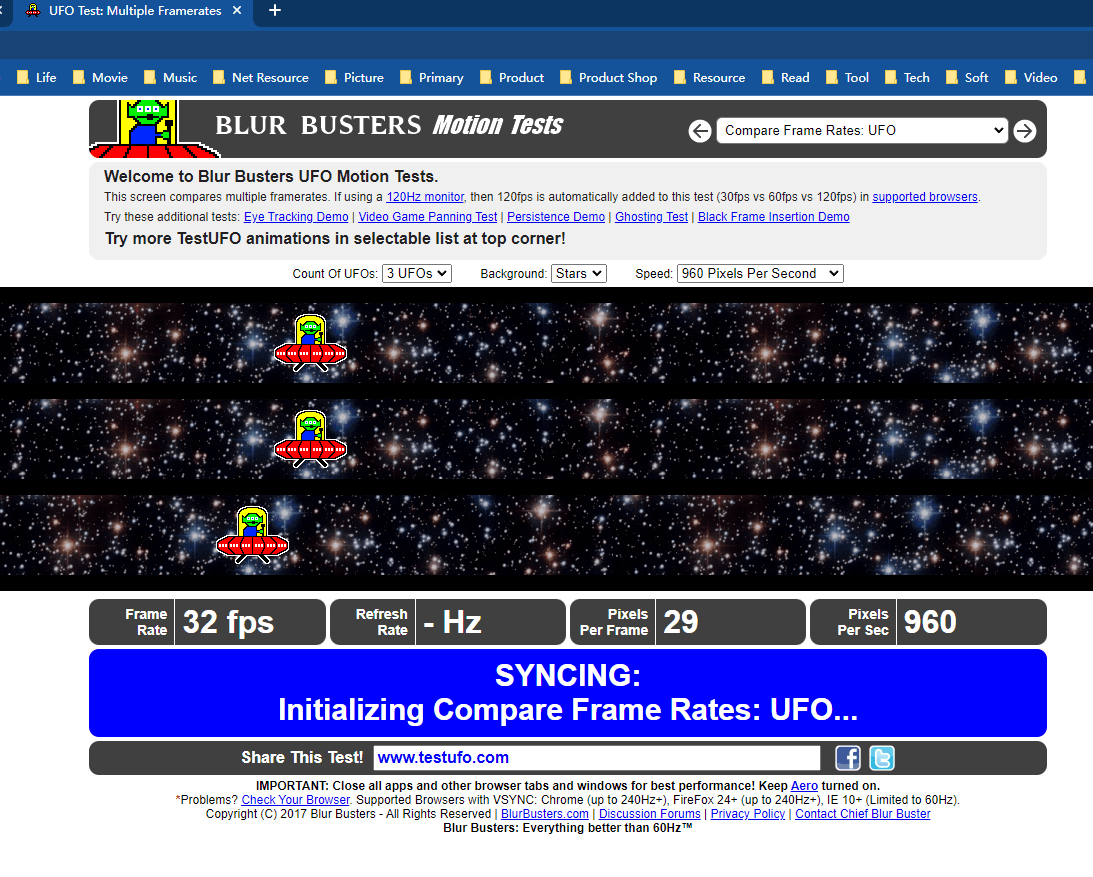

After upgrading to 23H2, the frame rate is still only 30 fps after remotely setting the registry 15.

In 22H2, the frame rate could reach 60 fps after setting the remote desktop registry to 15.




Remote Desktop
Remote Desktop
A Microsoft app that connects remotely to computers and to virtual apps and desktops.
4,339 questions
Windows 11
Windows 11
A Microsoft operating system designed for productivity, creativity, and ease of use.
8,659 questions
{count} votes

1 answer

Sort by: Most helpful
  1. Wesley Li 5,800 Reputation points
    2023-12-25T08:13:23.3233333+00:00

    Hello,

    You can check if congigure below registry helps on this frame rate is still only 30 fps after remotely setting the registry 15 issue:

    If the server has the RD Session Host Role installed, apply the following registry keys to enable the RCM legacy model. It triggers an Active Directory query to check for RDP profile settings:

    Path: HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Windows NT\Terminal Services and HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Terminal Server\WinStations<Winstation name>\

    Name: fQueryUserConfigFromDC

    Type: Reg_DWORD

    Value: 1 (Decimal)

    Then, restart the Remote Desktop Service. If the server doesn't have the Remote Desktop Service role installed, you must set up an extra registry key:

    HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Terminal Server

    0 comments No comments
