WinUI3 Getting the index where the item was moved in a ListView

Question

Having ListView, how can I get the index in the list where the item from the same list was dropped?(Reordering) I tried using the following callbacks, but neither DragItemsCompletedEventArgs or OnDropIntoStagedPhotos seem to have an appropriate method.

void TableContentPage::OnStagedDragItemsCompleted(
    [[maybe_unused]] ::winrt::Windows::Foundation::IInspectable const &,
    [[maybe_unused]] ::winrt::Microsoft::UI::Xaml::Controls::
        DragItemsCompletedEventArgs const &args)
{

}

void TableContentPage::OnDropIntoStagedPhotos(
    [[maybe_unused]] Windows::Foundation::IInspectable const  &sender,
    [[maybe_unused]] Microsoft::UI::Xaml::DragEventArgs const &args)
{
}

I'm using the following ListView attributes:

<ListView x:Name="ListViewName"
          Grid.Row="0"
          Grid.Column="0"
          ScrollViewer.HorizontalScrollMode="Enabled"
          ScrollViewer.HorizontalScrollBarVisibility="Visible"
          ScrollViewer.IsHorizontalRailEnabled="True"
          CanDragItems="True"
          CanReorderItems="True"
          IsSwipeEnabled="True"
          HorizontalAlignment="Stretch"
          AllowDrop="True"
          Background="{StaticResource PrimaryColor}"
          Drop="OnDropIntoStagedPhotos"
          DragOver="OnDragOverStagedPhotos"
          DragItemsCompleted="OnStagedDragItemsCompleted"
          DragItemsStarting="OnStagedDragItemsStarting"
          SelectionMode="Extended"
          SelectionChanged="OnStagedPhotosSelectionChanged">

Answer 1

I came to the conclusion that the structure underlying the UI should be used for this purpose.

For example IObservableVector VectorChanged can contain a callback where the changed indexes are provided.

imageCollection is of type IObservableVector

  imageCollection.VectorChanged(
      [](IObservableVector<IInspectable> const &sender,
         IVectorChangedEventArgs const         &args) {
        // Changed index
        args.Index();
        // The type of change
        args.CollectionChange();
      });

Answer 2

ListViewBase.DragItemsCompleted gives the dragged items and with IVector<T>.IndexOf, you can retrieve the index. So, we only need to distinguish between reorder and move. It's necessary for the destination to give the difference.

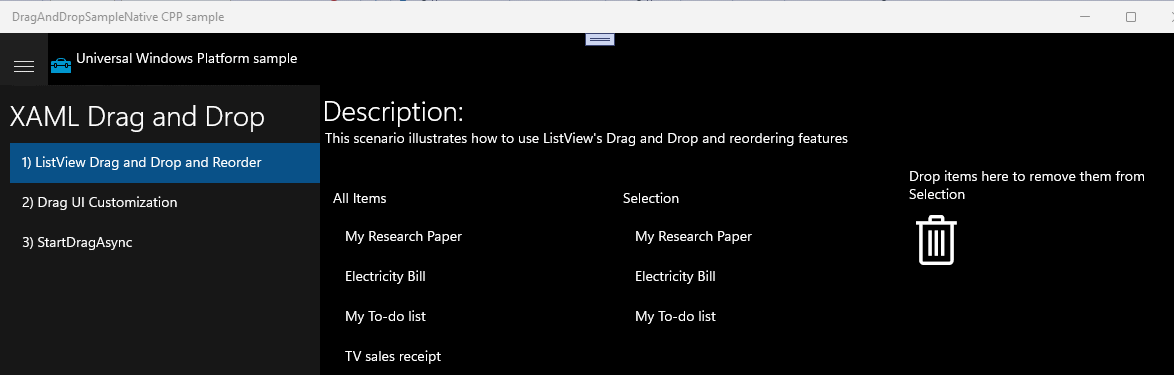

There is a UWP XamlDragAndDrop sample you can refer to.

Answer 3

Hello @Cosmin Mihai,

As far as two ListView controls are concerned, you can refer to the WinUI-Gallery sample which finds the index based on the calculation of the coordinate of the dragged item and item height.

                    // Find the insertion index:
                    Windows.Foundation.Point pos = e.GetPosition(target.ItemsPanelRoot);

                    // If the target ListView has items in it, use the height of the first item
                    //      to find the insertion index.
                    int index = 0;
                    if (target.Items.Count != 0)
                    {
                        // Get a reference to the first item in the ListView
                        ListViewItem sampleItem = (ListViewItem)target.ContainerFromIndex(0);

                        // Adjust itemHeight for margins
                        double itemHeight = sampleItem.ActualHeight + sampleItem.Margin.Top + sampleItem.Margin.Bottom;

                        // Find index based on dividing number of items by height of each item
                        index = Math.Min(target.Items.Count - 1, (int)(pos.Y / itemHeight));

                        // Find the item being dropped on top of.
                        ListViewItem targetItem = (ListViewItem)target.ContainerFromIndex(index);

                        // If the drop position is more than half-way down the item being dropped on
                        //      top of, increment the insertion index so the dropped item is inserted
                        //      below instead of above the item being dropped on top of.
                        Windows.Foundation.Point positionInItem = e.GetPosition(targetItem);
                        if (positionInItem.Y > itemHeight / 2)
                        {
                            index++;
                        }

                        // Don't go out of bounds
                        index = Math.Min(target.Items.Count, index);
                    }
                    // Only other case is if the target ListView has no items (the dropped item will be
                    //      the first). In that case, the insertion index will remain zero.
