View Model problem??

Question

Hi there,

I'm tring to develop a UI to show 3 real time chart. I try to use a MainWindow, 3 ViewModel, and 3 View. In MainWindow, it will show the View and collect the data, then I need to call a worker to update the view.

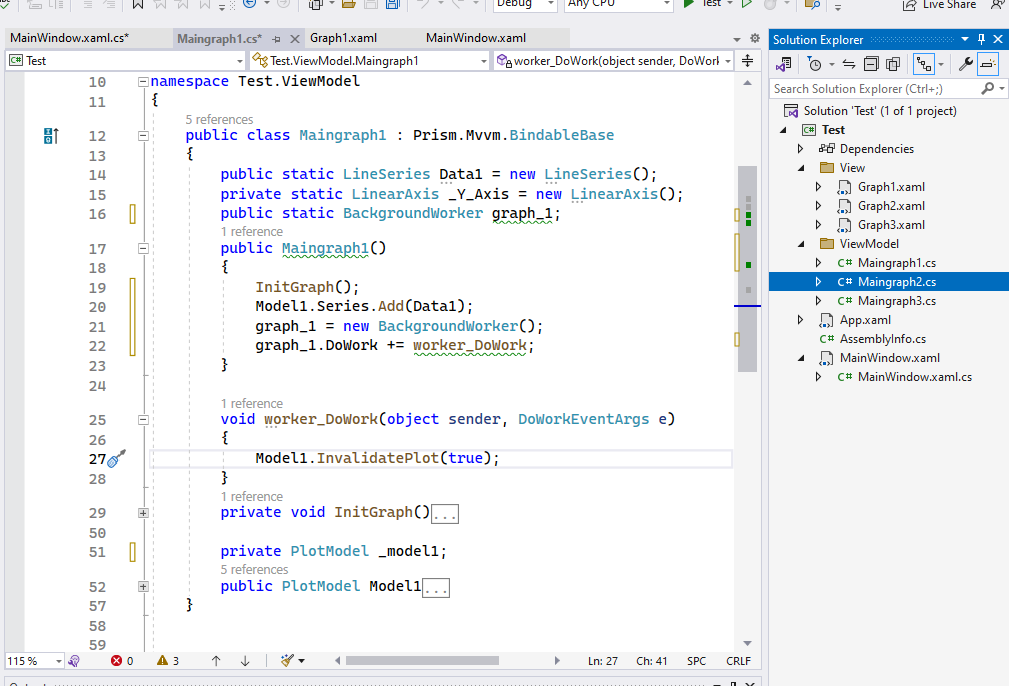

ViewModel:

MainWindow:

How should I improve this program??

Best Regards,
Leon Ng

Answer 1

Hi Leon,
I change a little bit your code for demo purposes:

XAML MainWindow:

<Window x:Class="WpfApp1.Window118"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp118"
        xmlns:v="clr-namespace:WpfApp1"
        mc:Ignorable="d" Top="100" Left="100"
        Title="Leon_ng_231106" Height="400" Width="400">
  <Window.Resources>
    <v:Window118Graph1 x:Key="graph1"/>
    <v:Window118Graph1 x:Key="graph2"/>
    <local:MainVM x:Key="vm"/>
  </Window.Resources>
  <Grid DataContext="{StaticResource vm}">
    <Grid.RowDefinitions>
      <RowDefinition Height="*"/>
      <RowDefinition Height="40"/>
    </Grid.RowDefinitions>
    <Grid.ColumnDefinitions>
      <ColumnDefinition/>
      <ColumnDefinition/>
    </Grid.ColumnDefinitions>
    <ContentControl x:Name="Graph1" Grid.Row="0" Grid.Column="0" local:MainVM.AttProp="True" Content="{StaticResource graph1}"/>
    <ContentControl x:Name="Graph2" Grid.Row="0" Grid.Column="1" local:MainVM.AttProp="True" Content="{StaticResource graph2}"/>
    <Button Grid.Row="1" Grid.Column="0" Content="Start Graph 1" Command="{Binding}" CommandParameter="Graph1" Margin="5"/>
    <Button Grid.Row="1" Grid.Column="1" Content="Start Graph 2" Command="{Binding}" CommandParameter="Graph2" Margin="5"/>
  </Grid>
</Window>

XAML UserControl:

<UserControl x:Class="WpfApp1.Window118Graph1"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
             xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
             xmlns:local="clr-namespace:WpfApp118"
             xmlns:oxyplot="clr-namespace:WpfApp118"
             mc:Ignorable="d"
             d:DesignHeight="450" d:DesignWidth="800">
  <Border>
    <oxyplot:PlotView Data="{Binding Points}" />
  </Border>
</UserControl>

And all code:

using System;
using System.ComponentModel;
using System.Runtime.CompilerServices;
using System.Threading;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Shapes;

namespace WpfApp1
{
	/// <summary>
	/// Interaction logic for Window051.xaml
	/// </summary>
	public partial class Window118 : Window
	{
		public Window118()
		{
			InitializeComponent();
		}
	}
}

namespace WpfApp118
{
	public class MainVM : INotifyPropertyChanged, ICommand
	{

		private Graph1VM _vm1 = new Graph1VM();
		public Graph1VM VM1
		{
			get { return _vm1; }
			set { _vm1 = value; OnPropertyChanged(); }
		}

		private Graph2VM _vm2 = new Graph2VM();
		public Graph2VM VM2
		{
			get { return _vm2; }
			set { _vm2 = value; OnPropertyChanged(); }
		}

		public static readonly DependencyProperty AttPropProperty = DependencyProperty.Register("AttProp",
			typeof(bool), typeof(ContentControl), new UIPropertyMetadata(false, OnAttProp));
		public static bool GetAttProp(DependencyObject obj) => (bool)obj.GetValue(AttPropProperty);
		public static void SetAttProp(DependencyObject obj, bool value) => obj.SetValue(AttPropProperty, value);
		private static void OnAttProp(DependencyObject depObj, DependencyPropertyChangedEventArgs e)
		{
			var cc = depObj as ContentControl;
			if (cc == null) return;
			if ((e.NewValue is bool) && (bool)(e.NewValue))
			{
				MainVM oldDC = (MainVM)cc.DataContext;
				switch (cc.Name)
				{
					case "Graph1":
						cc.DataContext = oldDC.VM1;
						break;
					case "Graph2":
						cc.DataContext = oldDC.VM2;
						break;
					default:
						break;
				}
			}
		}
		public void Execute(object parameter)
		{

			switch (parameter.ToString())
			{
				case "Graph1":
					if (!VM1.worker_updategraph.IsBusy) VM1.worker_updategraph.RunWorkerAsync();
					break;
				case "Graph2":
					if (!VM2.worker_updategraph.IsBusy) VM2.worker_updategraph.RunWorkerAsync();
					break;
				default:
					break;
			}
		}
		public bool CanExecute(object parameter) => true;

		SynchronizationContext sc = SynchronizationContext.Current;
		public event PropertyChangedEventHandler PropertyChanged;
		public event EventHandler CanExecuteChanged;
		private void OnPropertyChanged([CallerMemberName] string propName = "") =>
			sc.Post(new SendOrPostCallback((p) => PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propName))), null);
	}

	public class Graph1VM : INotifyPropertyChanged
	{
		public Graph1VM()
		{
			worker_updategraph = new BackgroundWorker();
			worker_updategraph.DoWork += worker_updategraph_DoWork;
		}

		Random random = new Random();
		int time = 0;
		internal BackgroundWorker worker_updategraph;

		public void worker_updategraph_DoWork(object sender, DoWorkEventArgs e)
		{
			while (true)
			{
				readData();
				time++;
				System.Threading.Thread.Sleep(50);
			}
		}

		public double[] Points { get; set; } = new double[100];
		Random rnd = new Random(100);
		public void readData()
		{
			double[] db = new double[100];
			for (int i = 0; i < Points.GetUpperBound(0); i++) db[i] = Points[i + 1];
			db[99] = rnd.Next(20, 200);
			Points = db;
			OnPropertyChanged(nameof(Points));
			if (worker_updategraph.IsBusy == false) worker_updategraph.RunWorkerAsync();
		}

		SynchronizationContext sc = SynchronizationContext.Current;
		public event PropertyChangedEventHandler PropertyChanged;
		public event EventHandler CanExecuteChanged;
		private void OnPropertyChanged([CallerMemberName] string propName = "") =>
			sc.Post(new SendOrPostCallback((p) => PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propName))), null);
	}

	public class Graph2VM : INotifyPropertyChanged
	{
		public Graph2VM()
		{
			worker_updategraph = new BackgroundWorker();
			worker_updategraph.DoWork += worker_updategraph_DoWork;
		}

		Random random = new Random(200);
		int time = 0;
		internal BackgroundWorker worker_updategraph;

		public void worker_updategraph_DoWork(object sender, DoWorkEventArgs e)
		{
			while (true)
			{
				readData();
				time++;
				System.Threading.Thread.Sleep(50);
			}
		}

		public double[] Points { get; set; } = new double[100];
		Random rnd = new Random();
		public void readData()
		{
			double[] db = new double[100];
			for (int i = 0; i < Points.GetUpperBound(0); i++) db[i] = Points[i + 1];
			db[99] = rnd.Next(20, 200);
			Points = db;
			OnPropertyChanged(nameof(Points));
			if (worker_updategraph.IsBusy == false) worker_updategraph.RunWorkerAsync();
		}

		SynchronizationContext sc = SynchronizationContext.Current;
		public event PropertyChangedEventHandler PropertyChanged;
		public event EventHandler CanExecuteChanged;
		private void OnPropertyChanged([CallerMemberName] string propName = "") =>
			sc.Post(new SendOrPostCallback((p) => PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propName))), null);
	}

	class PlotView : FrameworkElement
	{
		VisualCollection children;
		Canvas plotArea;
		Polyline poly;
		Line xAxis, yAxis;
		Point Origin = new Point(10, 10);
		double[] Points { get; set; } = new double[0];

		public PlotView()
		{
			children = new VisualCollection(this);
			initAxis();
			initPlotArea();
		}

		public int XPoints { get; set; } = 100;
		public int YPoints { get; set; } = 100;
		public Brush LineColor { get; set; } = Brushes.Red;

		public static readonly DependencyProperty DataProperty
		= DependencyProperty.RegisterAttached("Data", typeof(double[]), typeof(PlotView),
			new FrameworkPropertyMetadata(null, FrameworkPropertyMetadataOptions.AffectsArrange,
				new PropertyChangedCallback(DataChanged)));
		public static double[] GetData(DependencyObject obj) => (double[])obj.GetValue(DataProperty);
		public static void SetData(DependencyObject obj, double[] data) => obj.SetValue(DataProperty, data);

		private static void DataChanged(DependencyObject d, DependencyPropertyChangedEventArgs e)
		{
			var plot = d as PlotView;
			if (plot == null) throw new InvalidOperationException("Error using Data property.");
			var data = e.NewValue as double[];
			plot.Points = data;
		}

		void initAxis()
		{
			xAxis = new Line() { Stroke = Brushes.LightBlue, StrokeThickness = 2 };
			yAxis = new Line() { Stroke = Brushes.LightBlue, StrokeThickness = 2 };
			children.Add(xAxis);
			children.Add(yAxis);
		}

		void initPlotArea()
		{
			plotArea = new Canvas()
			{
				LayoutTransform = new ScaleTransform() { ScaleY = -1 },
				RenderTransform = new TransformGroup() { Children = { new ScaleTransform(), new TranslateTransform() } }
			};
			children.Add(plotArea);
			poly = new Polyline() { Stroke = LineColor, StrokeThickness = 1 };
			plotArea.Children.Add(poly);
		}

		void rearrangeAxis(Size size)
		{
			xAxis.X1 = 0;
			xAxis.X2 = size.Width;
			xAxis.Y1 = xAxis.Y2 = size.Height - Origin.Y;
			yAxis.X1 = yAxis.X2 = Origin.X;
			yAxis.Y1 = 0;
			yAxis.Y2 = size.Height;
			xAxis.Measure(size);
			xAxis.Arrange(new Rect(xAxis.DesiredSize));
			yAxis.Measure(size);
			yAxis.Arrange(new Rect(yAxis.DesiredSize));
		}

		void rearrangePlotArea(Size size)
		{
			plotArea.Width = size.Width - Origin.X;
			plotArea.Height = size.Height - Origin.Y;
			var translate = (TranslateTransform)((TransformGroup)plotArea.RenderTransform).Children[1];
			translate.X = Origin.X;
			translate.Y = 0;
			plotArea.Measure(size);
			plotArea.Arrange(new Rect(plotArea.DesiredSize));
			var points = new PointCollection();
			double xStep = plotArea.Width / XPoints;
			double yFactor = plotArea.Height / YPoints;
			for (int i = 0; i < YPoints && i <= Points.GetUpperBound(0); i++)
				points.Add(new Point(i * xStep, Points[i]));
			poly.Points = points;
		}

		protected override Size ArrangeOverride(Size finalSize)
		{
			rearrangeAxis(finalSize);
			rearrangePlotArea(finalSize);
			return finalSize;
		}

		protected override Visual GetVisualChild(int index) => children[index];
		protected override int VisualChildrenCount => children.Count;
	}
}

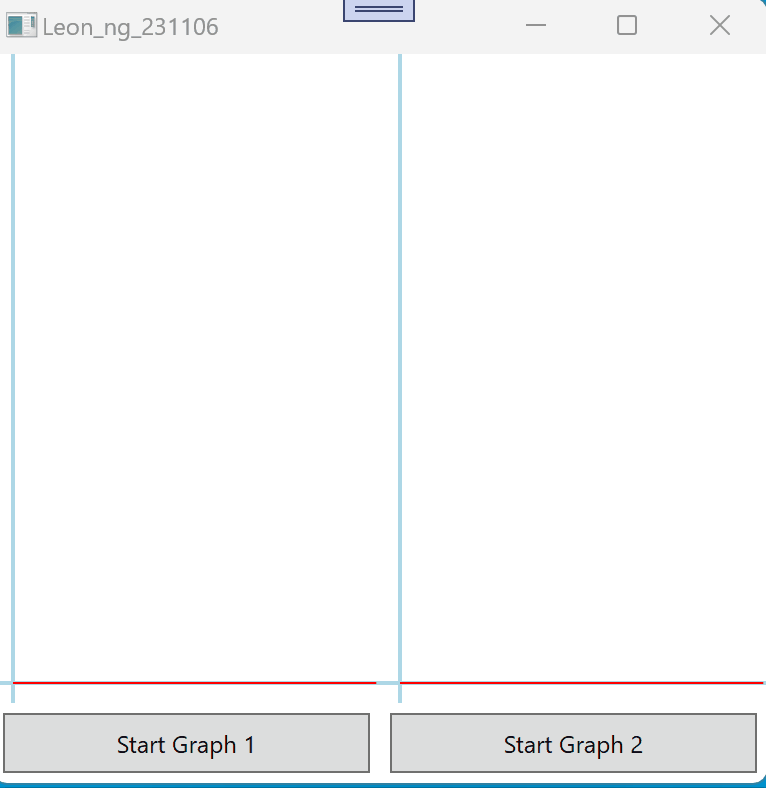

Result:

Answer 2

Hi Leon,
using readData in Main you must select Graph1VM or Graph2VM for adding Points.

Try following demo:

XAML MainWindow:

<Window x:Class="WpfApp1.Window119"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp119"
        xmlns:v="clr-namespace:WpfApp1"
        mc:Ignorable="d" Top="100" Left="100"
        Title="Leon_ng_231106" Height="400" Width="400">
  <Window.Resources>
    <v:Window118Graph1 x:Key="graph1"/>
    <v:Window118Graph1 x:Key="graph2"/>
    <local:MainVM x:Key="vm"/>
  </Window.Resources>
  <Grid DataContext="{StaticResource vm}">
    <Grid.RowDefinitions>
      <RowDefinition Height="*"/>
      <RowDefinition Height="40"/>
    </Grid.RowDefinitions>
    <Grid.ColumnDefinitions>
      <ColumnDefinition/>
      <ColumnDefinition/>
    </Grid.ColumnDefinitions>
    <ContentControl x:Name="Graph1" Grid.Row="0" Grid.Column="0" local:MainVM.AttProp="True" Content="{StaticResource graph1}"/>
    <ContentControl x:Name="Graph2" Grid.Row="0" Grid.Column="1" local:MainVM.AttProp="True" Content="{StaticResource graph2}"/>
    <Button Grid.Row="1" Grid.Column="0" Grid.ColumnSpan="2" Content="Start" Command="{Binding}" Margin="5"/>
  </Grid>
</Window>

XAML UserControl:

<UserControl x:Class="WpfApp1.Window119Graph1"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
             xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
             xmlns:local="clr-namespace:WpfApp119"
             xmlns:oxyplot="clr-namespace:WpfApp119"
             mc:Ignorable="d"
             d:DesignHeight="450" d:DesignWidth="800">
  <Border>
    <oxyplot:PlotView Data="{Binding Points}" />
  </Border>
</UserControl>

Code:

using System;
using System.ComponentModel;
using System.Runtime.CompilerServices;
using System.Threading;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Shapes;

namespace WpfApp1
{
	/// <summary>
	/// Interaction logic for Window119.xaml
	/// </summary>
	public partial class Window119 : Window
	{
		public Window119()
		{
			InitializeComponent();
		}
	}
}

namespace WpfApp119
{
	public class MainVM : INotifyPropertyChanged, ICommand
	{
		public MainVM()
		{
			worker_updategraph = new BackgroundWorker();
			worker_updategraph.DoWork += worker_updategraph_DoWork;
		}

		private Graph1VM _vm1 = new Graph1VM();
		public Graph1VM VM1
		{
			get { return _vm1; }
			set { _vm1 = value; OnPropertyChanged(); }
		}

		private Graph2VM _vm2 = new Graph2VM();
		public Graph2VM VM2
		{
			get { return _vm2; }
			set { _vm2 = value; OnPropertyChanged(); }
		}

		public static readonly DependencyProperty AttPropProperty = DependencyProperty.Register("AttProp",
			typeof(bool), typeof(ContentControl), new UIPropertyMetadata(false, OnAttProp));
		public static bool GetAttProp(DependencyObject obj) => (bool)obj.GetValue(AttPropProperty);
		public static void SetAttProp(DependencyObject obj, bool value) => obj.SetValue(AttPropProperty, value);
		private static void OnAttProp(DependencyObject depObj, DependencyPropertyChangedEventArgs e)
		{
			var cc = depObj as ContentControl;
			if (cc == null) return;
			if ((e.NewValue is bool) && (bool)(e.NewValue))
			{
				MainVM oldDC = (MainVM)cc.DataContext;
				switch (cc.Name)
				{
					case "Graph1":
						cc.DataContext = oldDC.VM1;
						break;
					case "Graph2":
						cc.DataContext = oldDC.VM2;
						break;
					default:
						break;
				}
			}
		}
		public void Execute(object parameter)
		{
			if (!worker_updategraph.IsBusy) worker_updategraph.RunWorkerAsync();
		}
		public bool CanExecute(object parameter) => true;

		Random rnd = new Random();
		int time = 0;
		internal BackgroundWorker worker_updategraph;

		public void worker_updategraph_DoWork(object sender, DoWorkEventArgs e)
		{
			while (true)
			{
				readData();
				time++;
				System.Threading.Thread.Sleep(50);
			}
		}

		public void readData()
		{
			GraphBasic vm;
			if (rnd.NextDouble() > .5) vm = VM1; else vm = VM2;
			double[] db = new double[100];
			for (int i = 0; i < vm.Points.GetUpperBound(0); i++) db[i] = vm.Points[i + 1];
			db[99] = rnd.Next(20, 200);
			vm.Points = db;
			OnPropertyChanged(nameof(vm.Points));
			if (worker_updategraph.IsBusy == false) worker_updategraph.RunWorkerAsync();
		}

		SynchronizationContext sc = SynchronizationContext.Current;
		public event PropertyChangedEventHandler PropertyChanged;
		public event EventHandler CanExecuteChanged;
		private void OnPropertyChanged([CallerMemberName] string propName = "") =>
			sc.Post(new SendOrPostCallback((p) => PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propName))), null);
	}

	public abstract class GraphBasic : INotifyPropertyChanged
	{
		public abstract double[] Points { get; set; }

		SynchronizationContext sc = SynchronizationContext.Current;
		public event PropertyChangedEventHandler PropertyChanged;
		public event EventHandler CanExecuteChanged;
		internal void OnPropertyChanged([CallerMemberName] string propName = "") =>
			sc.Post(new SendOrPostCallback((p) => PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propName))), null);
	}

	public class Graph1VM : GraphBasic
	{
		private double[] _points = new double[100];
		public override double[] Points
		{
			get => this._points;
			set { _points = value; OnPropertyChanged(); }
		}
	}

	public class Graph2VM : GraphBasic
	{
		private double[] _points = new double[100];
		public override double[] Points
		{
			get => this._points;
			set { _points = value; OnPropertyChanged(); }
		}
	}

	class PlotView : FrameworkElement
	{
		VisualCollection children;
		Canvas plotArea;
		Polyline poly;
		Line xAxis, yAxis;
		Point Origin = new Point(10, 10);
		double[] Points { get; set; } = new double[0];

		public PlotView()
		{
			children = new VisualCollection(this);
			initAxis();
			initPlotArea();
		}

		public int XPoints { get; set; } = 100;
		public int YPoints { get; set; } = 100;
		public Brush LineColor { get; set; } = Brushes.Red;

		public static readonly DependencyProperty DataProperty
		= DependencyProperty.RegisterAttached("Data", typeof(double[]), typeof(PlotView),
			new FrameworkPropertyMetadata(null, FrameworkPropertyMetadataOptions.AffectsArrange,
				new PropertyChangedCallback(DataChanged)));
		public static double[] GetData(DependencyObject obj) => (double[])obj.GetValue(DataProperty);
		public static void SetData(DependencyObject obj, double[] data) => obj.SetValue(DataProperty, data);

		private static void DataChanged(DependencyObject d, DependencyPropertyChangedEventArgs e)
		{
			var plot = d as PlotView;
			if (plot == null) throw new InvalidOperationException("Error using Data property.");
			var data = e.NewValue as double[];
			plot.Points = data;
		}

		void initAxis()
		{
			xAxis = new Line() { Stroke = Brushes.LightBlue, StrokeThickness = 2 };
			yAxis = new Line() { Stroke = Brushes.LightBlue, StrokeThickness = 2 };
			children.Add(xAxis);
			children.Add(yAxis);
		}

		void initPlotArea()
		{
			plotArea = new Canvas()
			{
				LayoutTransform = new ScaleTransform() { ScaleY = -1 },
				RenderTransform = new TransformGroup() { Children = { new ScaleTransform(), new TranslateTransform() } }
			};
			children.Add(plotArea);
			poly = new Polyline() { Stroke = LineColor, StrokeThickness = 1 };
			plotArea.Children.Add(poly);
		}

		void rearrangeAxis(Size size)
		{
			xAxis.X1 = 0;
			xAxis.X2 = size.Width;
			xAxis.Y1 = xAxis.Y2 = size.Height - Origin.Y;
			yAxis.X1 = yAxis.X2 = Origin.X;
			yAxis.Y1 = 0;
			yAxis.Y2 = size.Height;
			xAxis.Measure(size);
			xAxis.Arrange(new Rect(xAxis.DesiredSize));
			yAxis.Measure(size);
			yAxis.Arrange(new Rect(yAxis.DesiredSize));
		}

		void rearrangePlotArea(Size size)
		{
			plotArea.Width = size.Width - Origin.X;
			plotArea.Height = size.Height - Origin.Y;
			var translate = (TranslateTransform)((TransformGroup)plotArea.RenderTransform).Children[1];
			translate.X = Origin.X;
			translate.Y = 0;
			plotArea.Measure(size);
			plotArea.Arrange(new Rect(plotArea.DesiredSize));
			var points = new PointCollection();
			double xStep = plotArea.Width / XPoints;
			double yFactor = plotArea.Height / YPoints;
			for (int i = 0; i < YPoints && i <= Points.GetUpperBound(0); i++)
				points.Add(new Point(i * xStep, Points[i]));
			poly.Points = points;
		}

		protected override Size ArrangeOverride(Size finalSize)
		{
			rearrangeAxis(finalSize);
			rearrangePlotArea(finalSize);
			return finalSize;
		}

		protected override Visual GetVisualChild(int index) => children[index];
		protected override int VisualChildrenCount => children.Count;
	}
}

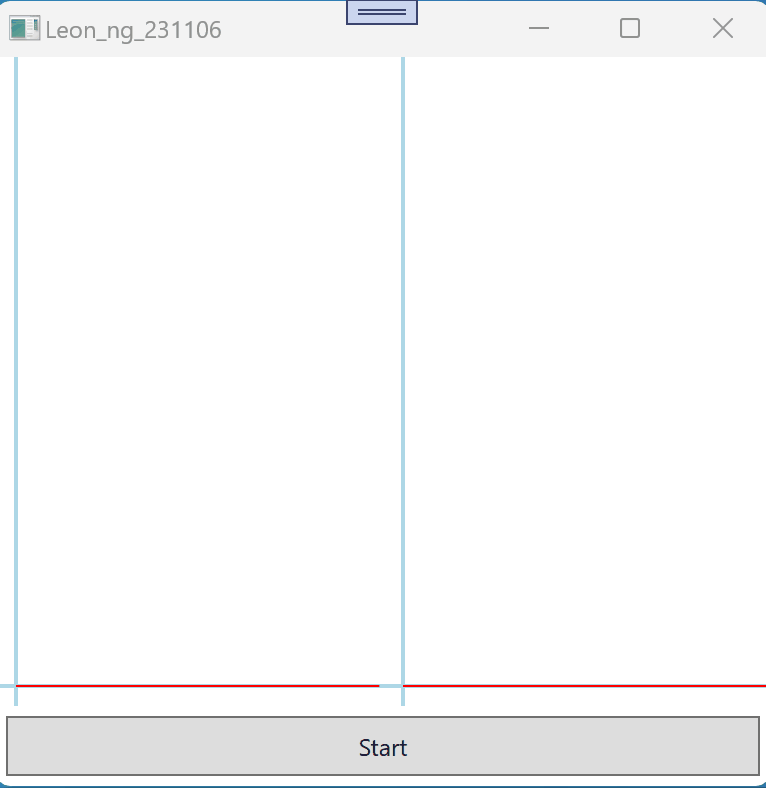

Result:
