Is it possible to add a row in the middle of a datagrid table

Question

Hi all. Does datagrid support adding rows beyond the bottom of the table? For example, if there is a table of 5 rows and I would like to add a row on the 2nd row.

Answer 1

Hi,@vitaminchik. Welcome to Microsoft Q&A Forum.

For the problem of adding a row in the middle of the datagrid table, you could do this by adding the item to the datagrid's ItemsSource. Here is a complete code example that demonstrates how to add rows to a DataGrid based on a specific index provided in a TextBox:

 <StackPanel>
            <DataGrid ItemsSource="{Binding Rows}" AutoGenerateColumns="True" Grid.Row="0" />
            <TextBox Text="{Binding NewRowIndex}" Grid.Row="1" />
            <Button Content="Add Row" Command="{Binding AddRowCommand}" Grid.Row="1" HorizontalAlignment="Right" />
        </StackPanel>

Codebedhind:

 public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
            DataContext = new MainViewModel();
   }
}


 public class MainViewModel : ViewModelBase
    {
        private int _newRowIndex;
        public int NewRowIndex
        {
            get { return _newRowIndex; }
            set { SetValue(ref _newRowIndex, value); }
        }

        private ObservableCollection<CustomData> _rows;
        public ObservableCollection<CustomData> Rows
        {
            get { return _rows; }
            set { SetValue(ref _rows, value); }
        }

        public RelayCommand AddRowCommand { get; private set; }

        public MainViewModel()
        {
            Rows = new ObservableCollection<CustomData>
            {
                new CustomData { Name = "John", Age = 30 },
                new CustomData { Name = "Jane", Age = 25 },
                new CustomData { Name = "Doe", Age = 40 },
                new CustomData { Name = "Smith", Age = 35 },
                new CustomData { Name = "Alex", Age = 28 }
            };

            AddRowCommand = new RelayCommand(AddRow);
        }


        private void AddRow(object param)
        {

                if (NewRowIndex >= 1 && NewRowIndex <= Rows.Count)
                {
                    Rows.Insert(NewRowIndex, new CustomData { Name = " ", Age = 0 });
                }
                else
                {
                    MessageBox.Show("Invalid index. Please provide a valid index within the range.");
                }


        }
    }
    public class RelayCommand : ICommand
    {
        private readonly Action<object> _execute;
        private readonly Predicate<object> _canExecute;

        public RelayCommand(Action<object> execute)
            : this(execute, null)
        {
        }

        public RelayCommand(Action<object> execute, Predicate<object> canExecute)
        {
            if (execute == null)
                throw new ArgumentNullException("execute");
            _execute = execute;
            _canExecute = canExecute;
        }

        public bool CanExecute(object parameter)
        {
            return _canExecute == null ? true : _canExecute(parameter);
        }

        public event EventHandler CanExecuteChanged
        {
            add { CommandManager.RequerySuggested += value; }
            remove { CommandManager.RequerySuggested -= value; }
        }

        public void Execute(object parameter)
        {
            _execute(parameter);
        }
    }


    public class ViewModelBase : INotifyPropertyChanged
    {
        public event PropertyChangedEventHandler PropertyChanged;

        protected virtual void OnPropertyChanged([CallerMemberName] string propertyName = null)
        {
            var handler = PropertyChanged;
            if (handler != null)
                handler(this, new PropertyChangedEventArgs(propertyName));
        }
        protected virtual void SetValue<T>(ref T field, T value, [CallerMemberName] string propertyName = null)
        {
            field = value;
            OnPropertyChanged(propertyName);
        }
    }
    public class CustomData
    {
        public string Name { get; set; }
        public int Age { get; set; }
    }

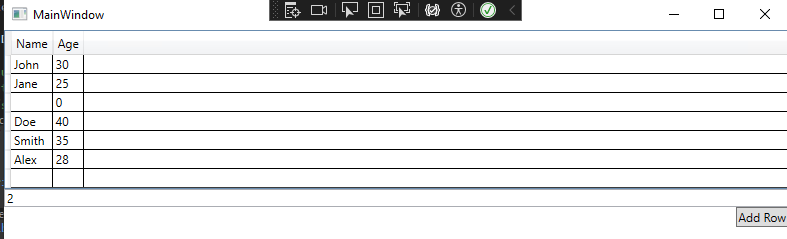

The result:

---
