Unable to create subnets

Anonymous

As a part of Azure LAB (https://gsi.learnondemand.net/Class/572405) I was attempting to create virtual networking (Lab 8). As per exercise, I could able to create 1st subnet (10.40.0.0/24). But when I tried to create another subnet (10.40.1.0/24) i kept getting error as "The subnet IP range is not contained in this virtual network's address space"

Similar issue I faced when I was attempting "Implement Monitoring"

In this Lab, In task 4 – its mentioned to review the default monitoring setting on AZ VM. Means its expected VM is already created & We need to review the settings. But I didn’t found any existing VM available also LAB is not allowing me to create a new VM.

I followed the interactive Lab for these modules & ensured I am not doing anything wrong. Please look into this.

KapilAnanth-MSFT 47,491 Reputation points Microsoft Employee

2023-11-13T06:31:30.3566667+00:00

@Anonymous

Welcome to the Microsoft Q&A Platform. Thank you for reaching out & I hope you are doing well.

I am not able to check the Lab module as it requires user authentication.

As mentioned by Sreeju Nair , your subnet's address space must be an available range in the VNET's address space.

Only then you shall be able to create a subnet inside that VNET.

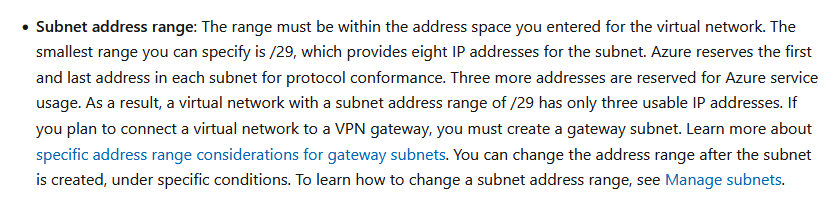

For more details, please refer : Add a subnet

Please let us know if we can be of any further assistance here.

Thanks,

Kapil

Please Accept an answer if correct.

Original posters help the community find answers faster by identifying the correct answer.
KapilAnanth-MSFT 47,491 Reputation points Microsoft Employee

2023-11-14T10:38:38.54+00:00

@Anonymous

Just checking in to see if the below answer helped. If this answers your query, please don’t forget to click "Accept the answer" and Up-Vote for the same, which might be beneficial to other community members reading this thread. And, if you have any further query do let us know.

Thanks,

Kapil
KapilAnanth-MSFT 47,491 Reputation points Microsoft Employee

2023-11-16T09:49:48.0833333+00:00

@Anonymous

Reaching out to check if there are any questions on this.

Please let us know if we can be of any further assistance here.

Thanks,

Kapil

Please Accept an answer if correct.

Original posters help the community find answers faster by identifying the correct answer.

2 answers

Sreeju Nair 12,376 Reputation points

2023-11-12T10:18:20.3133333+00:00

You need to check your VNet address range. If your VNet also has address range, 10.40.0.0/24 then you can not create a subnet in that VNet with address range 10.40.1.0/24, as it is outside the VNet address range.

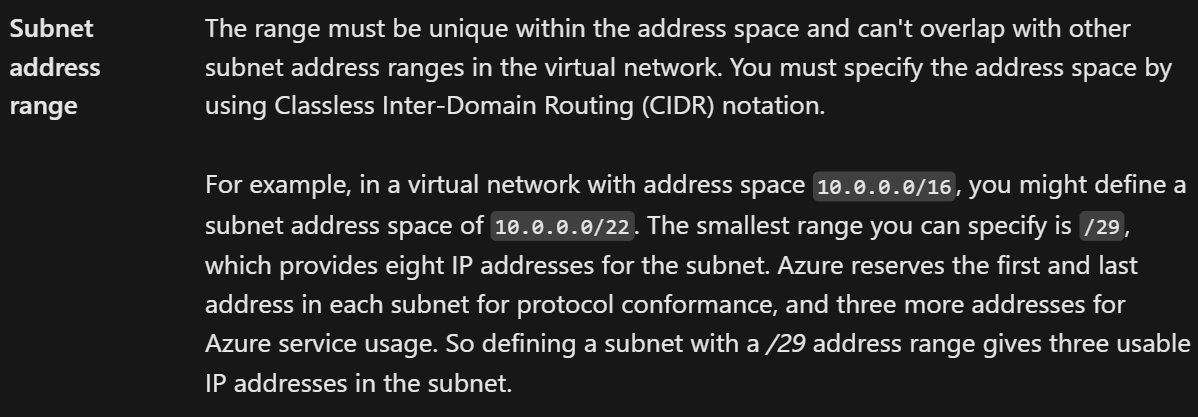

See the subnet address range requirements from the following URL.

https://learn.microsoft.com/en-us/azure/virtual-network/manage-virtual-network

Hope this helps
