MS Graph API-Send mail-short url in message body delivered as longer in recipient mail

Question

MS Graph API-Send mail-short url in message body delivered as longer in recipient mail

B Jayachithra 51

Hi Team,

Short url in message body is delivered as longer url in recipients mail. The url is appearing a long text when its delivered to user inbox. But the same email in sent items of mailbox is showing original text. This is creating issue while message is forwarded and url is not working as expected.

Original link:

https://learn.microsoft.com/en-us/graph/api/user-sendmail?view=graph-rest-1.0

Received link:

https://apc01.safelinks.protection.outlook.com/?url=https%3A%2F%2Flearn.microsoft.com%2Fen-us%2Fgraph%2Fapi%2Fuser-sendmail%3Fview%3Dgraph-rest-1.0&data=05%7C01%7Cxxxxxxxxx%40xxx.com%7Cc555960b973b4db9f4d008dbe50c43c8%7C189de737c93a4f5a8b686f4ca9941912%7C0%7C0%7C638355613119341452%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=WtZz3LILCF%2FB%2B%2FKCYkjwYA0ZZzbkX8RksG7YznXqmRA%3D&reserved=0

B Jayachithra 51 Reputation points

2023-11-16T05:24:33.4233333+00:00

Hello Team,

Can you check this and update?
B Jayachithra 51 Reputation points

2023-11-29T11:41:23.8233333+00:00

Hi Team,

can you update on this query?
B Jayachithra 51 Reputation points

2023-11-30T08:58:44.4+00:00
Hi,

API Code is written in Java and request is made from eclipse like below.We use client credentials application type

String messagebody_text_or_path_to_file_with_text = "https://learn.microsoft.com/en-us/graph/api/user-sendmail?view=graph-rest-1.0";

message.body.content = messagebody_text_or_path_to_file_with_text ;

_appClient.users(user) .sendMail(UserSendMailParameterSet .newBuilder() .withMessage(message) .withSaveToSentItems(null) .build()) .buildRequest() .post();

What we receive in mail body as:

[CAUTION: This Email is from outside the Organization. Unless you trust the sender, Don’t click links or open attachments as it may be a Phishing email, which can steal your Information and compromise your Computer.]

https://apc01.safelinks.protection.outlook.com/?url=https%3A%2F%2Flearn.microsoft.com%2Fen-us%2Fgraph%2Fapi%2Fuser-sendmail%3Fview%3Dgraph-rest-1.0&data=05%7C01%7Cxxxx%40xxx.com%7C094d2def01634571ad3508dbf17e5190%7C189de737c93a4f5a8b686f4ca9941912%7C0%7C0%7C638369297126349840%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=HS68K3ujOEBO1Q0TMGKypVUNToPCWdwwhmMu8PY7U68%3D&reserved=0

This email message (including its attachments) is confidential and may contain privileged information and is intended solely for the use of the individual and/or entity to whom it is addressed. If you are not the intended recipient of this e-mail you may not disseminate, distribute or copy this e-mail (including its attachments), or any part thereof. If this e-mail is received in error, please notify the sender immediately by return e-mail and make sure that this e-mail (including its attachments), and all copies thereof, are immediately deleted from your system. Please further note that when you communicate with us via email or visit our website we process your personal data. See our privacy policy for more information about how we process it: https://apc01.safelinks.protection.outlook.com/?url=https%3A%2F%2Fwww.xxx.com%2Fen-en%2Fprivacy.html&data=05%7C01%7Cxxx%40xxx.com%7C094d2def01634571ad3508dbf17e5190%7C189de737c93a4f5a8b686f4ca9941912%7C0%7C0%7C638369297126358607%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=wFG57eInEOiQEpbZxzSKdh7nwzCOYNNvIrZNMqAXvk8%3D&reserved=0

2 answers

Your answer

B Jayachithra 51 Reputation points

2023-11-16T05:24:33.4233333+00:00

Hello Team,

Can you check this and update?
B Jayachithra 51 Reputation points

2023-11-29T11:41:23.8233333+00:00

Hi Team,

can you update on this query?

Answer 1

Akash Jadav 85 Microsoft External Staff

Can you please share a screenshot of the request made from MS Graph Explorer?
Following is working fine for me:

POST https://graph.microsoft.com/v1.0/me/sendMail
Content-type: application/json

{
  "message": {
    "subject": "Meet for lunch?",
    "body": {
      "contentType": "Text",
      "content": "ENTER_URL_HERE"
    },
    "toRecipients": [
      {
        "emailAddress": {
          "address": "******@contoso.onmicrosoft.com"
        }
      }
    ]
  }
}

Akash Jadav 85 Reputation points Microsoft External Staff

2023-11-30T17:18:59.1766667+00:00

Hi,

Can you try calling the same request in Graph Explorer and check the response. Is result same?
B Jayachithra 51 Reputation points

2023-12-12T06:33:38.14+00:00

Hello,

How to post request in Graph Explorer if access type is client credential flow. Please provide sample post url request
Akash Jadav 85 Reputation points Microsoft External Staff

2023-12-13T16:59:20.52+00:00

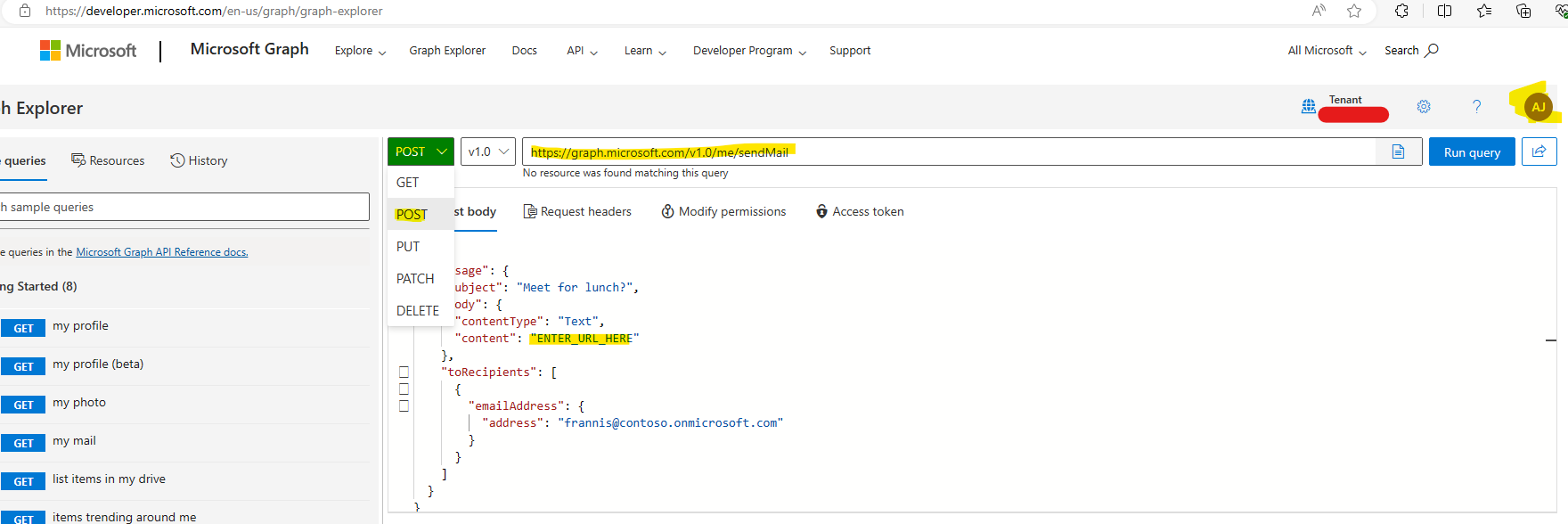

PFA screenshot:

Answer 2

B Jayachithra 51

Hello,

https://graph.microsoft.com/v1.0/me/sendMail will not work as our mailbox is using client credential flow instead delegated. Please provide sample POST URL for this type to test from Graph Explorer.

Akash Jadav 85 Microsoft External Staff

Please find the attached POST request as well as JAVA generated code from Graph Explorer as well.

GraphServiceClient graphClient = GraphServiceClient.builder().authenticationProvider( authProvider ).buildClient();

Message message = new Message();
message.subject = "Meet for lunch?";
ItemBody body = new ItemBody();
body.contentType = BodyType.TEXT;
body.content = "ENTER_URL_HERE";
message.body = body;
LinkedList<Recipient> toRecipientsList = new LinkedList<Recipient>();
Recipient toRecipients = new Recipient(); EmailAddress emailAddress = new EmailAddress(); emailAddress.address = "{emailId}";
toRecipients.emailAddress = emailAddress;
toRecipientsList.add(toRecipients);
message.toRecipients = toRecipientsList;

graphClient.users("{UserId}")
	.sendMail(UserSendMailParameterSet
		.newBuilder()
		.withMessage(message)
		.withSaveToSentItems(null)
		.build())
	.buildRequest()
	.post();

POST https://graph.microsoft.com/v1.0/users/{userId}/sendMail
Content-type: application/json

{
  "message": {
    "subject": "Meet for lunch?",
    "body": {
      "contentType": "Text",
      "content": "ENTER_URL_HERE"
    },
    "toRecipients": [
      {
        "emailAddress": {
          "address": "******@contoso.onmicrosoft.com"
        }
      }
    ]
  }
}

Akash Jadav 85 Reputation points Microsoft External Staff

2023-12-14T13:07:44.7333333+00:00

You can provide your authentication in respective programming language and test the scenario. I suggest testing it first over graph explorer and then implementing it over solution.
B Jayachithra 51 Reputation points

2023-12-15T14:50:53.91+00:00

I am getting below msg

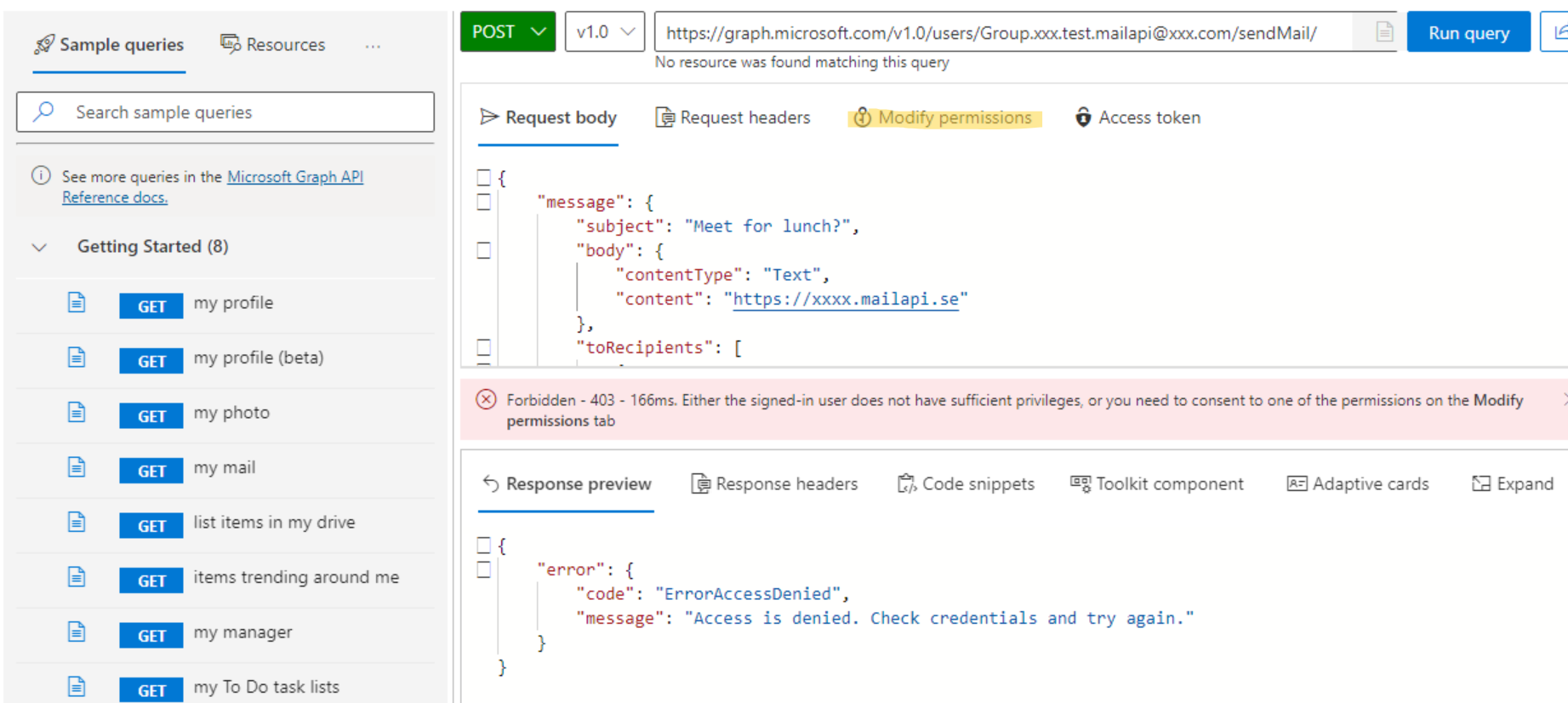

Forbidden - 403 - 170ms. Either the signed-in user does not have sufficient privileges, or you need to consent to one of the permissions on the Modify permissions tab. Attached snapshot. I cannot modify permission for this mailbox. How to test otherwise?

Akash Jadav 85 Reputation points Microsoft External Staff

2023-12-15T18:56:33.5666667+00:00

Can you click on Modify Permission tab visible in screenshot and consent the relevant permission and re-try?
