Segmentedcontrol text is not visible in iOS

Anonymous

HI,

I am working on migrated Xamarin forms application to .net MAUI.

I am using segmented control and having renderer for iOS. the segmented control text is not visible in .net MAUI where as it it working fine in Xamarin application. I have tried in new MAUI app. Same behaviour observed.

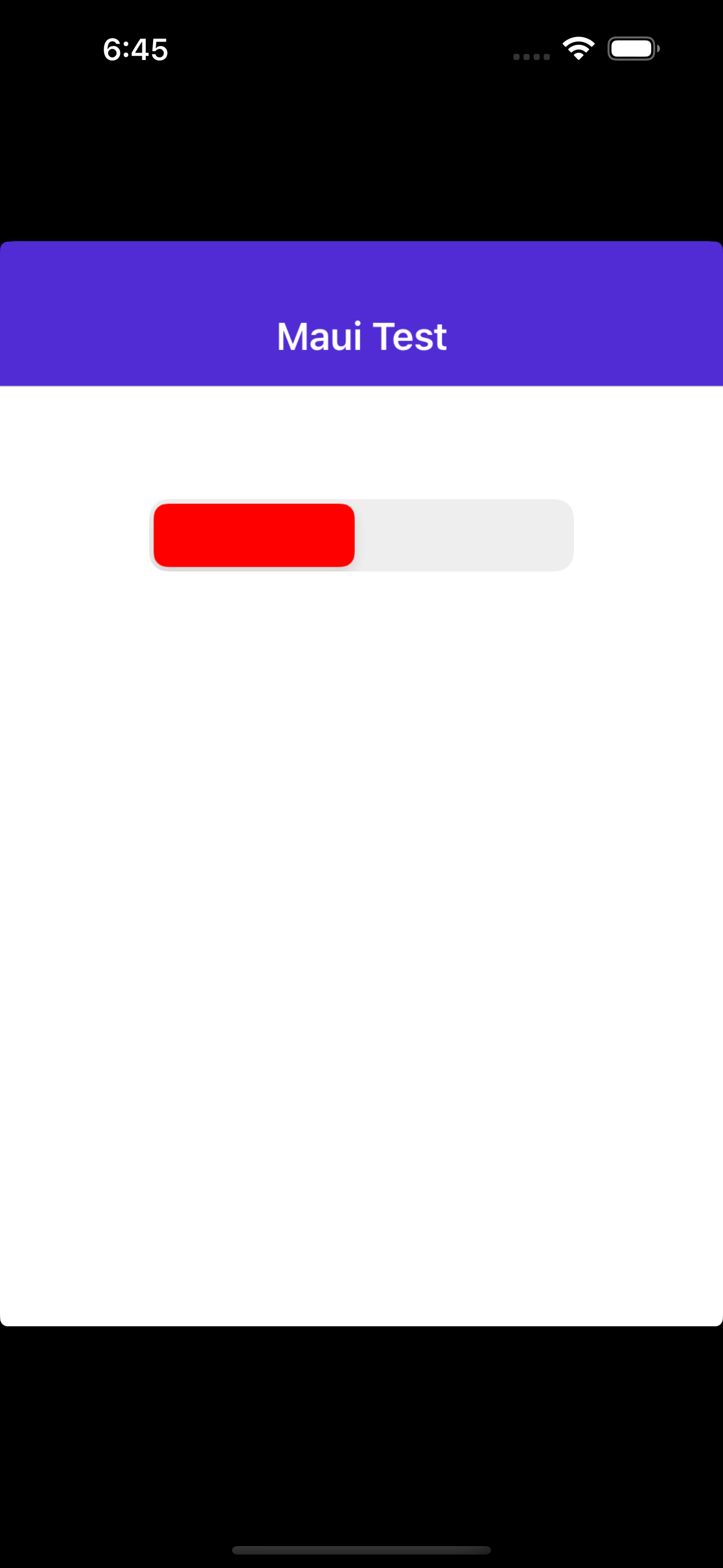

Please help me on this. Simulator Screenshot - iPhone 14 Pro Max - 2023-12-05 at 18.45.37

Wenyan Zhang (Shanghai Wicresoft Co,.Ltd.) 36,436 Reputation points Microsoft External Staff

2023-12-06T05:38:43.1033333+00:00

Do you reuse custom renderers in your MAUI project? Could you provide some code snippets about the renderer so that I can test?

Anonymous

I am using SegementedControl like below

     <SegmentedControl ValueChanged="Handle_ValueChanged" Margin="16,0,16,5" HeightRequest="40" TintColor="{StaticResource GlobalColorTextBranded}" SelectedSegment="0" FontSize="13" FontFamily="SFUIText-Regular">
                <SegmentedControl.Children>
                    <SegmentedControlOption Text="One" />
                    <SegmentedControlOption Text="Two" />
                </SegmentedControl.Children>
            </SegmentedControl>

Below is the SegementedControl.cs

 public class SegmentedControl : View, IViewContainer<SegmentedControlOption>
    {
        public IList<SegmentedControlOption> Children { get; set; }

        public SegmentedControl()
        {
            Children = new List<SegmentedControlOption>();
        }

        public static readonly BindableProperty TintColorProperty = BindableProperty.Create("TintColor", typeof(Color), typeof(SegmentedControl), Colors.Blue);

        public Color TintColor
        {
            get { return (Color)GetValue(TintColorProperty); }
            set { SetValue(TintColorProperty, value); }
        }

        public static readonly BindableProperty DisabledColorProperty = BindableProperty.Create("DisabledColor", typeof(Color), typeof(SegmentedControl), Colors.Gray);

        public Color DisabledColor
        {
            get { return (Color)GetValue(DisabledColorProperty); }
            set { SetValue(DisabledColorProperty, value); }
        }

        public static readonly BindableProperty SelectedTextColorProperty = BindableProperty.Create("SelectedTextColor", typeof(Color), typeof(SegmentedControl), Colors.White);

        public Color SelectedTextColor
        {
            get { return (Color)GetValue(SelectedTextColorProperty); }
            set { SetValue(SelectedTextColorProperty, value); }
        }

        public static readonly BindableProperty FontFamilyProperty = BindableProperty.Create(nameof(FontFamily), typeof(string), typeof(SegmentedControl), "Helvetica");

        public string FontFamily
        {
            get { return (string)GetValue(FontFamilyProperty); }
            set { SetValue(FontFamilyProperty, value); }
        }

        public static readonly BindableProperty FontSizeProperty = BindableProperty.Create(nameof(FontSize), typeof(float), typeof(SegmentedControl), 15f);

        public float FontSize
        {
            get { return (float)GetValue(FontSizeProperty); }
            set { SetValue(FontSizeProperty, value); }
        }

        public static readonly BindableProperty SelectedSegmentProperty = BindableProperty.Create("SelectedSegment", typeof(int), typeof(SegmentedControl), 0);

        public int SelectedSegment
        {
            get
            {
                return (int)GetValue(SelectedSegmentProperty);
            }
            set
            {
                SetValue(SelectedSegmentProperty, value);
            }
        }

        public event EventHandler<ValueChangedEventArgs> ValueChanged;

        [EditorBrowsable(EditorBrowsableState.Never)]
        public void SendValueChanged()
        {
            ValueChanged?.Invoke(this, new ValueChangedEventArgs { NewValue = this.SelectedSegment });
        }
    }

    public class SegmentedControlOption : View
    {
        public static readonly BindableProperty TextProperty = BindableProperty.Create("Text", typeof(string), typeof(SegmentedControlOption), string.Empty);

        public string Text
        {
            get { return (string)GetValue(TextProperty); }
            set { SetValue(TextProperty, value); }
        }
    }

    public class ValueChangedEventArgs : EventArgs
    {
        public int NewValue { get; set; }
    }

Below is the SegmentedControlRenderer

 public class SegmentedControlRenderer : Microsoft.Maui.Controls.Handlers.Compatibility.ViewRenderer<SegmentedControl, UISegmentedControl>
    {
        UISegmentedControl nativeControl;

        protected override void OnElementChanged(ElementChangedEventArgs<SegmentedControl> e)
        {
            base.OnElementChanged(e);

            if (Control == null)
            {
                // Instantiate the native control and assign it to the Control property with
                // the SetNativeControl method

                nativeControl = new UISegmentedControl();

                for (var i = 0; i < Element.Children.Count; i++)
                {
                    nativeControl.InsertSegment(Element.Children[i].Text, i, false);
                }

                nativeControl.Enabled = Element.IsEnabled;
                SetTintColor();
                SetSelectedTextColor();
                SetFont();

                nativeControl.SelectedSegment = Element.SelectedSegment;

                SetNativeControl(nativeControl);
            }

            if (e.OldElement != null)
            {
                // Unsubscribe from event handlers and cleanup any resources

                if (nativeControl != null)
                    nativeControl.ValueChanged -= NativeControl_ValueChanged;
            }

            if (e.NewElement != null)
            {
                // Configure the control and subscribe to event handlers

                nativeControl.ValueChanged += NativeControl_ValueChanged;
            }
        }

        protected override void OnElementPropertyChanged(object sender, System.ComponentModel.PropertyChangedEventArgs e)
        {
            base.OnElementPropertyChanged(sender, e);

            if (nativeControl == null || Element == null) return;

            switch (e.PropertyName)
            {
                case "Renderer":
                    Element?.SendValueChanged();
                    break;
                case nameof(Element.SelectedSegment):
                    nativeControl.SelectedSegment = Element.SelectedSegment;
                    Element.SendValueChanged();
                    break;
                case nameof(Element.TintColor):
                    SetTintColor();
                    break;
                case nameof(Element.IsEnabled):
                    nativeControl.Enabled = Element.IsEnabled;
                    SetTintColor();
                    break;
                case nameof(Element.SelectedTextColor):
                    SetSelectedTextColor();
                    break;
                case nameof(Element.FontFamily):
                case nameof(Element.FontSize):
                    SetFont();
                    break;
            }

        }

        void SetTintColor()
        {
            var tintColor = Element.IsEnabled ? Element.TintColor.ToPlatform() : Element.DisabledColor.ToPlatform();

            if (UIDevice.CurrentDevice.CheckSystemVersion(13, 0))
            {
                nativeControl.SelectedSegmentTintColor = tintColor;
            }
            else
            {
                nativeControl.TintColor = tintColor;
            }
        }

        void SetSelectedTextColor()
        {
            var attr = new UIStringAttributes
            {
                ForegroundColor = Element.SelectedTextColor.ToPlatform()
            };
            nativeControl.SetTitleTextAttributes(attr, UIControlState.Selected);
        }

        void SetFont()
        {
            var font = UIFont.FromName(Element.FontFamily, Element.FontSize);

            if (font != null) // Attempting to set the font to null causes a crash
                nativeControl.SetTitleTextAttributes(new UIStringAttributes { Font = font }, UIControlState.Normal);
        }

        void NativeControl_ValueChanged(object sender, EventArgs e)
        {
            Element.SelectedSegment = (int)nativeControl.SelectedSegment;
        }

        protected override void Dispose(bool disposing)
        {
            if (nativeControl != null)
            {
                nativeControl.ValueChanged -= NativeControl_ValueChanged;
                nativeControl.Dispose();
                nativeControl = null;
            }

            try
            {
                base.Dispose(disposing);
            }
            catch
            {
                return;
            }
        }

        /// <summary>
        /// Used for registration with dependency service
        /// </summary>
        public new static void Init()
        {
            var temp = DateTime.Now;
        }
    }

Anonymous

2023-12-08T06:22:18.03+00:00

@Wenyan Zhang (Shanghai Wicresoft Co,.Ltd.) did you get a chance to look at my code?
Wenyan Zhang (Shanghai Wicresoft Co,.Ltd.) 36,436 Reputation points Microsoft External Staff

2023-12-08T09:26:29.91+00:00

Sorry for the late response, I didn't receive the comment before.

I tested the renderer with MAUI (both .net7 and .net8), and I can reproduce your issue. And I tried to create a custom control using handler, the title will not disappear, and will be the default black color, please refer to the answer.

(There are many bindable properties, I haven't added the mapper, please refer to the official doc and add them)

If you have any other issues, please feel free to let me know.

1 answer

Your answer

Wenyan Zhang (Shanghai Wicresoft Co,.Ltd.) 36,436 Reputation points Microsoft External Staff

2023-12-06T05:38:43.1033333+00:00

Do you reuse custom renderers in your MAUI project? Could you provide some code snippets about the renderer so that I can test?
Anonymous

2023-12-08T06:22:18.03+00:00

@Wenyan Zhang (Shanghai Wicresoft Co,.Ltd.) did you get a chance to look at my code?
Wenyan Zhang (Shanghai Wicresoft Co,.Ltd.) 36,436 Reputation points Microsoft External Staff

2023-12-08T09:26:29.91+00:00

Sorry for the late response, I didn't receive the comment before.

I tested the renderer with MAUI (both .net7 and .net8), and I can reproduce your issue. And I tried to create a custom control using handler, the title will not disappear, and will be the default black color, please refer to the answer.

(There are many bindable properties, I haven't added the mapper, please refer to the official doc and add them)

If you have any other issues, please feel free to let me know.

Answer 1

Hello,

I can reproduce your issue, reusing renderer doesn't work with the code snippets you provide, please create a custom control using handlers, see Create custom controls with .NET MAUI handlers - .NET MAUI | Microsoft Learn

And you can refer to the following code:

Create a handler:

public partial class SegmentedControlHandler
    {
        public static IPropertyMapper<SegmentedControl, SegmentedControlHandler> PropertyMapper = new PropertyMapper<SegmentedControl, SegmentedControlHandler>(ViewHandler.ViewMapper)
        {
           // Create the command mapper according to your control's bindable properties
        };


       public static CommandMapper<SegmentedControl, SegmentedControlHandler> CommandMapper = new(ViewCommandMapper)
        {

        };


       public SegmentedControlHandler() : base(PropertyMapper, CommandMapper)
        {
        }

    }


#if IOS
    public partial class SegmentedControlHandler : ViewHandler<SegmentedControl, CustomUISegmentedControl>
    {
        protected override CustomUISegmentedControl CreatePlatformView()
        {
            return new CustomUISegmentedControl();
        }


       protected override void ConnectHandler(CustomUISegmentedControl platformView)
        {
            base.ConnectHandler(platformView);

           // Perform any control setup here
        }


       protected override void DisconnectHandler(CustomUISegmentedControl platformView)
        {
            platformView.Dispose();
            base.DisconnectHandler(platformView);
        }


   }
#endif

Create a native custom control derived from UISegmentedControl

public class CustomUISegmentedControl: UISegmentedControl
{
    public CustomUISegmentedControl()
    {// the following code is to simulate the setting title process
        for (var i = 0; i < 2; i++)
        {
            this.InsertSegment(i.ToString(), i, false);

       }
        var attr = new UIStringAttributes
        {
            ForegroundColor = UIColor.SystemPink// but the title always be black
        };
      this.SetTitleTextAttributes(attr, UIControlState.Selected | UIControlState.Normal | UIControlState.Highlighted);
    }
}

Register the handler in the MauiProgram class

handlers.AddHandler(typeof(SegmentedControl), typeof(SegmentedControlHandler));

Best Regards,

Wenyan Zhang
