Azure Virtual Desktop: Session Host unable to join Azure Active Directory using Terraform

Question

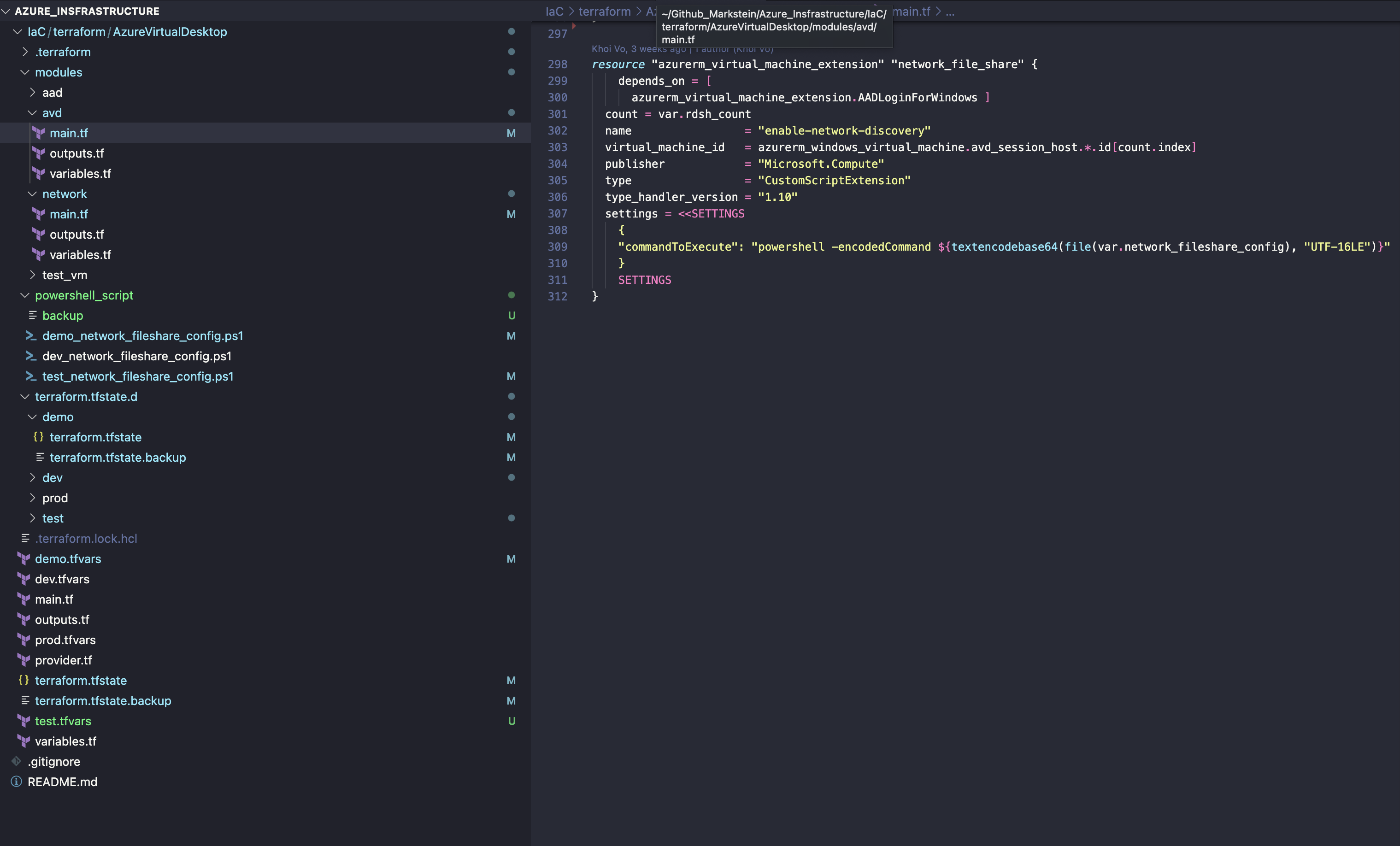

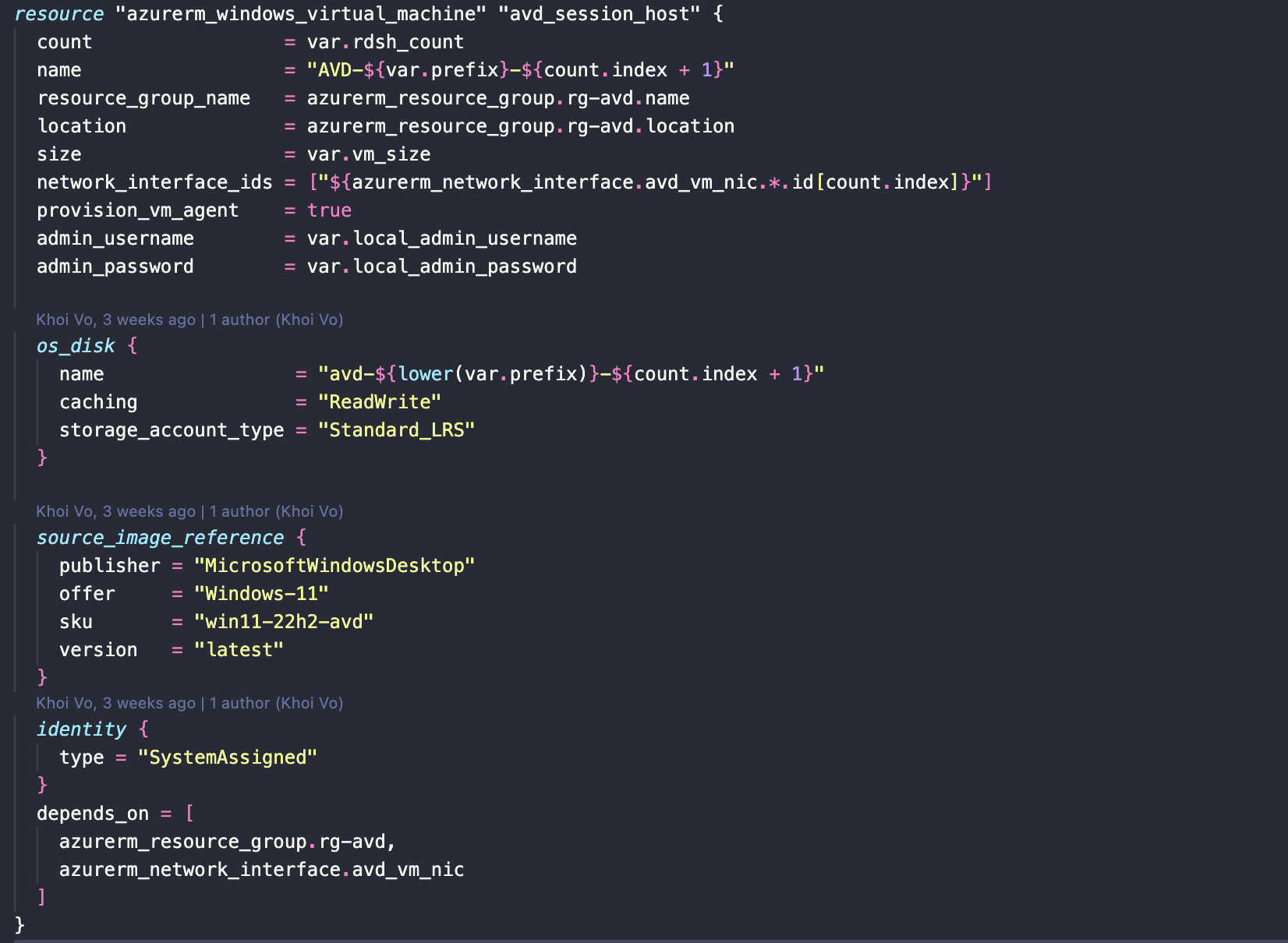

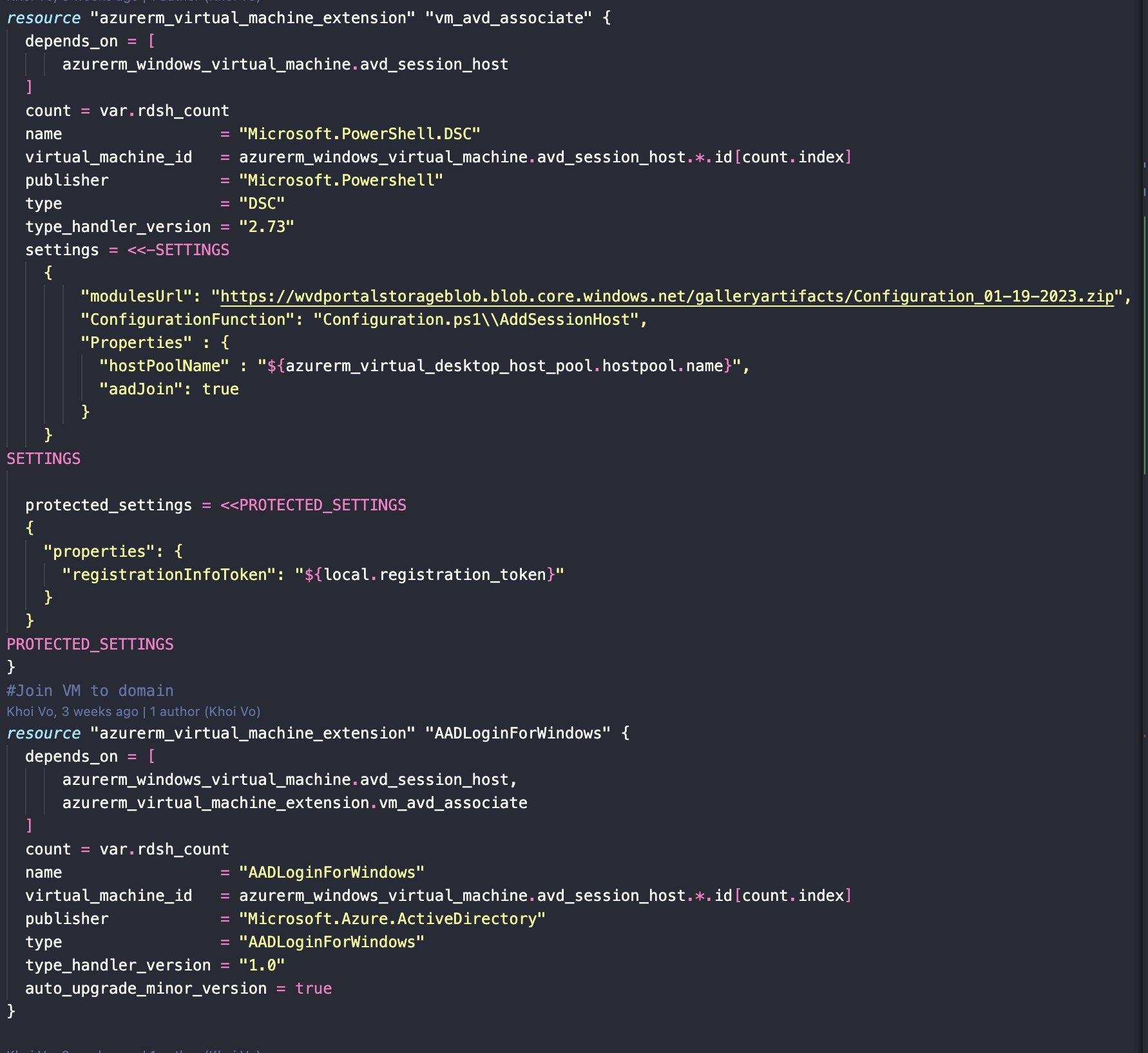

Hello, I am using Terraform to provision an Azure Virtual Desktop that includes a Host Pool, Session Host, Workspace, and other resources. On my local machine, I create multiple workspaces for each environment (Test, Dev, Demo).

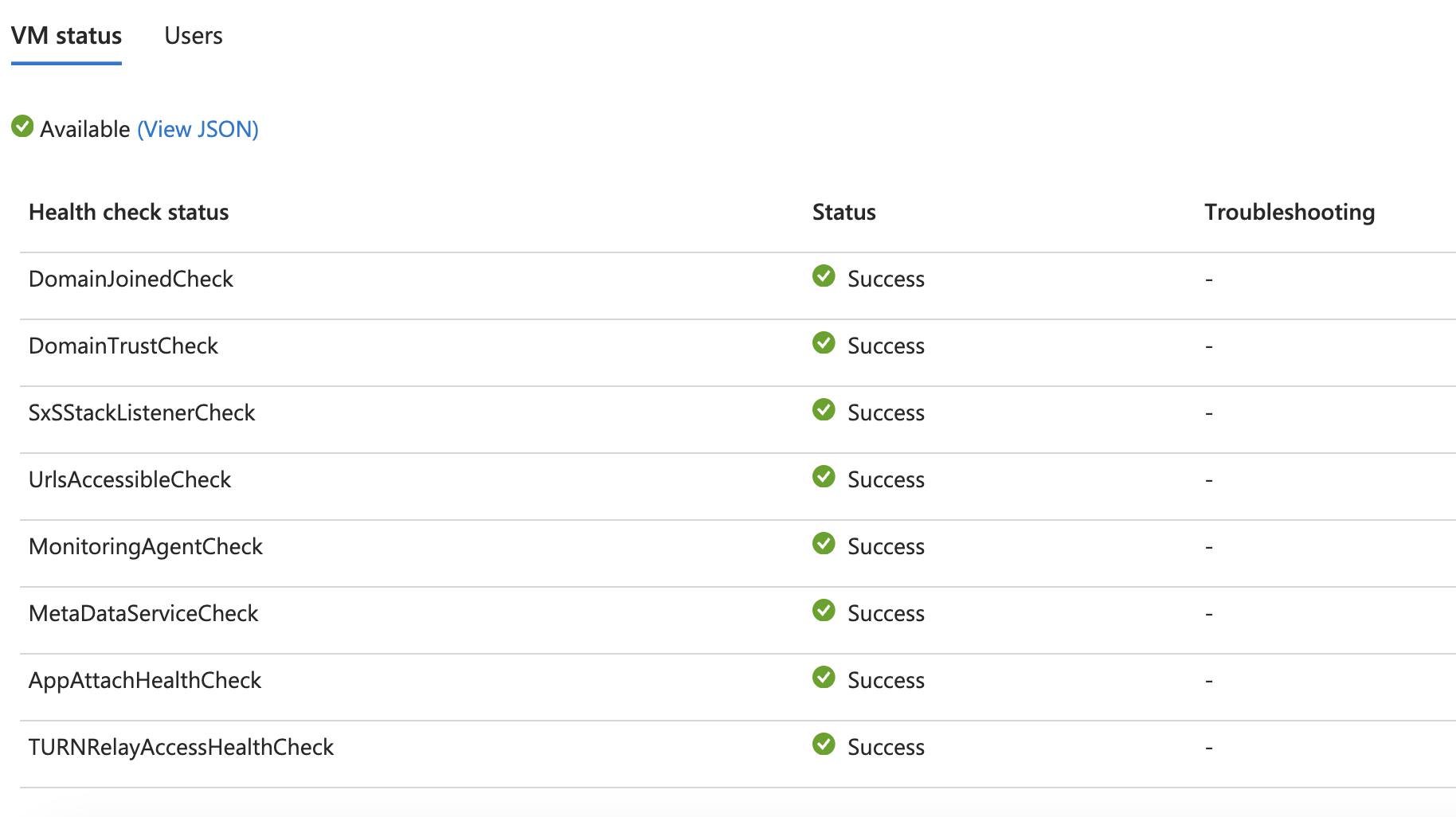

Initially, I was able to provision the Azure Virtual Desktop in my Test workspace, and the Session Host was able to join the Microsoft AAD successfully. However, after destroying and redeploying the resources for testing purposes, the Session Host is now in an UNAVAILABLE state and cannot join the AAD.

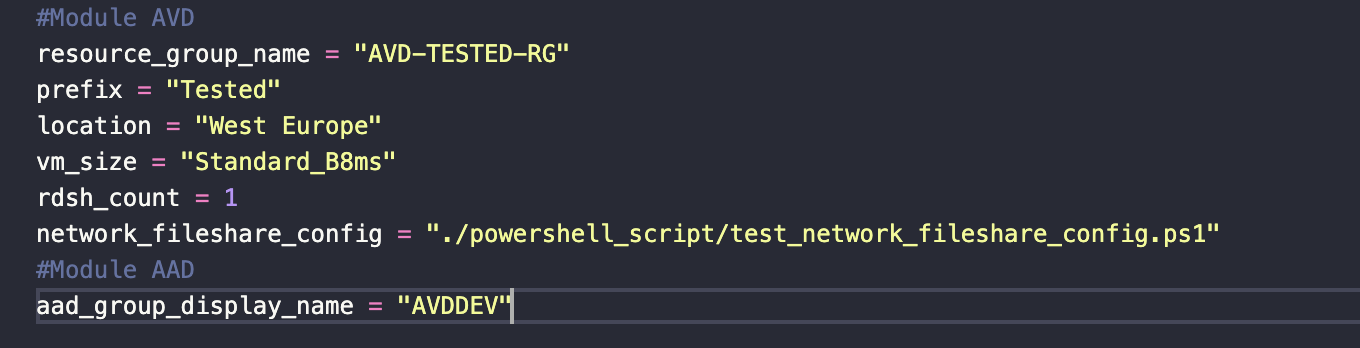

Interestingly, when I change the name of the Terraform variable from "Test" to "Tested" or "Testing," the Session Host can join the AAD. I am unsure why this is happening and would appreciate some guidance on how to fix it.

Answer 1

This was helpful. I was also having an issue with the VM displaying as "Unavailable" under the session hosts blade. The following is part of my Terraform (v.3.116.0) code that I used to solve this. Many thanks to @Khoi Vo.

resource "azurerm_public_ip" "Public_IP" {
  for_each  = var.vmMap

  name                = each.value.PublicIPName
  location            = var.location
  resource_group_name = var.resourcegroup
  allocation_method   = "Dynamic"
  tags                = var.tags
}

resource "azurerm_network_interface" "NIC" {
  for_each  = var.vmMap

  name                = each.value.NICName
  location            = var.location
  resource_group_name = var.resourcegroup
  tags                = var.tags

  ip_configuration {
    name                          = "prvtIP-nicWinVM"
    subnet_id                     = each.value.Subnet01ID
    private_ip_address_allocation = "Dynamic"
    public_ip_address_id          = azurerm_public_ip.Public_IP[each.key].id
  }
}


# ------------------------------------  Windows Virtual Machines -----------------------------------

resource "azurerm_windows_virtual_machine" "Session_VirtualMachine" {
  for_each  = var.vmMap

  name                = each.value.winVMName
  resource_group_name = var.resourcegroup
  location            = var.location
  size                = each.value.VMSize
  provision_vm_agent  = true                # Default = "true"
  #timezone            = "Central Standard Time"
  admin_username      = each.value.admin_Usr_Name
  admin_password      = each.value.admin_Passwd

  identity {
    type = "SystemAssigned"
  }

  network_interface_ids = [
    azurerm_network_interface.NIC[each.key].id,        // Implicit dependency
  ]

  os_disk {
    name                 = "${each.value.winVMName}-os_disk"
    caching              = "ReadWrite"
    storage_account_type = "Standard_LRS"
  }

/*
    boot_diagnostics {
    storage_account_uri = ""                               # Passing a null value will utilize a Managed Storage Account to store Boot Diagnostics
  }
*/

  source_image_reference {
    publisher = each.value.source_image_reference.publisher
    offer     = each.value.source_image_reference.offer
    sku       = each.value.source_image_reference.sku
    version   = each.value.source_image_reference.version
  }

  tags                = var.tags
}


# Null resource to introduce a delay (using PowerShell for Windows). This may be ignored.
# Update this block if you are using Linux (Bash) to deploy

resource "null_resource" "wait_for_vm" {
  provisioner "local-exec" {
    command = "powershell -Command \"Start-Sleep -Seconds 120\""  # Wait for 120 seconds
  }

  depends_on = [azurerm_windows_virtual_machine.Session_VirtualMachine]
}



# ---------   Deploy AVD Agent and associate the VM to a Session Host   ----------------

resource "azurerm_virtual_machine_extension" "avd_agent_registration" {
  for_each            = var.vmMap

  name                = each.value.avdagentname  # avdagentregistration
  virtual_machine_id  = azurerm_windows_virtual_machine.Session_VirtualMachine[each.key].id
  publisher                  = "Microsoft.Powershell"
  type                       = "DSC"
  type_handler_version       = "2.73"
  auto_upgrade_minor_version = true

  settings = <<-SETTINGS
    {
      "modulesUrl": "https://wvdportalstorageblob.blob.core.windows.net/galleryartifacts/Configuration_01-19-2023.zip",
      "ConfigurationFunction": "Configuration.ps1\\AddSessionHost",
      "Properties": {
        "hostPoolName":"${var.HPoolName}",
        "aadjoin": true
      }
    }
  SETTINGS

  protected_settings = <<PROTECTED_SETTINGS
  {
    "properties": {
      "registrationInfoToken": "${var.RegistrationToken}"
    }
  }
PROTECTED_SETTINGS

  depends_on    = [
    azurerm_windows_virtual_machine.Session_VirtualMachine,
    null_resource.wait_for_vm
  ]
}


resource "azurerm_virtual_machine_extension" "AADLoginForWindows" {
  for_each            = var.vmMap

  name                       = each.value.sec_avdagentname
  virtual_machine_id         = azurerm_windows_virtual_machine.Session_VirtualMachine[each.key].id
  publisher                  = "Microsoft.Azure.ActiveDirectory"
  type                       = "AADLoginForWindows"
  type_handler_version       = "1.0"
  auto_upgrade_minor_version = true

  depends_on    = [
    azurerm_windows_virtual_machine.Session_VirtualMachine,
    null_resource.wait_for_vm
  ]
}

Answer 2

I encountered the same issue with the AAD join, try deleting the old object first from Entra ID en deploy the session hosts again using the same name.
