.NET 6+, typed HttpClient HttpMessageHandler not fired

Question

I am facing similar issue like mentioned here: https://learn.microsoft.com/en-us/answers/questions/588289/typed-client-addhttpmessagehandler-not-firing

I created a brand new project and it contains WeatherForecastController with a HttpClient injected. The problem still is, that the delegating handler is not invoked.

Upon debugging the code, I observed that the flow goes here, where the name (based on type) is not used by HttpClient factory. Maybe it is intentional, but I don't see the delegate handler being invoked anyway.

I am sharing the code below.

Program.cs

var builder = WebApplication.CreateBuilder(args);
builder.Services.AddMvcCore();
builder.Services.AddHttpClient<WeatherForecastController>().AddHttpMessageHandler(() => new MyDelegateHandler());

var app = builder.Build();
app.MapControllers();
app.Run();

public sealed class MyDelegateHandler : DelegatingHandler {
    protected override async Task<HttpResponseMessage> SendAsync(HttpRequestMessage request, CancellationToken cancellationToken) {
        // THIS IS WHAT I EXPECT TO BE EXECUTED!!!!
        Console.WriteLine("Hello from MyDelegateHandler!");
        return await base.SendAsync(request, cancellationToken).ConfigureAwait(false);
    }
}

// Model
public sealed record WeatherForecast(DateTime Date, int TemperatureC, string? Summary) {
    public int TemperatureF => 32 + (int)(TemperatureC / 0.5556);
}

Controller

using Microsoft.AspNetCore.Mvc;

namespace WebApplication1.Controllers;

[ApiController]
[Route("[controller]")]
public sealed class WeatherForecastController : ControllerBase {
    private readonly HttpClient _httpClient;
    public WeatherForecastController(HttpClient httpClient) => _httpClient = httpClient;

    [HttpGet]
    public async Task<IEnumerable<WeatherForecast>> GetAsync() {
        using var r = await _httpClient.SendAsync(new HttpRequestMessage(HttpMethod.Get, "https://www.google.com")).ConfigureAwait(false);
        return Array.Empty<WeatherForecast>();
    }
}

This is the code of the typed http client extension AddHttpClient

public static IHttpClientBuilder AddHttpClient<[DynamicallyAccessedMembers(DynamicallyAccessedMemberTypes.PublicConstructors)] TClient>(
	this IServiceCollection services, Action<HttpClient> configureClient)
	where TClient : class
{
    //...

    // Notice the name of the type is not used here
	AddHttpClient(services);

    // Now you extract the name, but the factory is already mapped to default unnamed client.
	string name = TypeNameHelper.GetTypeDisplayName(typeof(TClient), fullName: false);
	var builder = new DefaultHttpClientBuilder(services, name);
	builder.ConfigureHttpClient(configureClient);
	builder.AddTypedClientCore<TClient>(validateSingleType: true);
	return builder;
}

Kindly help me understand what is wrong or missing here?

Answer 1

Hi @Nayan Choudhary

From your description, it seems that you want to add the HttpMessageHandler to the specify controller. In this scenario, you can refer to the following code:

In the Program.cs file:

            builder.Services.AddControllersWithViews();

            // Register the delegatehandler
            builder.Services.AddTransient<MyDelegateHandler>();

            // Add HttpClient and configure a specific HttpMessageHandler for a controller
            builder.Services.AddHttpClient<HomeController>("YourHttpClientName", client =>
            {
                // Configure your HttpClient settings here, if needed
                client.BaseAddress=new Uri("https://localhost:7079/");
            })
            .AddHttpMessageHandler<MyDelegateHandler>(); // Add your custom HttpMessageHandler

In the HomeController: Use the HttpClientFactory to create httpclient.

    public class HomeController : Controller
    {
        private readonly IHttpClientFactory _httpClientFactory;

        public HomeController(IHttpClientFactory httpClientFactory)
        {
            _httpClientFactory = httpClientFactory;
        }
        public async Task<IActionResult> Index()
        {
            var _client = _httpClientFactory.CreateClient("YourHttpClientName");
            using (HttpResponseMessage response = await _client.GetAsync("/api/Values"))
            {
                try
                {
                    var result = await response.Content.ReadAsStringAsync();
                    return Ok(result);
                }
                catch (Exception e)
                {
                    Console.WriteLine("Failed to read content");

                    return Ok("Failed");
                }
            }
        }

In the DelegatingHandler:

    public sealed class MyDelegateHandler : DelegatingHandler
    {
        protected override async Task<HttpResponseMessage> SendAsync(HttpRequestMessage request, CancellationToken cancellationToken)
        {
            // THIS IS WHAT I EXPECT TO BE EXECUTED!!!!
            Console.WriteLine("Hello from MyDelegateHandler!");
            return await base.SendAsync(request, cancellationToken).ConfigureAwait(false);
        }
    }

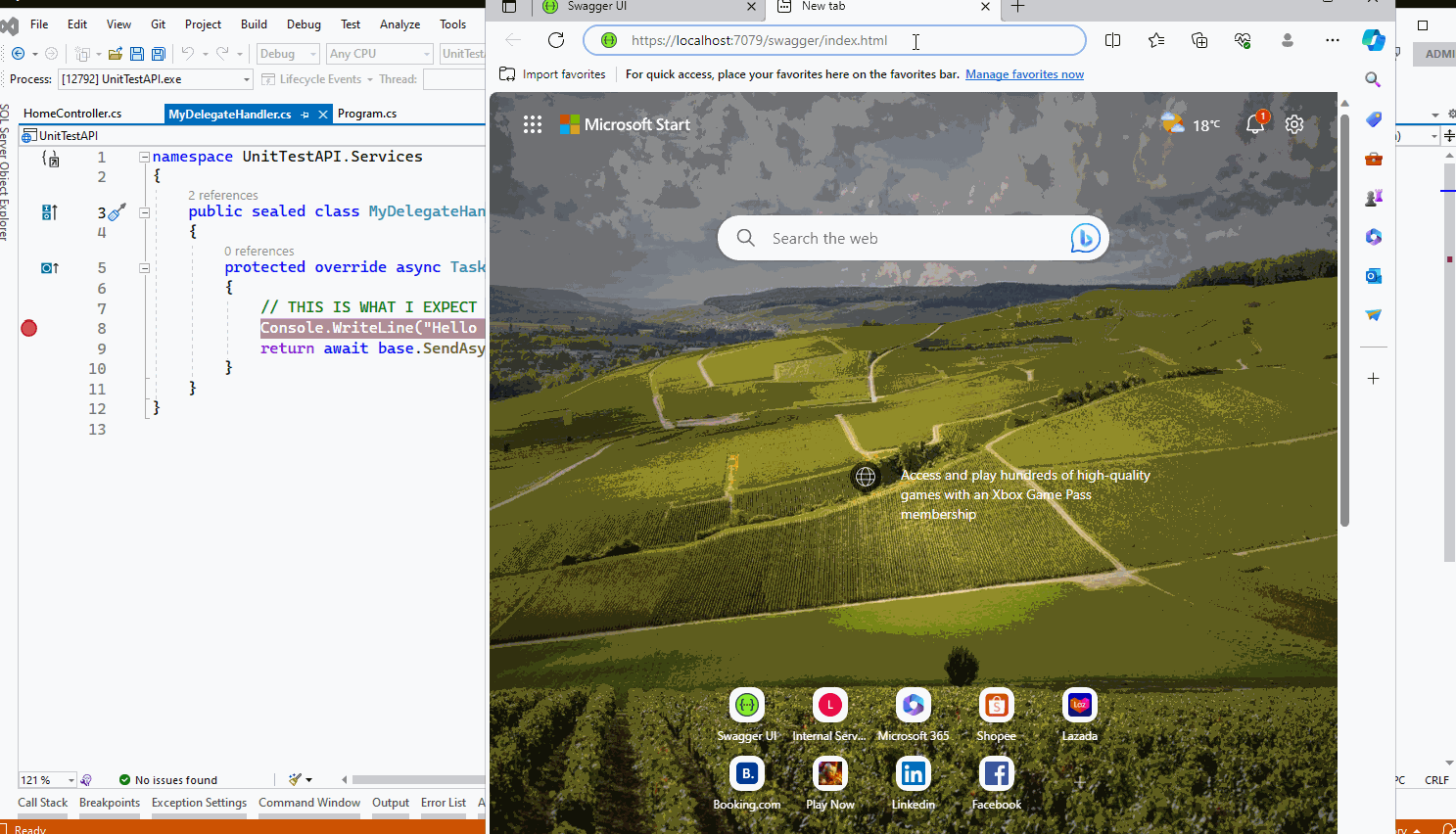

After that, the result as below:

Reference: Make HTTP requests using IHttpClientFactory in ASP.NET Core

Update:

Besides, you can also refer to the following sample code to use a typed HttpClient.

MyRepositoryClient.cs file:

    public interface IMyRepositoryClient
    {
        Task<string> GetAsync();
    }
    public class MyRepositoryClient : IMyRepositoryClient
    {
        private readonly HttpClient _client;
        private readonly ILogger<MyRepositoryClient> _logger;
        public MyRepositoryClient(HttpClient client, ILogger<MyRepositoryClient> logger)
        {
            _client = client;
            _logger = logger;
        }
        public async Task<string> GetAsync()
        {
            using (HttpResponseMessage response = await _client.GetAsync("/api/Values"))
            {
                try
                {
                    return await response.Content.ReadAsStringAsync();
                }
                catch (Exception e)
                {
                    _logger.LogError(e, "Failed to read content");
                    return null;
                }
            }
        }
    }

MyDelegateHandler.cs

    public sealed class MyDelegateHandler : DelegatingHandler
    {
        protected override async Task<HttpResponseMessage> SendAsync(HttpRequestMessage request, CancellationToken cancellationToken)
        {
            //
            Console.WriteLine("Hello from MyDelegateHandler!");
            return await base.SendAsync(request, cancellationToken).ConfigureAwait(false);
        }
    }

Program.cs file:

            // Register the delegatehandler
            builder.Services.AddTransient<MyDelegateHandler>();
            builder.Services.AddTransient<IMyRepositoryClient, MyRepositoryClient>();
            builder.Services.AddHttpClient<IMyRepositoryClient, MyRepositoryClient>()
                .ConfigureHttpClient(c => c.BaseAddress = new Uri("https://localhost:7079/"))
                .AddHttpMessageHandler<MyDelegateHandler>();

HomeController:

    public class HomeController : Controller
    {
        private readonly IMyRepositoryClient _myclient;

        public HomeController(IMyRepositoryClient httpClientFactory)
        {
            _myclient = httpClientFactory;
        }
        public async Task<IActionResult> Index()
        {
            var result = await _myclient.GetAsync();

            return Ok(result);
        }

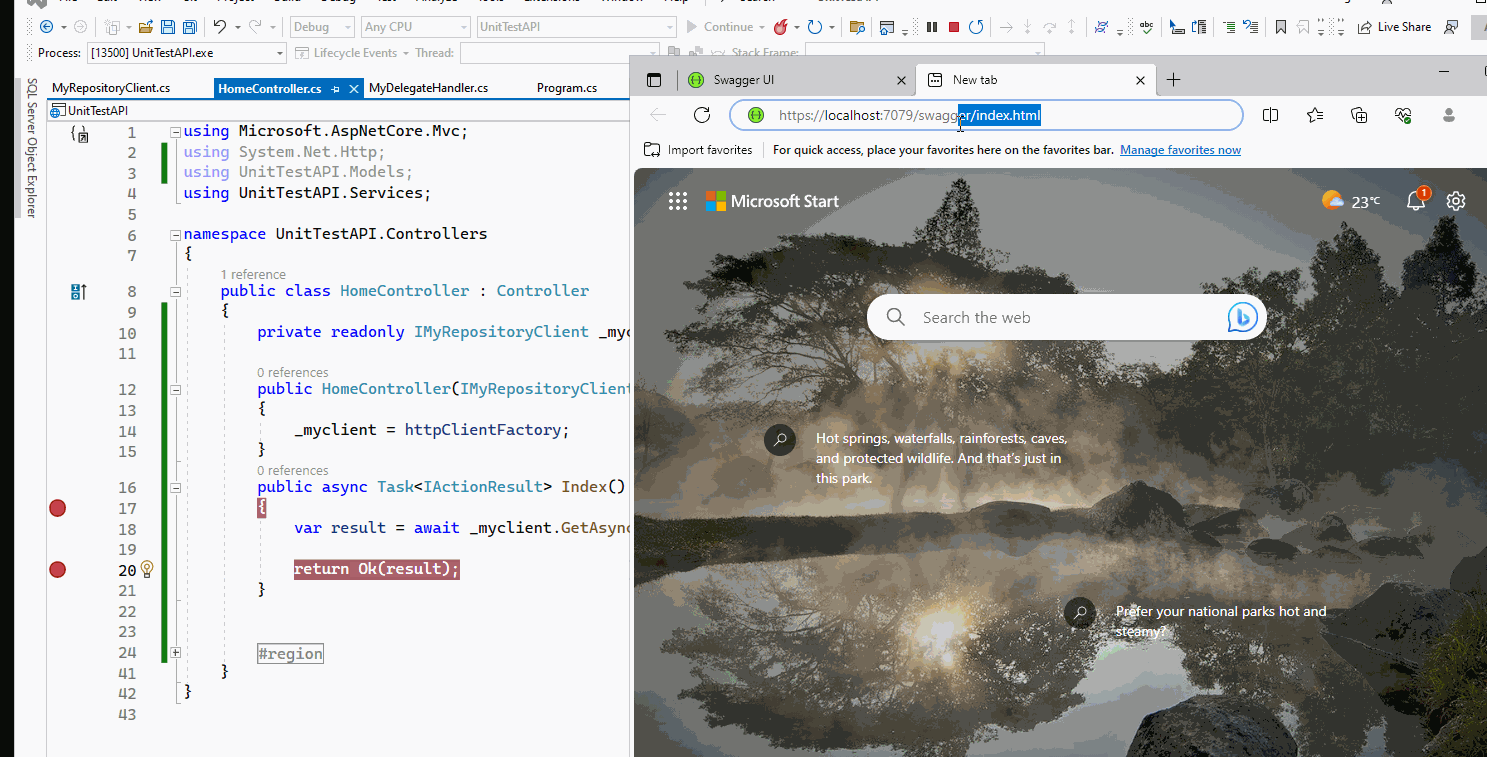

The result as below:

---

If the answer is the right solution, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".

Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Best regards,

Dillion

Answer 2

I have figured out the issue. I cannot register a controller, because it will be replaced by the controller-auto-registration algo. This is why my registration, with HttpMessageHandler delegate, wasn't firing.

builder.Services.AddHttpClient<WeatherForecastController>().AddHttpMessageHandler(() => new MyDelegateHandler());

The right way is to not inject HttpClient in controller. Create a service interface and inject HttpClient there. Inject this service in controller.

builder.Services.AddHttpClient<HttpClientService>()
    .AddHttpMessageHandler(() => new MyAuthenticationHandler());

public sealed class HttpClientService {
    private readonly HttpClient _httpClient;
    public HttpClientService(HttpClient httpClient) {
        _httpClient = httpClient;
    }
    public HttpClient HttpClient => _httpClient;
}


[ApiController]
[Route("[controller]")]
public sealed class WeatherForecastController : ControllerBase {
    private readonly HttpClientService _clientService;
    public WeatherForecastController(HttpClientService clientService) => _clientService = clientService;

    [HttpGet]
    public async Task<IEnumerable<WeatherForecast>> GetAsync() {
        using var r = await _clientService.HttpClient.SendAsync(new HttpRequestMessage(HttpMethod.Get, "https://www.google.com")).ConfigureAwait(false);
        return Array.Empty<WeatherForecast>();
    }
}

Now, the HttpMessageHandler delegate will fire correctly.
