Hyper-V doesn't boot ISO file to install OS

Axel 20 Reputation points
2024-01-01T10:16:54.51+00:00

Hi there,

For school I have to set up a virtual test-network using Hyper-V and Windows Server 2022.

I downloaded the free Trial Version .ISO file hereUser's image

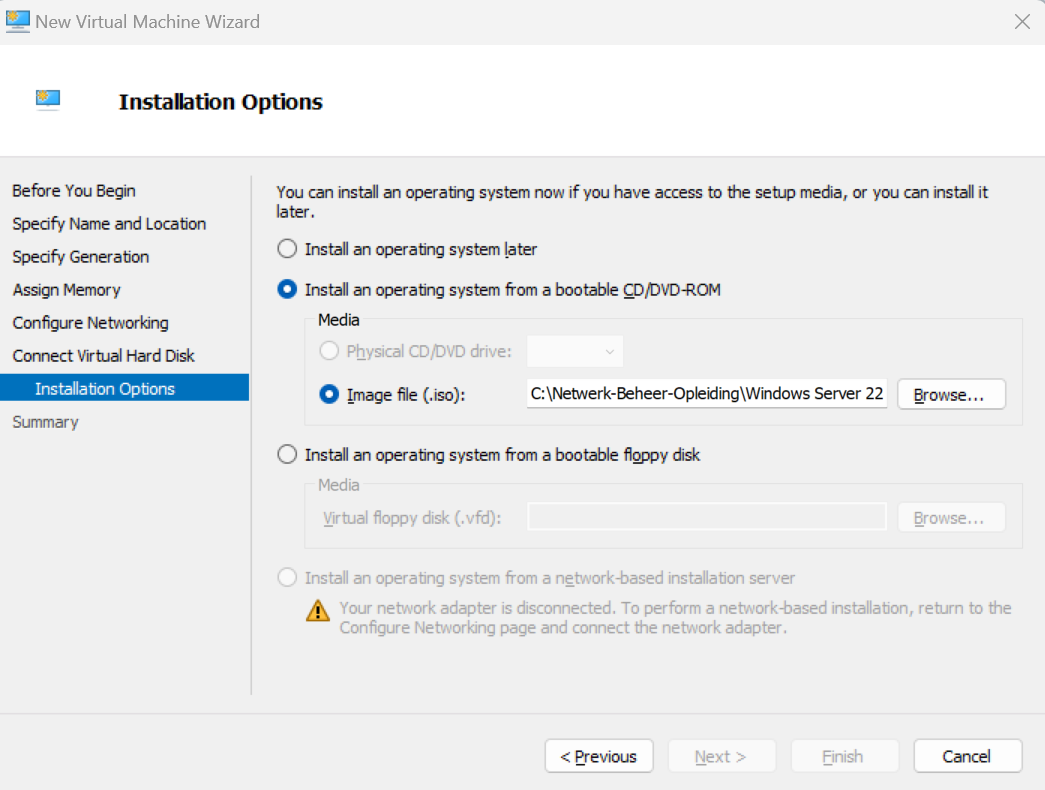

Next I've set up the virtual machine and selected install from bootable CD > Image File (iso) > selected the file downloaded from the link above.

User's image

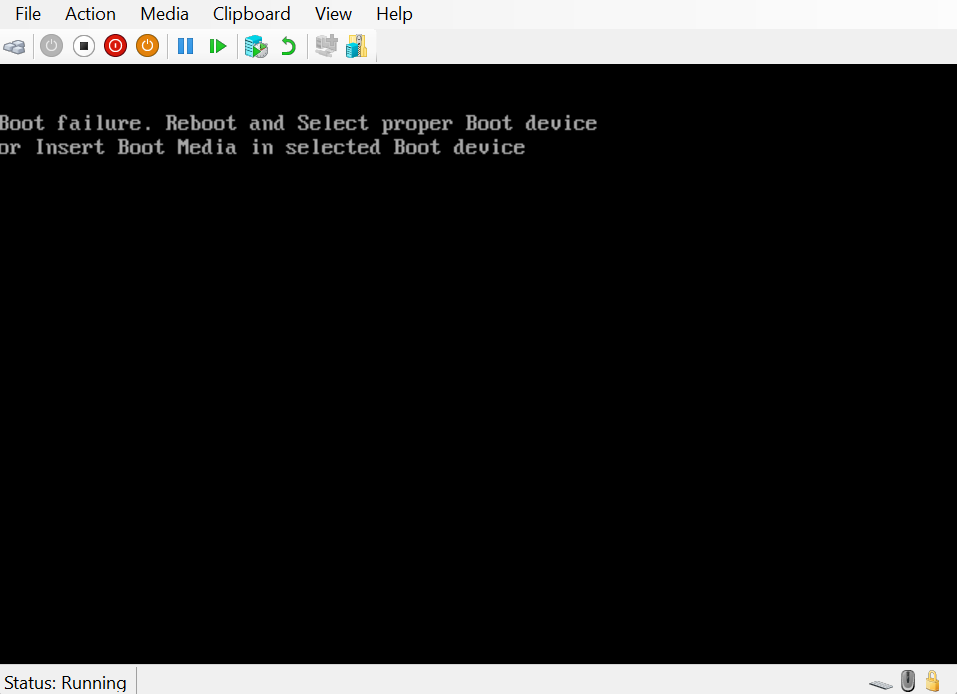

Yet when I press > Connect > Start I get the following message.

User's image

It doesn't seem to find or recognize the ISO file I guess? How do I fix this so that the installation of the OS does start?

Thanks in advance!

Windows Server
Windows Server
A family of Microsoft server operating systems that support enterprise-level management, data storage, applications, and communications.
12,155 questions
Hyper-V
Hyper-V
A Windows technology providing a hypervisor-based virtualization solution enabling customers to consolidate workloads onto a single server.
2,545 questions
Windows Server Setup
Windows Server Setup
Windows Server: A family of Microsoft server operating systems that support enterprise-level management, data storage, applications, and communications.Setup: The procedures involved in preparing a software program or application to operate within a computer or mobile device.
241 questions
Accepted answer
  1. Ian Xue (Shanghai Wicresoft Co., Ltd.) 29,891 Reputation points Microsoft Vendor
    2024-01-02T08:35:23.26+00:00

    Hi Axel,

    The VM failed to boot from the ISO. It seems that you have downloaded the wrong ISO file. Please download the image from the evaluation center and try again.

    https://www.microsoft.com/en-us/evalcenter/download-windows-server-2022

    Best Regards,

    Ian Xue

    If the Answer is helpful, please click "Accept Answer" and upvote it.

    Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

    1 person found this answer helpful.

1 additional answer

Sort by: Most helpful
Most helpful Newest Oldest
  1. Andreas Baumgarten 96,601 Reputation points MVP
    2024-01-01T10:28:51.2666667+00:00

    Hi @Axel ,

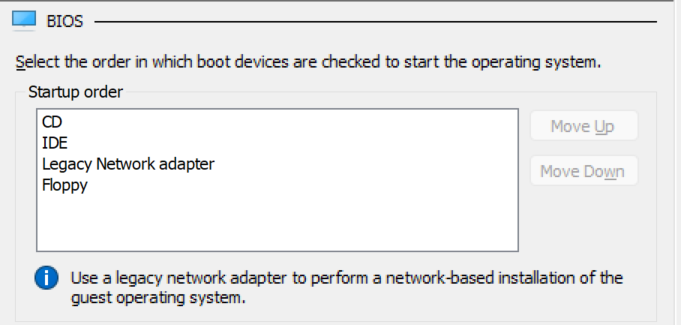

    please verify the boot order of the VM is set on DVD (ISO file) first.

    The ISO file is stored locally on the Hyper-V server? If not, please copy the ISO file locally and try again.

    (If the reply was helpful please don't forget to upvote and/or accept as answer, thank you)

    Regards

    Andreas Baumgarten
