Azure Data Factory - Data Flow filtering function

Question

Azure Data Factory - Data Flow filtering function

Andres Esteban 156

Hello

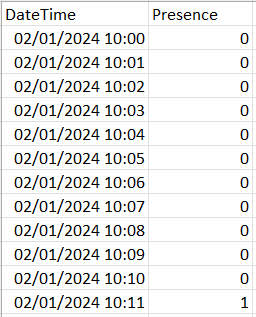

I have a source table where telemetry data is stored every minute from a device that measures presence (0 or 1) as shown in the image:

User's image

In order to be able to work with the data, I need to create a new table where only the records that involve a change of state are stored, i.e. from the first image to the one shown below:

User's image

To do this, I am configuring a DataFlow in Azure Data Factory, but I am not able to configure the filtering step, could someone help me? I have tried the following but it does not recognise the 'lag' function:

User's image

Presence == 1 || (Presence == 0 && (lag(Presence) != 0 || lag(Presence) is null))

Could someone help me and tell me how to keep the rows that involve a change of state please?

Thank you very much in advance

phemanth 15,755 Reputation points Microsoft External Staff Moderator

2024-01-04T09:18:22.54+00:00

@Andres Esteban We haven’t heard from you on the last response and was just checking back to see if you have a resolution yet. In case if you have any resolution please do share that same with the community as it can be helpful to others. Otherwise, will respond with more details and we will try to help.
phemanth 15,755 Reputation points Microsoft External Staff Moderator

2024-01-05T05:11:47.1433333+00:00

@Andres Esteban was just checking back to see if you have a resolution yet. In case if you have any resolution, please do share that same with the community as it can be helpful to others. Otherwise, will respond with more details and we will try to help.

Accepted answer

0 additional answers

Your answer

phemanth 15,755 Reputation points Microsoft External Staff Moderator

2024-01-04T09:18:22.54+00:00

@Andres Esteban We haven’t heard from you on the last response and was just checking back to see if you have a resolution yet. In case if you have any resolution please do share that same with the community as it can be helpful to others. Otherwise, will respond with more details and we will try to help.
phemanth 15,755 Reputation points Microsoft External Staff Moderator

2024-01-05T05:11:47.1433333+00:00

@Andres Esteban was just checking back to see if you have a resolution yet. In case if you have any resolution, please do share that same with the community as it can be helpful to others. Otherwise, will respond with more details and we will try to help.

Answer 1

@Andres Esteban

Thanks for reaching MS Q&A

Here’s a high-level overview of how you can achieve this:

Source Transformation: Connect to your source data.

Window Transformation: Add a window transformation after your source transformation. In the window transformation, you can use the lag function to create a new column that contains the previous state. For example, you could create a new column PreviousPresence with the expression lag(Presence, 1).

Derived Column Transformation: Add a derived column transformation after the window transformation. In this transformation, create a new column StateChanged with the expression Presence != PreviousPresence. This will give a boolean value indicating whether the state has changed compared to the previous row.

Filter Transformation: Add a filter transformation after the derived column transformation. In the filter transformation, filter the rows where StateChanged is true. This will keep only the rows where the state has changed.

Sink Transformation: Connect to your destination data store and write the result.

please go through: https://learn.microsoft.com/en-us/azure/data-factory/data-flow-window-functions

Hope this helps. Do let us know if you any further queries.

Andres Esteban 156 Reputation points

2024-01-05T08:57:48.3466667+00:00

@phemanth thank you for your help. I have done it following the method you have told me and it works perfectly.
phemanth 15,755 Reputation points Microsoft External Staff Moderator

2024-01-05T10:10:11.6733333+00:00

@Andres Esteban if the above answer was helpful. If this answers your query, do click Accept Answer and Yes for was this answer helpful. And, if you have any further query do let us know.
