Key Value Pairs doesn't work on Azure Document Intelligence Layout model

Question

https://learn.microsoft.com/en-us/azure/ai-services/document-intelligence/concept-general-document?view=doc-intel-4.0.0&source=recommendations says that "Layout model with the optional query string parameter features=keyValuePairs enabled" will work. When I call the API or even use the Document Intelligence Studio web app (with the key-value pairs enabled), it doesn't actually get the key value pairs. It works if I use the General Document model, but that is being deprecated so I want it to work with the Layout model. Is this a bug? How do I make it work?

Answer 1

Hello @ajo , Thanks for sharing detailed infromation.

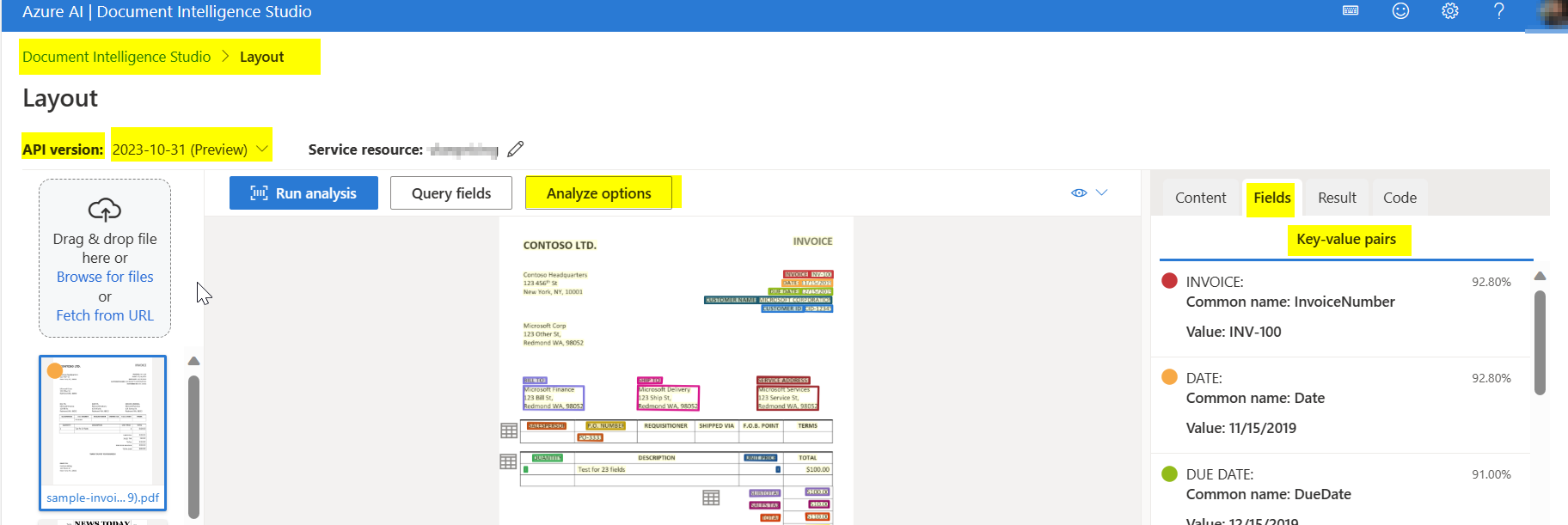

I have reproduced the same on my end with pre-built Layout model using 2023-10-31-preview version and I was able to successfully extract key-value pairs using Document Intelligence studio and python SDK.

Make sure to install the Azure AI Document Intelligence client library for Python with pip:

pip install azure-ai-documentintelligence==1.0.0b1

Here is the sample code to enable keyValuePair feature:

from azure.core.credentials import AzureKeyCredential
from azure.ai.documentintelligence import DocumentIntelligenceClient
from azure.ai.documentintelligence.models import DocumentAnalysisFeature, AnalyzeResult

poller = document_intelligence_client.begin_analyze_document(
        "prebuilt-layout", analyze_request=f, features=[DocumentAnalysisFeature.KEY_VALUE_PAIRS], content_type="application/octet-stream"
    )

    print("----Key-value pairs found in document----")
    if result.key_value_pairs:
        for kv_pair in result.key_value_pairs:
            if kv_pair.key:
                print(f"Key '{kv_pair.key.content}' found within " f"'{kv_pair.key.bounding_regions}' bounding regions")
            if kv_pair.value:
                print(
                    f"Value '{kv_pair.value.content}' found within "
                    f"'{kv_pair.value.bounding_regions}' bounding regions\n"
                )

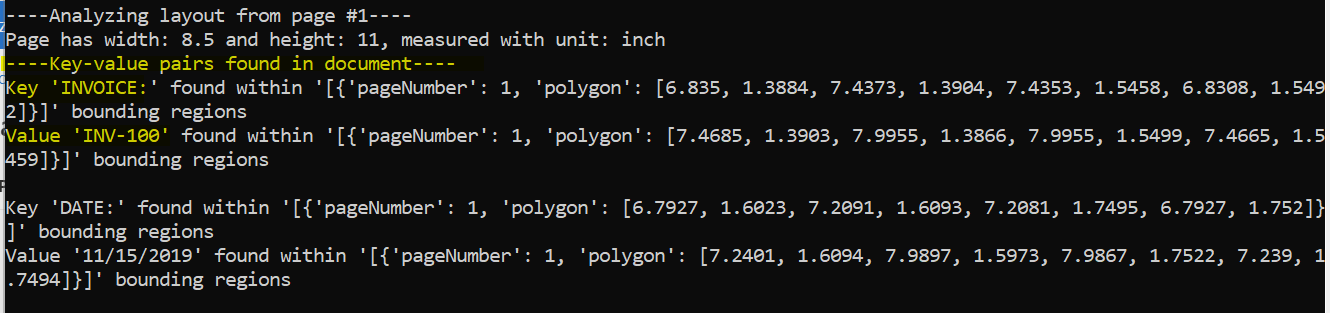

Output:

To analyze add-on capabilities, you can refer this sample code: https://github.com/Azure/azure-sdk-for-python/blob/main/sdk/documentintelligence/azure-ai-documentintelligence/samples/sample_analyze_addon_languages.py

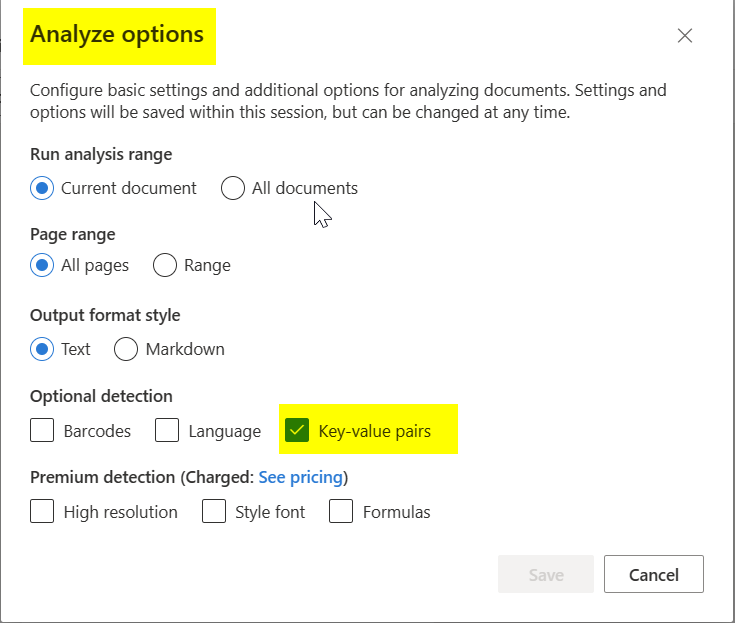

The document you are processing may not contain any key-value pairs: you can try enabling the keyValuePairs option under the Analyze options for the Layout model in the DI studio. This option is available as an optional detection feature and needs to be selected in order to extract key-value pairs from the document.

I hope this helps.

Regards,

Vasavi
