How to change Mica TintColor which does support Dark/Light Theme?
Hi, i am trying to use Mica with Custom TintColor, i ended with using this helper class:
internal class MicaSystemBackdrop : MicaBackdrop
{
public Window window;
public WindowsSystemDispatcherQueueHelper m_wsdqHelper;
public MicaController micaController;
public SystemBackdropConfiguration m_configurationSource;
public MicaKind kind;
public MicaSystemBackdrop(Window window, MicaKind kind)
{
this.window = window;
this.kind = kind;
}
public void Disconnect()
{
window.Activated -= Window_Activated;
window.Closed -= Window_Closed;
((FrameworkElement)window.Content).ActualThemeChanged -= Window_ThemeChanged;
micaController.RemoveAllSystemBackdropTargets();
micaController.ResetProperties();
micaController.Dispose();
micaController = null;
}
public bool TrySetMicaBackdrop()
{
if (MicaController.IsSupported())
{
m_wsdqHelper = new WindowsSystemDispatcherQueueHelper();
m_wsdqHelper.EnsureWindowsSystemDispatcherQueueController();
// Hooking up the policy object
m_configurationSource = new SystemBackdropConfiguration();
window.Activated -= Window_Activated;
window.Activated += Window_Activated;
window.Closed -= Window_Closed;
window.Closed += Window_Closed;
((FrameworkElement)window.Content).ActualThemeChanged -= Window_ThemeChanged;
((FrameworkElement)window.Content).ActualThemeChanged += Window_ThemeChanged;
// Initial configuration state.
m_configurationSource.IsInputActive = true;
SetConfigurationSourceTheme();
micaController = new MicaController();
micaController.Kind = kind;
// Enable the system backdrop.
// Note: Be sure to have "using WinRT;" to support the Window.As<...>() call.
micaController.AddSystemBackdropTarget(window.As<Microsoft.UI.Composition.ICompositionSupportsSystemBackdrop>());
micaController.SetSystemBackdropConfiguration(m_configurationSource);
return true; // succeeded
}
return false; // Mica is not supported on this system
}
private void Window_Activated(object sender, WindowActivatedEventArgs args)
{
m_configurationSource.IsInputActive = args.WindowActivationState != WindowActivationState.Deactivated;
}
private void Window_Closed(object sender, WindowEventArgs args)
{
// Make sure any Mica/Acrylic controller is disposed so it doesn't try to
// use this closed window.
if (micaController != null)
{
micaController.Dispose();
micaController = null;
}
window.Activated -= Window_Activated;
m_configurationSource = null;
}
private void Window_ThemeChanged(FrameworkElement sender, object args)
{
if (m_configurationSource != null)
{
SetConfigurationSourceTheme();
}
}
private void SetConfigurationSourceTheme()
{
switch (((FrameworkElement)window.Content).ActualTheme)
{
case ElementTheme.Dark: m_configurationSource.Theme = SystemBackdropTheme.Dark; break;
case ElementTheme.Light: m_configurationSource.Theme = SystemBackdropTheme.Light; break;
case ElementTheme.Default: m_configurationSource.Theme = SystemBackdropTheme.Default; break;
}
}
}
i can change mica tintcolor by using micaController.TintColor = color;
however it seems that this only works in Light Theme and does not reflect to Dark Theme!

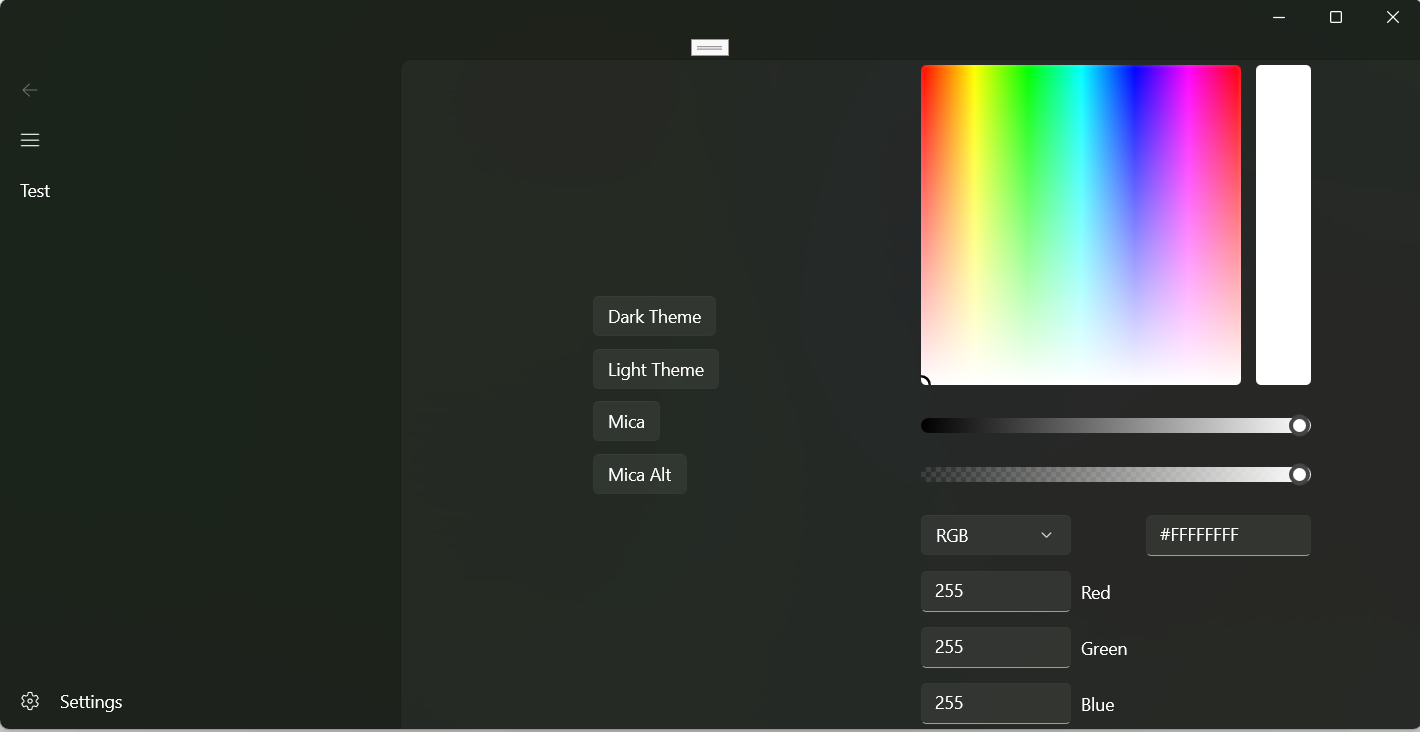

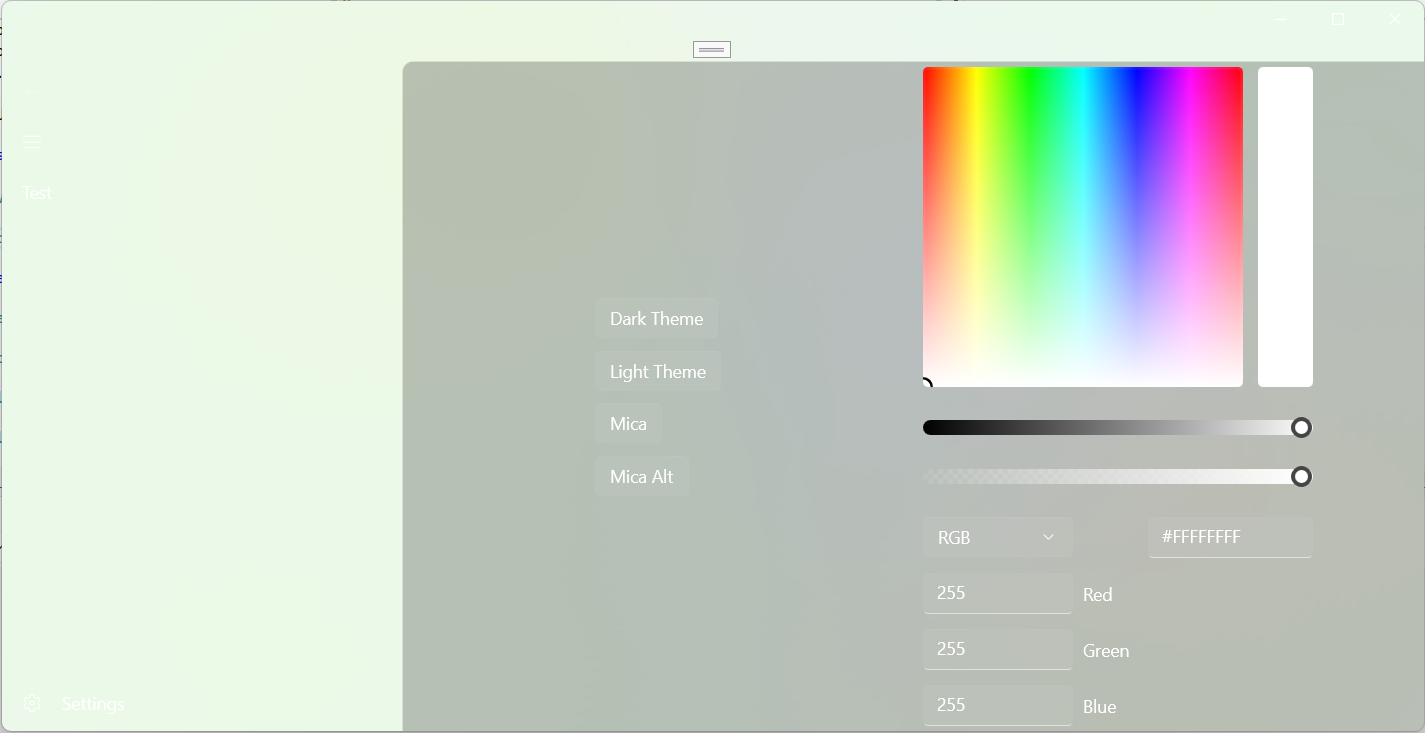

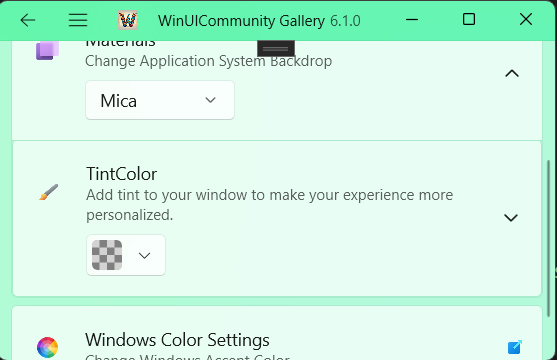

this is TintColor in Light Theme which is correct:

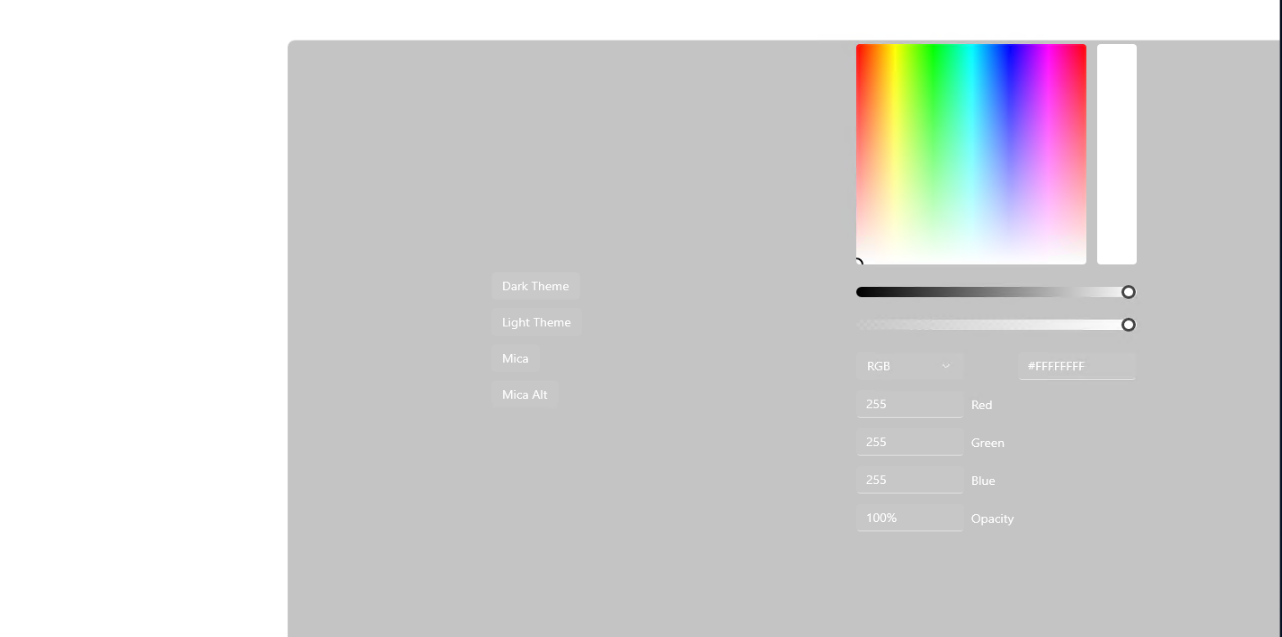

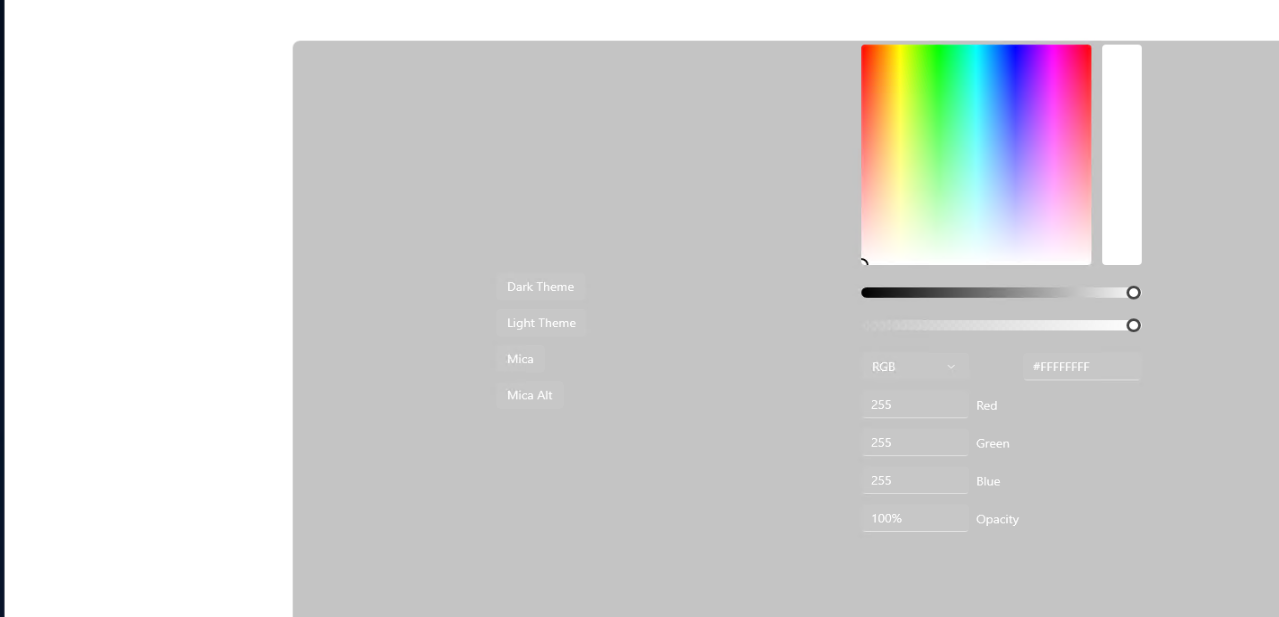

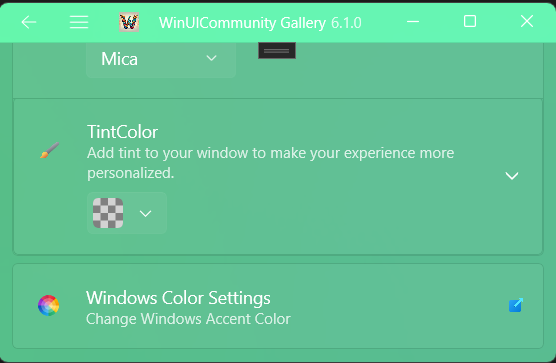

and this is TintColor in Dark theme which i think is wrong and should be changed:
so:
Are the changes made in the dark theme correctly? (Is there a problem with my eyes? :) )
i dont want to change tint opacity so tint opacity should be obtained automatically for light and dark them so i guess issue come from here?
there is another way for implementing Mica with Class : MicaBackdrop
and Overriding TargetConnected
but in ms-doc mentationed that if we change tint color, backdrop theme does not update automatically and we should update it manually.
i dont care about which method we should use, i just want to fix this issue and i can have a tinted backdrop in Light/Dark correctly.
