I want to use NotifyIcon.Icon provided by Microsoft, but the language is C++ programming language, how to use NotifyIcon.Icon with C++?

Question

I want to use NotifyIcon.Icon provided by Microsoft, but the language is C++ programming language, how to use NotifyIcon.Icon with C++?

杨谭 20

Check the Microsoft website NotifyIcon.Icon, the example code is written #using <System.dll> #using <System.Windows.Forms.dll> #using <System.Drawing.dll>, I have not seen or written this way to load the library, it seems not written in C++ programming language, How to use NotifyIcon on QT Creater and Visual Studio software? ?hope to get your reply.

Accepted answer

1 additional answer

Your answer

Answer 1

Minxin Yu 13,506 Microsoft External Staff

Hi,
NotifyIcon Class is .NET class.
You need to use it in C++CLR project.

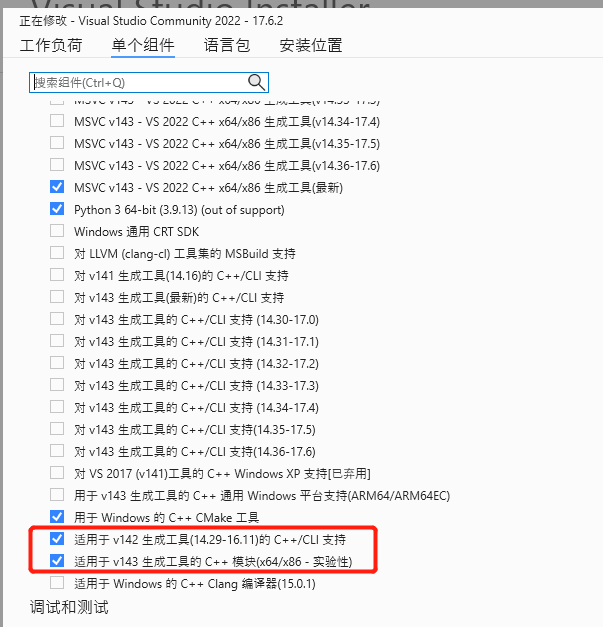

Install C++CLI in Visual Studio Installer.
User's image

The screenshot you provided is the usage of NotifyIcon in C++ Winform.

Best regards,

Minxin Yu

If the answer is the right solution, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".

Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

杨谭 20 Reputation points

2024-01-26T03:02:07.9433333+00:00

Thanks for your answer, how do I use NotifyIcon on QT Creater?
Minxin Yu 13,506 Reputation points Microsoft External Staff

2024-01-26T03:15:11.0133333+00:00

NotifyIcon is a component of .NET Winform , you can't use it in QT. Currently , QT is not supported on Q&A forum. For QT related question, you need to go to QT forum for support.
杨谭 20 Reputation points

2024-01-26T03:37:06.9133333+00:00

Thanks for your answer! I can't find the V143 option in the Visual Studio Installer, only the V142 option.

And how do I call the library to access the NotifyIcon class?
Minxin Yu 13,506 Reputation points Microsoft External Staff

2024-01-26T05:58:41.02+00:00
Create CLR .NET Framework empty project.

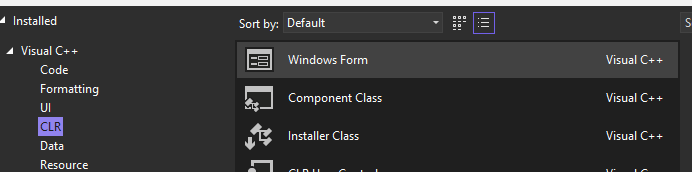

Add Winform item.

Then replace Myform.h's code with the sample's. ( one icon is needed)

notifyIcon1->Icon = gcnew System::Drawing::Icon("test.ico");// your icon here

And for creating NotifyIcon , there is Win32 API Shell_NotifyIconA function and GitHub sample code (https://learn.microsoft.com/en-us/windows/win32/shell/samples-notificationicon)
杨谭 20 Reputation points

2024-01-26T06:20:03.9533333+00:00

Thank you for your reply once again! However, I found an exception message after adding Winform entries, and I went to find a solution, most of which appeared in C# language。
杨谭 20 Reputation points

2024-01-26T06:26:33.0133333+00:00

Thank you for your reply once again！ However, I have problems after adding Winform items, and the search found that most of the solutions on the Internet are using C# language problems
Minxin Yu 13,506 Reputation points Microsoft External Staff

2024-01-26T06:30:36.9866667+00:00

Will the program compile after replacing the code?
杨谭 20 Reputation points

2024-01-26T06:33:58.1466667+00:00

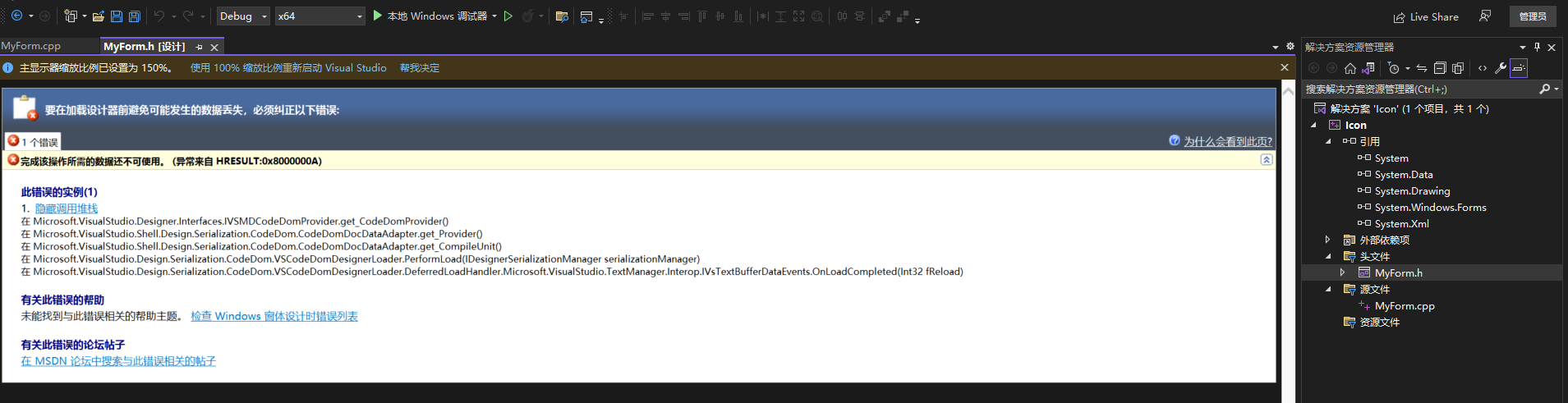

Because such an error screen appears in the MyForm.h file, the code cannot be replaced
Deleted

This comment has been deleted due to a violation of our Code of Conduct. The comment was manually reported or identified through automated detection before action was taken. Please refer to our Code of Conduct for more information.
Minxin Yu 13,506 Reputation points Microsoft External Staff

2024-01-26T06:36:56.39+00:00

Right Click myform.h -> View Code. (Exception from HRESULT: 0x8000000A)" , this is by design. On the initial load the background work is not done so the error properly says that things are not yet available.
杨谭 20 Reputation points

2024-01-26T06:41:21.5366667+00:00

I would also like to ask you a question, if I create a CLR.NET framework project and implement the icon operation through NotifyIcon class, how can I do this for another empty project written in C++ (not a CLR.NET framework project)? Can I load a CLR.NET framework project into this empty project?
Minxin Yu 13,506 Reputation points Microsoft External Staff

2024-01-26T06:44:37.5066667+00:00

You can't load .NET class in non-CLR project. For pure C++, please use Win32 API Shell_NotifyIconA function and GitHub sample code (https://learn.microsoft.com/en-us/windows/win32/shell/samples-notificationicon)
杨谭 20 Reputation points

2024-01-26T07:19:48.48+00:00

Thank you very much for your reply！
杨谭 20 Reputation points

2024-01-26T07:20:34.81+00:00

Thank you very much for your reply

Answer 2

David Lowndes 2,640 MVP

If you want to create a notification icon from native C++ code, have a look for examples using the Shell_NotifyIcon API such as this.
