Need Help Configuring Multicast Routing on Hyper-V Environment for RTP Streams.

fti-samadhan 0 Reputation points
2024-02-04T10:34:27.4533333+00:00

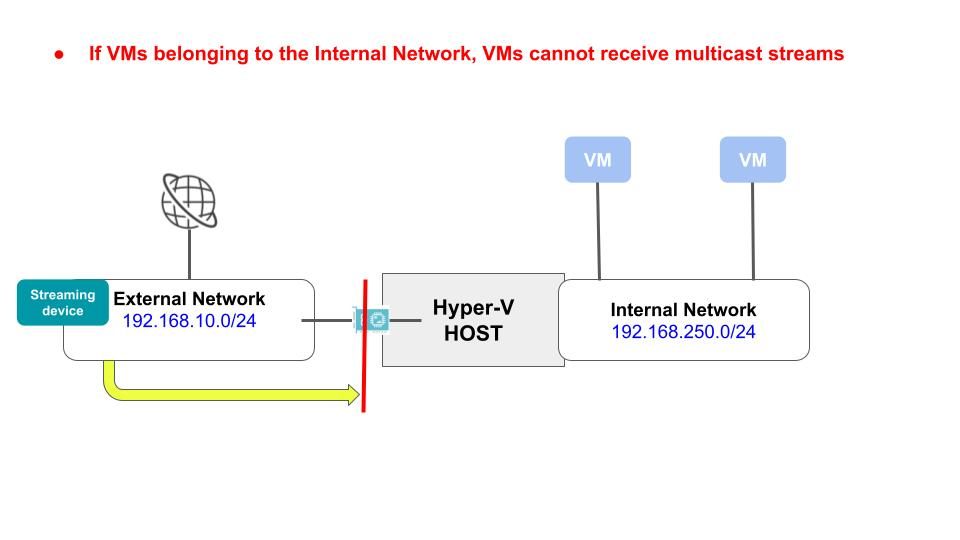

Hello, I'm relatively new to network configuration on Virtualization Environment, and I'm currently facing an issue with setting up multicast streaming in my Hyper-V environment. Here's the scenario: I have a streaming device connected to the External Network, and I have several Hyper-V VMs on the Internal Network that are supposed to receive multicast RTP streams from the streaming device. However, I'm encountering difficulties as the Internal VMs are not receiving the multicast streams. If VMs belonging to the Internal Network, VMs cannot receive multicast streams.

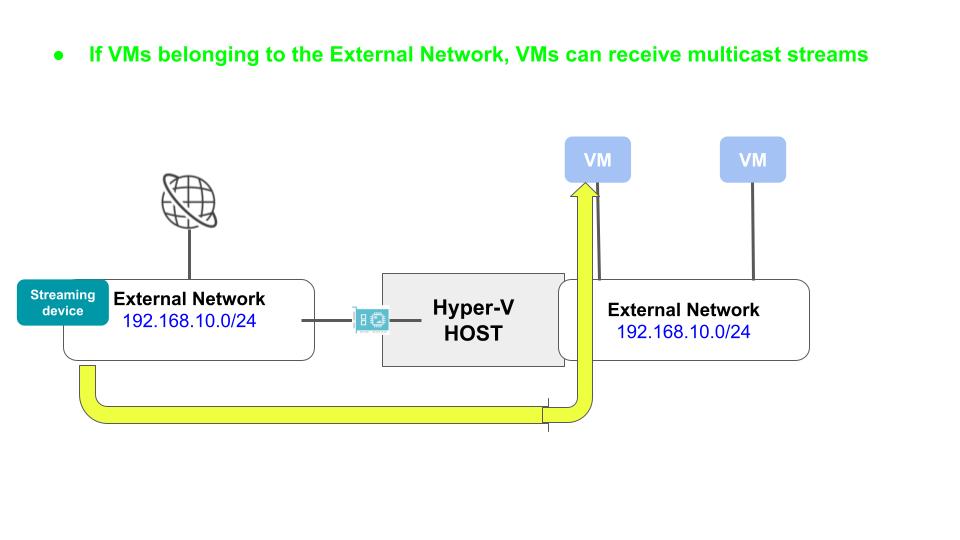

  • If VMs belonging to the External Network, VMs can receive multicast streams.

Could someone guide me through the necessary network configuration settings to ensure proper multicast communication between the External Network (streaming device) and the Internal VMs in Hyper-V?

Here is graphical representation of the issue details of my setup: Untitled presentation (2)

If anyone has experience with this kind of setup or can provide step-by-step instructions, I would greatly appreciate your help. Additionally, if there are any specific settings or considerations, I should be aware of, please point them out. Thank you in advance for your assistance!

Windows Server
Windows Server
A family of Microsoft server operating systems that support enterprise-level management, data storage, applications, and communications.
12,169 questions
Hyper-V
Hyper-V
A Windows technology providing a hypervisor-based virtualization solution enabling customers to consolidate workloads onto a single server.
2,545 questions
Windows Network
Windows Network
Windows: A family of Microsoft operating systems that run across personal computers, tablets, laptops, phones, internet of things devices, self-contained mixed reality headsets, large collaboration screens, and other devices.Network: A group of devices that communicate either wirelessly or via a physical connection.
652 questions
Windows DHCP
Windows DHCP
Windows: A family of Microsoft operating systems that run across personal computers, tablets, laptops, phones, internet of things devices, self-contained mixed reality headsets, large collaboration screens, and other devices.DHCP: Dynamic Host Configuration Protocol (DHCP). A communications protocol that lets network administrators manage centrally and automate the assignment of Internet Protocol (IP) addresses in an organization's network.
1,023 questions
0 comments

1 answer

Sort by: Most helpful
Most helpful Newest Oldest
  1. Eric Siron 1,251 Reputation points MVP
    2024-02-09T17:30:18.94+00:00

    I don't think I understand your goals. This is the intended design of the internal and private virtual switch configurations. The internal switch provides a network that the host and virtual machines can access, but has no connection to the physical network. The private switch is the same, but does not allow presence of the host. You could build a VM with presence on both the external switch and the internal switch and use routing software in it to forward the multicast messages that it receives from the external switch network to the internal switch network.

    0 comments
