Database connection did not establish for more 100 connections

Question

We are using MS-SQL server version of 15.0.4316.3 for our application. We are doing the performance testing for our application and facing issue while connecting for more database connection. In the monitoring, we found that the connection is not establishing for more 100 connections and getting below error. Could you please help us to understand if there is limitation or restriction which is not allowing for having more than 100 database connections. If yes, please help us to know the solution for this issue.

Answer 1

Thanks for posting your question in the Microsoft Q&A forum.

Here are a few steps to investigate and resolve the issue:

1. Check SQL Server Configuration: Verify the maximum number of concurrent connections allowed by SQL Server. You can do this by connecting to the SQL Server instance and executing the following query:

   SELECT @@MAX_CONNECTIONS;


1. Connection Pool Size: Ensure that the connection pool size is appropriately configured. This can be set in the connection string or in the application code. The default maximum pool size is 100. If you are exceeding this limit, you might need to increase the Max Pool Size property in your connection string. Example:

   string connectionString = "Data Source=yourServer;Initial Catalog=yourDatabase;User ID=yourUsername;Password=yourPassword;Max Pool Size=200;";


Please don't forget to close up the thread here by upvoting and accept it as an answer if it is helpful

Answer 2

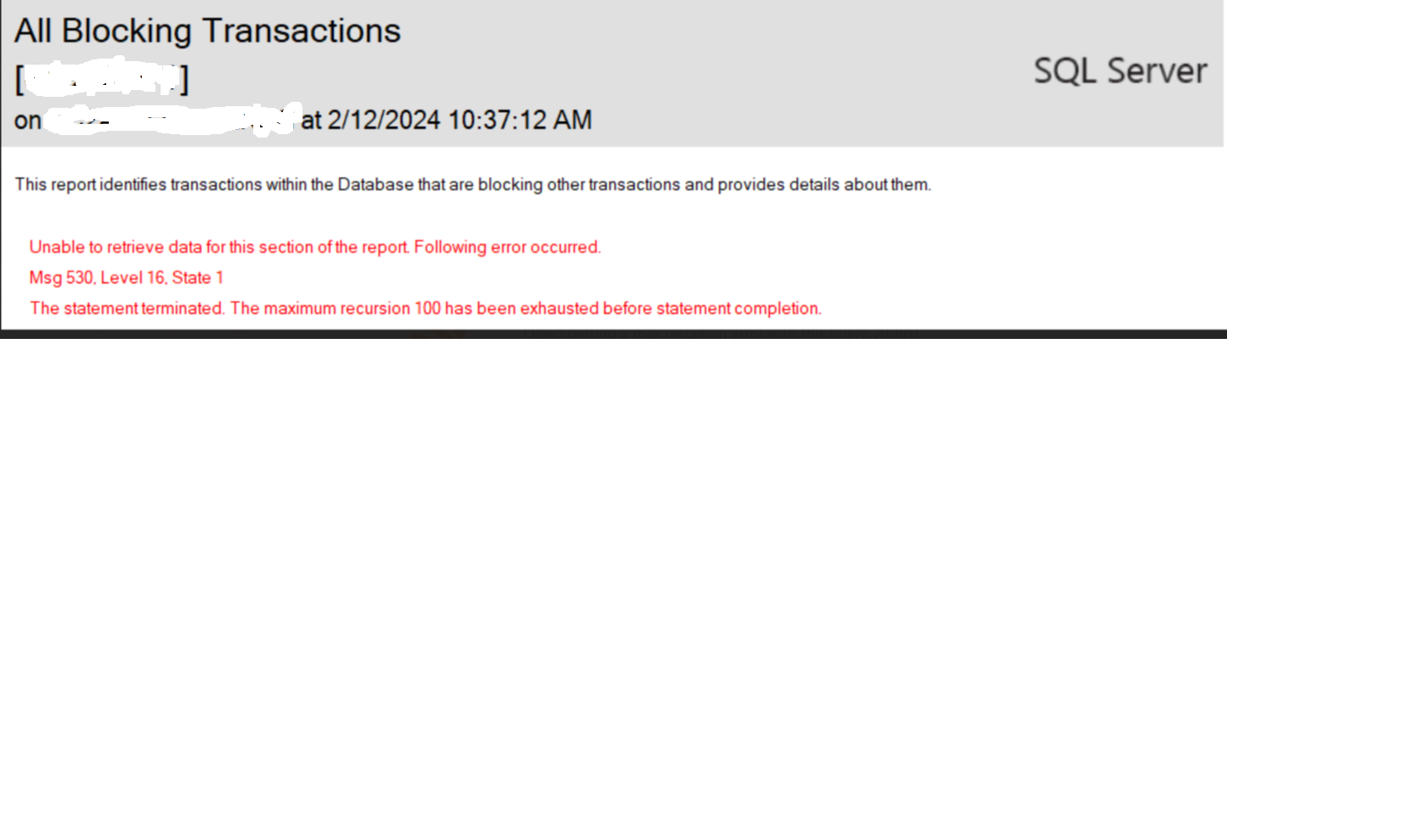

The error message you have has nothing to do with connections. It's a bug in the report itself. Apparently the query is using a query with a recursive CTE. By default when you have a recursive CTE, SQL Server permits only 100 levels of recursion.

Normally, when you have recursion of something like a tree structure, 100 is a lot. Although, sometimes people use recursive CTEs to code loop in a disguise, and in this case 100 may be insufficient.

Given the small context given, my guess is that the code is trying to unwind sys.dm_os_waiting_tasks to show blocking levels, but the programmer did not think of that there can be deadlocks in which cases there will be cycles. And cycles in recursive CTEs lead to infinite loops unless you add cycle detection.

Answer 3

Adding to what Erland mentioned, the SSMS All Blocking Transactions report uses a query with a CTE to report blocking/blocked sessions along with the blocking nesting level. The query is subject to the default MAXRECURSION 100 nesting level so you get the recursion exhausted error when you run the report and there are currently more than 100 sessions deep in the blocking episode. I captured the report query with a trace and added a MAXRECURSION query hint to avoid the error. You can run this version from a query window to get the blocking information if the SSMS report fails due to the MAXRECURSION error. exec sp_executesql @stmt=N'begin try declare @tab_tran_locks as table( l_resource_type nvarchar(60) collate database_default , l_resource_subtype nvarchar(60) collate database_default , l_resource_associated_entity_id bigint , l_blocking_request_spid int , l_blocked_request_spid int , l_blocking_request_mode nvarchar(60) collate database_default , l_blocked_request_mode nvarchar(60) collate database_default , l_blocking_tran_id bigint , l_blocked_tran_id bigint ); declare @tab_blocked_tran as table ( tran_id bigint , no_blocked bigint ); declare @temp_tab table( blocking_status int , no_blocked int , l_resource_type nvarchar(60) collate database_default , l_resource_subtype nvarchar(60) collate database_default , l_resource_associated_entity_id bigint , l_blocking_request_spid int , l_blocked_request_spid int , l_blocking_request_mode nvarchar(60) collate database_default , l_blocked_request_mode nvarchar(60) collate database_default , l_blocking_tran_id int , l_blocked_tran_id int , local1 int , local2 int , b_tran_id bigint , w_tran_id bigint , b_name nvarchar(128) collate database_default , w_name nvarchar(128) collate database_default , b_tran_begin_time datetime , w_tran_begin_time datetime , b_state nvarchar(60) collate database_default , w_state nvarchar(60) collate database_default , b_trans_type nvarchar(60) collate database_default , w_trans_type nvarchar(60) collate database_default , b_text nvarchar(max) collate database_default , w_text nvarchar(max) collate database_default , db_span_count1 int , db_span_count2 int ); insert into @tab_tran_locks select a.resource_type , a.resource_subtype , a.resource_associated_entity_id , a.request_session_id as blocking , b.request_session_id as blocked , a.request_mode , b.request_mode , a.request_owner_id , b.request_owner_id from sys.dm_tran_locks a join sys.dm_tran_locks b on (a.resource_type = b.resource_type and a.resource_subtype = b.resource_subtype and a.resource_associated_entity_id = b.resource_associated_entity_id and a.resource_description = b.resource_description) where a.request_status = ''GRANT'' and (b.request_status = ''WAIT'' or b.request_status = ''CONVERT'') and a.request_owner_type = ''TRANSACTION'' and b.request_owner_type = ''TRANSACTION'' insert into @tab_blocked_tran select ttl.l_blocking_tran_id , count(distinct ttl.l_blocked_tran_id) from @tab_tran_locks ttl group by ttl.l_blocking_tran_id order by count( distinct ttl.l_blocked_tran_id) desc insert into @temp_tab select 0 as blocking_status , tbt.no_blocked , ttl.* , st1.is_local as local1 , st2.is_local as local2 , st1.transaction_id as b_tran_id , ttl.l_blocked_tran_id as w_tran_id , at1.name as b_name,at2.name as w_name , at1.transaction_begin_time as b_tran_begin_time , at2.transaction_begin_time as w_tran_begin_time , case when at1.transaction_type <> 4 then case at1.transaction_state when 0 then ''Invalid'' when 1 then ''Initialized'' when 2 then ''Active'' when 3 then ''Ended'' when 4 then ''Commit Started'' when 5 then ''Prepared'' when 6 then ''Committed'' when 7 then ''Rolling Back'' when 8 then ''Rolled Back'' end else case at1.dtc_state when 1 then ''Active'' when 2 then ''Prepared'' when 3 then ''Committed'' when 4 then ''Aborted'' when 5 then ''Recovered'' end end b_state , case when at2.transaction_type <> 4 then case at2.transaction_state when 0 then ''Invalid'' when 1 then ''Initialized'' when 2 then ''Active'' when 3 then ''Ended'' when 4 then ''Commit Started'' when 5 then ''Prepared'' when 6 then ''Committed'' when 7 then ''Rolling Back'' when 8 then ''Rolled Back'' end else case at2.dtc_state when 1 then ''Active'' when 2 then ''Prepared'' when 3 then ''Committed'' when 4 then ''Aborted'' when 5 then ''Recovered'' end end w_state , at1.transaction_type as b_trans_type , at2.transaction_type as w_trans_type , case when r1.sql_handle IS NULL then ''--'' else ( select top 1 substring(text,(r1.statement_start_offset+2)/2, (case when r1.statement_end_offset = -1 then (len(convert(nvarchar(MAX),text))*2) else r1.statement_end_offset end - r1.statement_start_offset) /2 ) from sys.dm_exec_sql_text(r1.sql_handle)) end as b_text , case when r2.sql_handle IS NULL then ''--'' else ( select top 1 substring(text,(r2.statement_start_offset+2)/2, (case when r2.statement_end_offset =-1 then len(convert(nvarchar(MAX),text))*2 when r2.statement_end_offset =0 then len(convert(nvarchar(MAX),text))*2 else r2.statement_end_offset end - r2.statement_start_offset) /2 ) from sys.dm_exec_sql_text(r2.sql_handle)) end as w_text , ( Select count(distinct database_id) from sys.dm_tran_database_transactions where transaction_id = st1.transaction_id ) as db_span_count1 , ( Select count(distinct database_id) from sys.dm_tran_database_transactions where transaction_id = st2.transaction_id ) as db_span_count2 from @tab_tran_locks ttl inner join sys.dm_tran_active_transactions at1 on(at1.transaction_id = ttl.l_blocking_tran_id) inner join @tab_blocked_tran tbt on(tbt.tran_id = at1.transaction_id) inner join sys.dm_tran_session_transactions st1 on(at1.transaction_id = st1.transaction_id) left outer join sys.dm_exec_requests r1 on(at1.transaction_id = r1.transaction_id ) inner join sys.dm_tran_active_transactions at2 on(at2.transaction_id = ttl.l_blocked_tran_id) left outer join sys.dm_tran_session_transactions st2 on(at2.transaction_id = st2.transaction_id) left outer join sys.dm_exec_requests r2 on(at2.transaction_id = r2.transaction_id ) where st1.is_user_transaction = 1 order by tbt.no_blocked desc; with Blocking( blocking_status , no_blocked , total_blocked , l_resource_type , l_resource_subtype , l_resource_associated_entity_id , l_blocking_request_spid , l_blocked_request_spid , l_blocking_request_mode , l_blocked_request_mode , local1 , local2 , b_tran_id , w_tran_id , b_name , w_name , b_tran_begin_time , w_tran_begin_time , b_state , w_state , b_trans_type , w_trans_type , b_text , w_text , db_span_count1 , db_span_count2 , lvl ) as( select blocking_status , no_blocked , no_blocked , l_resource_type , l_resource_subtype , l_resource_associated_entity_id , l_blocking_request_spid , l_blocked_request_spid , l_blocking_request_mode , l_blocked_request_mode , local1 , local2 , b_tran_id , w_tran_id , b_name , w_name , b_tran_begin_time , w_tran_begin_time , b_state , w_state , b_trans_type , w_trans_type , b_text , w_text , db_span_count1 , db_span_count2 , 0 from @temp_tab union all select E.blocking_status , M.no_blocked , convert(int,E.no_blocked + total_blocked) , E.l_resource_type , E.l_resource_subtype , E.l_resource_associated_entity_id , M.l_blocking_request_spid , E.l_blocked_request_spid , M.l_blocking_request_mode , E.l_blocked_request_mode , M.local1 , E.local2 , M.b_tran_id , E.w_tran_id , M.b_name , E.w_name , M.b_tran_begin_time , E.w_tran_begin_time , M.b_state , E.w_state , M.b_trans_type , E.w_trans_type , M.b_text , E.w_text , M.db_span_count1 , E.db_span_count2 , M.lvl+1 from @temp_tab as E join Blocking as M on E.b_tran_id = M.w_tran_id ) select (dense_rank() over (order by no_blocked desc,b_tran_id))%2 as l1 , (dense_rank() over (order by no_blocked desc,b_tran_id,w_tran_id))%2 as l2 , * from Blocking order by no_blocked desc,b_tran_id,w_tran_id OPTION(MAXRECURSION 1000); end try begin catch select -100 as l1 , ERROR_NUMBER() as l2 , ERROR_SEVERITY() as blocking_status , ERROR_STATE() as no_blocked , ERROR_MESSAGE() as total_blocked , 1 as l_resource_type,1 as l_resource_subtype,1 as l_resource_associated_entity_id,1 as l_blocking_request_spid,1 as l_blocked_request_spid,1 as l_blocking_request_mode,1 as l_blocked_request_mode,1 as local1,1 as local2,1 as b_tran_id,1 as w_tran_id,1 as b_name,1 as w_name,1 as b_tran_begin_time,1 as w_tran_begin_time,1 as b_state,1 as w_state,1 as b_trans_type,1 as w_trans_type,1 as b_text,1 as w_text,1 as db_span_count1,1 as db_span_count2,1 as lvl end catch',@params=N''
