Trouble connecting to an Azure VPN Gateway from my Azure Dev Box

Lawrence Beck 0 Microsoft Employee

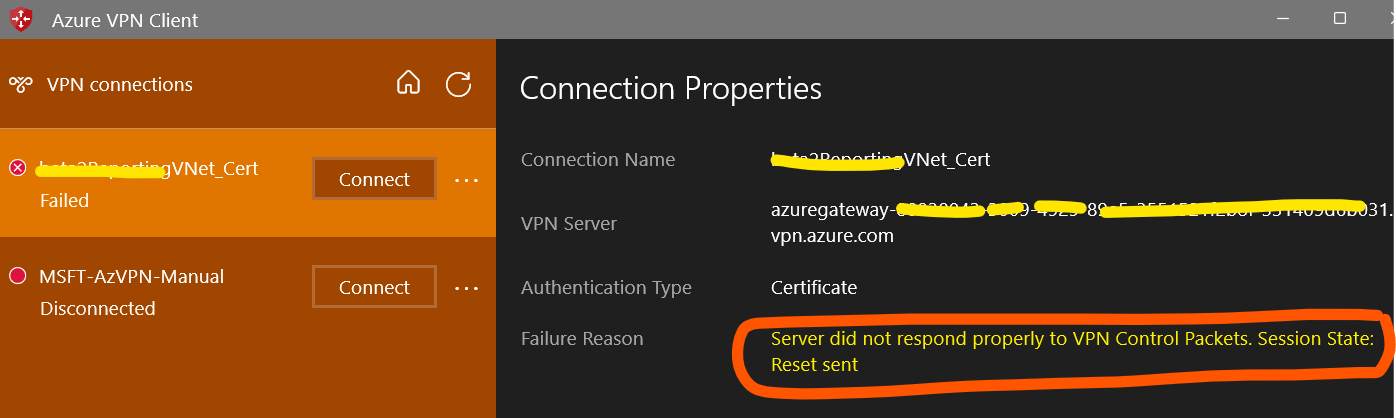

I'm seeing the error when trying to connect: "server did not respond properly to vpn control packets. session state: reset sent"

I'm using Azure VPN Client.
My VPN Gateway is set up for Point to Site (P2S) with both a certificate and Azure AAD.
Both configurations work from my home machine connected via Xfinity
Neither configuration works from my AZ Dev Box. Both connections result in the same error message above.
My AZ Dev box is sync'd to the correct time
My AZ Dev Box is able to VPN to corpnet
When I ping the VPN gateway from home, it DNS resolves and the ping succeeds

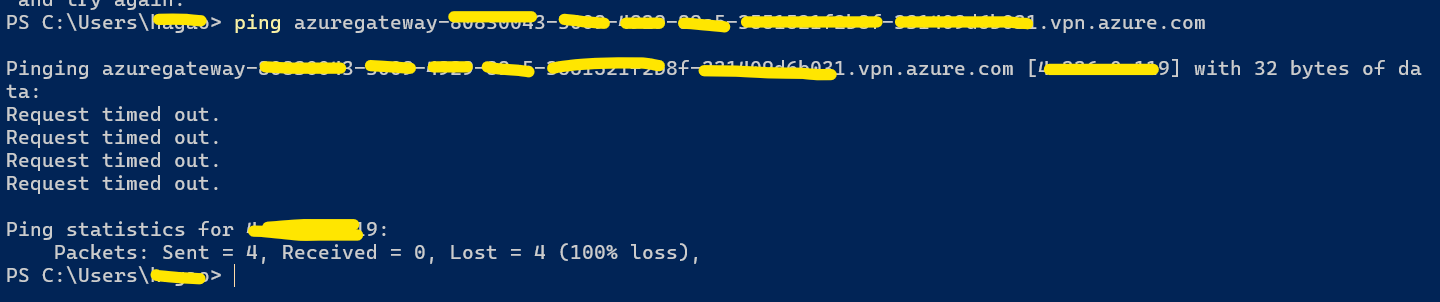

When I ping the VPN gateway from my AZ Dev Box, it DNS resolves but the ping does not succeed

Thoughts?

Thanks,

Larry

Luis Arias 4,871 Reputation points

2024-02-16T10:03:13.48+00:00

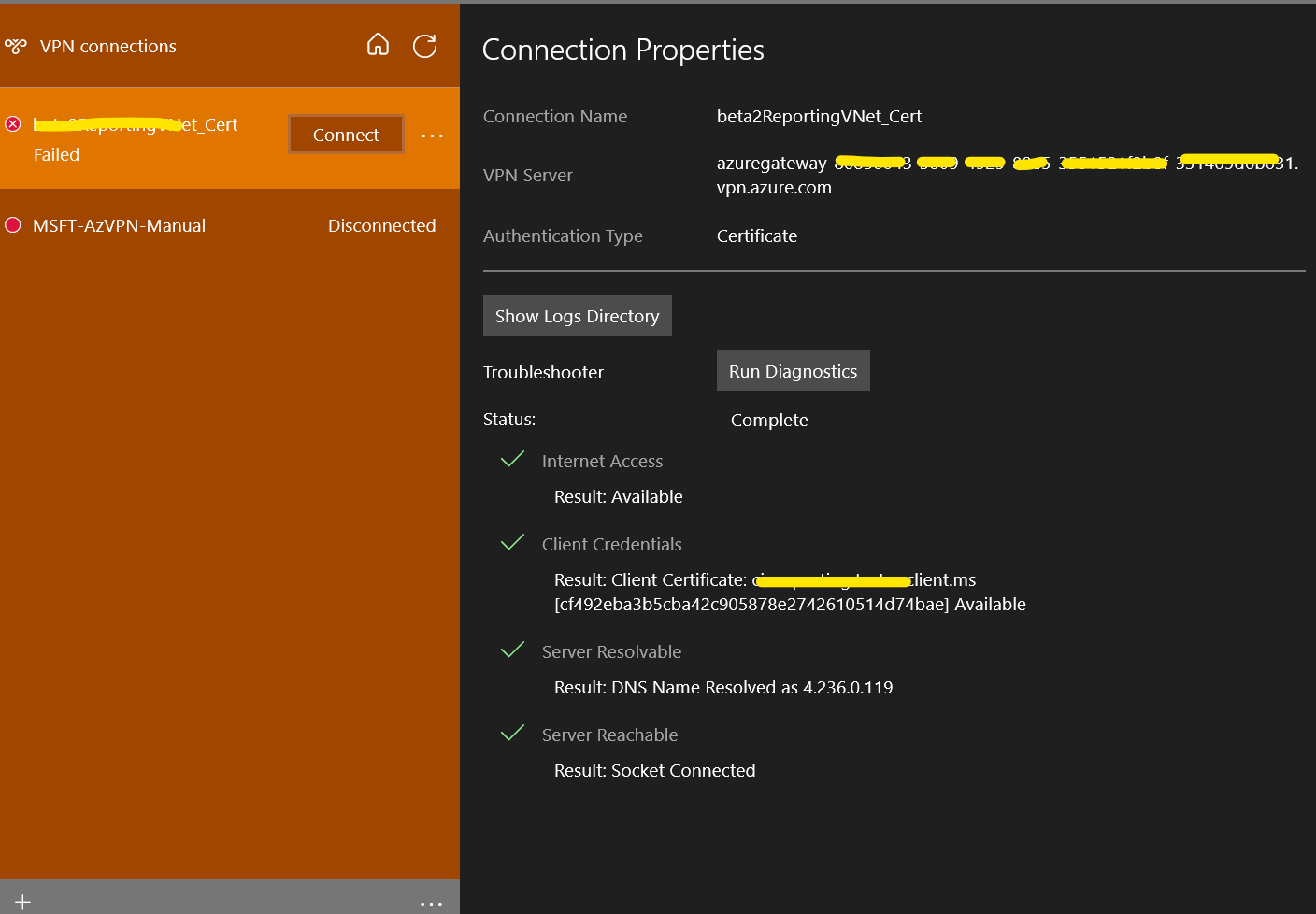

Hi Lawrence Beck, This troubleshooting might require check logs of your azure vpn client , You can go trought below check list to verify is this can solve your problem?

Time Synchronization: You mentioned that your Azure Dev Box is synchronized to the correct time. This is important as incorrect time settings can cause this error. (https://learn.microsoft.com/en-us/answers/questions/931254/connecting-to-azure-vpn-error-message-server-did-n)

User Credentials: Try using the same user credentials on a different machine, or try a different set of credentials on the Azure Dev Box. (https://learn.microsoft.com/en-us/answers/questions/931254/connecting-to-azure-vpn-error-message-server-did-n)

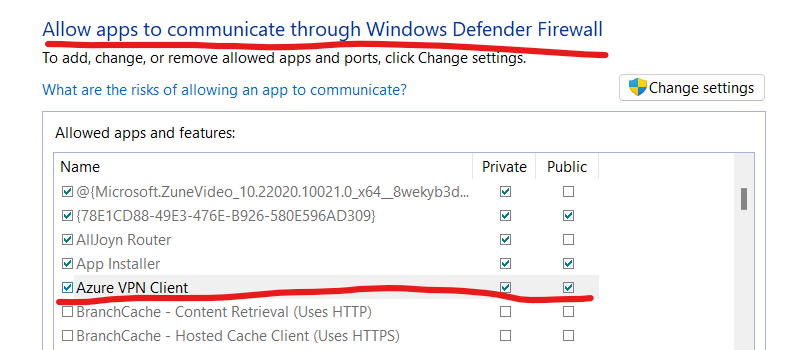

Firewall Settings: Check your firewall settings to ensure that the VPN server is reachable from your location and that the required port is open. (https://learn.microsoft.com/en-us/answers/questions/1185274/dialing-vpn-connection-xxxx-xxxx-status-server-did)

Network Adapters: You could try uninstalling and then reinstalling all of the WAN Miniport devices in your network adapters. (https://stackoverflow.com/questions/64109075/azure-vpn-p2s-azure-ad-authentication-connection-problem-the-operation-was-canc)

Root Certificate: Check the status of the root certificate in the Azure portal to see whether it was revoked. If it is not revoked, try to delete the root certificate and reupload. (https://learn.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-troubleshoot-vpn-point-to-site-connection-problems)

User-Defined Routes (UDR): If you have any UDRs on the Gateway Subnet, ensure they are forwarding all traffic properly.

Let me know if any of this options help you. Luis
KapilAnanth-MSFT 35,336 Reputation points Microsoft Employee

2024-02-16T10:19:16.0233333+00:00
@Lawrence Beck ,

Welcome to the Microsoft Q&A Platform. Thank you for reaching out & I hope you are doing well.

I understand that you are facing the error message, "server did not respond properly to vpn control packets. session state: reset sent".

This generally happens when there is a misconfiguration in the XML File used in the VPN Client, especially when the Shared Secret added in the client does not match the Server Shared Secret.

As next steps,

Reset the VPN Gateway and then redownload the configuration file.

Import the newly downloaded config file into the Azure VPN Client

Are you using Certificate or Azure Entra (AAD) in your Devbox?

Can you please configure it for certificate first and check if that works properly or not?

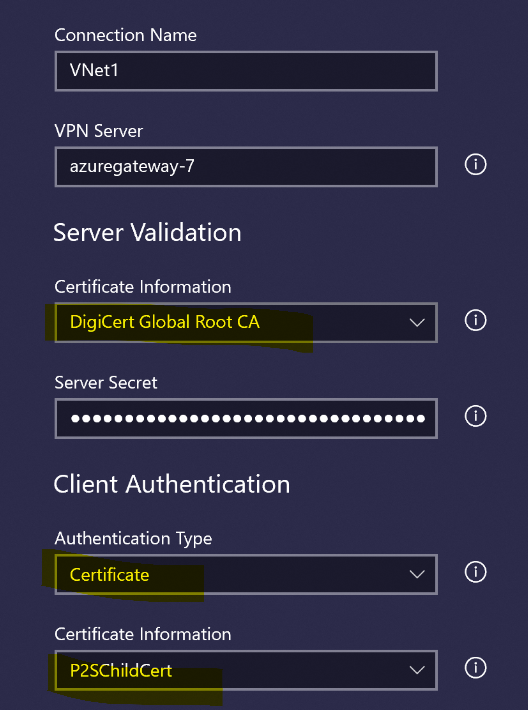

Make sure the configurations are as below

Cheers,

Kapil
Lawrence Beck 0 Reputation points Microsoft Employee

2024-02-16T19:51:31.6+00:00
So far:

Time Synchronization: looks good

User Credentials: both AAD & certificate auth work from my physical home machine and a teammates physical corpnet machine.

Firewall Settings: VPN gateway has no restrictions that would prevent access from the dev box and the port is open (otherwise we couldn't reach it from other machines.)

Network Adapters: I can't mess with the network adapters on my AZ dev box or I'll lose connectivity and not be able to restore it. I've done this before.

Root Certificate: Root cert is not revoked, works fine for other scenarios using the same cert, plus this doesn't explain the AAD connection failure.

User-Defined Routes (UDR): none

This seems to be a network config issue with our dev boxes since we can't get a ping response from the VPN gateway on the dev boxes but we can get a response from external machines. I've engaged our AZ dev box support team to help investigate. I'll report back and close this if we find a resolution.
KapilAnanth-MSFT 35,336 Reputation points Microsoft Employee

2024-02-19T11:26:38.6166667+00:00
@Lawrence Beck

Thanks for keeping us updated.

As you mentioned, you can take a look at the Networking configuration.

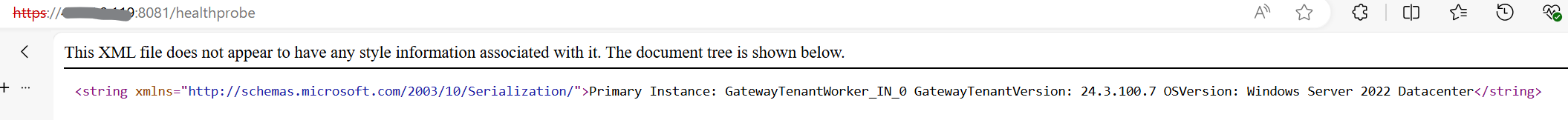

From your DevBox , see if you are getting a reply for accessing the server : https://<YourVirtualNetworkGatewayIP>:8081/healthprobe

I see you are using AAD Auth, so this means you will be using OpenVPN Protocol.

So, you can try TCP Pinging the Gateway IP at Port 443

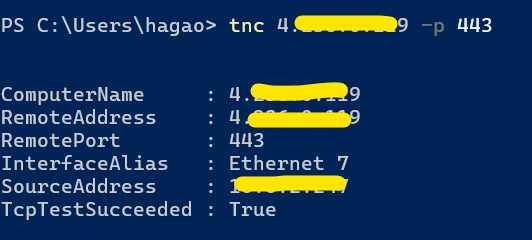

Open Powershell as Admin and run tnc <YourVirtualNetworkGatewayIP> -p 443

Let us know how it goes.
Daniel Lopez Garcia 0 Reputation points Microsoft Employee

2024-03-26T19:40:08.24+00:00

If you are using the standard devbox provided, you need to add the VPN endpoint to the firewall. From the main devbox site, click on help/docs and then FAQ / network connectivity, it explains the process in detail.
