SCCM OSD inject drives practice for HP, DELL models?

Question

Dear Experts,

I've set up SCCM OSD and successfully deployed the latest Windows 11 to ASUSD320 models, all is good. Now I need to deploy the same OS to the HP laptops but when I tried F12 to network boot, it flashed in less than 1 second and switched back to the boot order option wizard. Since it's working fine with ASUS models, I suspect it had something to do with the network drive not being detected or injected.

In MDT, we use the general driver packs for HP and Dell and it works fine for our models including HP430G7, G8, HP440G8, Lenovo L389/390, etc. but this seems challenging for SCCM.

Any idea? If we need to deploy the same driver package to SCCM TS, what are the correct steps to get this to work? Thank you very much.

Answer 1

Hi,

For PXE boot, we need to add the corresponding model network driver and storage driver to the boot image.

Adding Network (and Storage) Drivers to Boot Images in SCCM

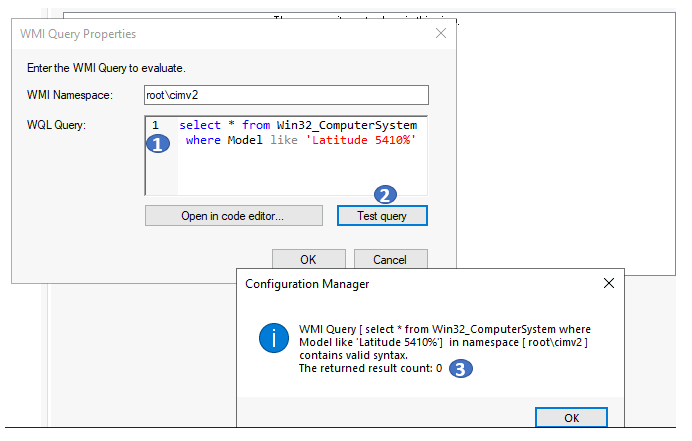

For applying the full OS driver package, It allows you to install the driver package for particular hardware models. Add Condition – Query WMI

---

This is a step-by-step guide for deploying Windows with SCCM OSD that you can use as a reference.
