Unable to use PXE boot

Ahmed Essam 80 Reputation points
2024-02-28T06:37:03.3433333+00:00

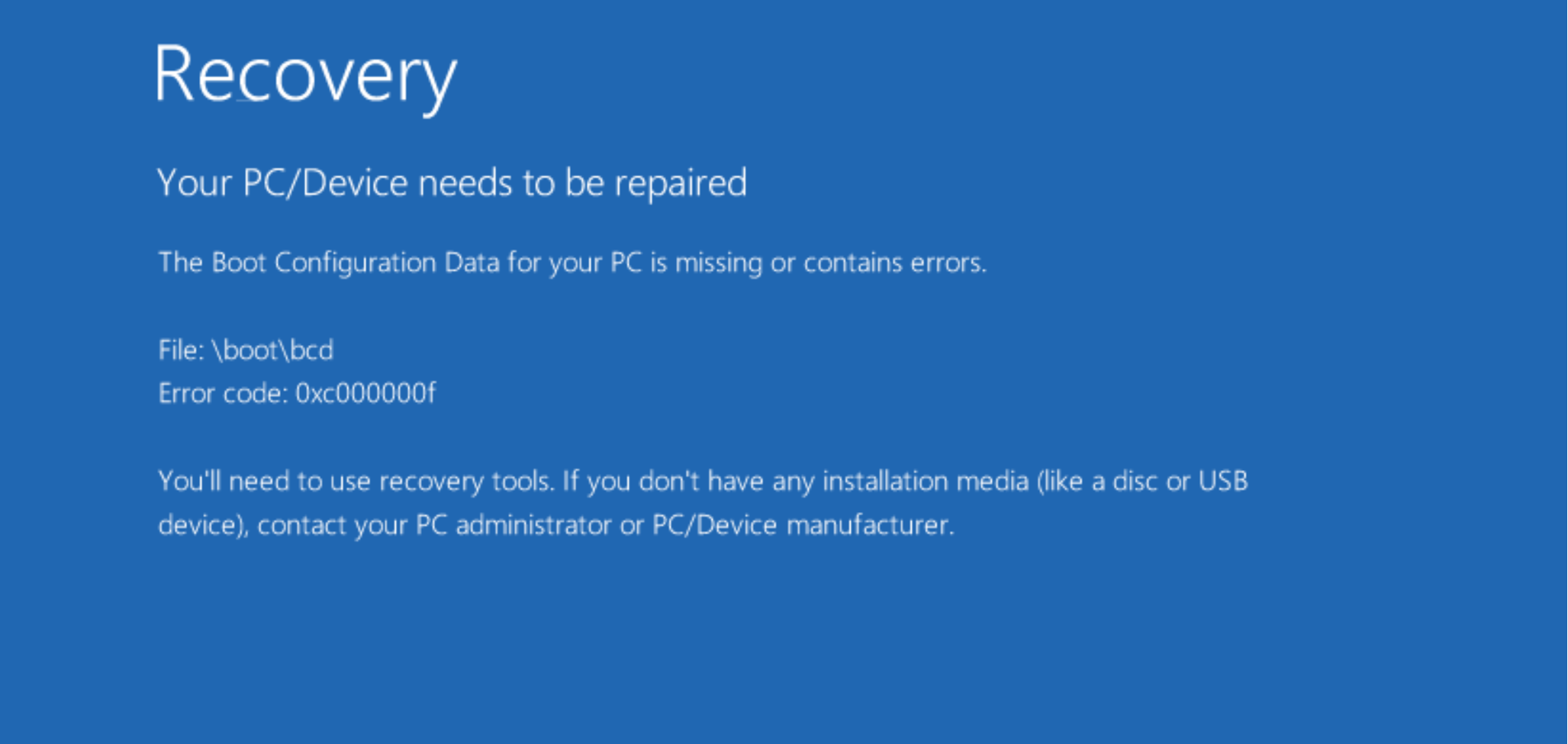

Hello All, I recently build a test lap on hyper-v with the latest version of configuration manager 2309 I have integrated MDT to create Boot image, and enabled PXE boot, once i tried to boot i got the below error User's image

User's image

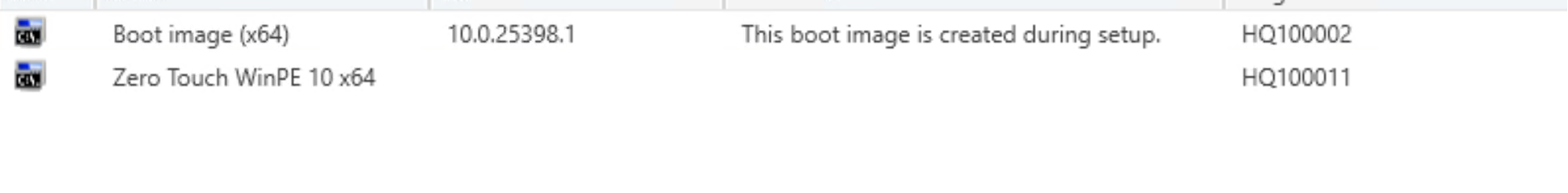

When i locate the folder C:\RemoteInstall\SMSImages, I found only one Package ID HQ100002 while both boot image are distributed. I tried to uncheck box enable pxe support from the DP tab, but it won't remove the wds, i have to remove it manually, i have checked distmgr.log i found these errors: RegOpenKeyExW failed for Software\Microsoft\SMS\DP RegReadDWord failed; 0x80070005

Thanks,

Microsoft Configuration Manager
0 comments

1 answer

Sort by: Most helpful
Most helpful Newest Oldest
  1. AllenLiu-MSFT 44,101 Reputation points Microsoft Vendor
    2024-02-29T02:51:43.3+00:00

    Hi, @Ahmed Essam

    Thank you for posting in Microsoft Q&A forum.

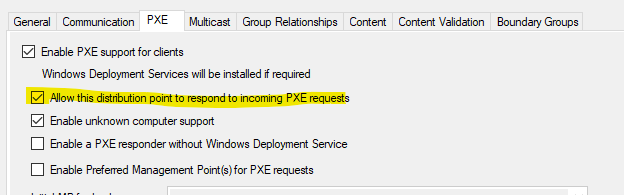

    Have we checked the option "Allow this distribution point to respond to incoming PXE requests"? User's image

    And have we tried to remove and re-add the DP role to see if it helps?
