Help in SAML authentication with Azure AD

Question

We looking for your help and support for configuring our Azure AD server through SAML authentication to be integrated with our Firewall for users autentaction we need the following informations to provided for our FireWall Team:

1.Identity Provider ID

2.Identity Provider Certificate

3.Identity Provider SSO URL

4.Identity Provider SLO URL

Answer 1

Hi @ATTIA SHAAT

Thank you for reaching out to the community forum!

For your query, I understand that you are looking for the details of Identity Provider ID, Identity Provider Certificate and Identity Provider SSO URL& SLO URL.

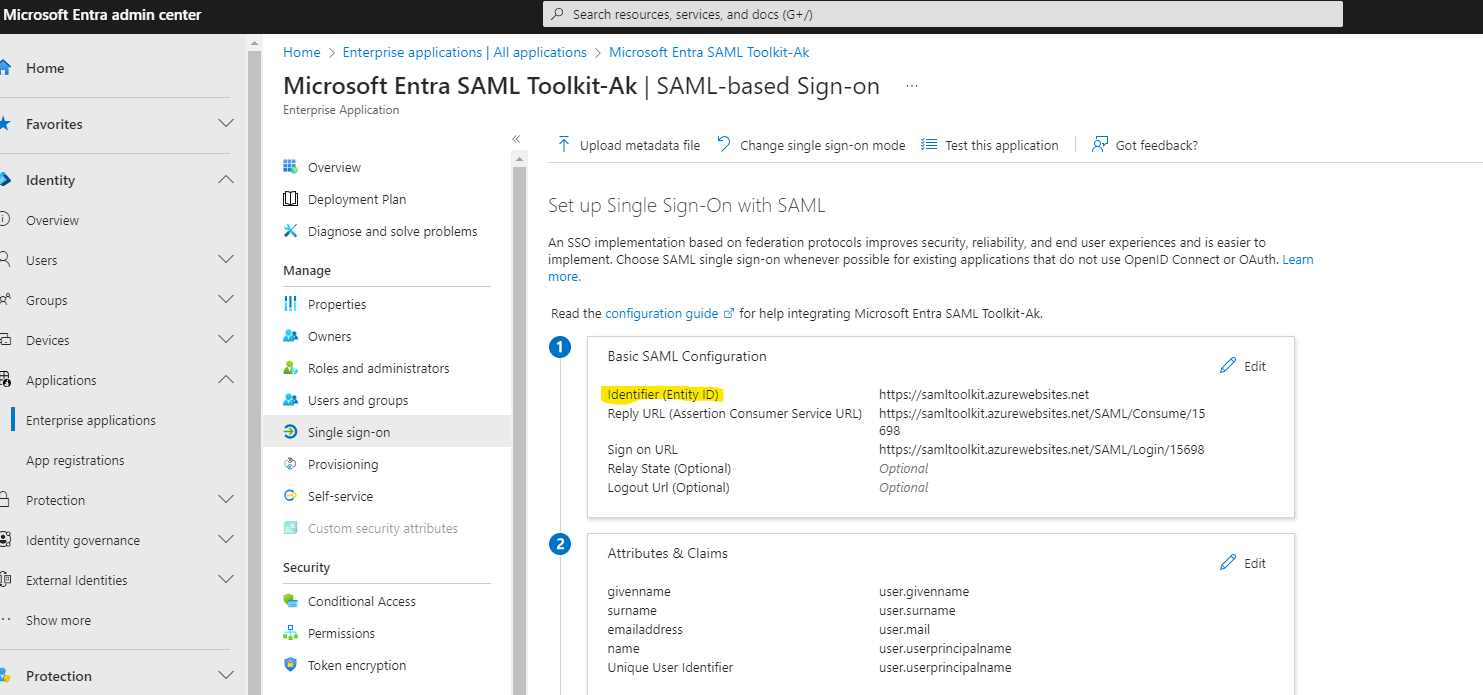

Identity Provider ID also known as the Entity ID To obtain this sign in to the Entra admin center portal, navigate to the Applications, and select the "Enterprise applications" blade Select the application that you want to configure for SAML authentication, and then select the "Single sign-on" option from the left-hand menu. Under the "SAML Signing Certificate" section, copy the "Entity ID" which as shown in the below.

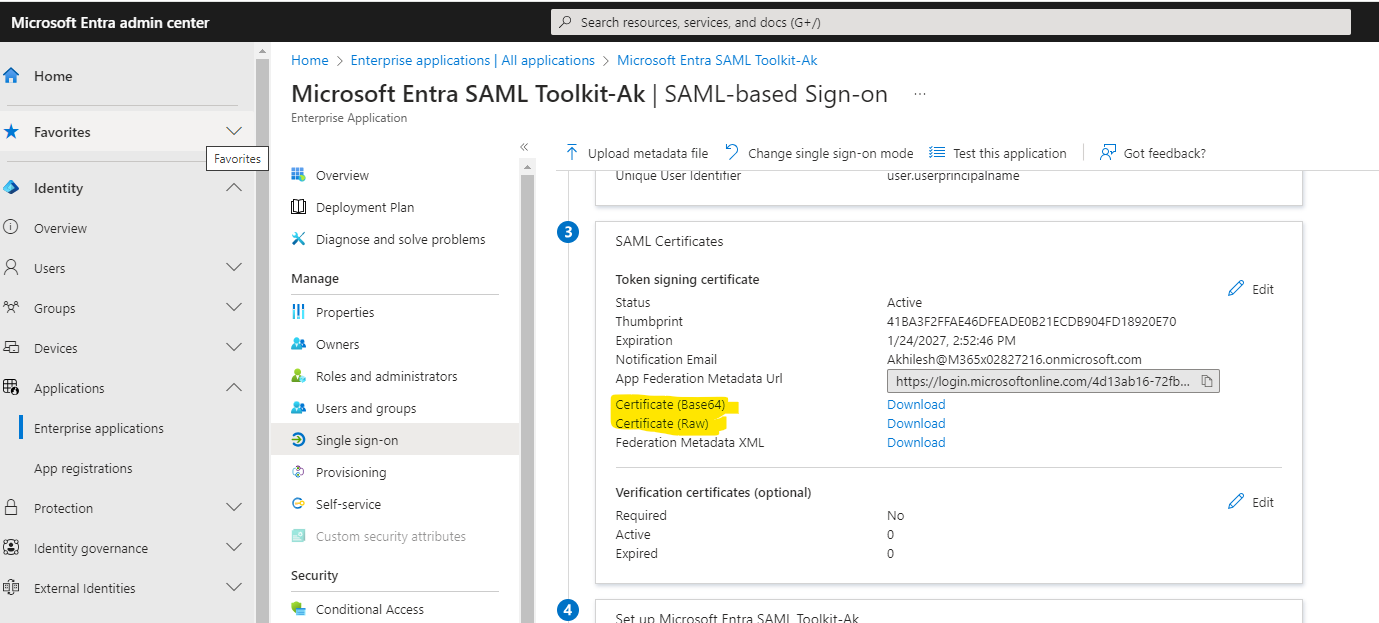

To obtain the Identity Provider Certificate, still on the "Single sign-on" page, select the "Download" option under the "SAML Signing Certificate" section. This will download a Base64-encoded X.509 certificate that you can provide to your firewall team.

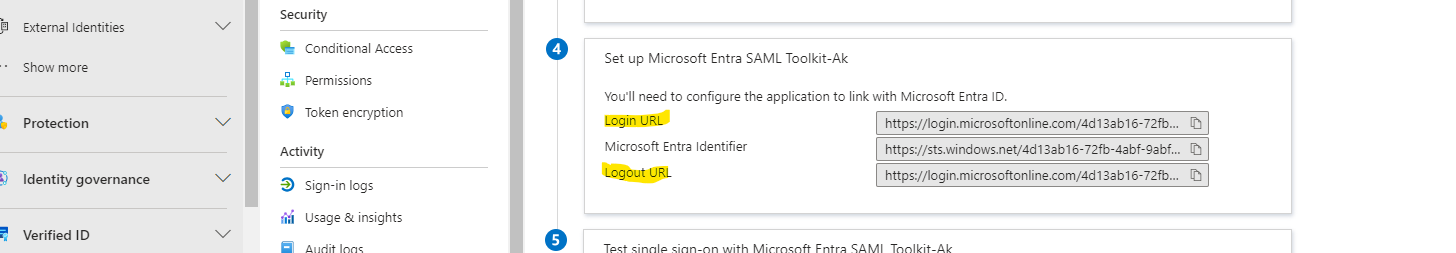

To obtain the Identity Provider SSO URL and SLO URL on the same "Single sign-on" page, copy the "Azure AD SAML Toolkit Login URL & Logout URL

Hope this answer helps. Do let us know if you any further queries.

Thanks,

Akhilesh.
