ASR Limits

Handian Sudianto 4,141 Reputation points
2024-03-22T00:43:50.3866667+00:00

Hello,

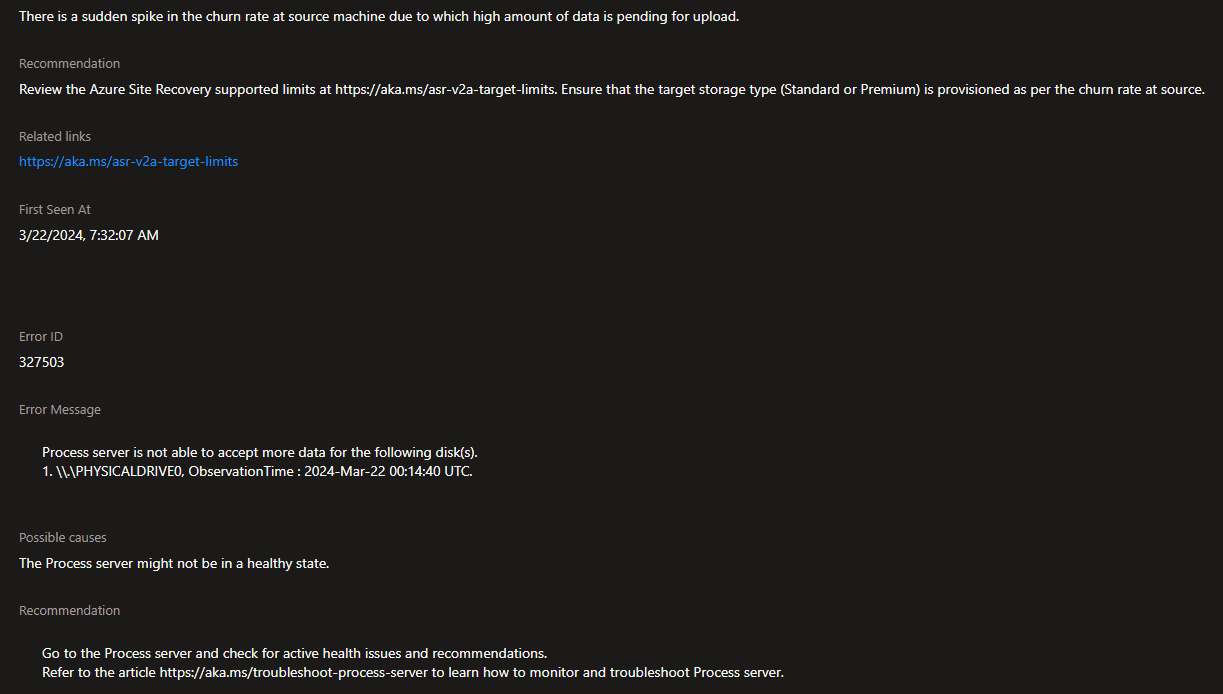

Today i add one VMware guest to be replicated to azure using ASR and found the replication is error with message:

User's image

so i have question :

  • What limit we hit now?

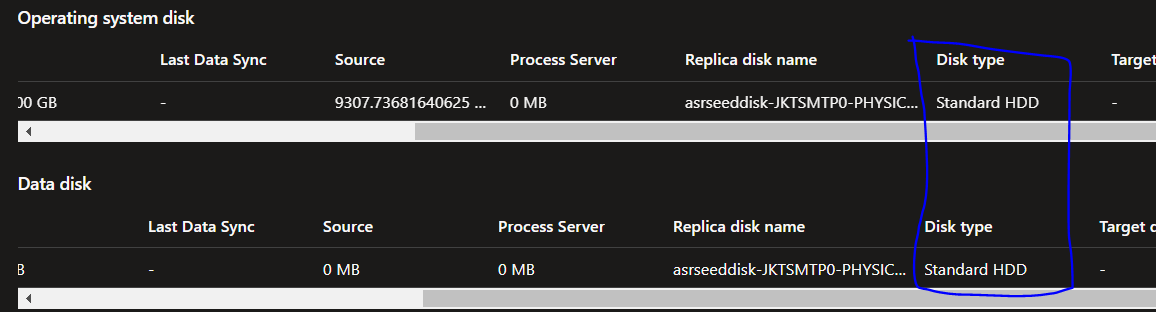

  • The limit can be increased by change the storage type? The storage type mean is HDD model we use for replicating?
  • How we can see how big churn rate on the process server?
Azure Site Recovery
Azure Site Recovery
An Azure native disaster recovery service. Previously known as Microsoft Azure Hyper-V Recovery Manager.
636 questions

1 answer

Sort by: Most helpful
Most helpful Newest Oldest
  1. SadiqhAhmed-MSFT 38,081 Reputation points Microsoft Employee
    2024-03-22T14:39:06.04+00:00

    Hello @Handian Sudianto Thank you for your post. Sorry for the inconvenience caused to you!

    The Replication status is critical because the disk data change rate on the source virtual machine exceeded supported limits. Azure Site Recovery has limits on data change rate, based on the type of disk. Churn can be expected when VM is offline, unable to reach Azure or has a lot of changed data in a short period of time.

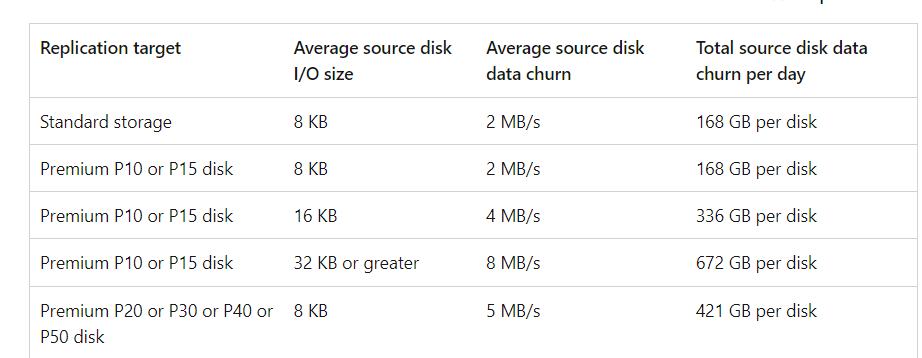

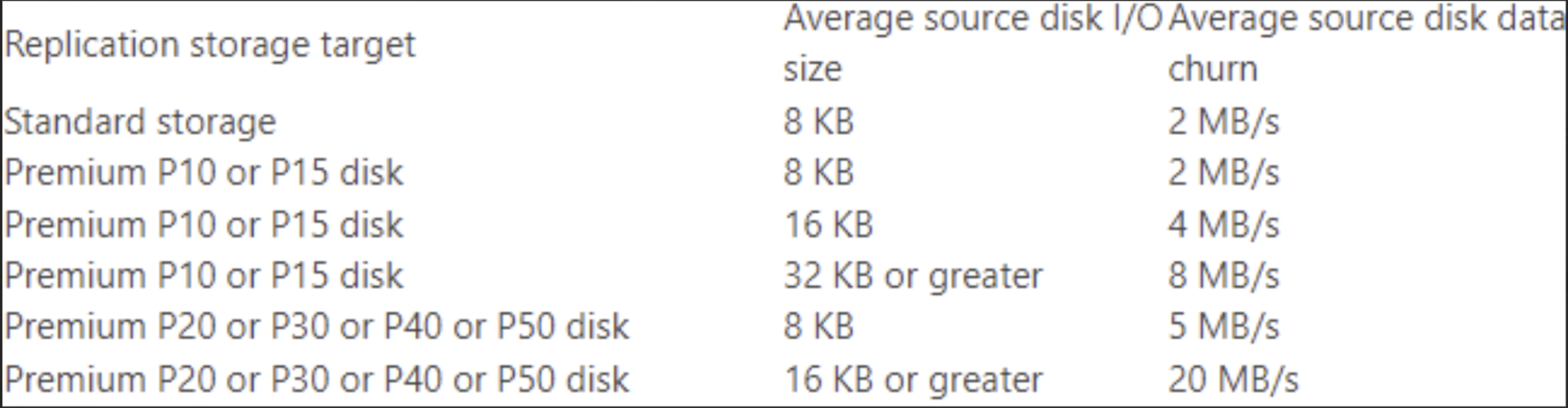

    Based on your disk we have a limit of the amount of data writing speed:

    User's image

    To fix churn the best approach is to increase the disk tier to a better one that as more capacity.

    https://learn.microsoft.com/en-us/azure/site-recovery/azure-to-azure-troubleshoot-replication#azure-site-recovery-limits



    If the disk or the higher tier disk still cannot resolve the issue, the machine cannot be replicated using Azure Site Recovery. Recommended Documents

    Update:

    • How can we see how big churn rate on the process server?

    For Azure to Azure set up you can use our monitoring:

    https://learn.microsoft.com/en-gb/azure/site-recovery/azure-to-azure-troubleshoot-replication#solution

    For VMware to Azure or Physical Servers (on-premise) to Azure you can use our Deployment Planner:

    https://learn.microsoft.com/en-us/azure/site-recovery/site-recovery-vmware-deployment-planner-analyze-report#on-premises-summary

    Hope this helps. Please write back to us if you have any further questions!

    If the response helped, do "Accept Answer" and up-vote it
