hyper-v disk merge fail

Esra Kuştemir 0 Reputation points

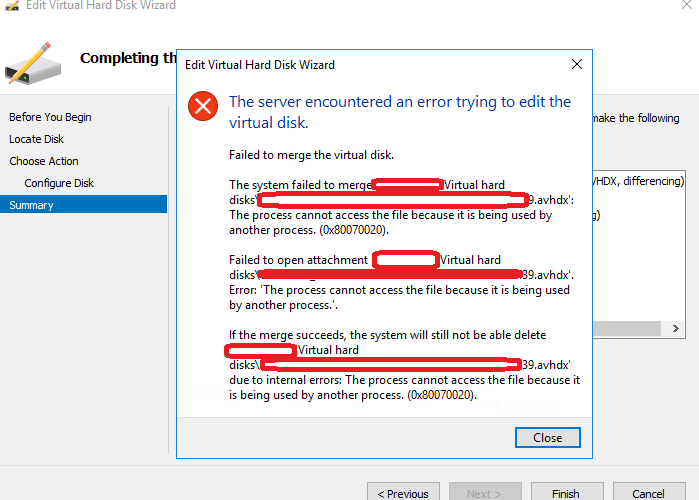

merge error


I have hyper-v manager that installed server 2019. I backup vm via synology backup agent. There are some ,avhdx file. I merged some upto parent. Finally there is one .avhdx file and when ı merge manually in hyper-v manager inspect disk menu, I see this fail.

Who can help me for this situation?

Thank you.

A Windows technology providing a hypervisor-based virtualization solution enabling customers to consolidate workloads onto a single server.
2,530 questions
0 comments No comments
{count} votes

3 answers

Sort by: Most helpful
  1. Net Runner 505 Reputation points

    In most cases, you should not merge checkpoints manually. You are supposed to use Hyper-V Manager, select the virtual machine in question, and use the checkpoint manager to either revert or remove checkpoints. That will ensure you merge them properly according to the checkpoints chain and do not mess up anything. Check the following guide for more information https://www.starwindsoftware.com/blog/vmwaresnapshots-checkpoints-alone-arent-backups.

  2. Ian Xue (Shanghai Wicresoft Co., Ltd.) 29,491 Reputation points Microsoft Vendor

    Hi Esra Kuştemir,

    According to the error message, please check to see which process is using the avhdx file. Run Process Explorer as administrator, select "Find" - "Find Handle or DLL..." and input the avhdx file path. The Process Explorer can be downloaded via this page.


    Best Regards,

    Ian Xue

    If the Answer is helpful, please click "Accept Answer" and upvote it.

    Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

  3. Esra Kuştemir 0 Reputation points

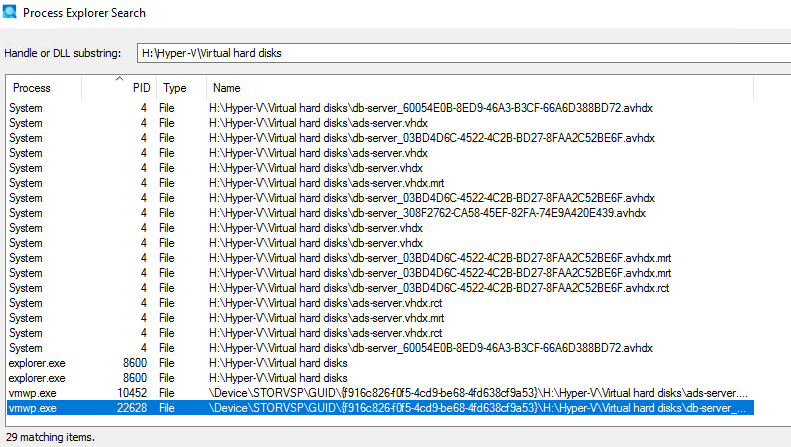

    User's image

    Hi Ian Xue;

    I can not resolve this error.

    0 comments No comments
