Difficulty Creating Container App Job with bicep: Accessing Image from Registry with Managed Identity

Question

Our objective is to deploy a container app job using Bicep. While we have successfully created all other resources, we are encountering difficulties in provisioning the container app job. The job is designed to fetch image details from a container registry using managed identity. However, each deployment attempt results in a failure with the following error message:

  "code": "InvalidParameterValueInContainerTemplate",
        "message": "The following field(s) are either invalid or missing. Field 'template.containers.acruksdataacadev.image' is invalid with details: 'Invalid value: \"acruksdataacadev.azurecr.io/hello-world:latest\": GET https:?scope=repository%3Ahello-world%3Apull&service=acruksdataacadev.azurecr.io: UNAUTHORIZED: authentication required, visit https://aka.ms/acr/authorization for more information.';."
      }

Answer 1

Hi Deepankur, Welcome to MS Q&A

Can you please verify that the managed identity assigned to your container app job has the necessary permissions to pull images from the Azure Container Registry. The managed identity should have the "AcrPull" role assignment on the ACR

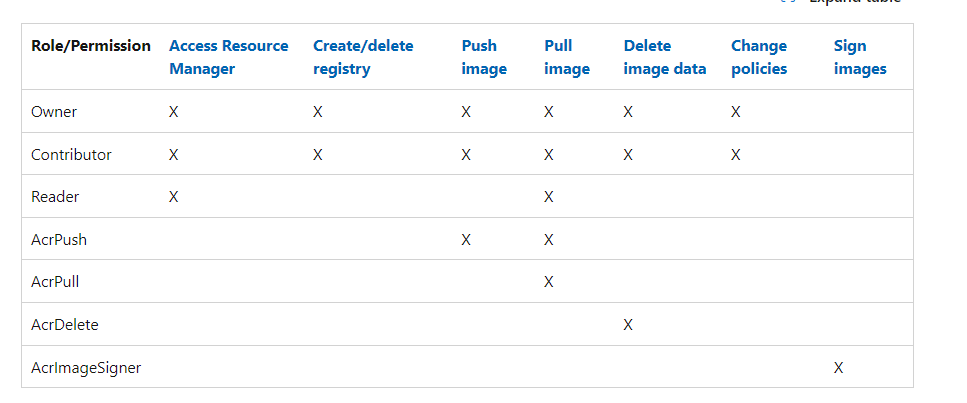

Please check this img and doc for more details--> https://learn.microsoft.com/en-us/azure/container-registry/container-registry-roles?tabs=azure-cli

Kindly accept answer , if it help and works, Thanks!

Answer 2

Ok ,If you've confirmed that MI used for authentication has both ACR pull and reader access over the Azure Container Registry (ACR), and you're still encountering authentication errors, there are a few additional steps you can take to troubleshoot the issue:

1. Verify Authentication Method: Ensure that you're using the correct authentication method supported by Azure Container Registry. Azure supports several authentication methods, including Azure Active Directory (AAD) authentication, service principals, and admin account credentials. Make sure you're using the appropriate method and that it's configured correctly.
2. Review Network Configuration: Check if there are any network configurations (such as firewalls or network security groups) that might be blocking the authentication request to the Azure Container Registry. Ensure that the necessary network configurations are in place to allow traffic to and from the registry.
3. Inspect Error Logs: Review any error logs or diagnostic information provided by Azure Container Registry or the container runtime environment. These logs may provide more detailed information about the authentication failure and can help pinpoint the underlying issue.

Kindly share the error logs to investigate further, Thanks!

Answer 3

Hello Deepankur Rana,

Use a user-assigned identity:

Create a user assigned identity with required permissions and assign it to the container -app.

# container-registry-role-assignment.bicep
param registryName string
param roleId string
param principalId string
// Get a reference to the existing registry
resource registry 'Microsoft.ContainerRegistry/registries@2021-06-01-preview' existing = {
  name: registryName
}
// Create role assignment
resource roleAssignment 'Microsoft.Authorization/roleAssignments@2020-04-01-preview' = {
  name: guid(registry.id, roleId, principalId)
  scope: registry
  properties: {
    roleDefinitionId: subscriptionResourceId('Microsoft.Authorization/roleDefinitions', roleId)
    principalId: principalId
    principalType: 'ServicePrincipal'
  }
}

Then from your main:

param name string
param identityName string
param environmentName string
param containerImage string
param location string = resourceGroup().location
param containerRegistrySubscriptionId string = subscription().subscriptionId
param containerRegistryResourceGroupName string = resourceGroup().name
param containerRegistryName string
// Create identtiy
resource identity 'Microsoft.ManagedIdentity/userAssignedIdentities@2022-01-31-preview'  = {
  name: identityName
  location: location
}
// Assign AcrPull permission
module roleAssignment 'container-registry-role-assignment.bicep' = {
  name: 'container-registry-role-assignment'
  scope: resourceGroup(containerRegistrySubscriptionId, containerRegistryResourceGroupName)
  params: {
    roleId: '7f951dda-4ed3-4680-a7ca-43fe172d538d' // AcrPull
    principalId: identity.properties.principalId
    registryName: containerRegistryName
  }
}
// Get a reference to the container app environment
resource managedEnvironment 'Microsoft.App/managedEnvironments@2022-03-01' existing = {
  name: environmentName
}
// create the container app
resource containerapp 'Microsoft.App/containerApps@2022-03-01' = {
  dependsOn:[
    roleAssignment
  ]
  name: name
  ...
  identity: {
    type: 'UserAssigned'
    userAssignedIdentities: {
      '${identity.id}': {}
    }
  }
  properties: {
    managedEnvironmentId: managedEnvironment.id
    configuration: {
      ...
      registries: [
        {
          server: '${containerRegistryName}.azurecr.io'
          identity: identity.id
        }
      ]
    }
    template: {
      ...
      containers: [
        {
          name: name
          image: '${containerRegistryName}.azurecr.io/${containerImage}'
          ...
        }
      ]
    }
  }

hope this helps you,If an answer has been helpful, please consider accepting the answer to help increase visibility of this question for other members of the Microsoft Q&A community. If not, please let us know what is still needed in the comments so the question can be answered. Thank you for helping to improve Microsoft Q&A!

Answer 4

We've had an issue like this as well, because we want to use the system-assigned managed identity. Here's the issue:

Our bicep module creates a container app job, and then, creates a role assignement to the registry using an output from the container app job.

However, when creating a container app job, the deployment won't complete until the image pull has been tested. Since the role assignement depends on the container app job's creation, and thus does not exist yet, it is impossible for the deployment to finish. The system-assigned identity does not have permissions to pull yet, and the permissions won't be assigned until the container app can pull an image.

Workaround:

We've implemented a trigger that checks if an image is passed to our module. If it's not, then we use the default hello-world image, which is public on docker hub. The deployment will complete and the role assignement will be created. Then, we redeploy, passing the image we need to the job. The pull will then succeed.

The following code has been abreviated to highlight the relevant configuration:

var defaultContainerAppJobImage = 'hello-world'
resource containerAppJobsResources 'Microsoft.App/jobs@2024-03-01' =
{
    name: jobName
    location: resourceGroup().location
    identity: {
      type: 'SystemAssigned'
    }
    properties: {
      configuration: {
        registries: containerAppJobImage == ''
          ? null
          : [
              {
                server: containerRegistryServer
                identity: 'system'
              }
            ]
      }
      template: {
        containers: [
          {
            image: containerAppJobImage == '' ? defaultContainerAppJobImage : containerAppJobImage
          }
        ]
      }
    }
  }

Recommendations:

For a container app job's deployment, testing the pull should be optional to account for this situation. Maybe the deployment could complete with a warning? Or maybe it should be possible to specify that we do not want to test the pull to confirm that the job has been deployed correctly.
