Not Able to use the keyboard on Android 14

ManojKumar 0 Reputation points
2024-04-15T13:57:29.2866667+00:00

Android application type

Xamarin.Forms application Xamarin.Android application

Affected platform version

Android 14 Emulator (pixel 7 pro)



Unaffected platforms tested

Android 13 emulator(pixel 5), Android 9 emulator(pixel 2), Android 14 Device (Samsung s21fe), Android 13 device (S20fe).



Description: When using the Edit text on the alert dialog box, opening the alert dialog box 2nd time makes the built-in keyboard unusable

Steps to Reproduce:

  1. Open the application https://www.syncfusion.com/downloads/support/directtrac/general/ze/AlertDialogIssue-1286220461
  2. Press open dialog
  3. Enter any text in Edit text and press OK
  4. Now the keyboard is visible but we were unable to interact with the keyboard

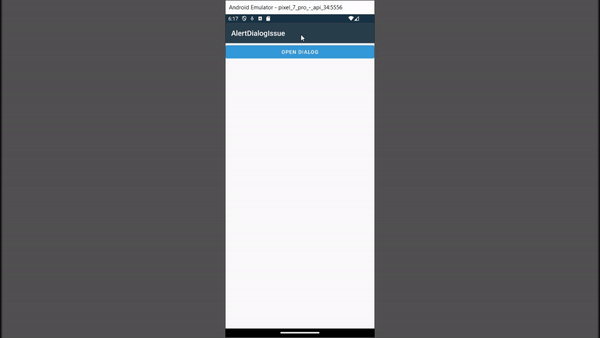

Android14issue

We have created a custom alert dialog with the following codes

CustomAlertDialog.xml

|<?xml version="1.0"
encoding="utf-8"?>
<LinearLayout
xmlns:android="http://schemas.android.com/apk/res/android"

android:orientation="vertical"
android:id="@+id/contentview"
android:padding="15dp"

android:layout_width="match_parent"

android:layout_height="match_parent">

<TextView
android:id="@+id/headerView"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="Title"
android:textStyle="bold"
android:textSize="20dp"
android:textColor="@android:color/black"/>
<android.support.design.widget.TextInputLayout
android:id="@+id/textinputlayout"

android:layout_width="match_parent"
android:layout_height="50dp">
<EditText
android:id="@+id/passwordedit"
android:hint="Edit"
android:layout_width="match_parent"
android:layout_height="50dp"
android:password="true"
android:textStyle="normal"
android:textSize="15dp"
android:layout_marginLeft="-5dp"
android:inputType="textPassword"/>
</android.support.design.widget.TextInputLayout>
<TextView
android:id="@+id/errorview"
android:text="Error"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:textColor="@android:color/holo_red_dark"
android:visibility="invisible"
/>
<LinearLayout
android:id="@+id/footerview"
android:layout_width="match_parent"
android:layout_height="50dp"
android:orientation="horizontal"
android:gravity="right"
android:paddingRight="-15dp">
<Button
android:id="@+id/cancelbutton"
android:text="Cancel"
android:layout_width="wrap_content"
android:layout_height="match_parent"
android:background="@android:color/transparent"
android:textColor="#0080eb"/>
<Button
android:id="@+id/okbutton"
android:text="Ok"
android:layout_width="70dp"
android:layout_height="match_parent"
android:enabled="false"
android:textColor="@android:color/darker_gray"
android:background="@android:color/transparent"

/>
</LinearLayout>

</LinearLayout>
<?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"     android:orientation="vertical" android:id="@+id/contentview" android:padding="15dp"     android:layout_width="match_parent"     android:layout_height="match_parent">     <TextView android:id="@+id/headerView" android:layout_width="match_parent" android:layout_height="wrap_content" android:text="Title" android:textStyle="bold" android:textSize="20dp" android:textColor="@android:color/black"/> <android.support.design.widget.TextInputLayout android:id="@+id/textinputlayout"     android:layout_width="match_parent" android:layout_height="50dp"> <EditText android:id="@+id/passwordedit" android:hint="Edit" android:layout_width="match_parent" android:layout_height="50dp" android:password="true" android:textStyle="normal" android:textSize="15dp" android:layout_marginLeft="-5dp" android:inputType="textPassword"/> </android.support.design.widget.TextInputLayout> <TextView android:id="@+id/errorview" android:text="Error" android:layout_width="match_parent" android:layout_height="wrap_content" android:textColor="@android:color/holo_red_dark" android:visibility="invisible" /> <LinearLayout android:id="@+id/footerview" android:layout_width="match_parent" android:layout_height="50dp" android:orientation="horizontal" android:gravity="right" android:paddingRight="-15dp"> <Button android:id="@+id/cancelbutton" android:text="Cancel" android:layout_width="wrap_content" android:layout_height="match_parent" android:background="@android:color/transparent" android:textColor="#0080eb"/> <Button android:id="@+id/okbutton" android:text="Ok" android:layout_width="70dp" android:layout_height="match_parent" android:enabled="false" android:textColor="@android:color/darker_gray" android:background="@android:color/transparent"   /> </LinearLayout> </LinearLayout>



CustomAlertDialog.cs

|using Android.App;
using Android.Content;
using Android.Graphics.Drawables;
using Android.OS;
using Android.Runtime;
using Android.Views;
using Android.Views.InputMethods;
using Android.Widget;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;

namespace AlertDialogIssue
{
    internal
class CustomAlertDialog : LinearLayout, IDisposable
    {
        private
Context mainContext;
        private
LinearLayout contentView;
        private
AlertDialog passwordDialog;
        private
AlertDialog.Builder alertbuilderpassword;

internal bool isPasswordDialogAppearing = false;
        private
View currentView;
        private
EditText passwordEdit;
        private
Button okButton;
        private
Button cancelButton;
        private
TextView headerView;
        private LayoutInflater inflater;


internal CustomAlertDialog(Context context)
          :
base(context)
        {

mainContext = context;

inflater =
(LayoutInflater)context.GetSystemService(Context.LayoutInflaterService);

View view = inflater.Inflate(Resource.Layout.CustomAlertDialog, this,
true);

InflateView(view);
        }

internal void InflateView(View view)
        {

currentView = view;
            contentView
= view.FindViewById<LinearLayout>(Resource.Id.contentview);

headerView =
view.FindViewById<TextView>(Resource.Id.headerView);

passwordEdit =
view.FindViewById<EditText>(Resource.Id.passwordedit);

okButton = view.FindViewById<Button>(Resource.Id.okbutton);

cancelButton =
view.FindViewById<Button>(Resource.Id.cancelbutton);

InitializePasswordView();

DisplayAlertDialog();
        }

internal void InitializePasswordView()
        {

passwordEdit.TextChanged += PasswordEdit_TextChanged;

passwordEdit.KeyPress += PasswordEdit_KeyPress;

okButton.Click += OkButton_Click;

cancelButton.Click += CancelButton_Click;
        }
        internal
void ShowPasswordInputDialog()
        {
            if
(passwordDialog != null)
            {

passwordDialog.Dismiss();
            }

            if
(!isPasswordDialogAppearing)
            {

passwordDialog.Show();

isPasswordDialogAppearing = true;
            }
        }

internal void DisplayAlertDialog()
        {

alertbuilderpassword = new AlertDialog.Builder(mainContext);
            alertbuilderpassword.SetView(currentView);

alertbuilderpassword.SetCancelable(false);

passwordDialog = alertbuilderpassword.Create();

passwordDialog.Window.SetSoftInputMode(SoftInput.StateAlwaysVisible);

passwordDialog.Window.SetLayout(400, 400);
        }

        private
void CancelButton_Click(object sender, EventArgs e)
        {

passwordDialog.Dismiss();

isPasswordDialogAppearing = false;
        }

        private
void OkButton_Click(object sender, EventArgs e)
        {

passwordDialog.Dismiss();

passwordDialog.Show();

passwordEdit.SetSelectAllOnFocus(true);


passwordEdit.SetSelection(passwordEdit.Length());

passwordEdit.SelectAll();
        }

        private
void PasswordEdit_KeyPress(object sender, KeyEventArgs e)
        {
            if
(e.KeyCode == Keycode.Enter)
            {

passwordDialog.Dismiss();
            }
            else
if (e.KeyCode == Keycode.Back)
            {

passwordDialog.Dismiss();
            }

else if (e.KeyCode == Keycode.Del)
            {

if (!string.IsNullOrEmpty(passwordEdit.Text))

{
                    string tempString =
passwordEdit.Text;

if (passwordEdit.HasSelection)

{
                        passwordEdit.Text =
string.Empty;

}

else

{
                        passwordEdit.Text =
tempString.Remove(tempString.Length - 1);
                        int position =
passwordEdit.Length();

passwordEdit.SetSelection(position);

}

}
            }
        }

        private
void PasswordEdit_TextChanged(object sender,
global::Android.Text.TextChangedEventArgs e)
        {

okButton.Enabled = true;
        }
    }
}| | -------- | |using Android.App; using Android.Content; using Android.Graphics.Drawables; using Android.OS; using Android.Runtime; using Android.Views; using Android.Views.InputMethods; using Android.Widget; using System; using System.Collections.Generic; using System.Linq; using System.Text;   namespace AlertDialogIssue {     internal class CustomAlertDialog : LinearLayout, IDisposable     {         private Context mainContext;         private LinearLayout contentView;         private AlertDialog passwordDialog;         private AlertDialog.Builder alertbuilderpassword;         internal bool isPasswordDialogAppearing = false;         private View currentView;         private EditText passwordEdit;         private Button okButton;         private Button cancelButton;         private TextView headerView;         private LayoutInflater inflater;           internal CustomAlertDialog(Context context)           : base(context)         {             mainContext = context;             inflater = (LayoutInflater)context.GetSystemService(Context.LayoutInflaterService);             View view = inflater.Inflate(Resource.Layout.CustomAlertDialog, this, true);             InflateView(view);         }         internal void InflateView(View view)         {             currentView = view;             contentView = view.FindViewById<LinearLayout>(Resource.Id.contentview);             headerView = view.FindViewById<TextView>(Resource.Id.headerView);             passwordEdit = view.FindViewById<EditText>(Resource.Id.passwordedit);             okButton = view.FindViewById<Button>(Resource.Id.okbutton);             cancelButton = view.FindViewById<Button>(Resource.Id.cancelbutton);             InitializePasswordView();             DisplayAlertDialog();         }         internal void InitializePasswordView()         {             passwordEdit.TextChanged += PasswordEdit_TextChanged;             passwordEdit.KeyPress += PasswordEdit_KeyPress;             okButton.Click += OkButton_Click;             cancelButton.Click += CancelButton_Click;         }         internal void ShowPasswordInputDialog()         {             if (passwordDialog != null)             {                 passwordDialog.Dismiss();             }               if (!isPasswordDialogAppearing)             {                 passwordDialog.Show();                 isPasswordDialogAppearing = true;             }         }         internal void DisplayAlertDialog()         {             alertbuilderpassword = new AlertDialog.Builder(mainContext);             alertbuilderpassword.SetView(currentView);             alertbuilderpassword.SetCancelable(false);             passwordDialog = alertbuilderpassword.Create();             passwordDialog.Window.SetSoftInputMode(SoftInput.StateAlwaysVisible);             passwordDialog.Window.SetLayout(400, 400);         }           private void CancelButton_Click(object sender, EventArgs e)         {             passwordDialog.Dismiss();             isPasswordDialogAppearing = false;         }           private void OkButton_Click(object sender, EventArgs e)         {             passwordDialog.Dismiss();             passwordDialog.Show();             passwordEdit.SetSelectAllOnFocus(true);               passwordEdit.SetSelection(passwordEdit.Length());             passwordEdit.SelectAll();         }           private void PasswordEdit_KeyPress(object sender, KeyEventArgs e)         {             if (e.KeyCode == Keycode.Enter)             {                 passwordDialog.Dismiss();             }             else if (e.KeyCode == Keycode.Back)             {                 passwordDialog.Dismiss();             }             else if (e.KeyCode == Keycode.Del)             {                 if (!string.IsNullOrEmpty(passwordEdit.Text))                 {                     string tempString = passwordEdit.Text;                     if (passwordEdit.HasSelection)                     {                         passwordEdit.Text = string.Empty;                     }                     else                     {                         passwordEdit.Text = tempString.Remove(tempString.Length - 1);                         int position = passwordEdit.Length();                         passwordEdit.SetSelection(position);                     }                 }             }         }           private void PasswordEdit_TextChanged(object sender, global::Android.Text.TextChangedEventArgs e)         {                 okButton.Enabled = true;         }     } }|



We are invoking the custom alert dialog on the main activity using the following code

customAlertDialog.ShowPasswordInputDialog();





Xamarin
Xamarin
A Microsoft open-source app platform for building Android and iOS apps with .NET and C#.
5,353 questions
0 comments No comments
{count} votes

1 answer

Sort by: Most helpful
  1. Yonglun Liu (Shanghai Wicresoft Co,.Ltd.) 42,746 Reputation points Microsoft Vendor
    2024-04-16T02:58:28.6333333+00:00

    Hello,

    Thanks for your feedback.

    After testing, this problem only occurs on pixel 7 pro API level 34. The application runs as expected on the Pixel 5 emulator at the same API level.

    Therefore, this should be more of a development tool issue.

    Q&A is not a bug reporting or tracking system. If you think you've found a bug in Visual Studio please report it as described in Report a problem with the Visual Studio product or installer . We will clear details to be able to reproduce and troubleshoot the problem. When you post it, please include version numbers, exact repro steps, and the difference between the expected behaviour and actual behaviour.

    Best Regards,

    Alec Liu.
