Site to Site VPN in VWAN

Nandan NK 50 Reputation points
2024-04-16T09:02:54.81+00:00

I'm trying to establish site to site VPN connection from Azure to AWS I have configuration file of AWS from AWS setup I have IPs of 2 tunnels, In Azure while creating VPN site it is asking to provide the private IP, I want to make sure ill enter IP address as I'm not going to configure BGP, can some let me know which IP I need to mention here.

My understanding is I need to use on Prem IP in the link IP column.

Azure Virtual WAN
Azure Virtual WAN
An Azure virtual networking service that provides optimized and automated branch-to-branch connectivity.
188 questions
Azure IoT Hub
Azure IoT Hub
An Azure service that enables bidirectional communication between internet of things (IoT) devices and applications.
1,120 questions
0 comments

1 answer

Sort by: Most helpful
Most helpful Newest Oldest
  1. KapilAnanth-MSFT 35,001 Reputation points Microsoft Employee
    2024-04-16T09:45:50.0666667+00:00

    @Nandan NK ,

    Welcome to the Microsoft Q&A Platform. Thank you for reaching out & I hope you are doing well.

    I understand that you would like to configure a VPN Connection from Azure vWAN without BGP.

    I see you are following the steps described here : Create a Site.

    1.

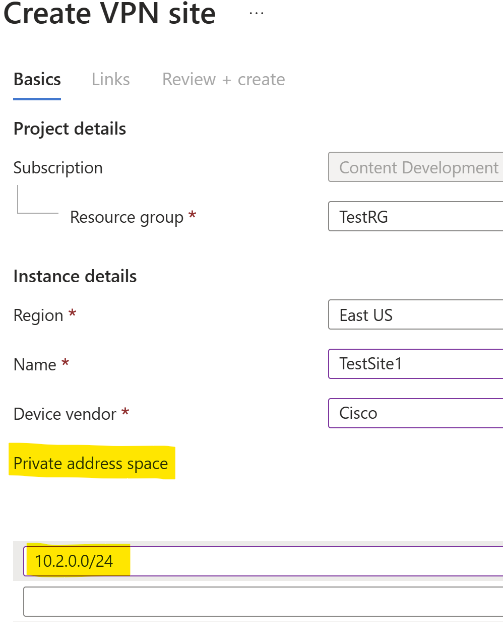

    • User's image
    • This refers to the OnPrem Private Address range of the remote site, i.e., VPC's address range.
    • This is mandatory if you are not going to use BGP

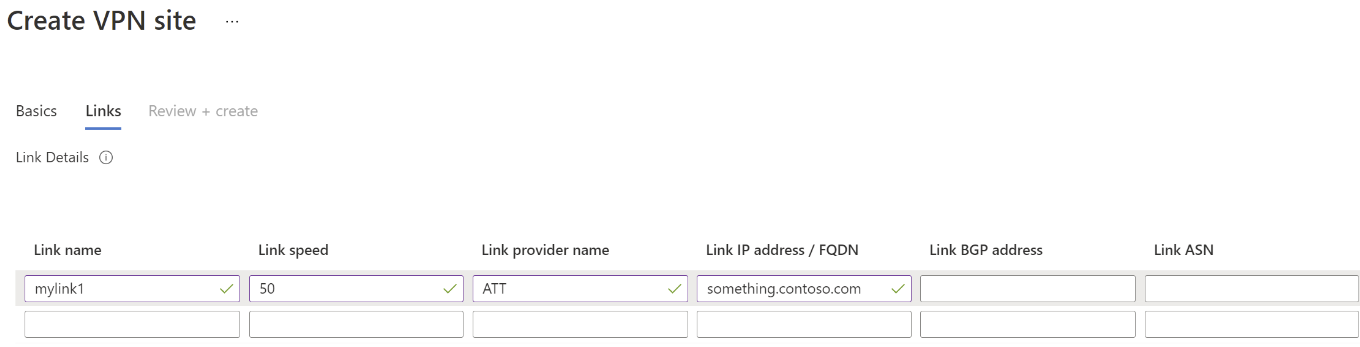

    • User's image
    • The Link IP address/FQDN is the Public IP address of the on-premises device(third party VPN's public IP) using this link.

    Thanks,

    Kapil
