How to run Azure logic apps in Visual studio 2019 or Visual studio 2022?

Question

Hi,

I am trying to create Azure Logic app in Visual studio.

1. I did create an Azure Resource Group Project
2. Then selected Logic apps as the template and project is created

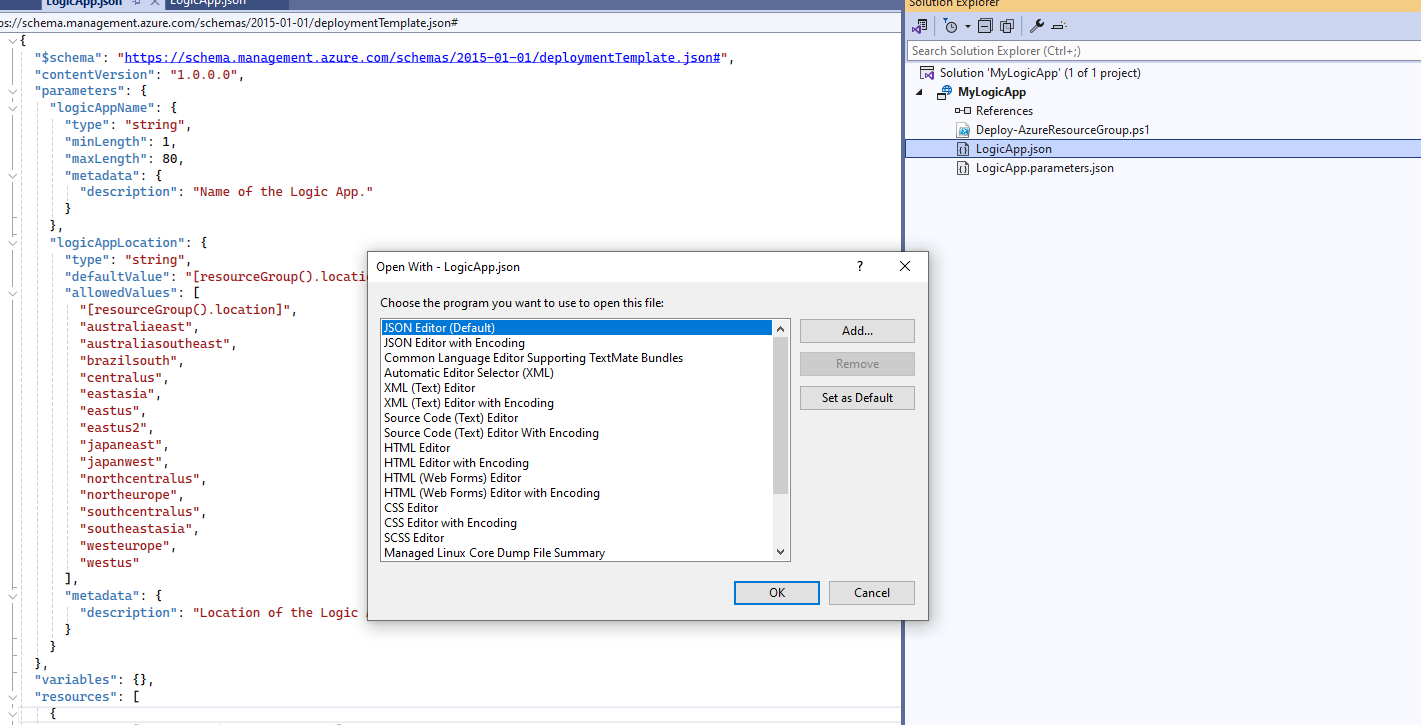

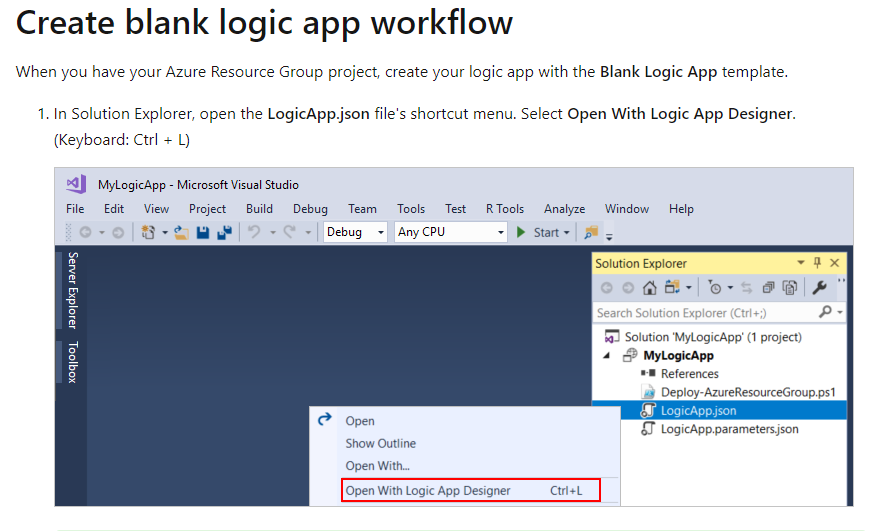

3. After that, when i try to open the LogicApp.json using 'Open with Logic app Designer' as shown below, it doesnt show me that option? Expected: Actual: What should i do to move ahead?

Reference link : https://learn.microsoft.com/en-us/azure/logic-apps/quickstart-create-logic-apps-with-visual-studio

Answer 1

@Mihir Padechiya Thanks for reaching out. Please follow the prerequisites as per this https://learn.microsoft.com/en-us/azure/logic-apps/quickstart-create-logic-apps-with-visual-studio#prerequisites if you're using visual studio 2019.

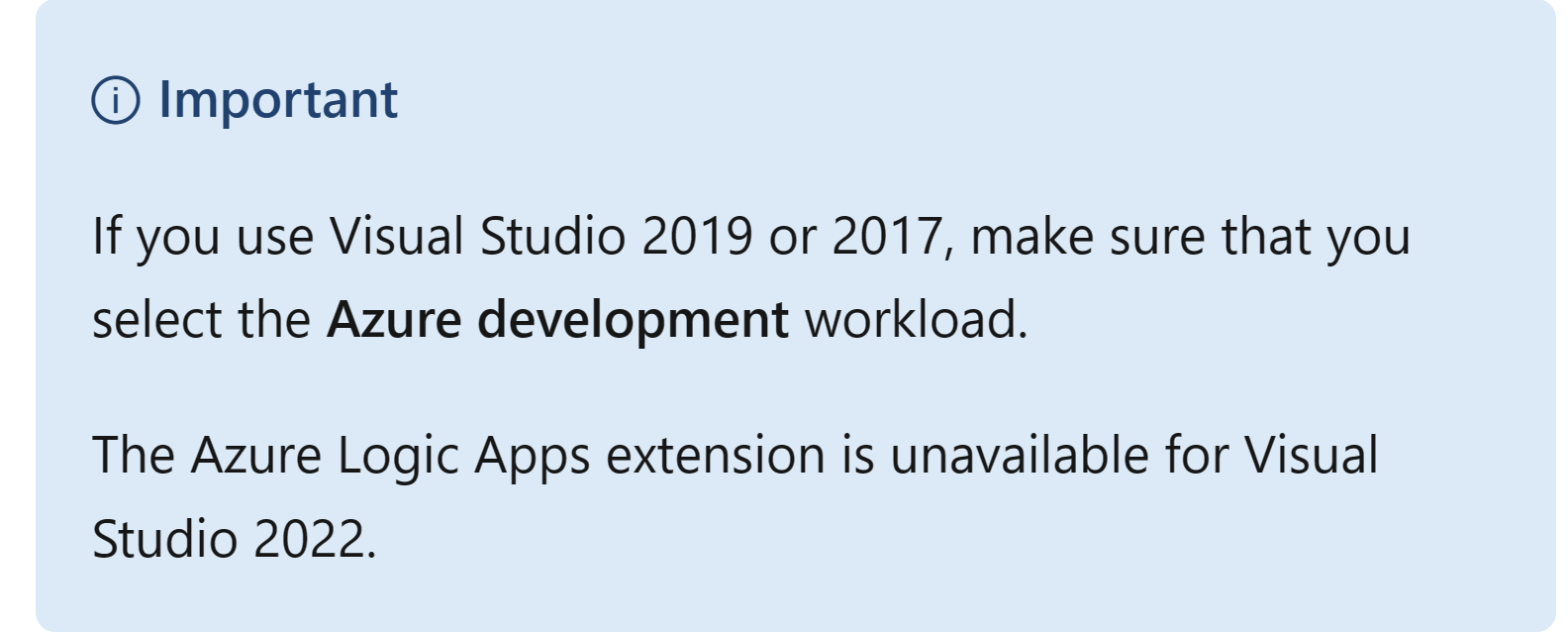

The reason why you do not see the "Open with Logic App Designer" option in Visual Studio 2022 is because the Azure Logic Apps Tools extension is currently unavailable for Visual Studio 2022.

please refer : https://learn.microsoft.com/en-us/azure/logic-apps/manage-logic-apps-with-visual-studio#prerequisites

do let me know incase of further queries, I would be happy to assist you.
