Microsoft.Data.SQLClient 5.2.0 fails to work with .Net 8

Question

I am having issues creating a Class library with C# and .net 8 that uses Microsoft.Data.SQLClient. version 5.2.0 which states that it will run on .net 8 platform.

Here is the code for the class library

using System.Data;
using System.Reflection.Metadata.Ecma335;
using Microsoft.Data.SqlClient;

namespace SQLClientDemo
{
   public class ConnectionString
   {

      public static string OUConnectionString(int OUID)
      {
         string returnValue = "";
         try
         {

            string connectionString = "Server = ****;Database=AchEnterprise;User ID = sa; Password =****;";
            using SqlConnection conn = new SqlConnection(connectionString);

            conn.Open();
            SqlCommand cmdGetOUConStrings = new SqlCommand("SPN_OU_GetAll", conn);
            cmdGetOUConStrings.CommandType = CommandType.StoredProcedure;
            SqlDataReader rdr = cmdGetOUConStrings.ExecuteReader();

            while (rdr.Read())
            {
               if (rdr.GetInt32(0)==OUID) {
                  if (!rdr.IsDBNull(4))
                  {
                     returnValue = rdr.GetString(4);
                  }
               }
               break;
            }
         }
         catch (Exception Ex)
         {
            throw Ex;
         }
         return returnValue;
      }


   }
}

I created a simple Console application to test the class library

// See https://aka.ms/new-console-template for more information

Console.WriteLine("Hello, World!");

string OUConnectionString = "";
OUConnectionString = SQLClientDemo.ConnectionString.OUConnectionString(1004);
Console.WriteLine(OUConnectionString);
Console.ReadLine();

On this line

OUConnectionString = SQLClientDemo.ConnectionString.OUConnectionString(1004);

I got the following error

System.IO.FileNotFoundException
  HResult=0x80070002
  Message=Could not load file or assembly 'Microsoft.Data.SqlClient, Version=5.0.0.0, Culture=neutral, PublicKeyToken=23ec7fc2d6eaa4a5'. The system cannot find the file specified.
  Source=SQLClientDemo
  StackTrace:
   at SQLClientDemo.ConnectionString.OUConnectionString(Int32 OUID) in C:\Dev\Achieve\2022Projects\SQLClientDemo\ConnectionString.cs:line 40
   at Program.<Main>$(String[] args) in C:\Users\myalo\source\repos\ConsoleApp1\ConsoleApp1\Program.cs:line 6

Here are the SQLClientDemo and Console app project files

<Project Sdk="Microsoft.NET.Sdk">

  <PropertyGroup>
    <TargetFramework>net8.0</TargetFramework>
    <ImplicitUsings>enable</ImplicitUsings>
    <Nullable>enable</Nullable>
  </PropertyGroup>

  <ItemGroup>
    <PackageReference Include="Microsoft.Data.SqlClient" Version="5.2.0" />
  </ItemGroup>

</Project>


<Project Sdk="Microsoft.NET.Sdk">

  <PropertyGroup>
    <OutputType>Exe</OutputType>
    <TargetFramework>net8.0</TargetFramework>
    <ImplicitUsings>enable</ImplicitUsings>
    <Nullable>enable</Nullable>
  </PropertyGroup>

  <ItemGroup>
    <Reference Include="Achieve.Common">
      <HintPath>bin\Debug\net8.0\Achieve.Common.dll</HintPath>
    </Reference>
    <Reference Include="SQLClientDemo">
      <HintPath>..\..\..\..\..\..\Dev\Achieve\2022Projects\SQLClientDemo\bin\Debug\net8.0\SQLClientDemo.dll</HintPath>
    </Reference>
  </ItemGroup>

</Project>

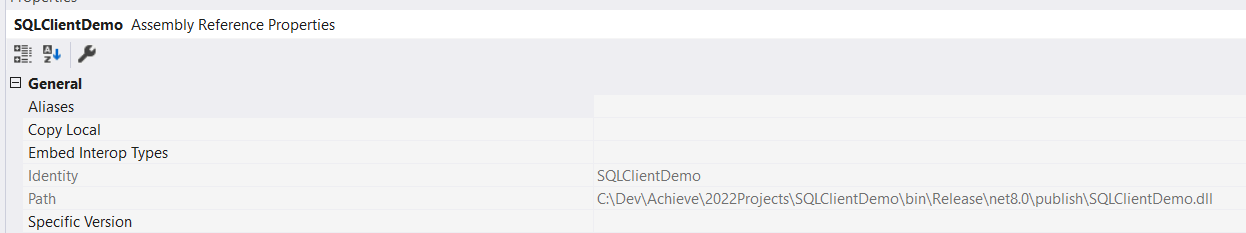

I tried copying the SQLClientDemo.dll to the bin directory of the console app and reference it there. Then I got a different error - Microsoft.Data.SqlClient is not supported on this platform.

System.PlatformNotSupportedException
  HResult=0x80131539
  Message=Microsoft.Data.SqlClient is not supported on this platform.
  Source=SQLClientDemo
  StackTrace:
   at SQLClientDemo.ConnectionString.OUConnectionString(Int32 OUID) in C:\Dev\Achieve\2022Projects\SQLClientDemo\ConnectionString.cs:line 37
   at Program.<Main>$(String[] args) in C:\Users\myalo\source\repos\ConsoleApp1\ConsoleApp1\Program.cs:line 6

I spent a few days trying to resolve this issue and would appreciate any help, insight or suggestion on how to resolve it.

Answer 1

Alvaro,

The problem remains the same when creating a Class Library (DLL) using "Microsoft.Data.SQLCLient".

It was necessary to copy the file: "....nuget\packages\microsoft.data.sqlclient\5.2.2\runtimes\win\lib\net8.0\Microsft.Data.SQLClient.dll" to the BIN folder.

I don't know why there are several different versions in the Nuget folder!! However, only this one works with my DLL.

If you create an EXE type app, these dependent DLLS are copied correctly to the folder. However, for Class Library (dll), you need to find out which file is correct and then copy it manually. I also needed to copy:

• Microsoft.Data.SqlClient.SNI.dll
• Microsoft.Identity.Client.dll

Kind Regards,

Tácito Fieker

CADGRAPH

Answer 2

Hi @Moshe Yalovsky , Welcome to Microsoft Q&A,

Your problem may be caused by two different issues:

1. File not found exception:


       System.IO.FileNotFoundException

       HResult=0x80070002

       Message=Could not load file or assembly 'Microsoft.Data.SqlClient, Version=5.0.0.0, Culture=neutral, PublicKeyToken=23ec7fc2d6eaa4a5'. The system cannot find the file specified.



2. The platform does not support exceptions:


       System.PlatformNotSupportedException

       HResult=0x80131539

       Message=Microsoft.Data.SqlClient is not supported on this platform.



To resolve these two issues, you can follow these steps:

Solve file not found exception

1. In the Console application project, ensure that the Microsoft.Data.SqlClient package is installed correctly. You can check in your project files (*.csproj) for the following:


       <ItemGroup>

         <PackageReference Include="Microsoft.Data.SqlClient" Version="5.2.0" />

       </ItemGroup>



2. Make sure that the Microsoft.Data.SqlClient.dll file is located in the bin directory.

Solve the problem that the platform does not support the exception

1. Make sure your application is running in 64-bit mode. You can check and change your project's target platform by following these steps:
   • In Visual Studio, right-click the project and select Properties.
   • Under the Build tab, make sure Target Platform is set to x64.
2. Add the following properties to the project file (*.csproj) to specify the target platform:


       <PropertyGroup>

         <OutputType>Exe</OutputType>

         <TargetFramework>net8.0</TargetFramework>

         <ImplicitUsings>enable</ImplicitUsings>

         <Nullable>enable</Nullable>

         <UseWPF>true</UseWPF> <!-- If your project uses WPF -->

         <Platforms>x64</Platforms>

       </PropertyGroup>



With the above steps, you should be able to resolve both exceptions. If the problem persists, please let me know and I will try my best to help you resolve it.

Best Regards,

Jiale

---

If the answer is the right solution, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".

Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Answer 3

you should use "dotnet publish" to build the folder to run the console app from. Microsoft.Data.SqlClient has a lot of dependent dll's. I build a quick app on my Mac using Microsoft.Data.SqlClient 5.2.0. here are the dlls

>ls *.dll
Azure.Core.dll
Azure.Identity.dll
Microsoft.Bcl.AsyncInterfaces.dll
Microsoft.Data.SqlClient.dll
Microsoft.Extensions.Configuration.Abstractions.dll
Microsoft.Extensions.Configuration.Binder.dll
Microsoft.Extensions.Configuration.EnvironmentVariables.dll
Microsoft.Extensions.Configuration.FileExtensions.dll
Microsoft.Extensions.Configuration.Json.dll
Microsoft.Extensions.Configuration.dll
Microsoft.Extensions.FileProviders.Abstractions.dll
Microsoft.Extensions.FileProviders.Physical.dll
Microsoft.Extensions.FileSystemGlobbing.dll
Microsoft.Extensions.Primitives.dll
Microsoft.Identity.Client.Extensions.Msal.dll
Microsoft.Identity.Client.dll
Microsoft.IdentityModel.Abstractions.dll
Microsoft.IdentityModel.JsonWebTokens.dll
Microsoft.IdentityModel.Logging.dll
Microsoft.IdentityModel.Protocols.OpenIdConnect.dll
Microsoft.IdentityModel.Protocols.dll
Microsoft.IdentityModel.Tokens.dll
Microsoft.SqlServer.Server.dll
System.Configuration.ConfigurationManager.dll
System.Diagnostics.EventLog.dll
System.IdentityModel.Tokens.Jwt.dll
System.Memory.Data.dll
System.Runtime.Caching.dll
System.Security.Cryptography.ProtectedData.dll
sqltest.dll

Answer 4

The following is on Windows not Mac but should be the same.

The following is incorrect.

<ItemGroup>
<Reference Include="Achieve.Common">
  <HintPath>bin\Debug\net8.0\Achieve.Common.dll</HintPath>
</Reference>
<Reference Include="SQLClientDemo">
  <HintPath>..\..\..\..\..\..\Dev\Achieve\2022Projects\SQLClientDemo\bin\Debug\net8.0\SQLClientDemo.dll</HintPath>
</Reference>
</ItemGroup>

If SQLClientDemo is in a different VS solution, consider making a copy and add it to the current solution for test purposes or create a local NuGet package and add it that way.

After adding project references to the main assembly you should get something like this

<ItemGroup>
  <ProjectReference Include="..\CommonLibrary\CommonLibrary.csproj" />
  <ProjectReference Include="..\SqlServerLibrary\SqlServerLibrary.csproj" />
</ItemGroup>

Which copied the two (in this example) compiled DLL to the main assemblies debug or release folder.

If you want to try the following which is a NET8 app using Microsoft.Data.SqlClient 5.2.0, see the following which is a stored procedure viewer. Clone the repository, in the main project, adjust the server name and run it. If it works than we know the problem is with your project. Lastly if it does not work, tried downgrading to one version down and adjust your project references as indicated above.

Answer 5

Have you find any solution for these?. Same error. and the bug its the same as https://github.com/dotnet/SqlClient/issues/1945 they solved for wpf ,winforms but not for classlibrary
