In Azure Front door Premium, Is it possible to just add a query string using URL rewrite feature.

Question

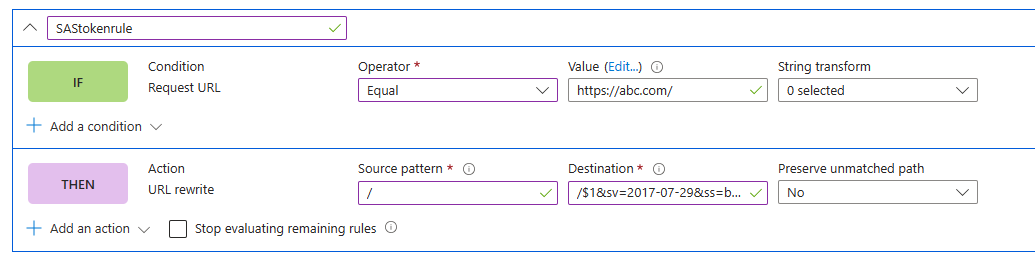

I am basically trying to integrate my blob storage with Azure front door and CDN profile. As the storage doesn't allow public access i would need to utilize the SAS token. I am looking if there is a way to hide the SAS token from end user. I believe URL rewrite should be able to add the SAS token I have tried many different way however none worked. Please advice.

I have tried the approach mentioned here.

https://learn.microsoft.com/en-us/answers/questions/1363114/url-rewrite-for-adding-sas-token-edgio-premium-rul

Answer 1

@Mudragada, Varun Krishna ,

Greetings.

May I know what exactly was issue with using AFD Rule Engine?

I did a lab and I was successfully able to achieve this,

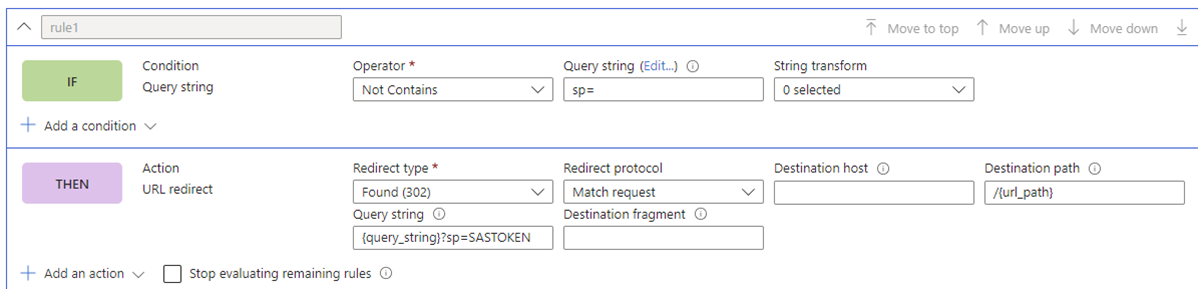

• You have to append the SAS Token to the URL Path

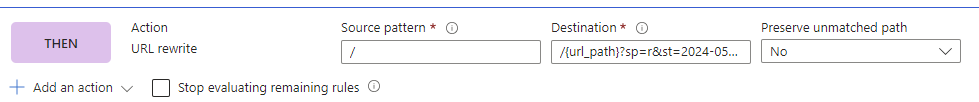

• The trick is to rewrite the entire URLPath with {url_path} server variable + SAS Token
• Something like this,
  •

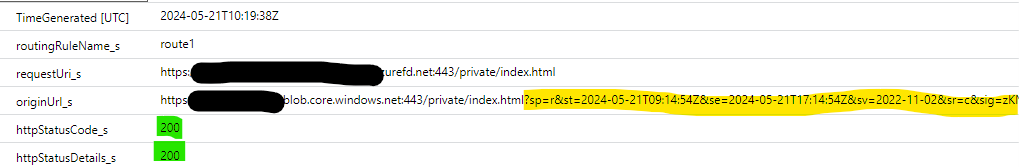

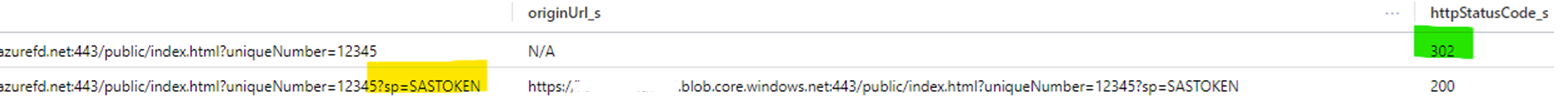

From AFD Logs,

•
• As you can see, the original request from client was <AFDEndPoint>/private/index.html
• But the request that went to the Storage Account was <StorageAccountName>.blob.core.windows.net:443/private/index.html?<SASToken>
• The "?<SASToken>" got appended because of the Rule Engine Rule.
• And I got a successful 200

For more information,

• URL Rewrite : https://learn.microsoft.com/en-us/azure/frontdoor/front-door-url-rewrite?pivots=front-door-standard-premium
• Server Variables in Rule Sets : https://learn.microsoft.com/en-us/azure/frontdoor/rule-set-server-variables#server-variable-format

Kindly let us know if this helps or you need further assistance on this issue.

Thanks,

Kapil

---
