Application Gateway WAF v2 and JSON property called base64

Question

Hi,

I need to configure some exclusions for base64 encoded data passed in a JSON body through Azure Application Gateway.

Currently, the WAF is blocking my requests, and it outputs the following log entry:

• ruleId_s: 941130
• details_message_s: Pattern match (?i)[\s\S]((?:x(?:link:href|html|mlns)|!ENTITY.*?SYSTEM|data:text\/html|formaction|\@import|base64)\b|pattern\b.*?=) at ARGS_NAMES.
• details_data_s:{.base64 found within [ARGS_NAMES:attachments.base64]}

Should I interpret this as follows: "It is not allowed to have a property name "base64" anywhere in a request body"?

The only way I've been able to work around this issue is to disable this rule (or change behavior to just logging), but of course that removes all the other checks as well -- and the setting is needlessly broad.

What I would like to achieve is to

1. Allow a property called base64 - ideally just for a specific url path in the application. It would be optimal if I wouldn't have to disable the whole rule 941130 for the application.
2. (I also need to add some exclusions to the property values as well, but that I can achieve by adding required exclusions based on the RequestArgNames)

Is this possible?

Thank you for your help.

P.S., I guess it would be better to send the base64 encoded attachment data as actual attachments instead of sending them as a part of the JSON request, but I do not have control over that implementation.

Answer 1

@Jarno Leikas

Thank you for reaching out.

Based on your response above

I guess I can add a separate exclusion for rule 941130 by matching variables as "RequestArgNames starts with attachments".

Yes your guess is correct here, I think adding an exclusion rule in this manner should help.

The request was blocked as the Arg Name contained base64 string and the exclusion rule above should help in by passing this block. This the OWASP implementation for this rule.

Adding an exclusion is definitely better than disabling the rule.

Based on your statement above

The only way I've been able to work around this issue is to disable this rule (or change behavior to just logging), but of course that removes all the other checks as well -- and the setting is needlessly broad.

I understand that disabling the rule has a broader effect and to prevent that you can use Per-URI policy in cases where applying an exclusion is not possible and you need to disable the rule. This way the rule is disabled for that particular path only.

Hope this helps. Please let me know if you have any questions. Thank you!

---

​​Please "Accept the answer" if the information helped you. This will help us and others in the community as well.

Answer 2

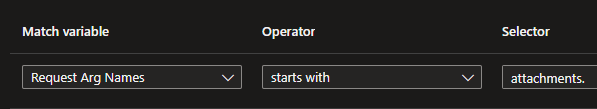

Well, answering to myself - because the full property name is attachments.base64, I guess I can add a separate exclusion for rule 941130 by matching variables as "RequestArgNames starts with attachments".
