Exchange 2019 Owa/ecp session timeout configuration

Question

Exchange 2019 Owa/ecp session timeout configuration

超邓 217

HI ,

May I ask why the Exchange 2019 session timeout configuration does not take effect?

Set-OrganizationConfig -ActivityBasedAuthenticationTimeoutInterval 00:15:00

User's image

1 answer

Your answer

Answer 1

Mike Hu-MSFT 4,145 Microsoft External Staff

Hi,邓超

Welcome to the Microsoft forum.

Based on your description, maybe you need to set the ActivityBasedAuthenticationTimeoutEnabled or ActivityBasedAuthenticationTimeoutWithSingleSignOnEnabled parameter value to $true.When the two parameter’s value are both $false,it will not work even if you had set the ActivityBasedAuthenticationTimeoutInterval value.

Please try to run the following command:

Set-OrganizationConfig – ActivityBasedAuthenticationTimeoutEnabled $true.

More information about these parameters,you can refer to Set-OrganizationConfig (ExchangePowerShell) | Microsoft Learn.

If the value is already been set to $true ,but stll does not work,maybe you need to run:

Set-ItemProperty "HKLM:\SYSTEM\CurrentControlSet\Services\MSExchange OWA" -Name PrivateTimeout -Value 15 -Type DWORD

Set-ItemProperty "HKLM:\SYSTEM\CurrentControlSet\Services\MSExchange OWA" -Name PublicTimeout -Value 15 -Type DWORD

More details refer to: Exchange admin tip: Configure timeout settings for Outlook on the Web (techgenix.com)

And it is mentioned that “in January 2024, Microsoft started retiring activity-based authentication timeout for Outlook on the web” in this link : Activity-based authentication timeout for Outlook on the web in Office 365 - Microsoft Support.

I hope this helps.Please feel free to contact me for any updates.

超邓 217 Reputation points

2024-05-28T08:11:20.2866667+00:00
HI mike hu,

All have been enabled, but it is still not effective at the moment.

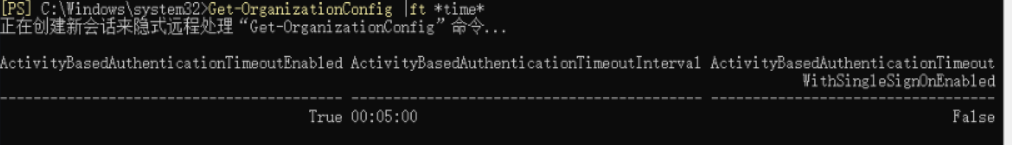

[PS] C:>Get-OrganizationConfig |fl activ*

ActivityBasedAuthenticationTimeoutEnabled : True

ActivityBasedAuthenticationTimeoutInterval : 00:05:00

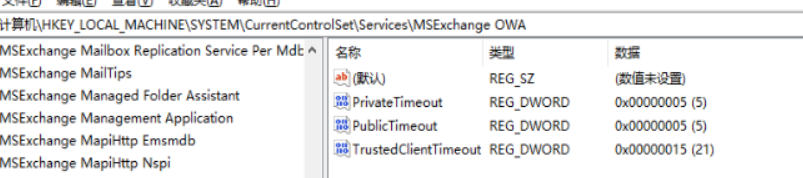

Set-ItemProperty "HKLM:\SYSTEM\CurrentControlSet\Services\MSExchange OWA" -Name PrivateTimeout -Value 05 -Type DWORD

Set-ItemProperty "HKLM:\SYSTEM\CurrentControlSet\Services\MSExchange OWA" -Name PublicTimeout -Value 05 -Type DWORD
Mike Hu-MSFT 4,145 Reputation points Microsoft External Staff

2024-05-28T09:01:13.0766667+00:00

Hi,超邓

From my personal experience, the value of PrivateTimeOut must be less than the value of PublicTimeOut configured, you can try it.
超邓 217 Reputation points

2024-05-29T06:42:47.97+00:00
HI Mike hu,

Currently using the following configuration:
Mike Hu-MSFT 4,145 Reputation points Microsoft External Staff

2024-05-29T09:38:17.2133333+00:00

Hi,超邓

Just try to set the ActivityBasedAuthenticationTimeoutWithSingleSignOnEnable to $true.

run the command :

Set-OrganizationConfig -ActivityBasedAuthenticationTimeoutWithSingleSignOnEnabled $true

And wait a while for it to take effect.
超邓 217 Reputation points

2024-05-31T01:45:00.17+00:00
HI Mike Hu,

I have configured it, but it still doesn't work.
