Front Door Load balancing

Nibbler 616 Reputation points
2024-06-01T08:51:18.0566667+00:00

Hello everyone,

I am looking for detailed information on how Azure Front Door load balances between origins. I have found some helpful information at https://learn.microsoft.com/en-us/azure/frontdoor/routing-methods, but I still have some questions.

Assuming there are two origins available (A+B), and both have a priority of 1, latency sensitivity of 0, and a weight of 1000:

  1. How will traffic be distributed?
  2. If origin A becomes unhealthy, will B take over?

I would appreciate any insights the community can offer. Thank you.

Maybe you @GitaraniSharma-MSFT take on this?

Azure Front Door
Azure Front Door
An Azure service that provides a cloud content delivery network with threat protection.
615 questions
0 comments No comments
{count} votes

2 answers

Sort by: Most helpful
  1. Q&A Assist
    2024-06-01T08:51:18.0966667+00:00
    AI generated content. This question contains an answer created with AI from Q&A Assist. Learn more

    Azure Front Door supports four different traffic routing methods to determine how your HTTP/HTTPS traffic is distributed between different origins: Latency, Priority, Weighted, and Session Affinity. Assuming there are two origins available (A+B), and both have a priority of 1, latency sensitivity of 0, and a weight of 1000, traffic will be distributed evenly between the two origins. If origin A becomes unhealthy, Azure Front Door will automatically route traffic to origin B.


    References:

    0 comments No comments

  2. KapilAnanth-MSFT 38,051 Reputation points Microsoft Employee
    2024-06-03T06:42:41.1333333+00:00

    @Nibbler ,

    Welcome to the Microsoft Q&A Platform. Thank you for reaching out & I hope you are doing well.

    I understand that you would like to understand how AFD Traffic routing methods work.

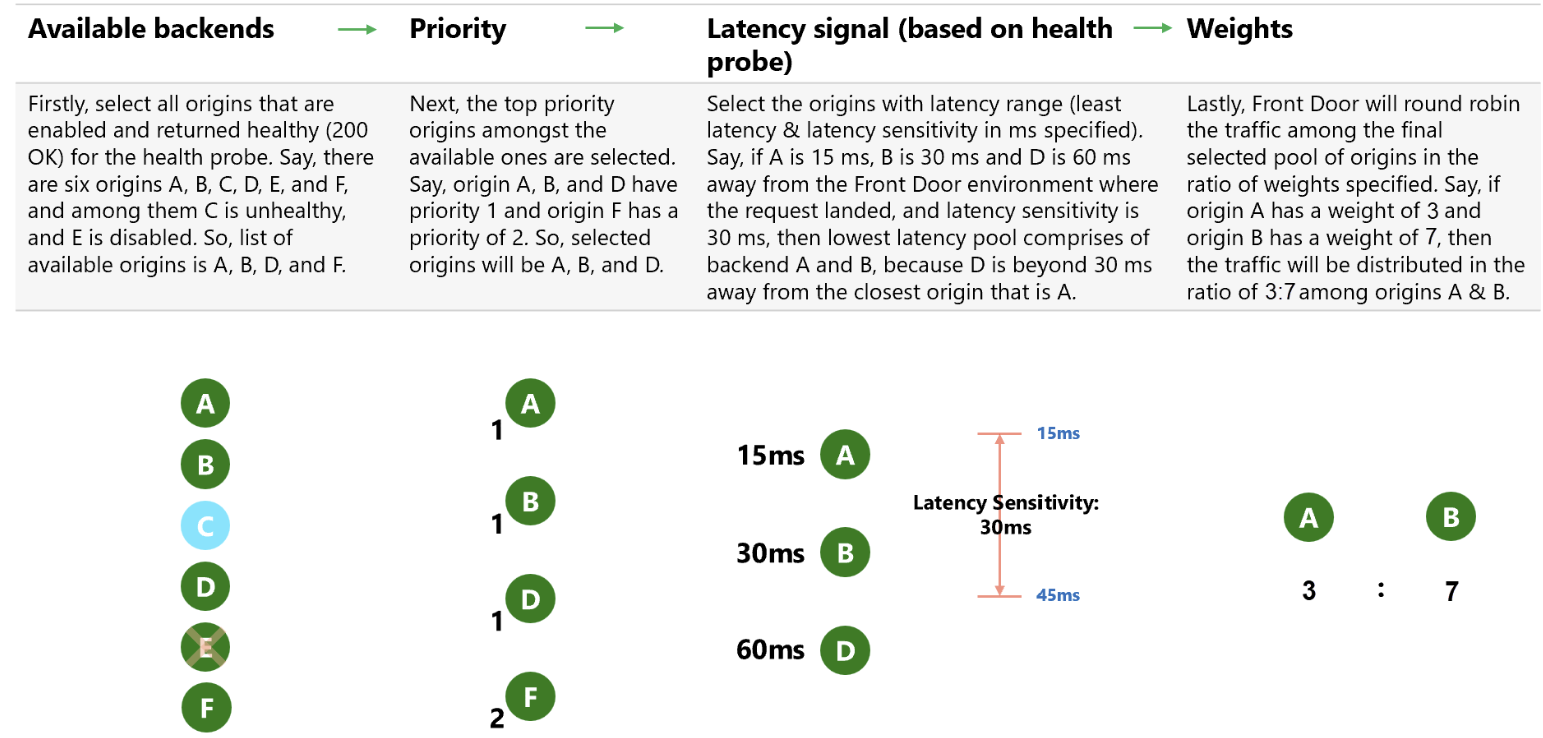

    We should follow the Overall decision flow chart

    • User's image

    1.How will traffic be distributed?

    1. Available origins : A and B are available, so both A and B are selected
    2. Priority : A and B have same priority of 1, so both A and B are selected
    3. Latency signal (based on health probe) :
      1. Let us assume Latency sensitivity of 0 (0 is highly unlikely, but we shall go with it for this example) and origin group's latency sensitivity is set to 30 ms.
      2. Since 0ms is less than 30ms, both A and B are selected.
    4. Weights: A and B both have a weight of 1000.
      1. This means, the total is 2000 (A+B)
      2. And then traffic distributed to A is 1000/2000 (A/Total) , which is 1/2
      3. And traffic distributed to B is 1000/2000 (B/Total) , which is 1/2

    i.e., Traffic is distributed equally across A and B

    2.If A becomes unhealthy,

    1. Available origins : Since A is unhealthy, only B is selected
    2. Since there is only one Origin now, no need for further validation.

    i.e., 100% Traffic is routed to B

    Kindly let us know if this helps or you need further assistance on this issue.

    Thanks,

    Kapil
