How to connect ADX cluster query with the logic app

Question

Trying to do the following things, one after another:

• Schedular to run in 6 hours
• Trigger ADX cluster query
• For the array output string, trigger email for each element of array.

I found out that this can be done through logic app. Can someone help me out how to do it.

Answer 1

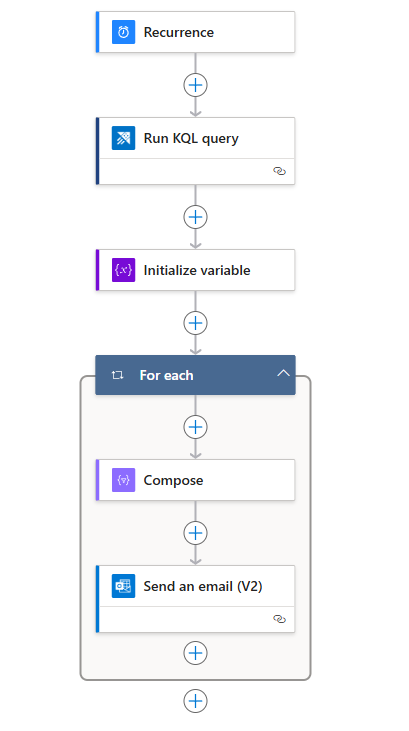

@Saransh Gaur Thanks for your question. You can use Recurrence trigger to specify how frequently the logic app should be executed. To trigger ADX cluster query, you can use existing ADX connector actions.

Here is sample logic app code for your reference

{
    "definition": {
        "$schema": "https://schema.management.azure.com/providers/Microsoft.Logic/schemas/2016-06-01/workflowdefinition.json#",
        "actions": {
            "For_each": {
                "actions": {
                    "Compose": {
                        "inputs": "@items('For_each')",
                        "type": "Compose"
                    },
                    "Send_an_email_(V2)": {
                        "inputs": {
                            "body": {
                                "Body": "<p>@{outputs('Compose')}</p>",
                                "Importance": "Normal",
                                "Subject": "Test",
                                "To": "xxxxx@microsoft.com"
                            },
                            "host": {
                                "connection": {
                                    "name": "@parameters('$connections')['office365']['connectionId']"
                                }
                            },
                            "method": "post",
                            "path": "/v2/Mail"
                        },
                        "runAfter": {
                            "Compose": [
                                "Succeeded"
                            ]
                        },
                        "type": "ApiConnection"
                    }
                },
                "foreach": "@body('Run_KQL_query')?['value']",
                "runAfter": {
                    "Initialize_variable": [
                        "Succeeded"
                    ]
                },
                "type": "Foreach"
            },
            "Initialize_variable": {
                "inputs": {
                    "variables": [
                        {
                            "name": "Count",
                            "type": "integer",
                            "value": 0
                        }
                    ]
                },
                "runAfter": {
                    "Run_KQL_query": [
                        "Succeeded"
                    ]
                },
                "type": "InitializeVariable"
            },
            "Run_KQL_query": {
                "inputs": {
                    "body": {
                        "cluster": "https://help.kusto.windows.net/",
                        "csl": "StormEvents \n| where StartTime between (datetime(2007-11-01) .. datetime(2007-12-01))\n| where State == \"FLORIDA\"  \n| take 2",
                        "db": "Samples"
                    },
                    "host": {
                        "connection": {
                            "name": "@parameters('$connections')['kusto']['connectionId']"
                        }
                    },
                    "method": "post",
                    "path": "/ListKustoResults/false"
                },
                "runAfter": {},
                "type": "ApiConnection"
            }
        },
        "contentVersion": "1.0.0.0",
        "outputs": {},
        "parameters": {
            "$connections": {
                "defaultValue": {},
                "type": "Object"
            }
        },
        "triggers": {
            "Recurrence": {
                "evaluatedRecurrence": {
                    "frequency": "Month",
                    "interval": 3
                },
                "recurrence": {
                    "frequency": "Month",
                    "interval": 3
                },
                "type": "Recurrence"
            }
        }
    },
    "parameters": {
        "$connections": {
            "value": {
                "kusto": {
                    "connectionId": "/subscriptions/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx/resourceGroups/Integration/providers/Microsoft.Web/connections/kusto",
                    "connectionName": "kusto",
                    "id": "/subscriptions/
xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
/providers/Microsoft.Web/locations/eastus/managedApis/kusto"
                },
                "office365": {
                    "connectionId": "/subscriptions/
xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
/resourceGroups/swdhanwa_Integration/providers/Microsoft.Web/connections/office365",
                    "connectionName": "office365",
                    "id": "/subscriptions/
xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
/providers/Microsoft.Web/locations/eastus/managedApis/office365"
                }
            }
        }
    }
}
