Show a Planner Plan as a Tab inside Teams Channel is no more working using Graph API, any advice?

john john Pter 1,065 Reputation points
2024-06-07T06:57:07.46+00:00

I have this workflow which:-

  1. Create a new Team Channel
  2. Create a new Planner Plan
  3. Show the Planner Plan as a tab inside the Team Channel.

this was working well for around 6 months, but recently it stop working as expected.Here is my workflow which calls the Graph API (my question is not regarding power automate flow, but rather related to Graph API):-

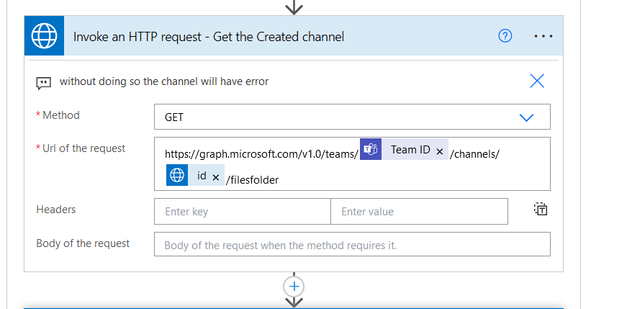

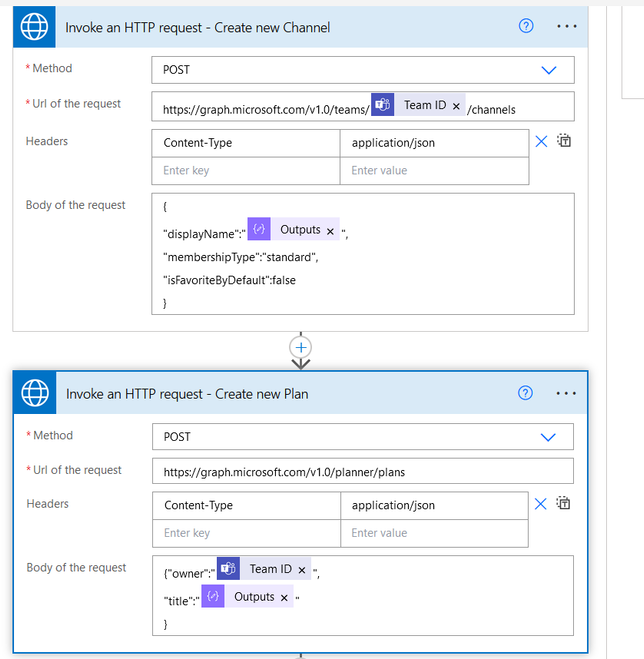

johnjohnPter_0-1717716220211

johnjohnPter_1-1717716245341

johnjohnPter_2-1717716280957

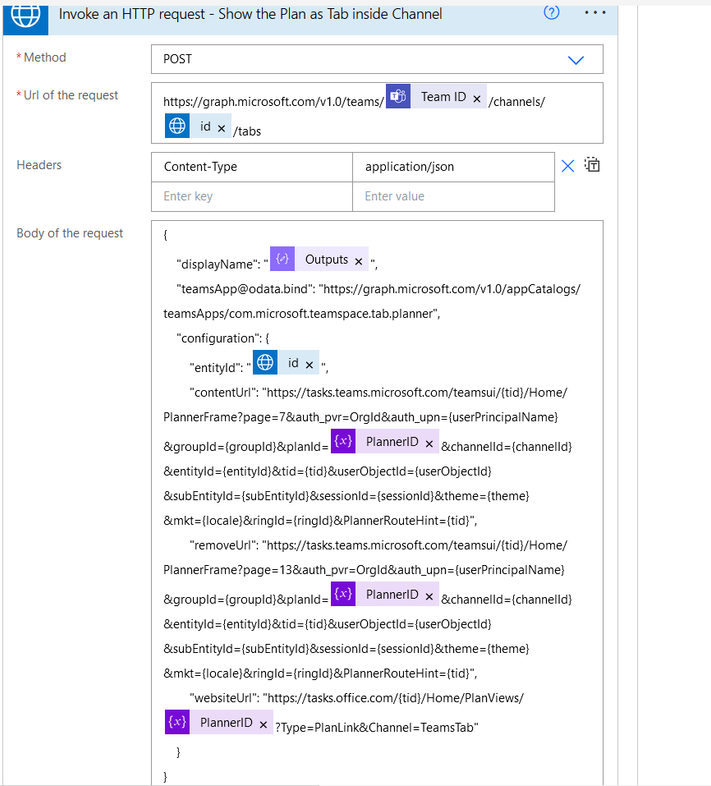

here is the "Body of the request" for showing the plan as a tab inside channel action:-

{
    "displayName": "@{outputs('Compose_-_Friendly_Planner_Name')}",
    "******@odata.bind": "https://graph.microsoft.com/v1.0/appCatalogs/teamsApps/com.microsoft.teamspace.tab.planner",
    "configuration": {
        "entityId": "@{body('Invoke_an_HTTP_request_-_Create_new_Channel')?['id']}",
        "contentUrl": "https://tasks.teams.microsoft.com/teamsui/{tid}/Home/PlannerFrame?page=7&auth_pvr=OrgId&auth_upn={userPrincipalName}&groupId={groupId}&planId=@{variables('PlannerID')}&channelId={channelId}&entityId={entityId}&tid={tid}&userObjectId={userObjectId}&subEntityId={subEntityId}&sessionId={sessionId}&theme={theme}&mkt={locale}&ringId={ringId}&PlannerRouteHint={tid}",
        "removeUrl": "https://tasks.teams.microsoft.com/teamsui/{tid}/Home/PlannerFrame?page=13&auth_pvr=OrgId&auth_upn={userPrincipalName}&groupId={groupId}&planId=@{variables('PlannerID')}&channelId={channelId}&entityId={entityId}&tid={tid}&userObjectId={userObjectId}&subEntityId={subEntityId}&sessionId={sessionId}&theme={theme}&mkt={locale}&ringId={ringId}&PlannerRouteHint={tid}",
        "websiteUrl": "https://tasks.office.com/{tid}/Home/PlanViews/@{variables('PlannerID')}?Type=PlanLink&Channel=TeamsTab"
    }
}





Currently when i click on the new channel tab i will not get the new planner tasks, i will rather get "My Tasks",as follow:-

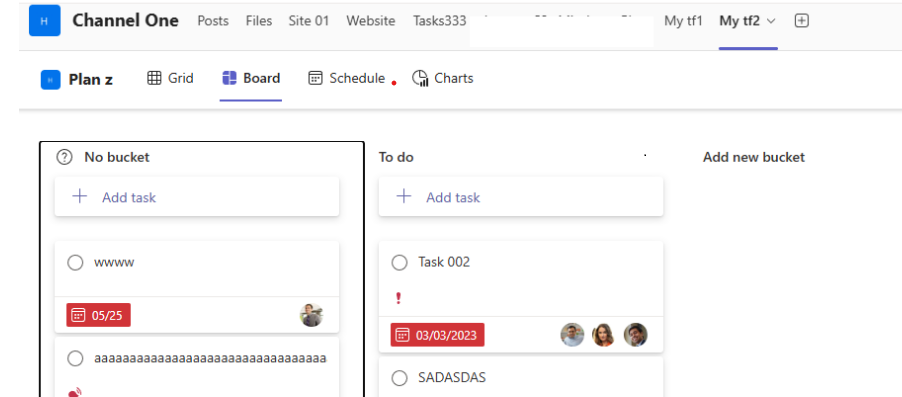

previously i use to get the related Planner tasks as follow:-






any advice, why this is no loner working as it use to be?



Thanks

Microsoft 365 and Office | Development | Other
Microsoft Security | Microsoft Graph
0 comments No comments
{count} votes

3 answers

Sort by: Most helpful
  1. Noël Brand 5 Reputation points
    2024-12-04T07:56:51.7233333+00:00

    @Jeremy Barden try use the one @AsithwMSFT provided.
    The first solution in this thread didn't do it for me. But the one disregarding the entityID worked wonders. Use this and just replace the Domain and PlanID:

    {
        "displayName": "My tab 2",
        "******@odata.bind": "https://graph.microsoft.com/v1.0/appCatalogs/teamsApps/com.microsoft.teamspace.tab.planner",
        "configuration": {
            "contentUrl": "https://tasks.office.com/[domain].onmicrosoft.com/Home/PlannerFrame?page=7&planId=[planId]"
        }
    }

    1 person found this answer helpful.

  2. AsithwMSFT 1,520 Reputation points Microsoft External Staff
    2024-06-08T06:07:41.64+00:00

    @john john Pter Do you see any graph API error response message or can you decode the access token with (https://jwt.ms)) to get more information?

    It could be that the Client Secret you registered in Azure AD has expired. if it is set to 6 months


  3. AsithwMSFT 1,520 Reputation points Microsoft External Staff
    2024-06-08T15:43:03.3433333+00:00

    Hi @john john Pter

    Here I am adding new answer instead of last one

    I created Teams Tab using the similar way you did via graph api and got the same Team's Tab view as you.

    After closely examining the request payload, I changed the format of the entityId value and achieved the view you mentioned. Could you try it ?"

    entity id format was like this

    "entityId": "tt.c_{channelId}_p_{planId}_h_{uniqueId}"

    here is sample request payload that I tried. (Note- this format is captured from Teams Planner app)

    {
      "displayName": "My tab 2",
      "******@odata.bind": "https://graph.microsoft.com/v1.0/appCatalogs/teamsApps/com.microsoft.teamspace.tab.planner",
      "configuration": {
        "entityId": "tt.c_19:5c5b0ae547084496a4707c8bdb3db9c1@thread.tacv2_p_5XK80bGx1Uynb7gDB8Z7qMkBFEEx_h_1
    717853278545
    ",
        "contentUrl": "https://tasks.teams.microsoft.com/teamsui/{tid}/Home/PlannerFrame?page=7&auth_pvr=OrgId&auth_upn={userPrincipalName}&groupId={groupId}&planId=5XK80bGx1Uynb7gDB8Z7qMkBFEEx&channelId={channelId}&entityId={entityId}&tid={tid}&userObjectId={userObjectId}&subEntityId={subEntityId}&sessionId={sessionId}&theme={theme}&mkt={locale}&ringId={ringId}&PlannerRouteHint={tid}&tabVersion=20200228.1_s",
        "websiteUrl": "https://tasks.office.com/2fe35f47-6421-4209-a601-aad98974ad29/Home/PlanViews/5XK80bGx1Uynb7gDB8Z7qMkBFEEx?Type=PlanLink&Channel=TeamsTab"
      }
    }




    User's image

    If the answer is helpful, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".
