The vector embedding policy property name is “vectorEmbeddingPolicy”, not “vectorPolicy”.
Also, the vector paths shouldn’t be listed explicitly in the “includedPaths” property, however, this shouldn’t be a blocker.Regards,
Oury
This browser is no longer supported.
Upgrade to Microsoft Edge to take advantage of the latest features, security updates, and technical support.
Hello guys,
I'm going nuts on this one.
I'm trying to build an Azure Cosmos DB Container with the Vector feature, I have enabled the feature of Vector Search for NoSQL API (preview).

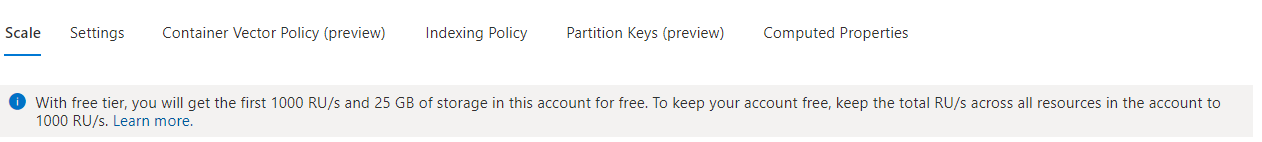

I first tried to create the container in Azure portal and then changing the settings with no luck.
So I went with a Custom Deployment with my own template code..
{
"$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentTemplate.json#",
"contentVersion": "1.0.0.0",
"resources": [
{
"type": "Microsoft.DocumentDB/databaseAccounts/sqlDatabases/containers",
"apiVersion": "2021-06-15",
"name": "[concat(parameters('cosmosDbAccountName'), '/databases/', parameters('databaseName'), '/containers/', parameters('containerName'))]",
"properties": {
"resource": {
"id": "[parameters('containerName')]",
"partitionKey": {
"paths": ["/dataSource"],
"kind": "Hash"
},
"indexingPolicy": {
"indexingMode": "consistent",
"automatic": true,
"includedPaths": [
{
"path": "/*"
},
{
"path": "/dataSource/?"
},
{
"path": "/trademarkName/?"
},
{
"path": "/trademarkStatus/?"
},
{
"path": "/goodsAndServices/*"
},
{
"path": "/textEmbedding/?"
},
{
"path": "/imageEmbedding/?"
},
{
"path": "/id/?"
}
],
"excludedPaths": [
{
"path": "/_etag/?"
}
],
"vectorIndexes": [
{
"path": "/textEmbedding",
"type": "quantizedFlat"
},
{
"path": "/imageEmbedding",
"type": "quantizedFlat"
}
]
},
"vectorPolicy": {
"vectorEmbeddings": [
{
"path": "/imageEmbedding",
"dataType": "float32",
"distanceFunction": "cosine",
"dimensions": 768
},
{
"path": "/textEmbedding",
"dataType": "float32",
"distanceFunction": "cosine",
"dimensions": 768
}
]
}
}
}
}
],
"parameters": {
"cosmosDbAccountName": {
"type": "string"
},
"databaseName": {
"type": "string"
},
"containerName": {
"type": "string"
}
}
}
This gave me the error that the /textEmbedding.
Vector Indexing Policy's path::\\/textEmbedding not matching in Embedding's path.
So I went, okay maybe its bug.
So I went on creating the stuff in C# with this code:
// Define the connection string and create a new CosmosClient instance
var connectionString = "Your Connection String Here";
CosmosClient client = new(connectionString, new CosmosClientOptions
{
SerializerOptions = new CosmosSerializationOptions
{
IgnoreNullValues = false,
PropertyNamingPolicy = CosmosPropertyNamingPolicy.CamelCase,
},
AllowBulkExecution = true,
ApplicationRegion = Regions.NorthEurope
});
// Create the database if it does not exist
Database db = client.GetDatabase("cosmosomatic");
// Define the list of embeddings to be used in the container
List<Embedding> embeddings = new List<Embedding>()
{
new Embedding()
{
Path = "/imageEmbedding",
DataType = VectorDataType.Float32,
DistanceFunction = DistanceFunction.Cosine,
Dimensions = 768,
},
new Embedding()
{
Path = "/textEmbedding",
DataType = VectorDataType.Float32,
DistanceFunction = DistanceFunction.Cosine,
Dimensions = 768,
}
};
// Convert list to a Collection type
Collection<Embedding> embeddingCollection = new(embeddings);
// Define the container properties including the vector embedding policy
ContainerProperties properties = new ContainerProperties(id: "vector-container", partitionKeyPath: "/dataSource")
{
VectorEmbeddingPolicy = new(embeddingCollection),
IndexingPolicy = new IndexingPolicy()
{
VectorIndexes = new()
{
new VectorIndexPath()
{
Path = "/vector",
Type = VectorIndexType.QuantizedFlat,
}
}
},
};
// Set manual throughput options
var throughput = ThroughputProperties.CreateManualThroughput(400);
// Create the container with the specified properties and throughput
Container container = await db.CreateContainerIfNotExistsAsync(properties, throughput);
System.Console.WriteLine("Container with vector indexing created successfully.");
But then the internal Embedding class have this:
/// <summary>
**/// Represents the embedding settings for the vector index.**
**/// </summary>**
#if PREVIEW
**public**
#else
**internal**
#endif
**class Embedding : IEquatable<Embedding>**
And they haven't any preview versions in their nuget packages..
So hopefully there is someone out there who can see what I'm doing so badly wrong here.
Thanks!
The vector embedding policy property name is “vectorEmbeddingPolicy”, not “vectorPolicy”.
Also, the vector paths shouldn’t be listed explicitly in the “includedPaths” property, however, this shouldn’t be a blocker.Regards,
Oury
