How to fix Signature validation failed when trying to validate an access token of Microsoft Entra ID

Question

How to fix Signature validation failed when trying to validate an access token of Microsoft Entra ID

Bernardo Garza García 10

Hi,

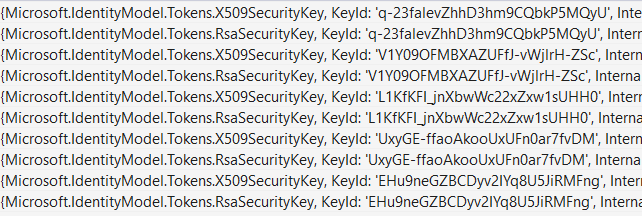

I'm trying to validate my access token signature from Microsoft Entra ID, as you can see in the below image, the "kid" attribute is different from the keys retrieved in the second image below that were retrieved from [domain+tenant]/.well-known/openid-configuration

This is causing the next error: The token's kid is: 'f0GUng0wL6zx4dx1Iuu1ForRHEA', but did not match any keys in TokenValidationParameters

Could you try to help me to understand if I am doing something wrong ? This only happens with Microsoft Entra ID, it works when using Azure AD B2C

Image preview

StackTrace:

HResult=0x80131500

Message=IDX10503: Signature validation failed. The token's kid is: 'f0GUng0wL6zx4dx1Iuu1ForRHEA', but did not match any keys in TokenValidationParameters or Configuration. Keys tried: 'Microsoft.IdentityModel.Tokens.X509SecurityKey, KeyId: 'q-23falevZhhD3hm9CQbkP5MQyU', InternalId: 'q-23falevZhhD3hm9CQbkP5MQyU'. , KeyId: q-23falevZhhD3hm9CQbkP5MQyU

Microsoft.IdentityModel.Tokens.RsaSecurityKey, KeyId: 'q-23falevZhhD3hm9CQbkP5MQyU', InternalId: 'S_S12adpbe27-_qkluYZHCSMRJ6EcrW5Ho4cyLGEjG8'. , KeyId: q-23falevZhhD3hm9CQbkP5MQyU

Microsoft.IdentityModel.Tokens.X509SecurityKey, KeyId: 'V1Y09OFMBXAZUFfJ-vWjlrH-ZSc', InternalId: 'V1Y09OFMBXAZUFfJ-vWjlrH-ZSc'. , KeyId: V1Y09OFMBXAZUFfJ-vWjlrH-ZSc

Microsoft.IdentityModel.Tokens.RsaSecurityKey, KeyId: 'V1Y09OFMBXAZUFfJ-vWjlrH-ZSc', InternalId: '21yYN7-15_HEG6Myr8mw1D07vAMCN503j4n1GnsWWJQ'. , KeyId: V1Y09OFMBXAZUFfJ-vWjlrH-ZSc

Microsoft.IdentityModel.Tokens.X509SecurityKey, KeyId: 'L1KfKFI_jnXbwWc22xZxw1sUHH0', InternalId: 'L1KfKFI_jnXbwWc22xZxw1sUHH0'. , KeyId: L1KfKFI_jnXbwWc22xZxw1sUHH0

Microsoft.IdentityModel.Tokens.RsaSecurityKey, KeyId: 'L1KfKFI_jnXbwWc22xZxw1sUHH0', InternalId: 'RlwaR9qe84mGeeFWVsLX3zezPkY88aZiSkDuuqUxftM'. , KeyId: L1KfKFI_jnXbwWc22xZxw1sUHH0

Microsoft.IdentityModel.Tokens.X509SecurityKey, KeyId: 'UxyGE-ffaoAkooUxUFn0ar7fvDM', InternalId: 'UxyGE-ffaoAkooUxUFn0ar7fvDM'. , KeyId: UxyGE-ffaoAkooUxUFn0ar7fvDM

Microsoft.IdentityModel.Tokens.RsaSecurityKey, KeyId: 'UxyGE-ffaoAkooUxUFn0ar7fvDM', InternalId: 'IC5xpkooVq3LolG30n_19Ollz-mDTXlIuq4MdlmjwFE'. , KeyId: UxyGE-ffaoAkooUxUFn0ar7fvDM

Microsoft.IdentityModel.Tokens.X509SecurityKey, KeyId: 'EHu9neGZBCDyv2IYq8U5JiRMFng', InternalId: 'EHu9neGZBCDyv2IYq8U5JiRMFng'. , KeyId: EHu9neGZBCDyv2IYq8U5JiRMFng

Microsoft.IdentityModel.Tokens.RsaSecurityKey, KeyId: 'EHu9neGZBCDyv2IYq8U5JiRMFng', InternalId: '4xRadtB97YyM0GXtJGF1MHO11LmoVHRCXd4Gp3tNb6Y'. , KeyId: EHu9neGZBCDyv2IYq8U5JiRMFng

'. Number of keys in TokenValidationParameters: '10'.

Bernardo Garza García 10 Reputation points

2024-06-10T21:49:46.66+00:00

Hi James,

About your first point, I don't know if it is an error but the url that I am using for requesting an access token is:

https://login.microsoftonline.com/<application_id>/oauth2/v2.0/authorize

and the value of iss claim is:

https://sts.windows.net/<application_id>/

the domain sts.windows.net is the expected one ? on the other hand, the application_id is the same on both urls.

Linus Lim Duann Shiun 0

Hi, I have the same exact problems here. I am trying to authenticate the organization users of my .NET Framework 4.8 app using OpenID Connect, and somehow the KID of my token doesn't match with any of those found in the discovery URL.

These are my codes. Appreciate if anyone could shed some light on the issue here.

public class Startup
    {
        public void Configuration(IAppBuilder app)
        {
            // Enable PII logging for debugging purposes
            IdentityModelEventSource.ShowPII = true;

            ConfigureAuth(app);
        }

        public void ConfigureAuth(IAppBuilder app)
        {

            app.SetDefaultSignInAsAuthenticationType(CookieAuthenticationDefaults.AuthenticationType);
            app.UseCookieAuthentication(new CookieAuthenticationOptions());

            app.UseOpenIdConnectAuthentication(new OpenIdConnectAuthenticationOptions
            {
                ClientId = ConfigurationManager.AppSettings["ida:ClientId"],
                Authority = $"https://login.microsoftonline.com/{ConfigurationManager.AppSettings["ida:TenantId"]}" + "/v2.0",
                RedirectUri = ConfigurationManager.AppSettings["ida:RedirectUri"],
                PostLogoutRedirectUri = ConfigurationManager.AppSettings["ida:PostLogoutRedirectUri"],
                ResponseType = "id_token",
                TokenValidationParameters = new TokenValidationParameters
                {
                    ValidateIssuer = true,
                    ValidateAudience = true,
                    ValidateLifetime = true,
                    ValidAudience = ConfigurationManager.AppSettings["ida:ClientId"],
                    ValidIssuer = $"https://login.microsoftonline.com/{ConfigurationManager.AppSettings["ida:TenantId"]}" + "/v2.0",

                    IssuerSigningKeyResolver = (token, securityToken, kid, parameters) =>
                    {
                        try
                        {
                            var configurationManager = new Microsoft.IdentityModel.Protocols.ConfigurationManager<Microsoft.IdentityModel.Protocols.OpenIdConnect.OpenIdConnectConfiguration>(
                            $"https://login.microsoftonline.com/{ConfigurationManager.AppSettings["ida:TenantId"]}/v2.0/.well-known/openid-configuration",
                            new Microsoft.IdentityModel.Protocols.OpenIdConnect.OpenIdConnectConfigurationRetriever());

                            // Force refresh
                            configurationManager.RequestRefresh();

                            var discoveryDocument = configurationManager.GetConfigurationAsync().Result;

                            // Log all signing keys
                            foreach (var key in discoveryDocument.SigningKeys)
                            {
                                System.Diagnostics.Debug.WriteLine($"KeyId: {key.KeyId}, Key: {key}");
                            }

                            // Log the token and kid for debugging
                            System.Diagnostics.Debug.WriteLine("Token: " + token);
                            System.Diagnostics.Debug.WriteLine("Kid: " + kid);

                            // Find and return the matching key
                            var matchingKeys = discoveryDocument.SigningKeys.Where(k => k.KeyId == kid).ToList();
                            if (!matchingKeys.Any())
                            {
                                System.Diagnostics.Debug.WriteLine($"No matching key found for kid: {kid}");
                                throw new SecurityTokenInvalidSignatureException("No matching key found.");
                            }

                            return matchingKeys;
                        }
                        catch (Exception ex)
                        {
                            System.Diagnostics.Debug.WriteLine("Error retrieving signing keys: " + ex.Message);
                            throw;
                        }
                    },
                },
                Notifications = new OpenIdConnectAuthenticationNotifications
                {
                    AuthenticationFailed = context =>
                    {
                        context.HandleResponse();
                        context.Response.Redirect("/Error?message=" + context.Exception.Message);
                        return Task.FromResult(0);
                    },
                    SecurityTokenValidated = context =>
                    {
                        /*
                        string name = context.AuthenticationTicket.Identity.FindFirst("preferred_username").Value;
                        context.AuthenticationTicket.Identity.AddClaim(new Claim(ClaimTypes.Name, name, string.Empty));
                        return System.Threading.Tasks.Task.FromResult(0);
                        */

                        return Task.FromResult(0);
                    },
                },
                SignInAsAuthenticationType = "Cookies",  // Ensure this matches the Cookie AuthenticationType (IMPORTANT: THIS PARAM MUST BE IN THE LAST POSITION)
            });
        }
    }

Anup Marwadi 0

Hello, I'd really like someone from Microsoft to chime in here. This has become a nightmare. Entra External ID documentation is ALL over the place with no consistency in information..

Most of the examples do a good job of giving us the MSAL related code, but not much effort has been put into exactly explaining what the ASP.NET Core API documentation should be like. The issuer in the decoded JWT token shows up as shown below

https://sts.windows.net/{TenantId}

And the explanation in most ASP.NET Core API says use:

//Authority URL for external tenant
Instance: "https://Enter_the_Tenant_Subdomain_Here.ciamlogin.com/"

Despite going through manual work of setting the Keys using code like so, the JWT token is not validated. Not sure anymore what to do. Can we please get the documentation updated?

 var configurationManager = new ConfigurationManager<OpenIdConnectConfiguration>(
            $"https://{tenantname}.ciamlogin.com/{tenantId}/v2.0/.well-known/openid-configuration",
            new OpenIdConnectConfigurationRetriever(),
            new HttpDocumentRetriever());

        var discoveryDocument = await configurationManager.GetConfigurationAsync();
        var signingKeys = discoveryDocument.SigningKeys;

        builder.Services
            .AddAuthentication(JwtBearerDefaults.AuthenticationScheme)

.AddMicrosoftIdentityWebApi(options =>
{
    builder.Configuration.Bind("EntraId", options);
    options.Events = new JwtBearerEvents
    {
        OnTokenValidated = context =>
        {
            // Add custom logic here if needed
            Console.WriteLine("TokenValidated");
            return Task.CompletedTask;
        },
        OnAuthenticationFailed = context =>
        {
            // Add custom logic here if needed
            Console.WriteLine("AuthenticationFailed" + context.Exception.Message);
            return Task.CompletedTask;
        }
    };
    options.TokenValidationParameters = new TokenValidationParameters
    {
        IssuerSigningKeys = signingKeys,
        ValidateAudience = false,
        // When set to false, the JWT's issuer will not be validated
        ValidateIssuer = true,
        // When set to false, JWTs without an 'exp' claim in their payload will be rejected
        RequireExpirationTime = true,
        // When set to false, the JWT's signature will not be validated
        ValidateIssuerSigningKey = true,
        // When set to false, the JWT's lifetime (as given by the 'exp' claim) will not be checked
        ValidateLifetime = true,
    };

}, options =>
{
    builder.Configuration.Bind("EntraId", options);
});

1 answer

Your answer

Bernardo Garza García 10 Reputation points

2024-06-10T21:49:46.66+00:00

Hi James,

About your first point, I don't know if it is an error but the url that I am using for requesting an access token is:

https://login.microsoftonline.com/<application_id>/oauth2/v2.0/authorize

and the value of iss claim is:

https://sts.windows.net/<application_id>/

the domain sts.windows.net is the expected one ? on the other hand, the application_id is the same on both urls.

Answer 1

Hi @Bernardo Garza García , can you please try the following for me?

Check if the authority that issued the token is the same as the one you are trying to validate against. You can do this by comparing the "iss" claim in the token with the authority's URL.
Check if the signing keys have been updated since the token was issued. You can retrieve the latest signing keys from the OpenID configuration endpoint and compare them with the "kid" attribute in the token. If they are different, you can update your validation logic to use the latest signing keys.
If you are still having issues, you can try enabling the "RefreshOnIssuerKeyNotFound" option in your validation logic. This will force the validation logic to retrieve the latest signing keys from the OpenID configuration endpoint if the "kid" attribute in the token does not match any of the cached keys.

Please let me know your results and I can help you further.

Best,

James
