ADF linked service for Snowflake is timing out

Question

Hi,

In my production account we would be doing the data processing on ADF and we would be using Snowflake as a data warehouse. Also, for some ADF pipelines same Snowflake DWH will also be a source.

I first create a role, granted it permissions created a user and assigned the role to the user. Below is the query I ran.

-- Create role
CREATE ROLE data_engineer;

-- Grant privileges
GRANT USAGE ON DATABASE dev_database TO ROLE data_engineer;
GRANT USAGE ON SCHEMA dev_database.test_schema TO ROLE data_engineer;
GRANT CREATE TABLE, CREATE VIEW, CREATE STAGE
ON SCHEMA dev_database.test_schema TO ROLE data_engineer;
GRANT SELECT, INSERT, UPDATE, DELETE
ON ALL TABLES IN SCHEMA dev_database.test_schema TO ROLE data_engineer;
GRANT SELECT, INSERT, UPDATE, DELETE
ON FUTURE TABLES IN SCHEMA dev_database.test_schema TO ROLE data_engineer;
GRANT SELECT ON FUTURE VIEWS IN SCHEMA dev_database.test_schema TO ROLE data_engineer;

-- Create user
CREATE USER adf_user_2
PASSWORD = '***********'
DEFAULT_ROLE = data_engineer
DEFAULT_WAREHOUSE = COMPUTE_WH
MUST_CHANGE_PASSWORD = FALSE;

-- Assign role to user
GRANT ROLE data_engineer TO USER adf_user_2;

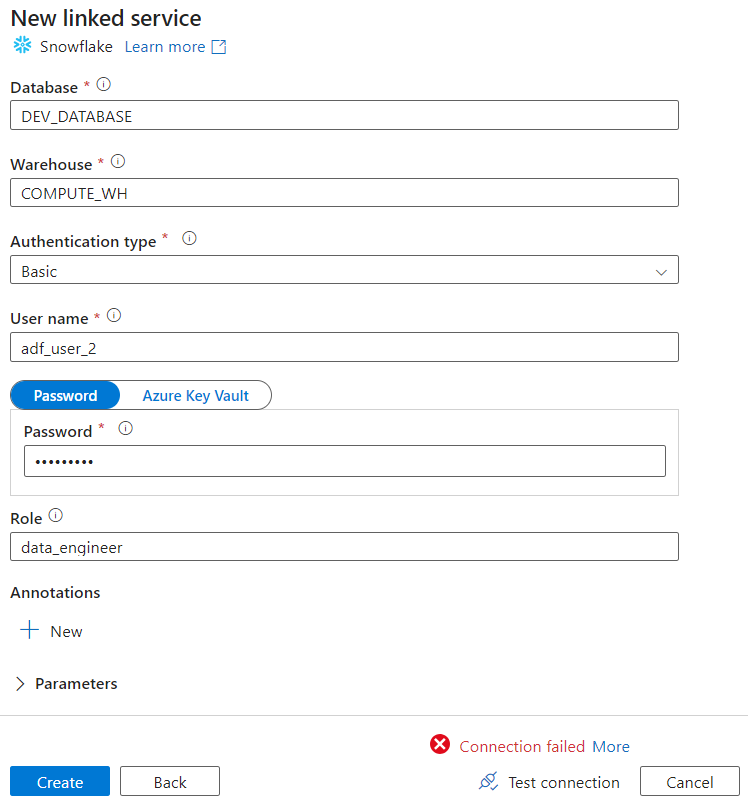

I then used these credentials in the linked service.

But I got error - operation has timed out*.*

While I am able login to snowflake from snowflake portal with this credential, I am not sure why I am getting connection timeout for the linked service.

Any help and guidance will be helpful.

Thanks,

Shashwat

Answer 1

      Use below steps I'm sure it would be helpful.
      Verify VNet Integration in ADF

**

Create a Managed Virtual Network (optional):**

• If your ADF instance needs to be part of a specific network, you can create a Managed Virtual Network within ADF.
  • Navigate to your Data Factory instance in the Azure portal.
    • Go to Author & Monitor.
      • Under the Manage tab, select Managed private endpoint.
        • Create a new managed private endpoint for Snowflake.

Configure ADF to Use VNet:

• In your Data Factory, navigate to Manage and then Linked services.
• Edit or create a new linked service for Snowflake.
• Under Network, select Integration Runtime that supports Virtual Network.
  • Ensure the Integration Runtime is associated with your desired VNet.
