How do you show Connected List Data in the List Item Display Form using Power Apps?

Question

Is there a way to show Connected List Data in the List Item Display Form using Power Apps? Previously this was done by adding a WebPart to the Display form, but I'm new to SharePoint Online and I can't find any article that covers this aspect. This is how it used to look in 2013:

Here's an article on how it was previously done: https://www.youtube.com/watch?v=PauNVN8btbA

Answer 1

To answer your questions:

1. Lookup fields are also supported for Filter function. But since a lookup field is not the same type as text, you need to convert the data to text using Value property.
   Example: Filter('PURCHASE ORDERS', '<LookUp>'.Value = DataCardValue3.Text)
2. There is no threshold for number of controls/data tables we can have on one form, which will depend a lot on the situation and form structure. We do not recommend loading too much data in an app or a form since it might adversely impact system performance.
   You can see a post here for discussion on this topic: Maximum number of screens in an app.
3. The data row limit for non-delegable queries is 500, threshold 2000 for data source type that supports delegation. The value can be changed via Power Apps > File > Settings > Advanced settings > Data row limit for non-delegable queries.
   Reference: PowerApps data row limit for non-delegable queries.

Answer 2

Since we do not have list web parts to use in a modern list form, we can use Data table to display entries from another list.

Please see a sample process as following:

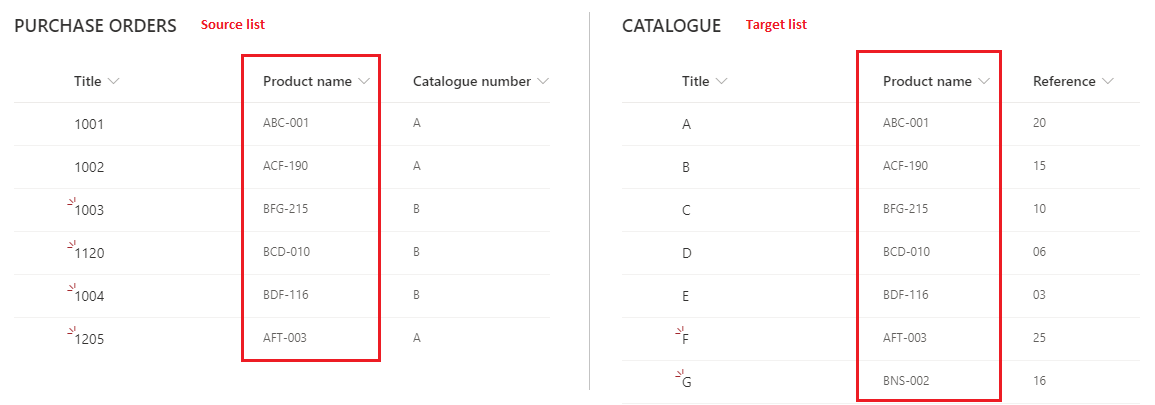

1. I have two lists set as shown in the screenshot, one is named “PURCHASE ORDERS” as the source list and the other named “CATALOGUE” as the target list. The Product name columns are both Text columns in the two lists. The plan is to display related purchase order records when opening list item from the CATALOGUE list.

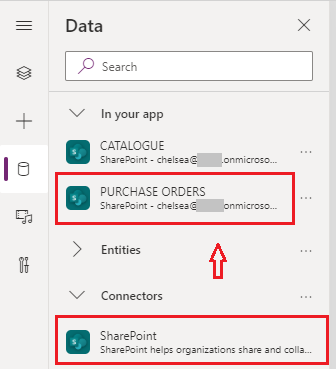

2. Customize forms in the CATALOGUE list using PowerApps and create a second connection linked to the PURCHASE ORDERS list via Data on left navigation > Connectors > SharePoint > Connect to a SharePoint site > Choose a list > select list > Connect.
3. Add a Data table to the PowerApps form and use the PURCHASE ORDERS list as data source.
4. Under the Items property for the Data table, use the Filter function in formula: Filter('PURCHASE ORDERS', 'Product name'= DataCardValue3.Text) DataCardValue3 is the Text Input control for Product name column in the original form.

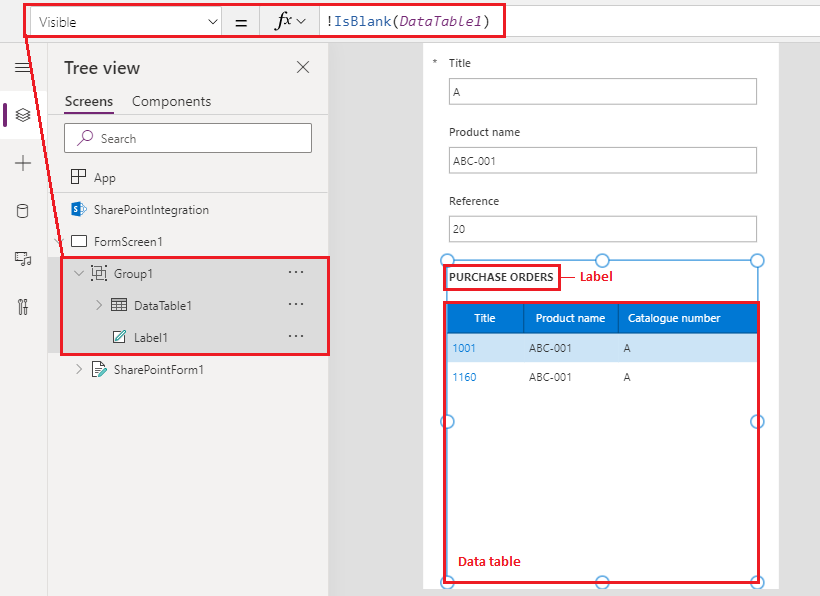

5. Optional step: Put a Label control for title of the Data Table. If you want to hide the Title along with the Data table when there is no record to show, put them in a group and then use the IsBlank function under the Visible property for the group: !IsBlank(DataTable1)
6. Save and publish the form to SharePoint.

Here is an article of similar request for your reference: Multiple SharePoint list forms on 1 Power Apps custom form.
