Custom Logs.

Question

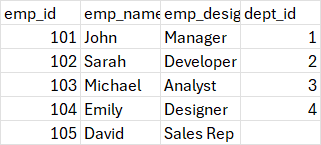

I have a CSV file (say "empfile.csv") in my data lake which is then loaded into Azure Synapse's dedicated SQL pool. Now, My data exists at both Data Lake and SQL pool.

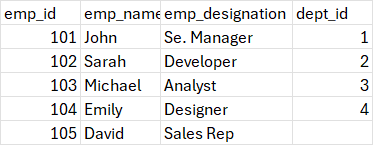

Suppose, I update some field values in this data (say "Manager" to "Se. Manager" for emp_id:101) and upload it again. It will update the table in synapse with updated values.

Task: I want to create custom logs that provide output as below and store it in my warehouse:

Any idea how can I implement it or does Azure provide any such functionality for auditing the data?
Thanks.

Answer 1

Azure Synapse does not natively provide a comprehensive change tracking or auditing solution, so you can use the dedicated SQL pool with triggers

Start by creating a table in your SQL pool to store the audit logs.

 CREATE TABLE audit_logs (
     Audit_Id INT IDENTITY(1,1) PRIMARY KEY,
     TableName NVARCHAR(50),
     ChangedBy NVARCHAR(50),
     emp_id INT,
     ChangedFromValues NVARCHAR(MAX),
     ChangedToValues NVARCHAR(MAX),
     DateTime DATETIME
 )

Then create a staging table where you can load the new data before merging it with the existing data.

CREATE TABLE empfile_staging ( emp_id INT,
emp_name NVARCHAR(50),
 emp_design NVARCHAR(50),
  dept_id INT)

Load the updated data in your staging table :

COPY INTO empfile_staging FROM 'path_to_your_csv_file' WITH ( FILE_TYPE = 'CSV', FIRSTROW = 2, -- Assuming the first row is a header FIELDTERMINATOR = ',', ROWTERMINATOR = '\n' );

Then create a trigger that fires before an update operation on your main table :

CREATE TRIGGER trg_empfile_update
ON empfile
FOR UPDATE
AS
BEGIN
    DECLARE @emp_id INT, @old_emp_design NVARCHAR(50), @new_emp_design NVARCHAR(50), @changed_by NVARCHAR(50), @current_time DATETIME;

    SELECT @emp_id = INSERTED.emp_id,
           @old_emp_design = DELETED.emp_design,
           @new_emp_design = INSERTED.emp_design,
           @changed_by = 'abc person', -- You can change this to get the actual user
           @current_time = GETDATE()
    FROM INSERTED
    JOIN DELETED ON INSERTED.emp_id = DELETED.emp_id;
    IF @old_emp_design <> @new_emp_design
    BEGIN
        INSERT INTO audit_logs (TableName, ChangedBy, emp_id, ChangedFromValues, ChangedToValues, DateTime)
        VALUES ('empfile', @changed_by, @emp_id, @old_emp_design, @new_emp_design, @current_time);
    END
END

Merge the data from the staging table to the main table. This will trigger the above trigger for any updates.

MERGE INTO empfile AS target
USING empfile_staging AS source
ON target.emp_id = source.emp_id
WHEN MATCHED AND (target.emp_design <> source.emp_design OR target.emp_name <> source.emp_name OR target.dept_id <> source.dept_id)
THEN
    UPDATE SET target.emp_name = source.emp_name,
               target.emp_design = source.emp_design,
               target.dept_id = source.dept_id
WHEN NOT MATCHED
THEN
    INSERT (emp_id, emp_name, emp_design, dept_id)
    VALUES (source.emp_id, source.emp_name, source.emp_design, source.dept_id)

Optionally, truncate the staging table after the merge operation to keep it clean for future use.

TRUNCATE TABLE empfile_staging
