How to open web preview as web page with Cloud Shell

政雄木下 20

I am considering launching an administrative web app (e.g. mongo-express) from Cloud Shell and opening the administrative web app page in Web Preview.

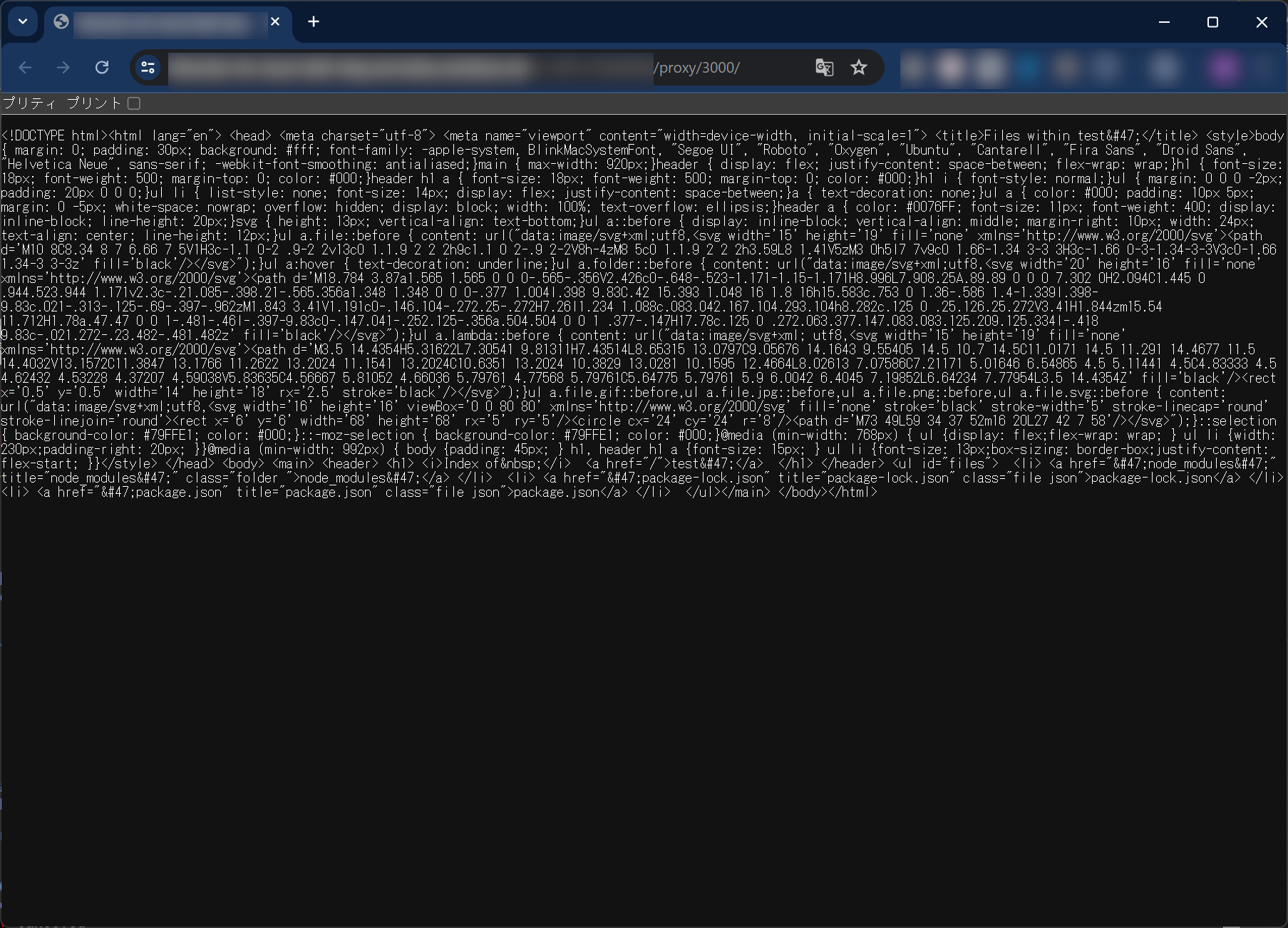

I could launch the admin app and open it in Web preview, but it would be displayed as just text, not a web page.

Is there a way to display Web preview as a web page?

Reproduction code (using serve)

mkdir -p test && cd test
npm install serve
npx serve .
# default: run on localhost:3000
# set Web preview's port 3000, and launch web preview

cloudshell_web_preview

1 answer

Sedat SALMAN 13,345 Reputation points

2024-07-25T08:27:36.1+00:00

Ensure your web application is configured to serve HTML content. In your case, you're using serve, which should automatically handle serving HTML files. If you're building a custom app, ensure your server-side code (Node.js, Python, etc.) is sending the correct content-type headers (Content-Type: text/html). After launching your app and setting up port forwarding, click the Web Preview button in the Cloud Shell toolbar. It typically looks like a square with an arrow pointing outward. Choose the correct port (3000) from the dropdown.
Please sign in to rate this answer.
政雄木下 20 Reputation points

2024-07-25T11:02:14.8433333+00:00

Sorry, I posted duplicated. Please refer below comment.

政雄木下 20 Reputation points

2024-07-25T11:11:30.8466667+00:00

Sorry, I posted duplicated. Please refer below comment.

政雄木下 20 Reputation points

2024-07-25T11:14:01.2333333+00:00

When the same code is executed locally, serve returns the correct Content-Type:text/html. (image1)

Similarly, when verified using curl from the Cloud Shell Terminal, serve returns the correct Content-Type:text/html. (image2)

However, when checking through Web Preview, the Content-type is changed to application/json. (image3)

We suspect that when using Web Preview, the response headers are being rewritten on their own.




政雄木下 20 Reputation points

2024-07-25T11:35:51.5+00:00

I checked other test that serving html file by serve.

Additional reproduction codes:

curl https://www.w3.org/People/mimasa/test/table/cellspacing/ -o test.html # download test page npx serve .

locally test, firstly returned 301, and redirect to the content. (image4)

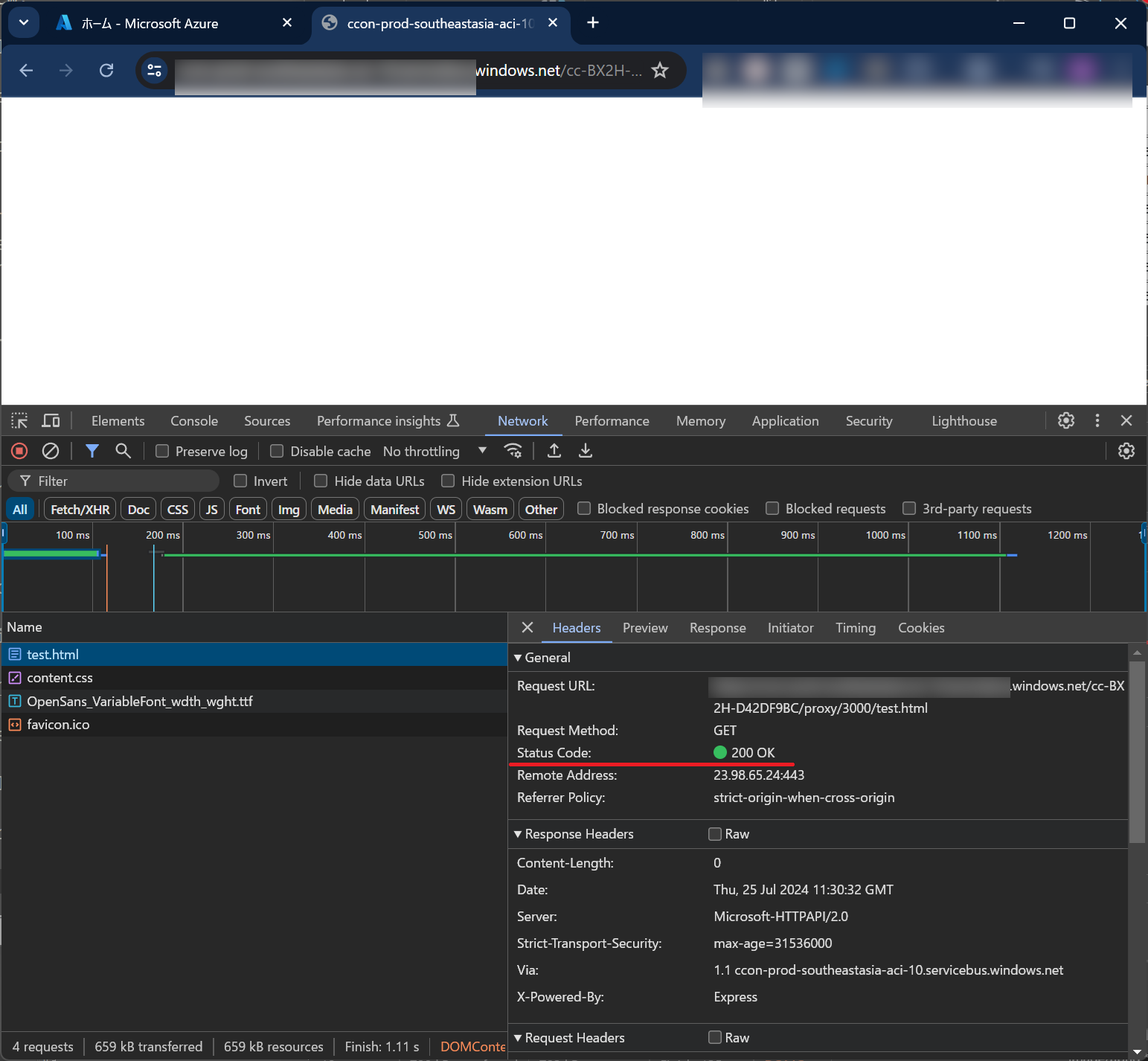

In Web preview, accessing test.html results in empty content with no redirect because of wrong status code. (image5)



I wonder this is a bug or an original spec.

Sedat SALMAN 13,345 Reputation points

2024-07-25T14:44:10.1+00:00

wrong content

Sedat SALMAN 13,345 Reputation points

2024-07-25T14:48:33.8333333+00:00

maybe you can try to use npm express by creating a server.js
and repeat the test

政雄木下 20 Reputation points

2024-07-25T17:11:14.6633333+00:00

I created a simple express server to serve html content, but web preview returned wrong Content-Type.

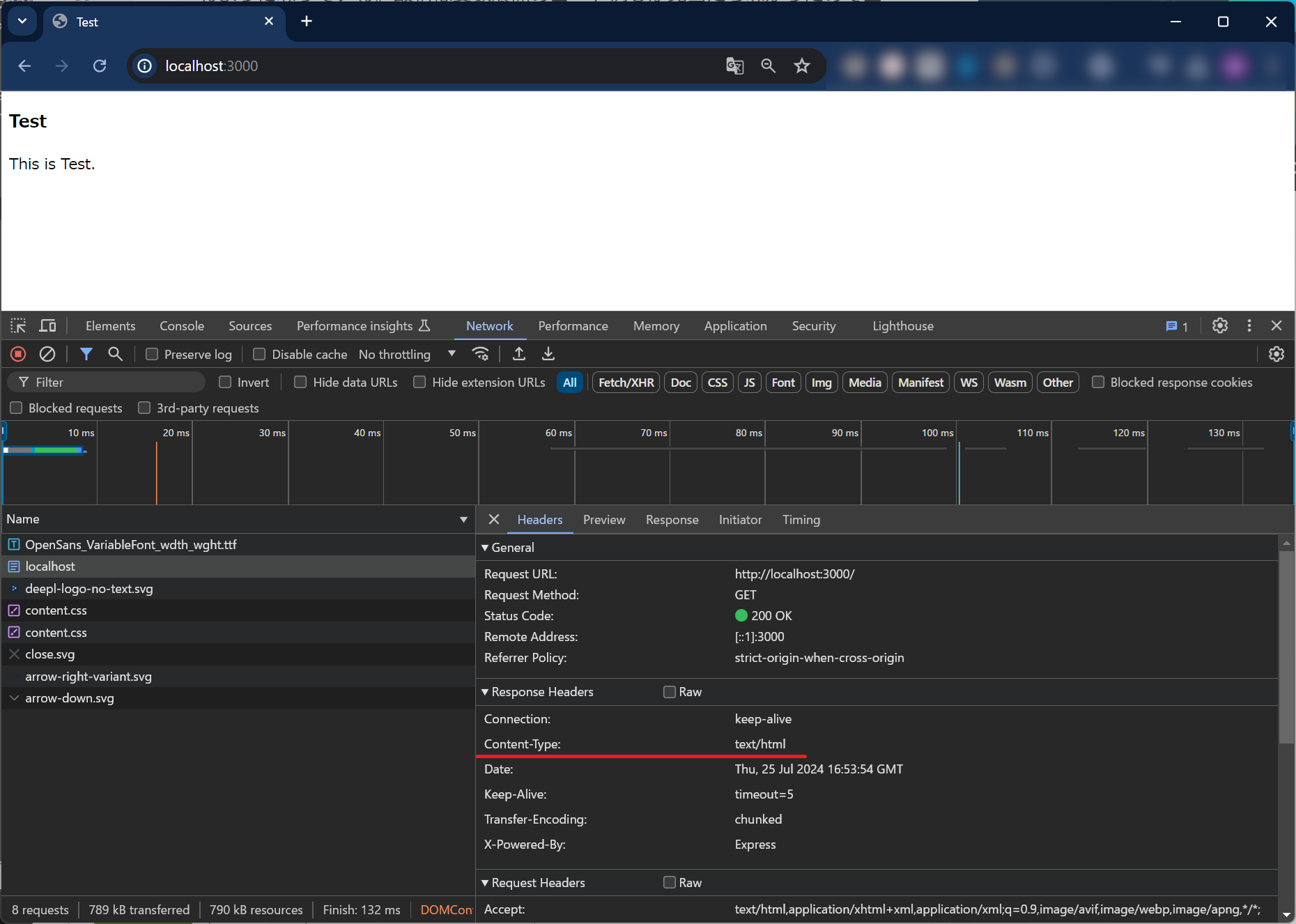

Launch on local, return correct Content-Type:text/html. (image6.png)

Launch on Cloudshell with web preview, return wrong Cotent-Type:application/json(image7.png)

Using code is following:

var express = require('express'); var app = express(); var port = 3000; var fs = require('fs'); app.get('/', function(req, res) { index_html = ` <!DOCTYPE html> <html lang="en"> <head> <meta charset="utf-8"/> <title>Test</title> </head> <body> <h3>Test</h3> <div>This is Test.</div> </body> </html> `; res.writeHead(200, {'Content-Type': 'text/html'}); res.end(index_html); }); app.listen(port, () => { console.log(`Example app listening on port ${port}`); });
