How do I configure an NTP server in group policy?

Question

I have tried to synchronize the time on all clients with our on-premise server, it doesn’t work.

Answer 1

Hello Zring Abdulrazzaq Rasool,

Thank you for posting in Q&A forum.

When a PC (client) is joined to a Windows domain, it typically automatically synchronizes the time with the domain controller. This time synchronization is a built-in feature of the Windows Time Service (W32Time).

However, there are some important points to consider:

1.Default behavior: By default, clients in a Windows domain will use the domain hierarchy to synchronize the time. The workstations will synchronize the time with the domain controller.

2.GPO: Although the default behavior is usually sufficient, you can create and configure GPOs to apply specific time synchronization settings if necessary. This could be useful in environments with strict time-accuracy requirements or specific configurations.

3.Time source for the domain: The Primary Domain Controller (PDC) emulator must be configured to synchronize the time with a reliable external time source.

Other domain controllers and member computers will then synchronize the time with the PDC emulator or their domain controllers. In most cases, no additional configuration through GPO is required for basic time synchronization, but it is recommended that you ensure that the PDC emulator is set to use an external reliable time source to maintain accurate time throughout the domain.

The following are the registry settings on PDC and other computers.

===PDC===

HLM\SYSTEM\CurrentControlSet\services\w32time\TimeProviders\VMICTimeProvider

Name: Enabled

Type: REG_DWORD

Data:0



Path: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\W32Time\Config

Key Name: AnnounceFlags

Type: REG_DWORD (DWORD value)

Data: 0x5



Path: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\W32Time\Parameters\Type

Key Name: Type

Type: REG_SZ(string value)

Data: NTP



Path: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\W32Time\Parameters

Key Name: NtpServer

Type: REG_SZ(string value)

Data: Peer (time.windows.com.0x9)



HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\W32Time\TimeProviders\NtpServer

Key Name: Enabled

Type: REG_DWORD

Data: 1



Note: If the PDC is a virtual machine, set the first one, and if it is not a virtual machine, do not set this one.



===Other DCs and clients===

Path: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\W32Time\Parameters\Type

Key Name: Type

Type: REG_SZ(string value)

Data: NT5DS



Path: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\W32Time\Config

Key Name: AnnounceFlags

Type: REG_DWORD (DWORD value)

Data: 0xa



The following are the GPO settings on PDC and other computers.

===PDC===

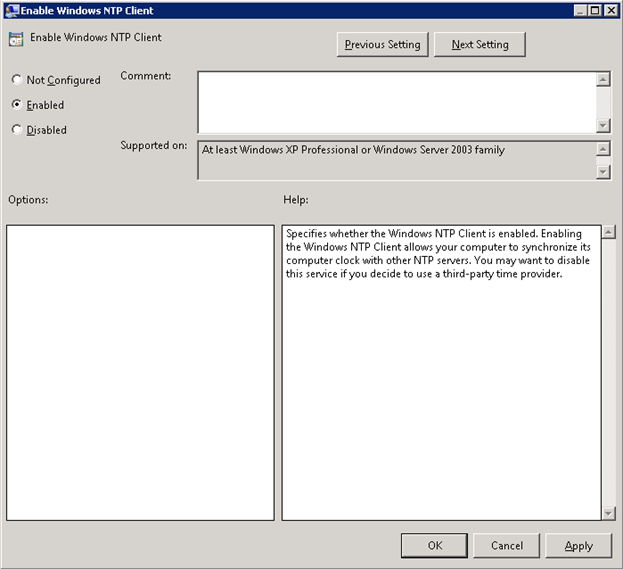

Computer Configuration\Policies\Administration Templates\System\Windows Time Service\Time Providers\Enable Windows NTP Client should be enabled

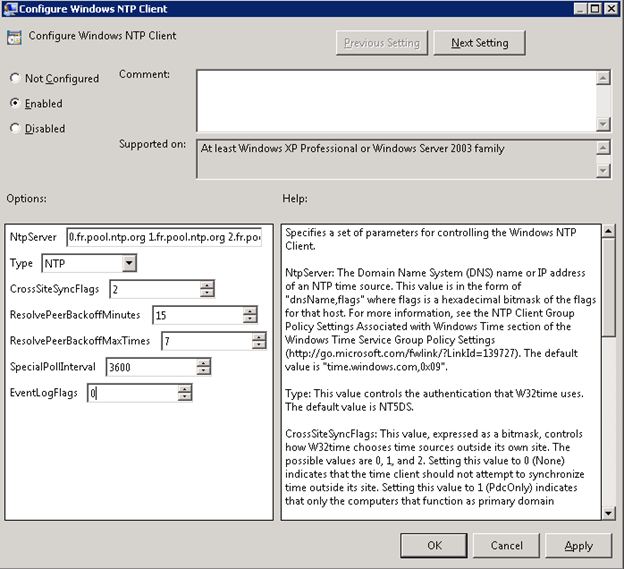

Computer Configuration\Policies\Administration Templates\System\Windows Time Service\Time Providers\Configure Windows NTP Client should be enabled with “NTP” as Type and the NTP server(s) to use set as NtpServer (You can add multiple NTP servers by separating them with a white space)

===Other domain controllers, member servers and Workstation===

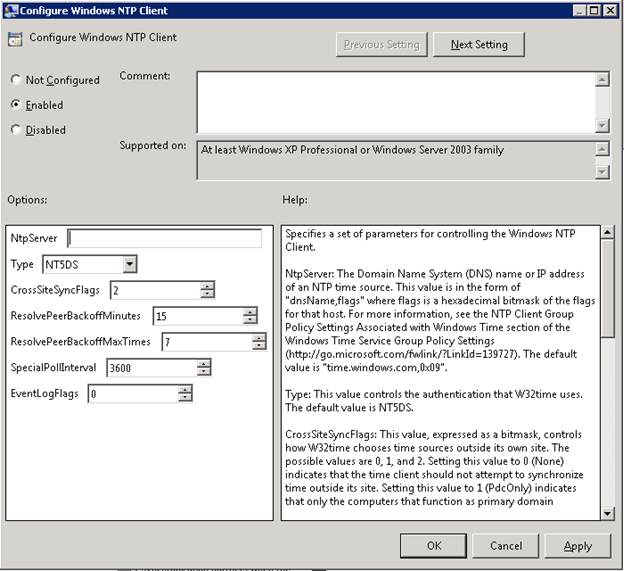

Computer Configuration\Policies\Administration Templates\System\Windows Time Service\Time Providers\Configure Windows NTP Client should be enabled with “NT5DS” as Type

For more information, please refer to the links below.

https://learn.microsoft.com/en-us/troubleshoot/windows-server/active-directory/configure-authoritative-time-server

https://learn.microsoft.com/zh-cn/archive/blogs/nepapfe/its-simple-time-configuration-in-active-directory

https://learn.microsoft.com/en-us/archive/technet-wiki/18573.time-synchronization-in-active-directory-forests

I hope the information above is helpful.

If you have any questions or concerns, please feel free to let us know.

Best Regards,

Daisy Zhou

============================================

If the Answer is helpful, please click "Accept Answer" and upvote it.

Answer 2

If you are operating in an Active Directory environment, this would be automatic (the domain controller hosting the PDC Emulator role is the time source server - although this does not rely on NTP but Windows Time service) - more at https://learn.microsoft.com/en-us/windows-server/networking/windows-time-service/windows-time-service-tools-and-settings?tabs=config

If you want to use NTP, follow https://serverspace.us/support/help/how-to-set-an-ntp-server-group-policy/?utm_source=google.com&utm_medium=organic&utm_campaign=google.com&utm_referrer=google.com

---

If the above response helps answer your question, remember to "Accept Answer" so that others in the community facing similar issues can easily find the solution. Your contribution is highly appreciated.

hth

Marcin
