Errors AD FS claims-based authentication with Outlook Web App

Question

Hi. Windows Server 2022.

Exchange 2019 - on-premise.

ADFS

I am trying to configure owa using ADFS.

https://learn.microsoft.com/en-us/exchange/clients/outlook-on-the-web/ad-fs-claims-based-auth?view=exchserver-2019#step-3a-create-a-gmsa-on-a-domain-controller

I did it the way it was in the documentation.

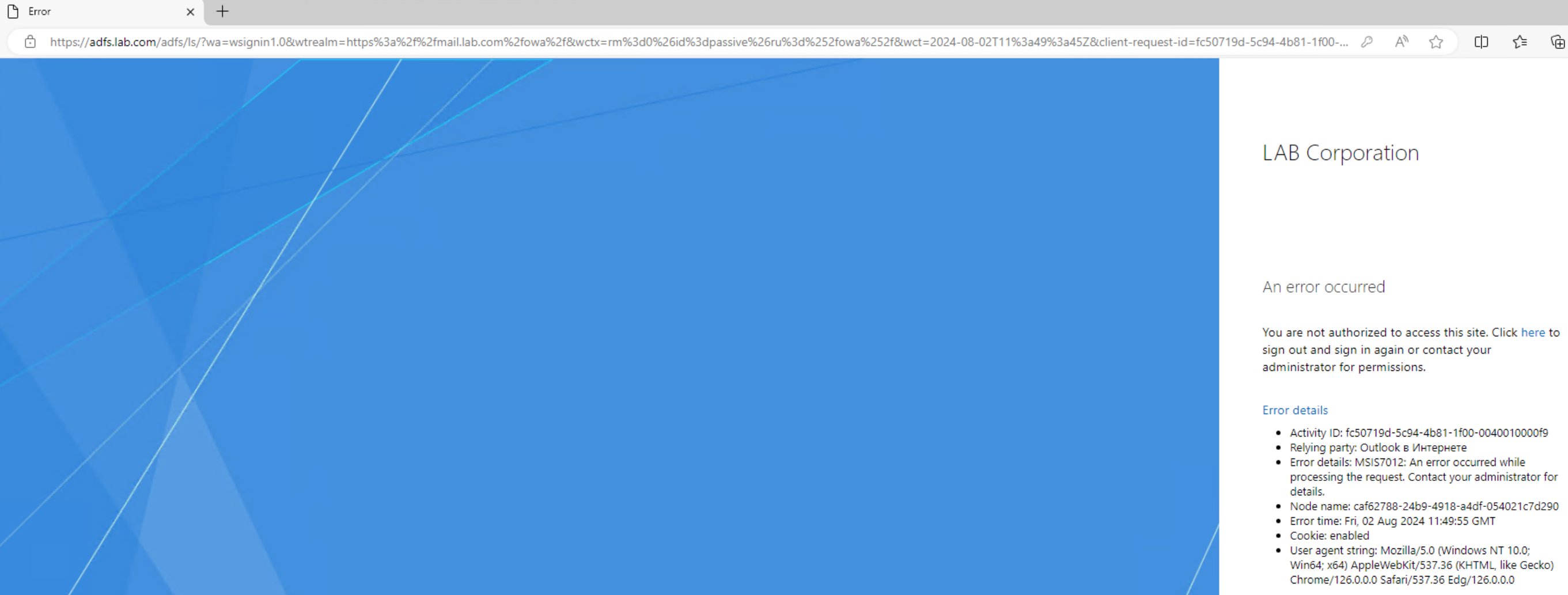

And i got error(It triggered a redirect after I went to mail.lab.com/owa):

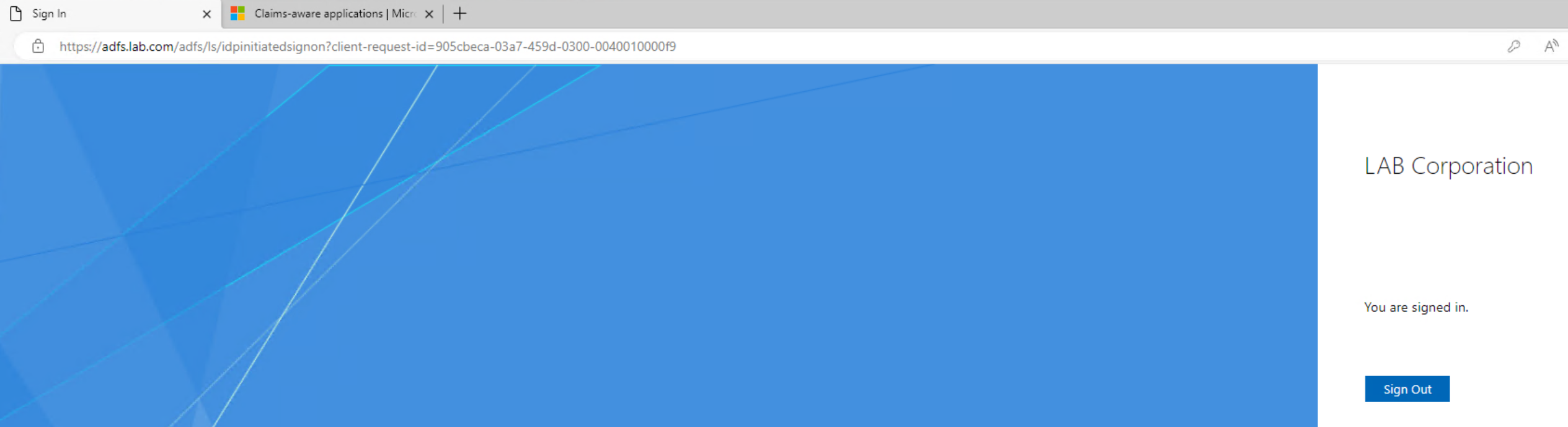

But on the ADFS side, it is successful:

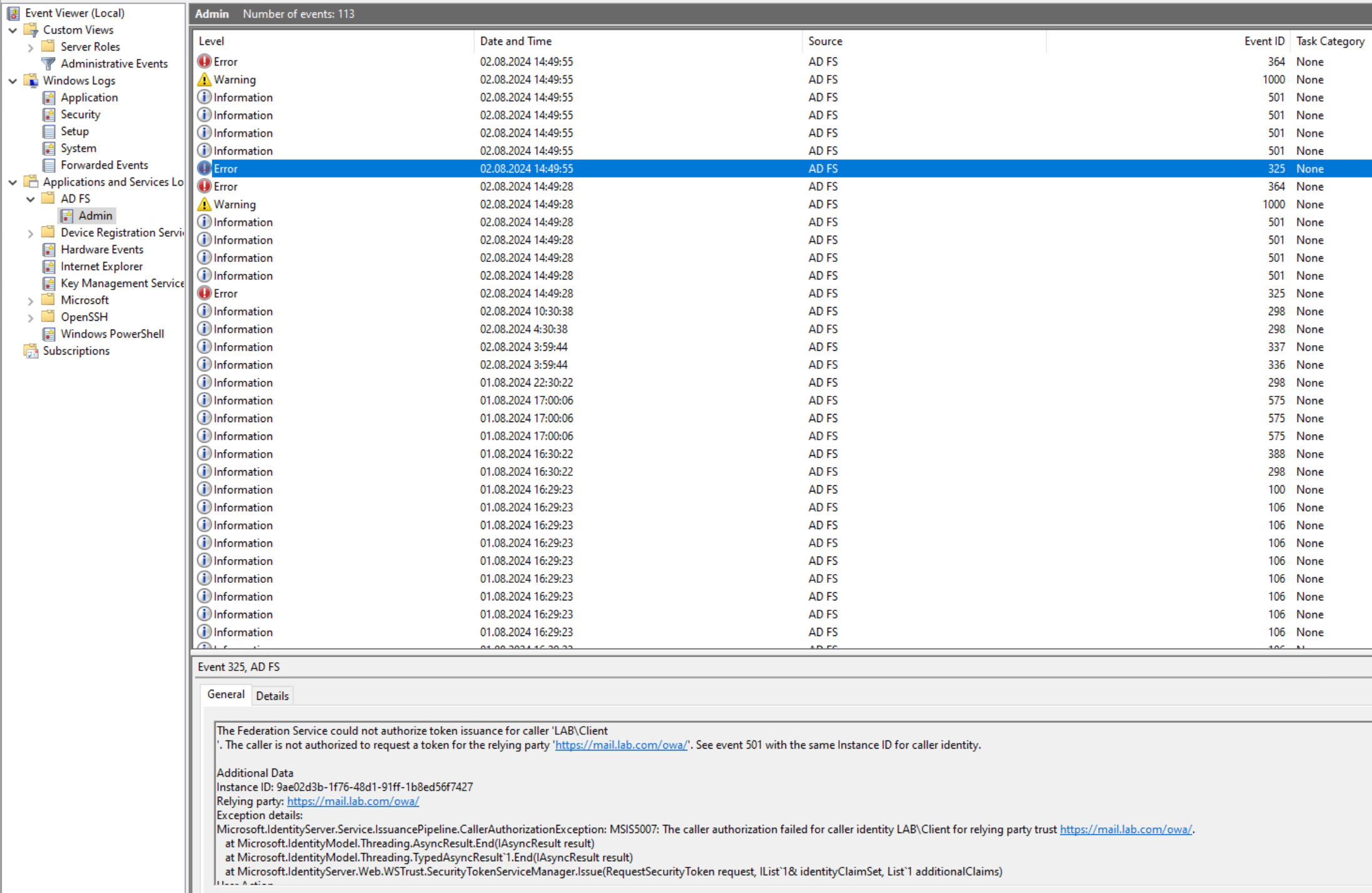

eventvwr adfs:

AD FS 325:

The Federation Service could not authorize token issuance for caller 'LAB\Client
'. The caller is not authorized to request a token for the relying party 'https://mail.lab.com/owa/'. See event 501 with the same Instance ID for caller identity.
Additional Data
Instance ID: 9ae02d3b-1f76-48d1-91ff-1b8ed56f7427
Relying party: https://mail.lab.com/owa/
Exception details:
Microsoft.IdentityServer.Service.IssuancePipeline.CallerAuthorizationException: MSIS5007: The caller authorization failed for caller identity LAB\Client for relying party trust https://mail.lab.com/owa/.
   at Microsoft.IdentityModel.Threading.AsyncResult.End(IAsyncResult result)
   at Microsoft.IdentityModel.Threading.TypedAsyncResult`1.End(IAsyncResult result)
   at Microsoft.IdentityServer.Web.WSTrust.SecurityTokenServiceManager.Issue(RequestSecurityToken request, IList`1& identityClaimSet, List`1 additionalClaims)
User Action
Use the AD FS Management snap-in to ensure that the caller is authorized to request a token for the relying party.

AD FS 1000:

An error occurred during processing of a token request. The data in this event may have the identity of the caller (application) that made this request. The data includes an Activity ID that you can cross-reference to error or warning events to help diagnose the problem that caused this error.

Additional Data

Caller:
 LAB\Client


OnBehalfOf user:


ActAs user:


Target Relying Party:
 https://mail.lab.com/owa/

Device identity:


User action:
Use the Activity ID data in this message to search and correlate the data to events in the Event log using Event Viewer. This Activity ID will also be shown as additional information in the error page when an error occurs in the federation passive Web application.

AD FS 364:

Encountered error during federation passive request.

Additional Data

Protocol Name:
wsfed

Relying Party:
https://mail.lab.com/owa/

Exception details:
Microsoft.IdentityServer.RequestFailedException: MSIS7012: An error occurred while processing the request. Contact your administrator for details. ---> Microsoft.IdentityServer.Service.IssuancePipeline.CallerAuthorizationException: MSIS5007: The caller authorization failed for caller identity LAB\Client for relying party trust https://mail.lab.com/owa/.
   at Microsoft.IdentityModel.Threading.AsyncResult.End(IAsyncResult result)
   at Microsoft.IdentityModel.Threading.TypedAsyncResult`1.End(IAsyncResult result)
   at Microsoft.IdentityServer.Web.WSTrust.SecurityTokenServiceManager.Issue(RequestSecurityToken request, IList`1& identityClaimSet, List`1 additionalClaims)
   at Microsoft.IdentityServer.Web.Protocols.PassiveProtocolHandler.SubmitRequest(MSISRequestSecurityToken request, IList`1& identityClaimCollection)
   at Microsoft.IdentityServer.Web.Protocols.PassiveProtocolHandler.RequestBearerToken(MSISRequestSecurityToken signInRequest, Uri& replyTo, IList`1& identityClaimCollection)
   at Microsoft.IdentityServer.Web.Protocols.WSFederation.WSFederationProtocolHandler.RequestBearerToken(MSISSignInRequestMessage signInRequest, SecurityTokenElement onBehalfOf, SecurityToken primaryAuthToken, SecurityToken deviceSecurityToken, String desiredTokenType, WrappedHttpListenerContext httpContext, Boolean isKmsiRequested, Boolean isApplicationProxyTokenRequired, MSISSession& session)
   at Microsoft.IdentityServer.Web.Protocols.WSFederation.WSFederationProtocolHandler.BuildSignInResponseCoreWithSerializedToken(MSISSignInRequestMessage wsFederationPassiveRequest, WrappedHttpListenerContext context, SecurityTokenElement signOnTokenElement, Boolean isKmsiRequested, Boolean isApplicationProxyTokenRequired)
   at Microsoft.IdentityServer.Web.Protocols.WSFederation.WSFederationProtocolHandler.BuildSignInResponseCoreWithSecurityToken(WSFederationSignInContext context, SecurityToken securityToken, SecurityToken deviceSecurityToken)
   at Microsoft.IdentityServer.Web.Protocols.WSFederation.WSFederationProtocolHandler.BuildSignInResponse(WSFederationSignInContext federationPassiveContext, SecurityToken securityToken, SecurityToken deviceSecurityToken)
   --- End of inner exception stack trace ---
   at Microsoft.IdentityServer.Web.Protocols.WSFederation.WSFederationProtocolHandler.BuildSignInResponse(WSFederationSignInContext federationPassiveContext, SecurityToken securityToken, SecurityToken deviceSecurityToken)
   at Microsoft.IdentityServer.Web.Protocols.WSFederation.WSFederationProtocolHandler.Process(ProtocolContext context)
   at Microsoft.IdentityServer.Web.PassiveProtocolListener.ProcessProtocolRequest(ProtocolContext protocolContext, PassiveProtocolHandler protocolHandler)
   at Microsoft.IdentityServer.Web.PassiveProtocolListener.OnGetContext(WrappedHttpListenerContext context)

Microsoft.IdentityServer.Service.IssuancePipeline.CallerAuthorizationException: MSIS5007: The caller authorization failed for caller identity LAB\Client for relying party trust https://mail.lab.com/owa/.
   at Microsoft.IdentityModel.Threading.AsyncResult.End(IAsyncResult result)
   at Microsoft.IdentityModel.Threading.TypedAsyncResult`1.End(IAsyncResult result)
   at Microsoft.IdentityServer.Web.WSTrust.SecurityTokenServiceManager.Issue(RequestSecurityToken request, IList`1& identityClaimSet, List`1 additionalClaims)
   at Microsoft.IdentityServer.Web.Protocols.PassiveProtocolHandler.SubmitRequest(MSISRequestSecurityToken request, IList`1& identityClaimCollection)
   at Microsoft.IdentityServer.Web.Protocols.PassiveProtocolHandler.RequestBearerToken(MSISRequestSecurityToken signInRequest, Uri& replyTo, IList`1& identityClaimCollection)
   at Microsoft.IdentityServer.Web.Protocols.WSFederation.WSFederationProtocolHandler.RequestBearerToken(MSISSignInRequestMessage signInRequest, SecurityTokenElement onBehalfOf, SecurityToken primaryAuthToken, SecurityToken deviceSecurityToken, String desiredTokenType, WrappedHttpListenerContext httpContext, Boolean isKmsiRequested, Boolean isApplicationProxyTokenRequired, MSISSession& session)
   at Microsoft.IdentityServer.Web.Protocols.WSFederation.WSFederationProtocolHandler.BuildSignInResponseCoreWithSerializedToken(MSISSignInRequestMessage wsFederationPassiveRequest, WrappedHttpListenerContext context, SecurityTokenElement signOnTokenElement, Boolean isKmsiRequested, Boolean isApplicationProxyTokenRequired)
   at Microsoft.IdentityServer.Web.Protocols.WSFederation.WSFederationProtocolHandler.BuildSignInResponseCoreWithSecurityToken(WSFederationSignInContext context, SecurityToken securityToken, SecurityToken deviceSecurityToken)
   at Microsoft.IdentityServer.Web.Protocols.WSFederation.WSFederationProtocolHandler.BuildSignInResponse(WSFederationSignInContext federationPassiveContext, SecurityToken securityToken, SecurityToken deviceSecurityToken)

Answer 1

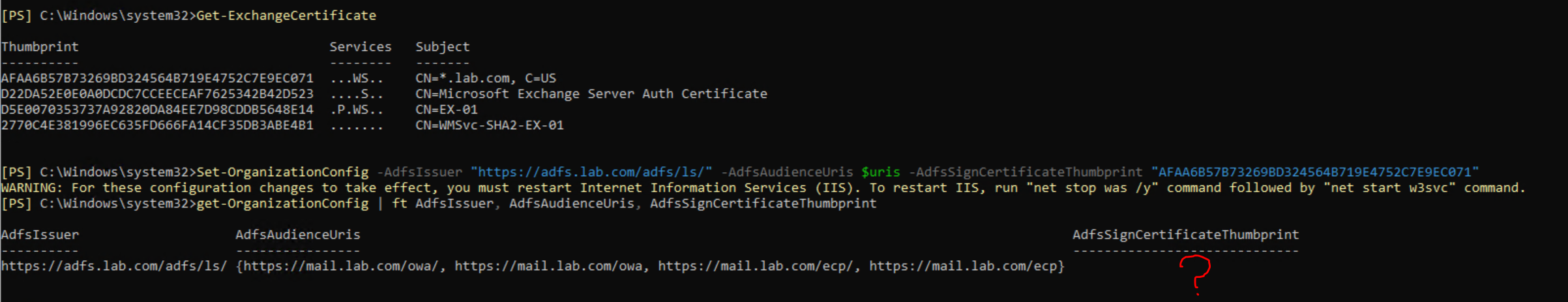

I also noticed a problem that the certificate print is not accepted for some reason.
