Xamarin IOS Chart

Question

I am trying to build a chart using the library described in this post from xamarin forum
https://forums.xamarin.com/discussion/105647/ioscharts-xamarin-implementations

but i cant really render any graphics so far, anyone knows how to do that?

public override void ViewDidLoad()
        {
            base.ViewDidLoad();
            var tmp = new iOSCharts.BarChartView();
            var data = new BarChartData();
            data.AddEntry(new ChartDataEntry(1,1), 1);
            tmp.Data = data;
            tmp.BackgroundColor = UIColor.Red;
            tmp.ChartDescription.Text = "eeeee";

            Test.AddSubview(tmp);

            // Perform any additional setup after loading the view, typically from a nib.
        }

Answer 1

Hello,

Welcome to Microsoft Q&A!

Take a look at this elegant chart plugin : Microcharts .

First install Microcharts package in your ios project, then call the api .

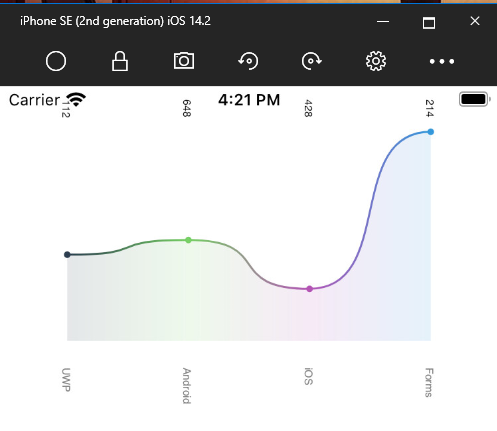

The usage is pretty simple as below .

   var entries = new[]
   {
       new ChartEntry(212)
       {
           Label = "UWP",
           ValueLabel = "112",
           Color = SKColor.Parse("#2c3e50")
       },
       new ChartEntry(248)
       {
           Label = "Android",
           ValueLabel = "648",
           Color = SKColor.Parse("#77d065")
       },
       new ChartEntry(128)
       {
           Label = "iOS",
           ValueLabel = "428",
           Color = SKColor.Parse("#b455b6")
       },
       new ChartEntry(514)
       {
           Label = "Forms",
           ValueLabel = "214",
           Color = SKColor.Parse("#3498db")
       }
   };

               var chart = new LineChart { Entries = entries };

               var chartView = new ChartView
               {
                   Frame = new CGRect(0, 0, View.Bounds.Width, 250),
                   AutoresizingMask = UIViewAutoresizing.FlexibleWidth,
                   Chart = chart
               };

               View.AddSubview(chartView);

Thank you.

---
