Get screen coordinate on user click

Question

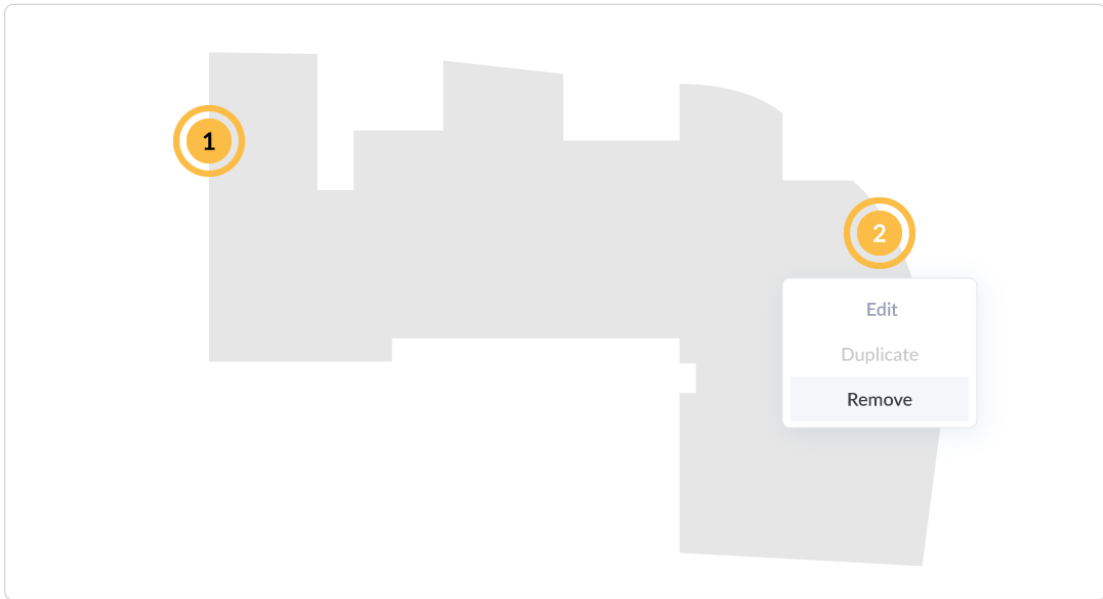

Hello @Everyone, This is one of the screens on which I have to stick one image on another. Like, in the picture above There is an image of the building topside/ schematic of the Building. On that image where the user clicks those pin(circle image) type images popup. So what I need is the screen coordinates of the user who clicks on that photo. If I get the Screen coordinate then on specific coordinate I will popup those Pin Images. That is my Question. I am waiting for your working responses guys

Answer 1

Hello,​

Welcome to our Microsoft Q&A platform!

Do you want to achieve the result like following GIF?

If so, you can install TouchTracking.Forms nuget packages. add Effect for the SKCanvasView

   <AbsoluteLayout x:Name="myabs">

               <views:SKCanvasView
                   AbsoluteLayout.LayoutBounds="0,0,1,1"
                    AbsoluteLayout.LayoutFlags="SizeProportional"

                   x:Name="canvasView" >
                   <views:SKCanvasView.Effects>
                       <tt:TouchEffect Capture="True"  TouchAction="TouchEffect_TouchAction" />
                   </views:SKCanvasView.Effects>
               </views:SKCanvasView>

       </AbsoluteLayout>

   Here is layout backgroud code

     private void TouchEffect_TouchAction(object sender, TouchTracking.TouchActionEventArgs args)
           {

               var x = args.Location.X;
               var y = args.Location.Y;
               var v = new View1();
               AbsoluteLayout.SetLayoutBounds(v, new Rectangle(x, y, 0.25, 0.25));
               AbsoluteLayout.SetLayoutFlags(v, AbsoluteLayoutFlags.SizeProportional);

               myabs.Children.Add(v);
           }

when we click the screen, we get the X/Y point, then Add our custom control.

I make an custom control.

   <ContentView xmlns="http://xamarin.com/schemas/2014/forms"
                xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
                x:Class="SkiaSharpDemo.View1">
     <ContentView.Content>
         <StackLayout>
               <ImageButton WidthRequest="50" HeightRequest="50" BackgroundColor="Transparent" Source="hamburger.png" Clicked="ImageButton_Clicked" ></ImageButton>
               <Frame IsVisible="false" x:Name="myframe"  WidthRequest="100" HeightRequest="70">
                   <StackLayout>
                       <Label FontSize="Small" Text="Edit"/>
                       <Label FontSize="Small" Text="Duplicate"/>
                       <Label FontSize="Small" Text="Remove"/>
                   </StackLayout>
               </Frame>
         </StackLayout>
     </ContentView.Content>
   </ContentView>

   //background code
    public partial class View1 : ContentView
       {
           public View1()
           {
               InitializeComponent();
           }

           private void ImageButton_Clicked(object sender, EventArgs e)
           {
               myframe.IsVisible = !myframe.IsVisible;
           }
       }

I do not judge the border of the views:SKCanvasView, you can judge it by yourself.

Best Regards,

Leon Lu

---

If the response is helpful, please click "Accept Answer" and upvote it.

Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Answer 2

Will this work ?

 public  bool OnTouch(View v,Android.Views.MotionEvent e)
  {
            float x = e.GetX();
            float y = e.GetY();
            return false;
  }
