How can I analyze the logs coming from AKS and reduce them?

Question

I have recently added a data connector for AKS to my Sentinel workspace and it has caused a major hike in the amount of logs ingested in the workspace (which eventually increases the costs as well)

I want to know:

1. How can I check which tables are ingesting logs from AKS?
2. How can I check what type of data is coming in from AKS
3. Can I somehow configure the type and size of logs coming in from AKS?

Answer 1

Hello, this is to answer Q1, which will help us answer Q2 & Q3, you can use a query such as this, or one of the workbooks like "Workspace Usage". Adjust query of you need more than 30days of data.

Usage
| make-series Gbytes=sum(Quantity)/1000 default=0 on TimeGenerated from ago(30d) to now() step 1d by DataType
| render columnchart

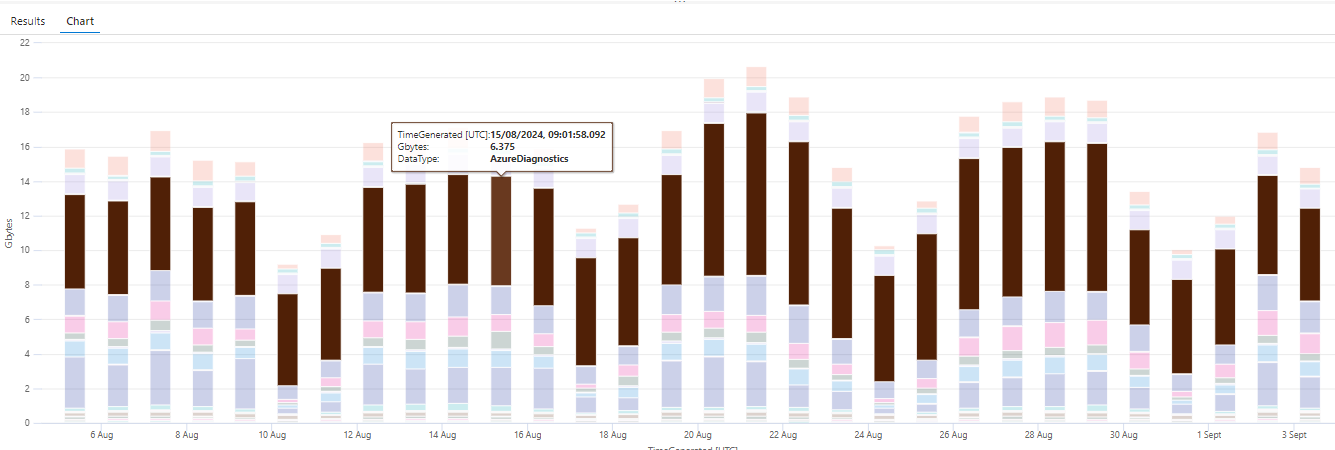

Then from the chart you should see on and after the date you enabled AKS which Table grew in size (the bar size will be larger). Example output for AzureDiagnostics, my data is pretty stable, but your looking for a a bar to be growing or a brand new Table.

Answer 2

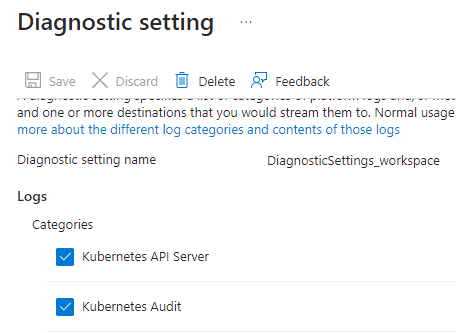

Sorry for the delayed, reply, that connector https://github.com/Azure/Azure-Sentinel/tree/master/Solutions/Azure%20kubernetes%20Service shows that the data is located in AzureDiagnostics and the category that the two hunting queries use is kube-audit

e.g.

AzureDiagnostics

| where Category == "kube-audit"

So if you adjust my query for that:

AzureDiagnostics
| where Category startswith "kube"
| make-series Gbytes=sum(_BilledSize)/(1024*1024*1024) default=0 on TimeGenerated from ago(30d) to now() step 1d by Category, ResourceProvider
| render columnchart

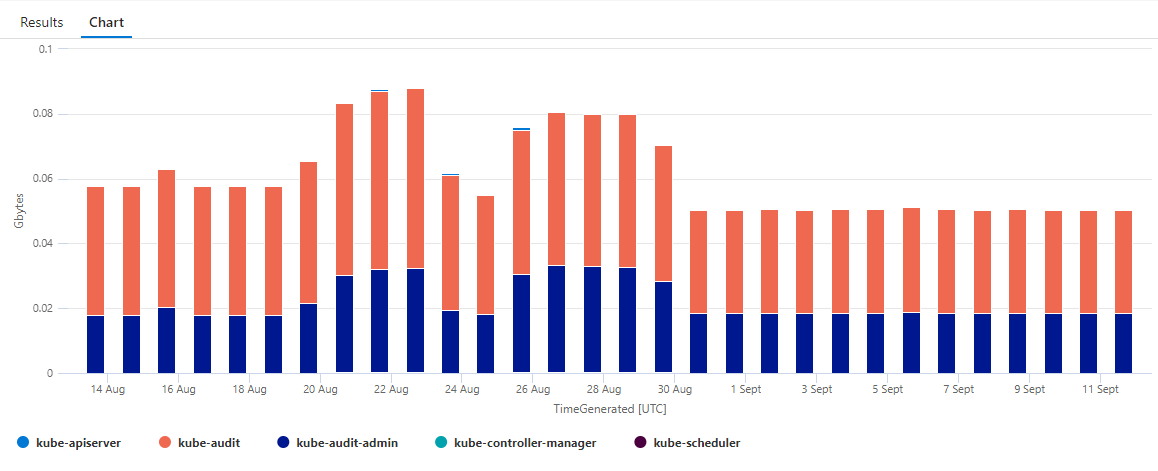

You will be able to see that Category and others (amend line 2 if you dont, to be "kube-audit"), or remove the line if you want to see all data categories.

You can then further refine by pod or container id?

 AzureDiagnostics
  | where Category == "kube-audit"
  | summarize Gbytes=sum(_BilledSize)/(1024*1024*1024) by containerID_s //, pod_s
