Azure function returns 403 error.

Question

Azure function returns 403 error.

Ayush Shrivastava 120

I am calling my azure function from ASD and the function returns 403.

I have configured it to send 401 in case of unauthorised requests.

I want to use managed identity to trigger the function.

Here is my function code.

package
import
import
import
import
import
import
import
import
import
/**
 * Azure Functions with HTTP Trigger.
 */
public
 /**
 * This function listens at endpoint "/api/HttpExample". Two ways to invoke it using "curl" command in bash:
 * 1. curl -d "HTTP Body" {your host}/api/HttpExample
 * 2. curl "{your host}/api/HttpExample?name=HTTP%20Query"
 */
 @
public
 @
name
methods
authLevel
HttpRequestMessage
final
context
// Parse query parameter
final
final
if
return
 }
String
 {
 "name" : "response"
 }
 """
context
return
 }
 }
}

Here is my query -

DECLARE

EXEC
@url
@method
@credential
@response
SELECT
@response

I think I need to give my Sql servers managed identity some permissions but I am not able to figure what permission it needs.

Ayush Shrivastava 120 Reputation points

2024-09-04T21:22:41.3366667+00:00
My code -

package com.security;

import com.microsoft.azure.functions.ExecutionContext; import com.microsoft.azure.functions.HttpMethod; import com.microsoft.azure.functions.HttpRequestMessage; import com.microsoft.azure.functions.HttpResponseMessage; import com.microsoft.azure.functions.HttpStatus; import com.microsoft.azure.functions.annotation.AuthorizationLevel; import com.microsoft.azure.functions.annotation.FunctionName; import com.microsoft.azure.functions.annotation.HttpTrigger; import java.util.Optional; /**

Azure Functions with HTTP Trigger. / public class Function { /*

This function listens at endpoint "/api/HttpExample". Two ways to invoke it using "curl" command in bash:

curl -d "HTTP Body" {your host}/api/HttpExample

curl "{your host}/api/HttpExample?name=HTTP%20Query" */ @FunctionName("HttpExample") public HttpResponseMessage run( @HttpTrigger( name = "req", methods = {HttpMethod.GET, HttpMethod.POST}, authLevel = AuthorizationLevel.ANONYMOUS) HttpRequestMessage<Optional<String>> request, final ExecutionContext context) { context.getLogger().info("Java HTTP trigger processed a request."); // Parse query parameter final String query = request.getQueryParameters().get("name"); final String name = request.getBody().orElse(query); if (name == null) { return request.createResponseBuilder(HttpStatus.BAD_REQUEST).body("Please pass a name on the query string or in the request body").build(); } else { String resp = """ { "name" : "response" } """; context.getLogger().info(request.toString()); return request.createResponseBuilder(HttpStatus.OK).body(resp).build(); } } } My query -

DECLARE @response AS NVARCHAR(MAX); EXEC sp_invoke_external_rest_endpoint @url = N'https://security-test-asd.azurewebsites.net/api/HttpExample?name=name', @method = 'GET', @credential = [https://security-test-asd.azurewebsites.net/api/HttpExample], @response = @response OUTPUT; SELECT @response
Nandan Hegde 36,886 Reputation points MVP Volunteer Moderator

2024-09-05T03:11:07.6233333+00:00

Can you please specify what permission you have provided the Azure SQL server on the Azure function?
Ayush Shrivastava 120 Reputation points

2024-09-05T07:34:29.47+00:00

I have provided my SQL server's Identity(System assigned) role - Website Contributor and Contributor role.

2 answers

Your answer

Ayush Shrivastava 120 Reputation points

2024-09-04T21:22:41.3366667+00:00

My code -

package com.security;

import com.microsoft.azure.functions.ExecutionContext; import com.microsoft.azure.functions.HttpMethod; import com.microsoft.azure.functions.HttpRequestMessage; import com.microsoft.azure.functions.HttpResponseMessage; import com.microsoft.azure.functions.HttpStatus; import com.microsoft.azure.functions.annotation.AuthorizationLevel; import com.microsoft.azure.functions.annotation.FunctionName; import com.microsoft.azure.functions.annotation.HttpTrigger; import java.util.Optional; /**

Azure Functions with HTTP Trigger. / public class Function { /*

This function listens at endpoint "/api/HttpExample". Two ways to invoke it using "curl" command in bash:

curl -d "HTTP Body" {your host}/api/HttpExample

curl "{your host}/api/HttpExample?name=HTTP%20Query" */ @FunctionName("HttpExample") public HttpResponseMessage run( @HttpTrigger( name = "req", methods = {HttpMethod.GET, HttpMethod.POST}, authLevel = AuthorizationLevel.ANONYMOUS) HttpRequestMessage<Optional<String>> request, final ExecutionContext context) { context.getLogger().info("Java HTTP trigger processed a request."); // Parse query parameter final String query = request.getQueryParameters().get("name"); final String name = request.getBody().orElse(query); if (name == null) { return request.createResponseBuilder(HttpStatus.BAD_REQUEST).body("Please pass a name on the query string or in the request body").build(); } else { String resp = """ { "name" : "response" } """; context.getLogger().info(request.toString()); return request.createResponseBuilder(HttpStatus.OK).body(resp).build(); } } } My query -

DECLARE @response AS NVARCHAR(MAX); EXEC sp_invoke_external_rest_endpoint @url = N'https://security-test-asd.azurewebsites.net/api/HttpExample?name=name', @method = 'GET', @credential = [https://security-test-asd.azurewebsites.net/api/HttpExample], @response = @response OUTPUT; SELECT @response
Nandan Hegde 36,886 Reputation points MVP Volunteer Moderator

2024-09-05T03:11:07.6233333+00:00

Can you please specify what permission you have provided the Azure SQL server on the Azure function?
Ayush Shrivastava 120 Reputation points

2024-09-05T07:34:29.47+00:00

I have provided my SQL server's Identity(System assigned) role - Website Contributor and Contributor role.

Answer 1

Ayush Shrivastava 120

This is still not working. Can we do this over a quick call?

0 comments

Answer 2

Nandan Hegde 36,886 MVP Volunteer Moderator

For bare minimal testing, you can provide the Azure SQL server contributor role at the Azure function via RBAC and test out your execution.

Note : This is some higher privelege

You can follow the below link to create a custom role for least min privilege if need be :

https://stackoverflow.com/questions/63610514/which-permission-allows-triggering-of-an-azure-function

Nandan Hegde 36,886 Reputation points MVP Volunteer Moderator

2024-09-05T09:54:49.33+00:00

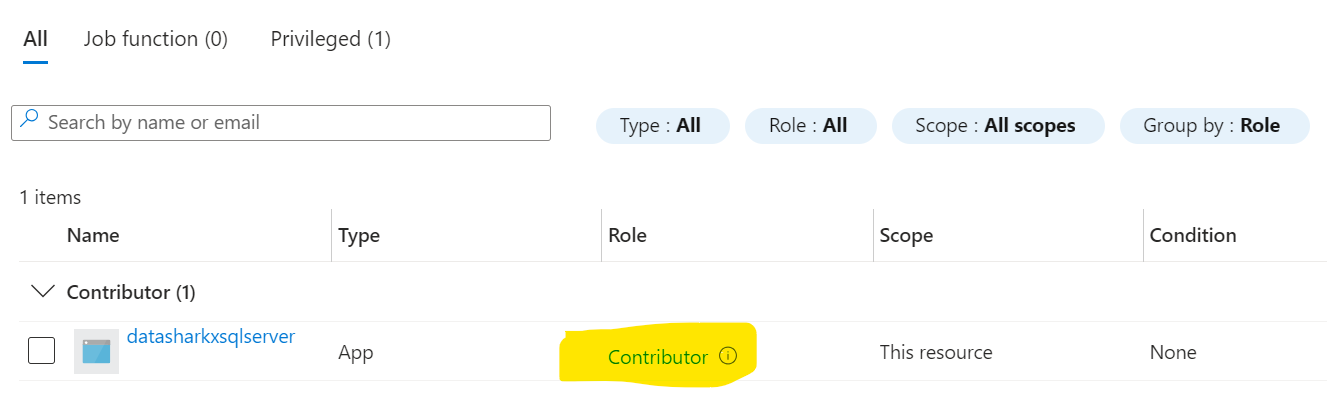

I have provided my SQL server contributor role at the Az function level and it is working as expected (note: the function is https trigger type)
