Hi,
I am trying to create a Java project that converts a Word file to a PDF file using the Microsoft Graph API. I will create the Word file and upload it to OneDrive using the Graph API and then download it as a PDF. As this is a service, I want app-only authentication for my application.

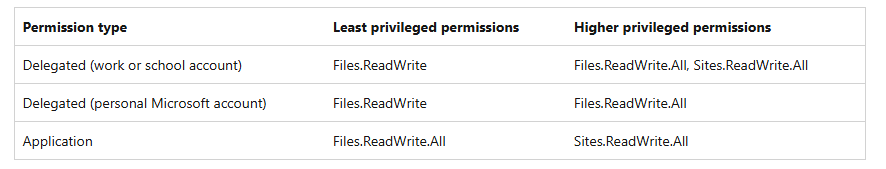

I have created an application in the Azure AD portal and obtained the client ID, tenant ID, and client secret as per the documentation. I have given all the necessary permissions for the operation, including User.ReadBasic.All
, User.Read.All
, File.Read.All
, File.ReadWrite.All
, Sites.ReadWrite.All
, and Directory.Read.All
. Please let me know if I've missed any permission.
I am successfully getting the token but cannot find the proper app-only authentication flow-based code for creating a new folder in OneDrive and uploading a file to it. Also, I need an work flow for converting the file to PDF and downloading it to my local. I can only find the API for delegated AUTH application. Also, I can see the driver ID and driver item ID in the API for going to the particular driver for upload but not understanding how I get those IDs. So please help me create an app-only authentication flow-based application for converting a Word file to PDF.
Please find my poc
package graphapponlytutorial;
import java.io.IOException;
import java.util.HashMap;
import java.util.InputMismatchException;
import java.util.Properties;
import java.util.Scanner;
import com.azure.core.credential.AccessToken;
import com.azure.core.credential.TokenRequestContext;
import com.azure.identity.ClientSecretCredential;
import com.azure.identity.ClientSecretCredentialBuilder;
import com.microsoft.graph.models.DriveItem;
import com.microsoft.graph.models.DriveItemCollectionResponse;
import com.microsoft.graph.models.Folder;
import com.microsoft.graph.models.User;
import com.microsoft.graph.models.UserCollectionResponse;
import com.microsoft.graph.serviceclient.GraphServiceClient;
/**
* Hello world!
*
*/
public class App
{
public static void main(String[] args) {
System.out.println("Java App-Only Graph Tutorial");
System.out.println();
final Properties oAuthProperties = new Properties();
try {
oAuthProperties.load(App.class.getResourceAsStream("oAuth.properties"));
} catch (IOException e) {
System.out.println("Unable to read OAuth configuration. Make sure you have a properly formatted oAuth.properties file. See README for details.");
return;
}
initializeGraph(oAuthProperties);
// Display access token
displayAccessToken();
// Run any Graph code
makeGraphCall();
}
private static void initializeGraph(Properties properties) {
try {
Graph.initializeGraphForAppOnlyAuth(properties);
} catch (Exception e)
{
System.out.println("Error initializing Graph for user auth");
System.out.println(e.getMessage());
}
}
private static void displayAccessToken() {
try {
final String accessToken = Graph.getAppOnlyToken();
System.out.println("Access token: " + accessToken);
} catch (Exception e) {
System.out.println("Error getting access token");
System.out.println(e.getMessage());
}
}
private static void makeGraphCall() {
try {
Graph.makeGraphCall();
} catch (Exception e) {
System.out.println("Error making Graph call");
e.printStackTrace();
}
}
}
class Graph {
private static Properties _properties;
private static ClientSecretCredential _clientSecretCredential;
private static GraphServiceClient _appClient;
public static void initializeGraphForAppOnlyAuth(Properties properties) throws Exception {
// Ensure properties isn't null
if (properties == null) {
throw new Exception("Properties cannot be null");
}
_properties = properties;
if (_clientSecretCredential == null) {
final String clientId = _properties.getProperty("app.clientId");
final String tenantId = _properties.getProperty("app.tenantId");
final String clientSecret = _properties.getProperty("app.clientSecret");
_clientSecretCredential = new ClientSecretCredentialBuilder()
.clientId(clientId)
.tenantId(tenantId)
.clientSecret(clientSecret)
.build();
}
if (_appClient == null) {
_appClient = new GraphServiceClient(_clientSecretCredential,
new String[] { "https://graph.microsoft.com/.default" });
}
}
public static String getAppOnlyToken() throws Exception {
// Ensure credential isn't null
if (_clientSecretCredential == null) {
throw new Exception("Graph has not been initialized for app-only auth");
}
// Request the .default scope as required by app-only auth
final String[] graphScopes = new String[] {"https://graph.microsoft.com/.default"};
final TokenRequestContext context = new TokenRequestContext();
context.addScopes(graphScopes);
final AccessToken token = _clientSecretCredential.getToken(context).block();
return token.getToken();
}
public static void getDriverItems(String driver, String driverItemId) {
DriveItemCollectionResponse collectionResponse = _appClient.drives().byDriveId(driver).items().byDriveItemId(driverItemId).children().get();
System.out.println(collectionResponse.getValue());
}
public static void makeGraphCall() {
// Create a folder by posting a new DriveItem
DriveItem folder = new DriveItem();
folder.setName("NewFolder"); // Name of the folder you want to create
folder.setFolder(new Folder()); // Indicating it's a folder
HashMap<String, Object> additionalData = new HashMap<String, Object>();
folder.setAdditionalData(additionalData);
additiona
String myDriveId = _appClient.users().byUserId(userId)
.drive()
.get().getId();
// Create folder in the root of the drive
DriveItemCollectionResponse newFolder =
_appClient
// .users().byUserId(userId)
.drives().byDriveId(myDriveId)
.items() // Specify the folder path
.get();
// _appClient
// .users()
// .get()
// .getValue()
// .forEach(user -> System.out.println("User: " + user.getId() + " - " + user.getDisplayName()));
// .get().getRoot(); // This refers to the root directory
// .buildRequest()
// .post(folder);
System.out.println("Folder created with ID: " );
}
}
<dependencyManagement>
<dependencies>
<dependency>
<groupId>com.azure</groupId>
<artifactId>azure-sdk-bom</artifactId>
<version>1.2.10</version>
<type>pom</type>
<scope>import</scope>
</dependency>
</dependencies>
</dependencyManagement>
<dependencies>
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>3.8.1</version>
<scope>test</scope>
</dependency>
<dependency>
<!-- Include the sdk as a dependency -->
<groupId>com.microsoft.graph</groupId>
<artifactId>microsoft-graph</artifactId>
<!--x-release-please-start-version-->
<version>[6.0,)</version>
<!--x-release-please-end-->
</dependency>
<dependency>
<groupId>com.azure</groupId>
<artifactId>azure-identity</artifactId>
<version>1.13.1</version> <!-- Or the latest version -->
</dependency>
<dependency>
<groupId>com.azure</groupId>
<artifactId>azure-core</artifactId>
<version>1.51.0</version> <!-- Or the latest version -->
</dependency>
</dependencies>
Thank you, Geethu P
